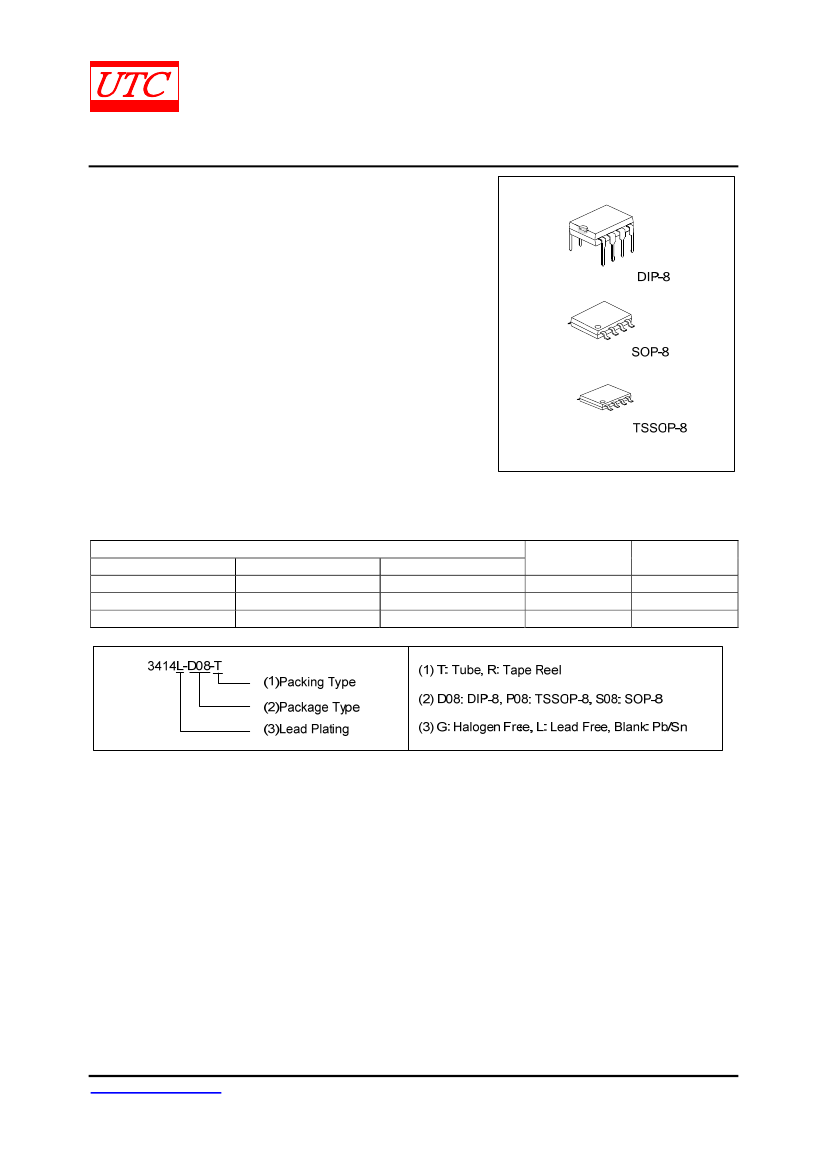

UNISONIC TECHNOLOGIES CO., LTD

3414

SINGLE-SUPPLY DUAL HIGH

CURRENT OPERATIONAL

AMPLIFIER

DESCRIPTION

The UTC

3414

integrated circuit is a high gain, high output

current, high output voltage swing dual operational amplifier capable

of driving 70mA.

LINEAR INTEGRATED CIRCUIT

FEATURES

*Single supply

*Operating voltage: 3V~15V

*High output current: 70mA

*Slew rate:

10V/μA(Typ.)

*Bipolar technology

Lead-free:

3414L

Halogen-free: 3414G

ORDERING INFORMATION

Normal

3414-D08-T

3414-P08-R

3414-S08-R

Ordering Number

Lead Free Plating

3414L-D08-T

3414L-P08-R

3414L-S08-R

Halogen Free

3414G-D08-T

3414G-P08-R

3414G-S08-R

Package

DIP-8

TSSOP-8

SOP-8

Packing

Tube

Tape Reel

www.unisonic.com.tw

1 of 7

QW-R105-009.E

3414_09 Related Products

	3414_09	3414-D08-T	3414-P08-R	3414-S08-R	3414L-D08-T	3414L-P08-R	3414L-S08-R
Description	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, DIP8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, DIP8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, DIP8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.3 MHz BAND WIDTH, PDSO8
Is it Rohs certified?	-	incompatible	incompatible	incompatible	conform to	conform to	conform to
Maker	-	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	-	UNISONIC TECHNOLOGIES CO.,LTD
Parts packaging code	-	DIP	SOIC	SOIC	DIP	SOIC	SOIC
package instruction	-	DIP, DIP8,.3	TSSOP, TSSOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3	TSSOP, TSSOP8,.25	SOP, SOP8,.25
Contacts	-	8	8	8	8	8	8
Reach Compliance Code	-	compli	compli	compli	compli	compliant	compli
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	-	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA
Maximum bias current (IIB) at 25C	-	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA
Nominal Common Mode Rejection Ratio	-	90 dB	90 dB	90 dB	90 dB	90 dB	90 dB
frequency compensation	-	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	-	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV
JESD-30 code	-	R-XDIP-T8	R-PDSO-G8	R-PDSO-G8	R-XDIP-T8	R-PDSO-G8	R-PDSO-G8
length	-	9.2 mm	4.4 mm	4.92 mm	9.2 mm	4.4 mm	4.92 mm
low-dissonance	-	NO	NO	NO	NO	NO	NO
Number of functions	-	2	2	2	2	2	2
Number of terminals	-	8	8	8	8	8	8
Maximum operating temperature	-	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	-	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	TSSOP	SOP	DIP	TSSOP	SOP
Encapsulate equivalent code	-	DIP8,.3	TSSOP8,.25	SOP8,.25	DIP8,.3	TSSOP8,.25	SOP8,.25
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
method of packing	-	TUBE	TAPE AND REEL	TAPE AND REEL	TUBE	TAPE AND REEL	TAPE AND REEL
power supply	-	8.6 V	8.6 V	8.6 V	8.6 V	8.6 V	8.6 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	4.31 mm	1.2 mm	1.96 mm	4.31 mm	1.2 mm	1.96 mm
Nominal slew rate	-	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us
Maximum slew rate	-	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA
Supply voltage upper limit	-	15 V	15 V	15 V	15 V	15 V	15 V
Nominal supply voltage (Vsup)	-	8.6 V	8.6 V	8.6 V	8.6 V	8.6 V	8.6 V
surface mount	-	NO	YES	YES	NO	YES	YES
technology	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	-	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	-	2.54 mm	0.65 mm	1.27 mm	2.54 mm	0.65 mm	1.27 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	-	1300 kHz	1300 kHz	1300 kHz	1300 kHz	1300 kHz	1300 kHz
Minimum voltage gain	-	25110	25110	25110	25110	25110	25110
width	-	7.62 mm	3.05 mm	3.95 mm	7.62 mm	3.05 mm	3.95 mm
