MC4580G-S08-R: DescriptionDUAL OP-AMP, 3000 uV OFFSET-MAX, 15 MHz BAND WIDTH, PDSO8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size370KB，7 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

MC4580G-S08-R Overview

DUAL OP-AMP, 3000 uV OFFSET-MAX, 15 MHz BAND WIDTH, PDSO8

MC4580G-S08-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.5 µA
Maximum bias current (IIB) at 25C	0.5 µA
Nominal Common Mode Rejection Ratio	110 dB
frequency compensation	YES
Maximum input offset voltage	3000 µV
JESD-30 code	R-PDSO-G8
length	4.92 mm
low-bias	NO
low-dissonance	NO
micropower	NO
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power	NO
power supply	+-15 V
Programmable power	NO
Certification status	Not Qualified
Maximum seat height	1.96 mm
Nominal slew rate	5 V/us
Maximum slew rate	9 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	15000 kHz
Minimum voltage gain	31620
broadband	NO
width	3.95 mm

Preview

Download Datasheet

View All

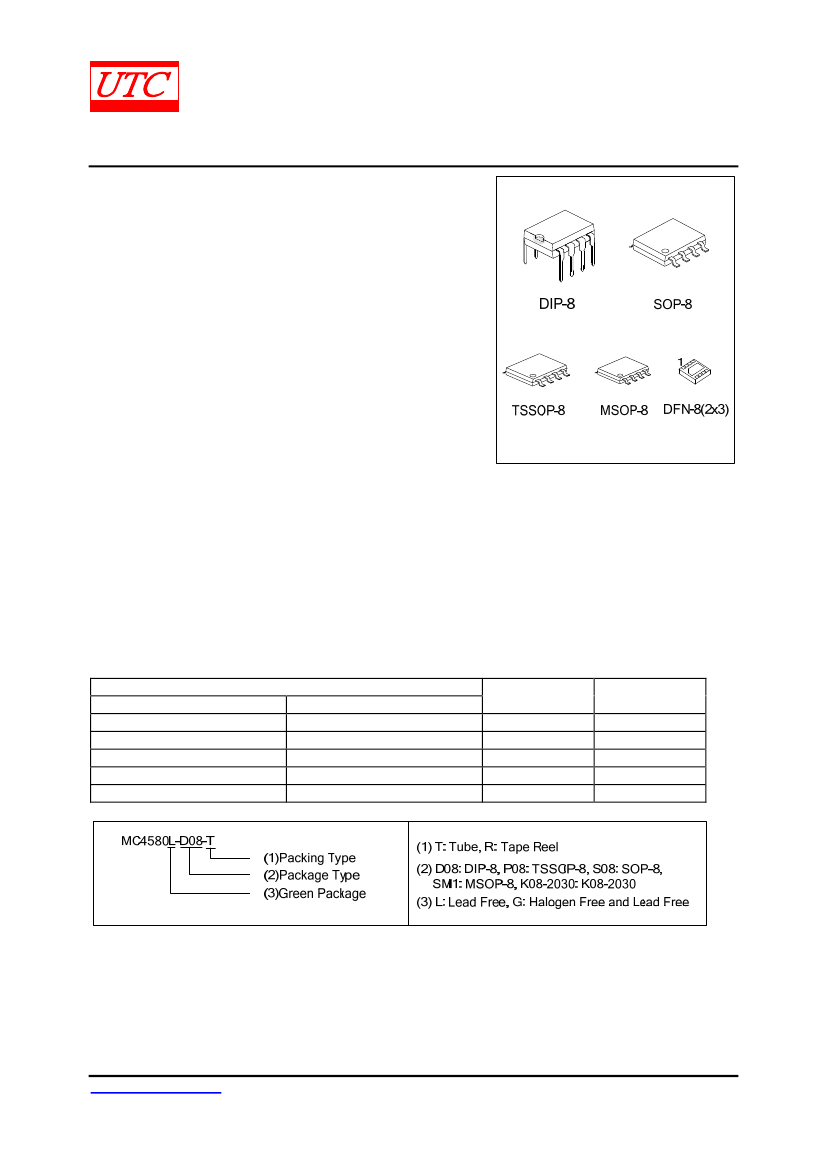

UNISONIC TECHNOLOGIES CO., LTD

MC4580

DUAL OPERATIONAL

AMPLIFIER



DESCRIPTION

LINEAR INTEGRATED CIRCUIT

The UTC

MC4580

is the dual operational amplifier, specially

designed for improving the tone control, which is most suitable for

the audio application.

Featuring noiseless, higher gain bandwidth, high output current

and low distortion ratio, and it is most suitable not only for acoustic

electronic parts of audio pre-amp and active filter, but also for the

industrial measurement tools. It is also suitable for the head phone

amp at higher output current, and further more, it can be applied for

the handy type set operational amplifier of general purpose in

application of low voltage single supply type which is properly biased

of the input low voltage source.



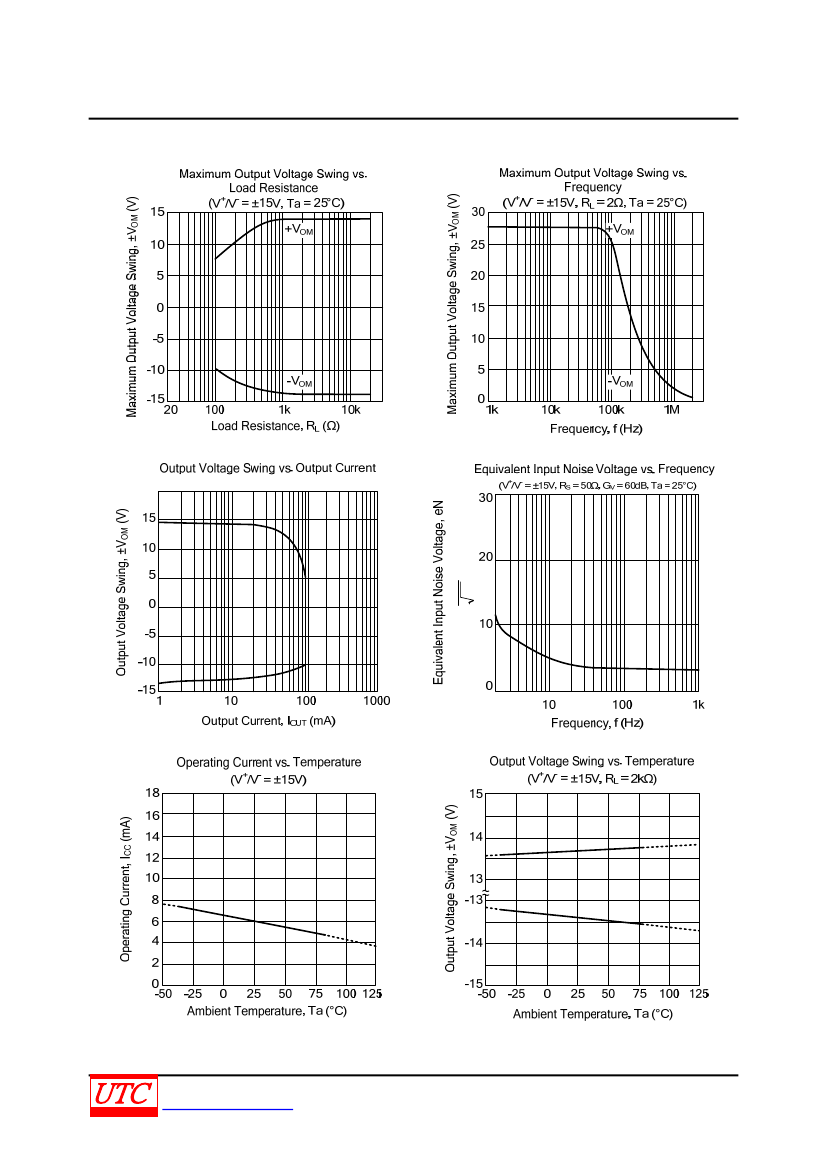

FEATURES

(±2V ~ ±18V)

(0.8µVrms typ.)

(15MHz typ.)

(0.0005% typ.)

(5V/µs typ.)

*Operating voltage

*Low input noise voltage

*Wide gain bandwidth product

*Low distortion

*Slew rate

*Bipolar technology



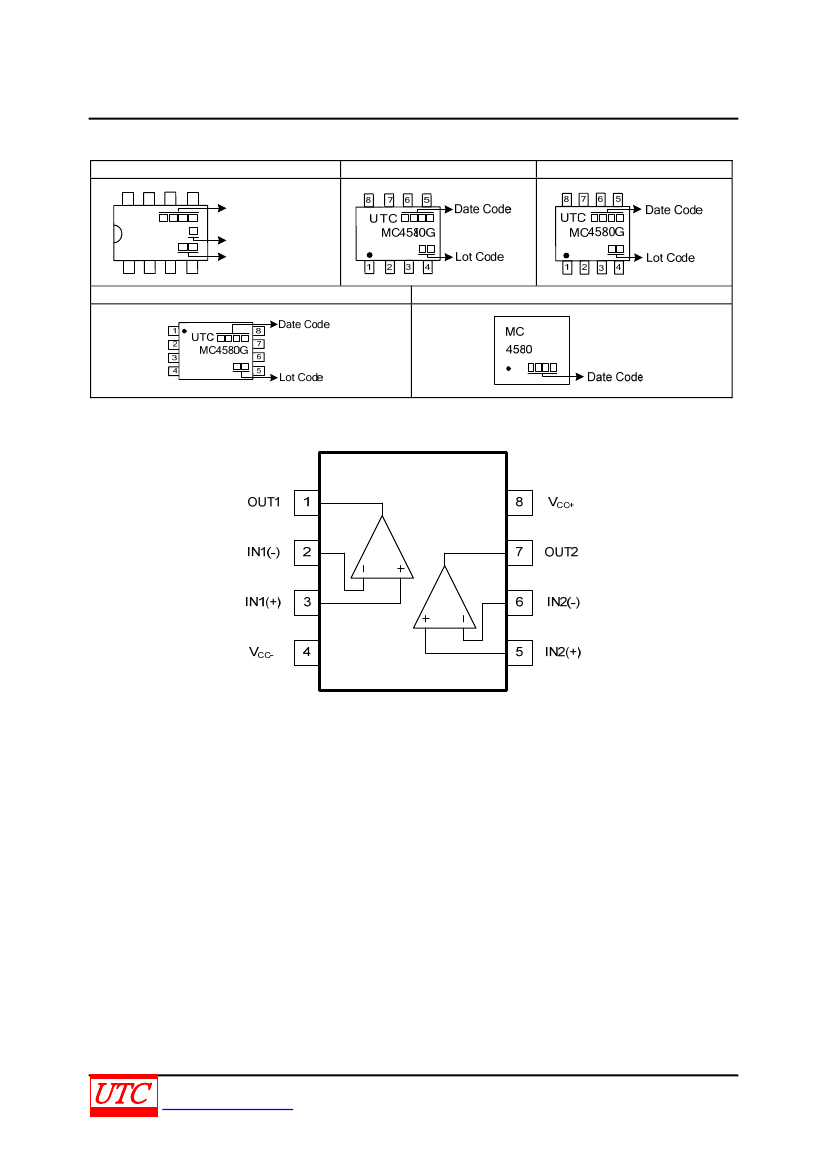

ORDERING INFORMATION

Ordering Number

Lead Free Plating

MC4580L-D08-T

Halogen Free

MC4580G-D08-T

MC4580G-S08-R

MC4580G-P08-R

MC4580G-SM1-R

MC4580G-K08-2030-R

Package

DIP-8

SOP-8

TSSOP-8

MSOP-8

DFN-8(2×3)

Packing

Tube

Tape Reel

www.unisonic.com.tw

1 of 7

QW-R105-013.H
