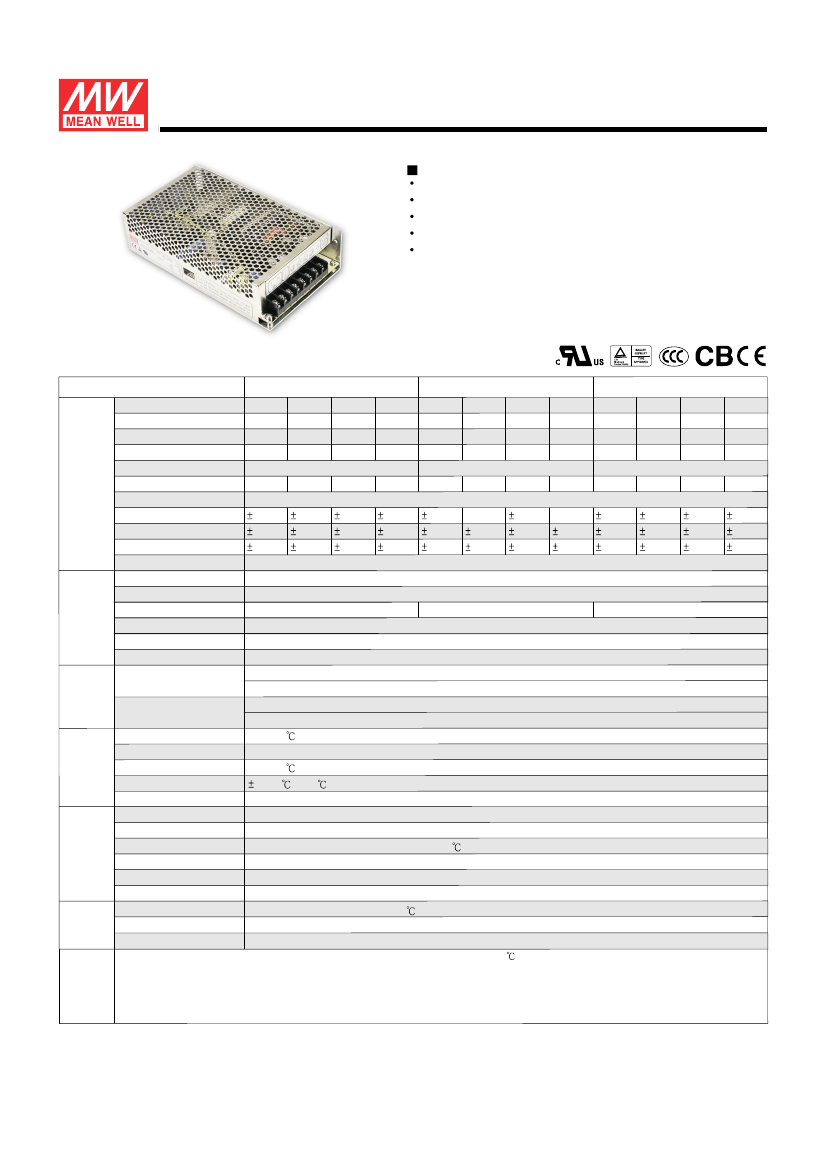

120W Quad Output Switching Power Supply
Features :
AC input range selected by switch
Q-120
series
Protections: Short circuit / Overload / Over voltage
100% full load burn-in test
Fixed switching frequency at 25KHz
2 years warranty
SPECIFICATION
MODEL
OUTPUT NUMBER
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (max.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
Q-120B
CH1
5V
11A
2 ~ 12A
120W
CH1: 4.75 ~ 5.5V
2.0%
6.0%
0.5%
0.5%
1.0%
5.0%
CH2
12V
4A
0.5 ~ 5A
CH3
-5V
1A
0.2 ~ 1A
CH4
-12V
1A
0.2 ~ 1A
Q-120C
CH1
5V
10A
2 ~ 12A
122.5W
CH2
15V
3.5A
0.5 ~ 5A
CH3
-5V
1A
0.2 ~ 1A
CH4
-15V
1A
0.2 ~ 1A
Q-120D
CH1
5V
8A
2 ~ 12A
124W
CH2
12V
2A
0.2 ~ 5A
CH3
24V
2A
0.2 ~ 2A
CH4
-12V
1A
0.2 ~ 1A
RIPPLE & NOISE (max.)
Note.2
80mVp-p 120mVp-p 80mVp-p 120mVp-p 80mVp-p 150mVp-p 80mVp-p 150mVp-p 80mVp-p 120mVp-p 180mVp-p 120mVp-p
6.0%
1.0%
5.0%
6.0%
1.0%
5.0%
2.0%
0.5%
0.5%
+10,-5%
1.0%
6.0%
6.0%
1.0%
5.0%
+10,-5%
1.0%
6.0%
2.0%
0.5%
0.5%
6.0%
1.0%
5.0%
6.0%
1.0%
5.0%
6.0%
1.0%
5.0%
SETUP, RISE, HOLD UP TIME
200ms, 50ms, 20ms at full load
88 ~ 132VAC/176 ~ 264VAC selected by switch
47 ~ 63Hz
77%
2.8A/115VAC
1.6A/230VAC
COLD START 35A
<3.5mA / 240VAC
105 ~ 135% rated output power
Protection type : Shut down o/p voltage, re-power on to recover
CH1:5.75 ~ 6.75VDC
Protection type : Shut down o/p voltage, re-power on to recover
-10 ~ +60 (Refer to output load derating curve)
20 ~ 90% RH non-condensing
-20 ~ +85
, 10 ~ 95% RH
0.03%/ (0~50 )
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1, CCC GB4943 approved
76%
80%
240 ~ 370VDC
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
SAFETY & ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC
EMI CONDUCTION & RADIATION
Compliance to EN55022 (CISPR22) Class B
(Note 4)
HARMONIC CURRENT
EMS IMMUNITY
MTBF
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
261.4K hrs min. MIL-HDBK-217F (25

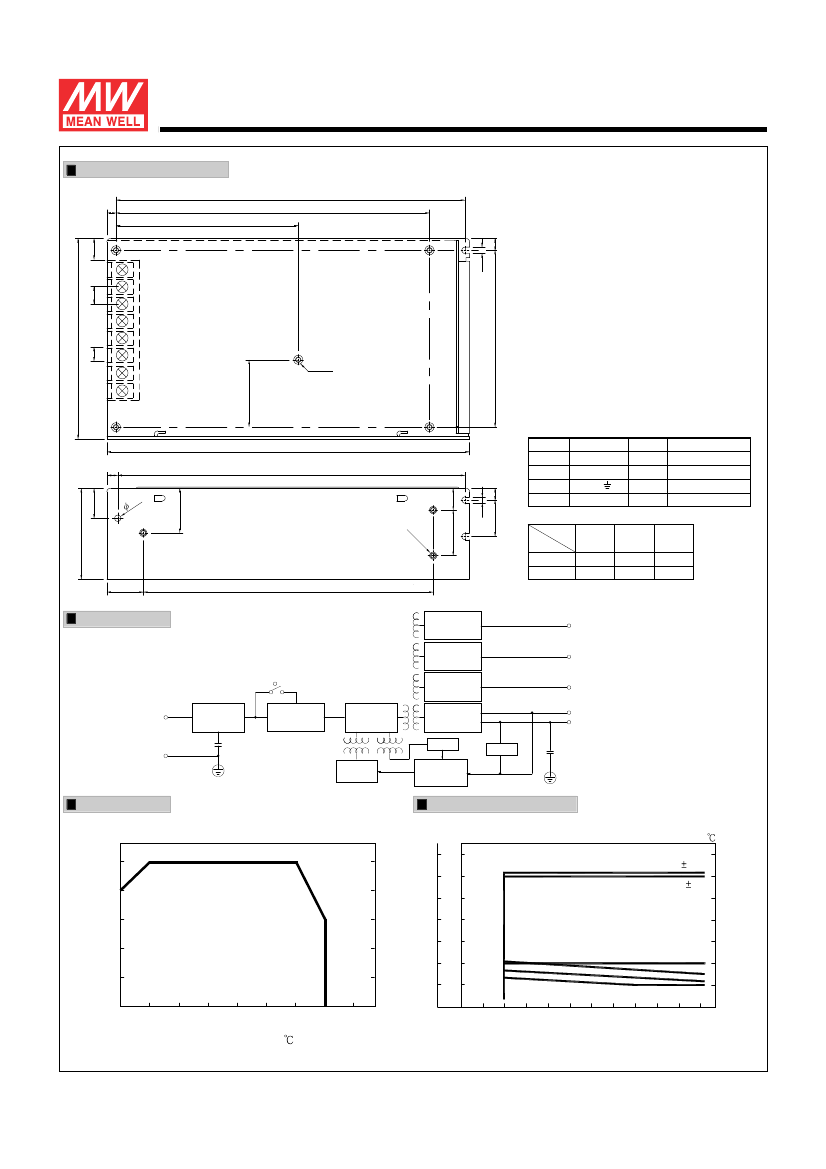

199*110*50mm (L*W*H)
0.86Kg; 16pcs/14.7Kg/0.95CUFT
)
OTHERS
NOTE
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
File Name:Q-120-SPEC 2010-10-18
