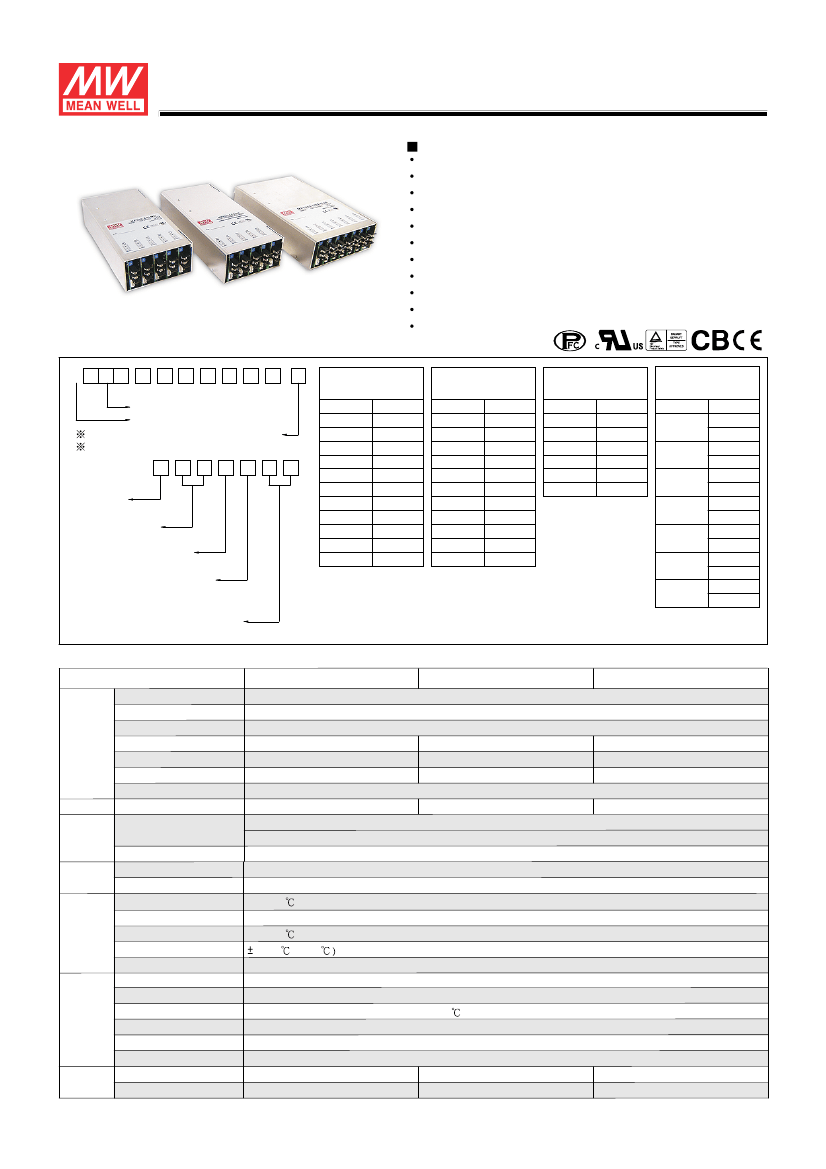

Protection type : Shut down o/p voltage, re-power on to recover
RC+/RC-: 0 ~ 0.8V or OPEN, POWER ON
RC+/RC-: 4 ~ 12V POWER OFF
16.6 ~ 22V
PROTECTION
OVER VOLTAGE
FUNCTION
NOTE
REMOTE INHIBIT CONTROL
1. MP450:The value changed by installing different output modules. The efficiency in specification means output modules are composed by following modules.
MP650:The value changed by installing different output modules. The efficiency in specification means output modules are composed by following modules.
MP1K0:The value changed by installing different output modules. The efficiency in specification means output modules are composed by following modules.
The hold-up time of above combination is 20ms(typ.)
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. 35% Duty cycle maximum within every 10 seconds. Average output power should not exceed the rated power.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
6. If the output voltage adjust to higher level, the rated current should be derated to meet the total rated power for both outputs(For MD-100 only).
Table 1. Parellel code(For MS-300 only)
Code
X
1
2
3
4
5
6
SLOT1
SLOT2
SLOT3
SLOT4
SLOT5
SLOT6
SLOT7
-----
-----
-----
-----
-----
-----
Code X,1,2 for MP450,MP650
Code X,1,2,3,4,5,6 for MP1K0
File Name:MP-450,650,1K0-SPEC 2010-10-18
450W/650W/1000W Modular Power

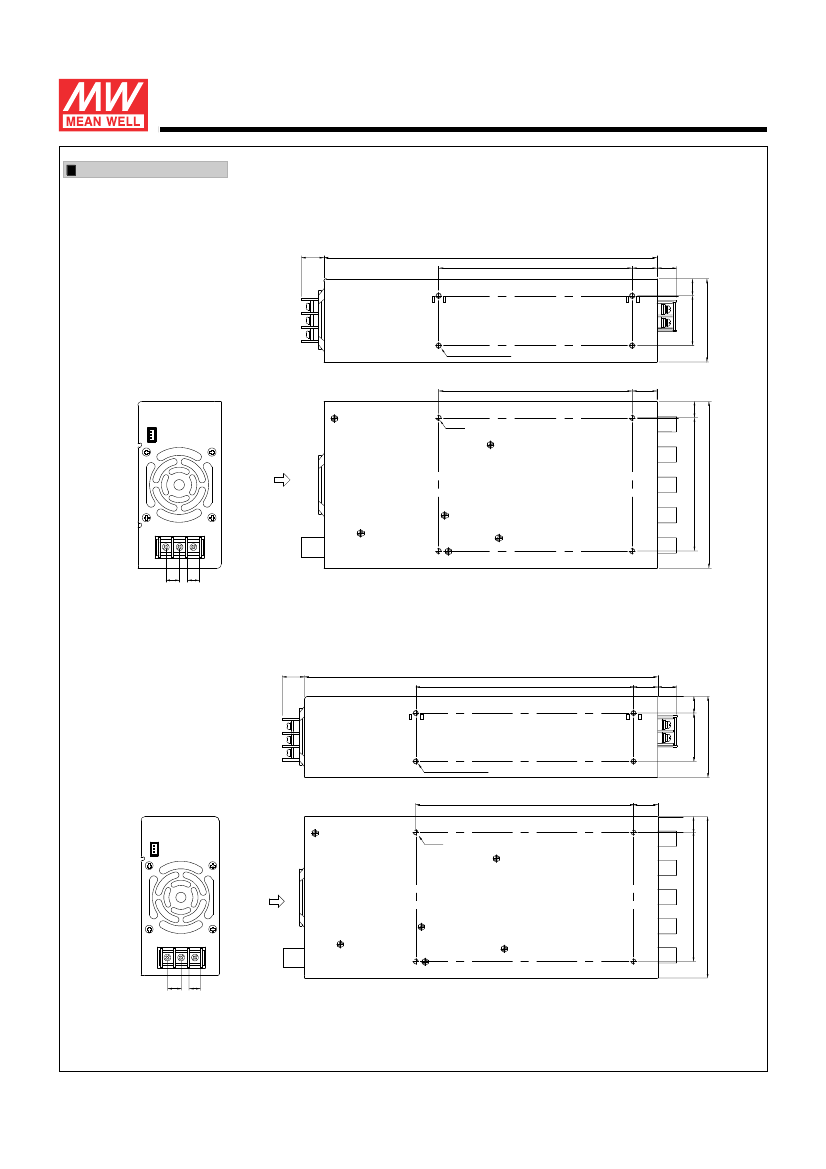

Mechanical Specification
MP
series
Unit:mm
MP450
12 max.
254
147.5
19
16 max.
12.5
8-M4(Both Sides)
147.5
19
12.25
1
2
3
CN4
4-M4
3
TB1
10
2
1
8.2
MP650
12 max.
278
171.5
19 16 max.
8-M4(Both Sides)
171.5
19
12.25
CN4
1
2
3
4-M4
Air flow
direction
3
TB1
10
2
1
8.2
File Name:MP-450,650,1K0-SPEC 2010-10-18
101.5
127
38
63.5
12.5
101.5
127
Air flow
direction
63.5
38
450W/650W/1000W Modular Power
Mechanical Specification
MP1K0
12 max.
278
171.5
MP
series
19
16 max.
12.5
8-M4(Both Sides)
171.5
CN4
1
2
3
19
15.65
4-M4
3
2
1
TB1
10
8.2

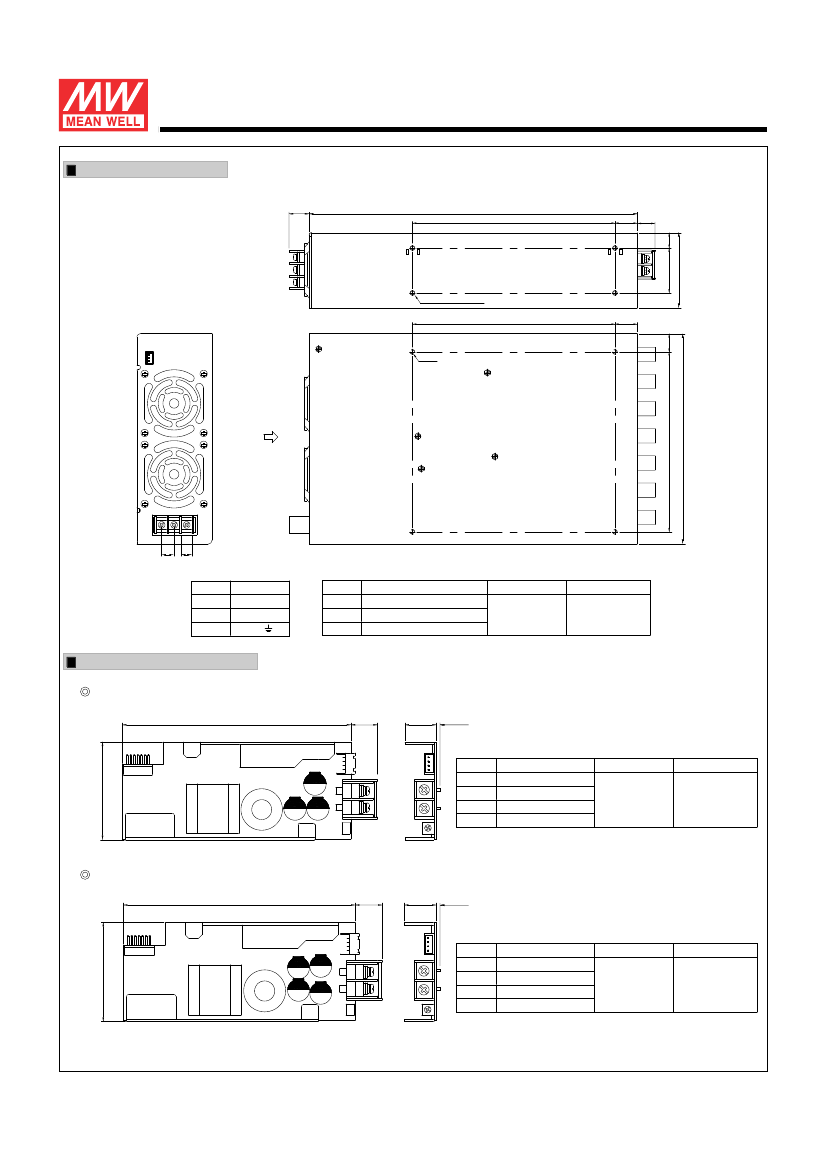

TB1(PFC-450/650/1K0)
Pin No.
1
2
3
Assignment
AC/L
AC/N
FG
CN4(PFC-450/650/1K0) : JST B3B-XH or equivalent
Assignment
Pin No.
1
+RC: +Remote ON/OFF
2
-RC: -Remote ON/OFF
3
VCC: 12V/0.1A auxiliary output
Mating Housing
JST XHP
or equivalent
Terminal
JST SXH-001T-P0.6
or equivalent
Mechanism of Output Modules
MS-75
138
16 max.
CN51
4
1
21 max.
152.4
3 max.
Air flow
direction
177.8
38
63.5
Unit:mm
Output Connector( CN51) : JST B4B-XH or equivalent
Pin No.
1
2
3
4
Assignment
+S: +Remote sensing
-S: -Remote sensing
+RC: +Remote ON/OFF
-RC: -Remote ON/OFF
Mating Housing
JST XHP
or equivalent
Terminal
JST SXH-001T-P0.6
or equivalent
60
-V
+V
SVR1
MS-150
138
16 max.
21 max.
3 max.
CN20
4
1
Output Connector( CN20) : JST B4B-XH or equivalent
