801-007-16NF7-10SD

Description
Circular Connector, 10 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,
CategoryThe connector    The connector
File Size275KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

801-007-16NF7-10SD Overview

Circular Connector, 10 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,

801-007-16NF7-10SD Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerGlenair
Reach Compliance Codenot_compliant
Factory Lead Time17 weeks 1 day
Other featuresPOLARIZED
Back shell typeSOLID
Body/casing typePLUG
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Shell surfaceCADMIUM WITH CHROMATE PLATED
Shell materialALUMINUM ALLOY
Housing size7
Termination typeCRIMP
Total number of contacts10

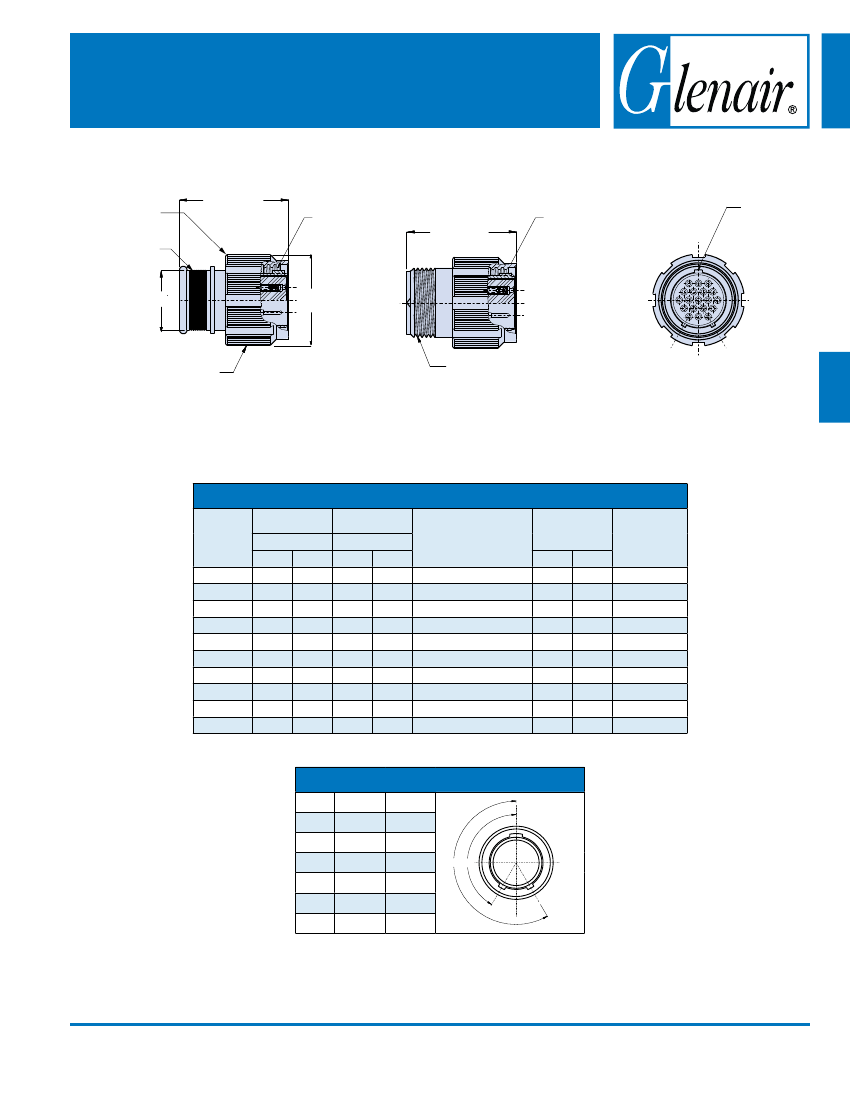

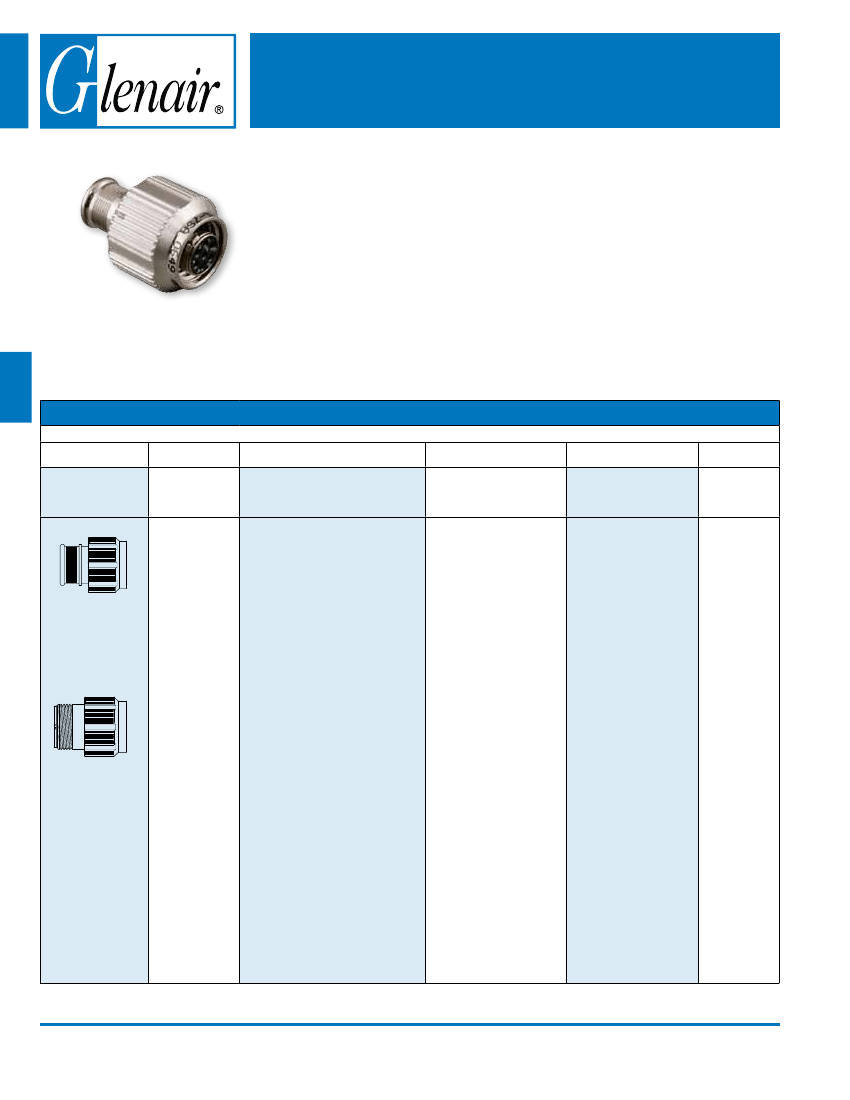

Series 801 Mighty Mouse Double-Start ACME threads
plug Connector ordering Information
801-007 and 801-008
Series 801
A
b
series 801 Plug Connector
C
D
Glenair’s Series 801 Mighty Mouse connector features a double-start modified stub
ACME mating thread for improved protection against cross-mating and theread
damage. Connector shells are machined aluminum or stainless steel. Supplied with
crimp contacts, packaged separately. Terminate contacts with standard M22520 tools.
Metal clips inside the connector body lock contact into place. Contacts are removable.
Fluorosilicone seals and rear grommet protect connector from water ingress. Choose
hex or knurled coupling nut. Terminate cable shield directly to connector body with
BAND-IT strap, or choose rear accessory thread to attach optional cable clamp or
backshell. Available in shell sizes 5 through 21 in 43 contact arrangements.
HoW to oRDER
E
801-007
Series
-16
Shell Style
-16
M
Sample part Number
7-10
p
Contact type
Connector supplied
with contacts
Pin
Socket
Connector supplied
without contacts
Pin
Socket Connector
Connectors with contacts
are supplied with signal
and/or power crimp
contacts. These contacts
are not installed.
Coaxial contacts and non-
standard signal contacts
are ordered separately.
A
Shell Key
position
A
Shell Material / Finish
C
Shell Size- Insert
Arrangement
SEE
G
Plug with Anti-
Decoupling
Spring
Banding Platform
Aluminum / Black Anodize
(Non-Conductive)
RoHS Compliant
Aluminum / Electroless Nickel
RoHS Compliant
Aluminum / Cadmium with
Olive Drab Chromate
Aluminum / Zinc-Nickel with
Olive Drab Chromate
ContaCt
arrangements
PAGE D-2
Normal
Alternate Key
Positions:
p
S
801-007
H
Self-Locking
Plug with
Ratchet
Mechanism
(the "Clicker")
-26
M
NF
zN
A
b
b
C
D
E
F
K
Rear Accessory
Thread
801-008
Aluminum / Zinc-Nickel with
Black Chromate
Aluminum / Nickel-PTFE
RoHS Compliant
Stainless Steel / Passivated
RoHS Compliant
zNu
Mt
z1
M
© 2010 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
13 - FEBRUARY - 2013
D-6
