801-011-07M9-19PA-501 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-011-07M9-19PA-501

801-011-07M9-19PA-501: DescriptionCircular Connector, 19 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size1MB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

801-011-07M9-19PA-501 Overview

Circular Connector, 19 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,

801-011-07M9-19PA-501 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	9
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

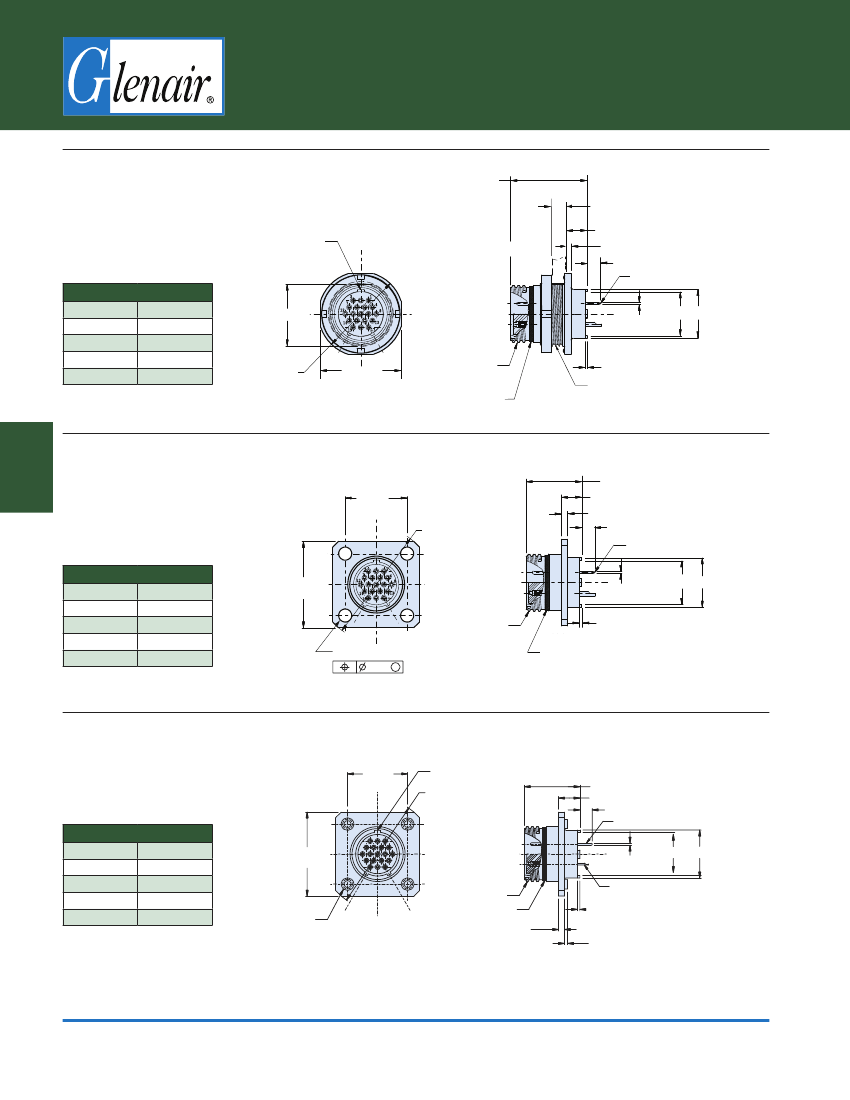

801-011 and 801-033 Ordering Information

Environmental, PCB Receptacle

800-012 connectors feature low profile shells for minimum

protrusion inside enclosures and integral board standoffs. Contacts are non-removable. Specify

800-011 connectors for applications where open face water immersion is not a requirement.

Water Tight PCB Receptacle

800-033 connectors are identical to 801-011 but are specially

sealed (“MOD-518”) and 100% tested to maintain a helium leak rate of less than 1 x 10

-4

cc/

second at one atmosphere pressure differential. Connectors meet MIL-STD-810 Method 512G

immersion requirements in unmated/open face condition.

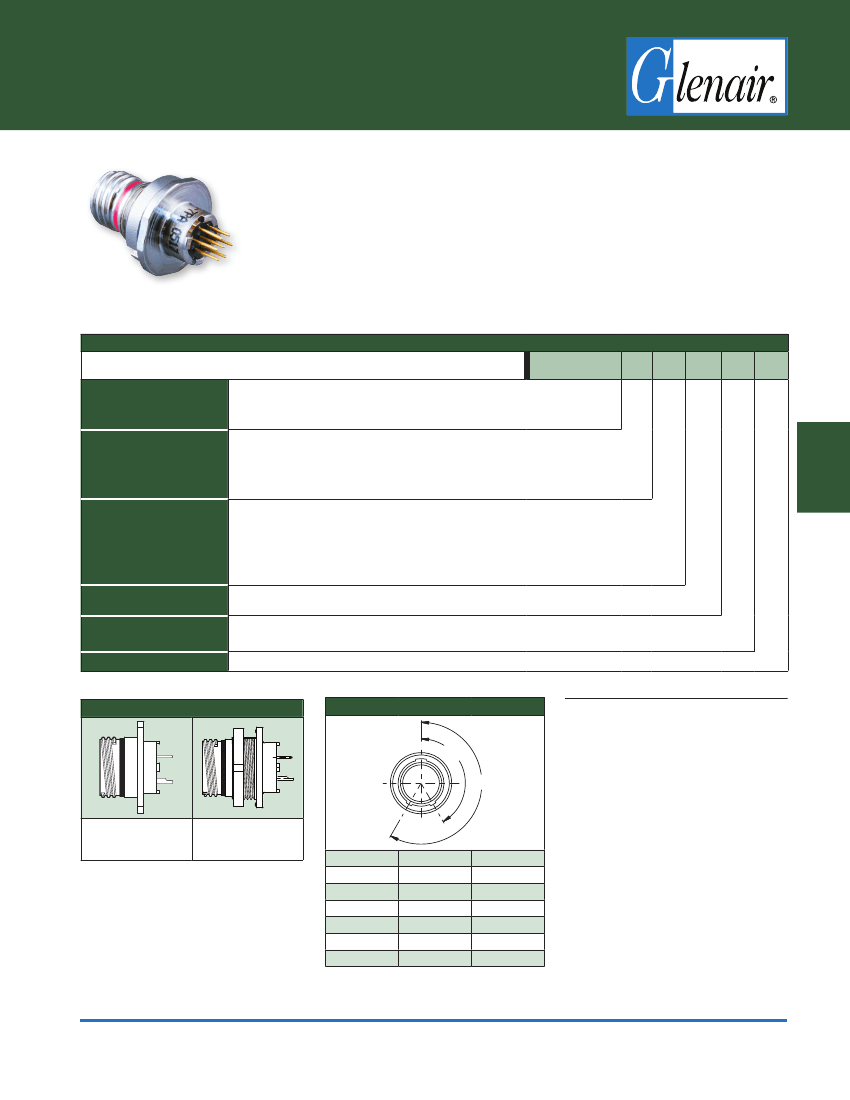

How To Order

Sample Part Number

Series

801-011

= Receptacle for Solder Cup or PCB Termination, with Standard Epoxy

801-033

= Receptacle for Solder Cup or PCB Termination, Meets MIL-STD-810

Method 512G for Water Immersion

-02

= Square Flange, Front or Rear Panel Mount

-12

= Square Flange, Rear Panel Mount with Non-Locking Clinch Nuts

-22

= Square Flange, Rear Panel Mount with Locking Clinch Nuts

-07

= Jam-Nut, Rear Panel Mount

= Aluminum / Electroless Nickel RoHS Compliant

= Aluminum / Nickel-PTFE RoHS Compliant

= Aluminum / Cadmium with Olive Drab Chromate

ZNU

= Aluminum / Zinc-Nickel with Black Chromate

= Stainless Steel / Passivated RoHS Compliant

-02

6-7

Shell Style

(See Table I)

Material and Finish

Shell Size - Insert

Arrangement

Contact Type

Polarization (See Table II)

See Contact Arrangements page D-3

= Pin, Solder Cup

= Socket, Solder Cup

= Pin, PC Tail

= Socket, PC Tail

= Normal

= Pos. B

= Pos. C

= Pos. D

= Pos. E

= Pos. F

Table I: Shell Style

Table II: Keyway Positions

A°

B°

Style -02, -12, -22

Square Flange

Jam-Nut

Style -07

Position

A°

150°

75°

95°

140°

75°

95°

B°

210°

230°

275°

210°

1. Contacts are non removable, the

connector is back potted

2. For additional insert arrangements

consult factory

3. Plug mates with all quick coupling

high density receptacle connectors

with same polarization and opposite

contact gender (801-001, 801-002, 801-

007, 801-008)

4. For all insert arrangements with size #8

contacts, dimension changes to .160”

5. For all insert arrangements with size #8

contacts, add .300” to overall length

NOTES

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

Rev. 05.23.19

Rev. 06.19.18

D-23

E-Mail: sales@glenair.com

Series 801

Series 801 Mighty Mouse Double-Start ACME Thread

Receptacle with PC Tails or Solder Cups

801-011-07M9-19PA-501 Related Products

	801-011-07M9-19PA-501	801-011-07M8-13PA-501	801-011-07M10-26PA-501
Description	Circular Connector, 19 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,	Circular Connector, 13 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,	Circular Connector, 26 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to
Maker	Glenair	Glenair	Glenair
Reach Compliance Code	compliant	compliant	compliant
Back shell type	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Environmental characteristics	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	9	8	10
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	19	13	26
Base Number Matches	-	1	1
