802-005-00: DescriptionCircular Connector, Stainless Steel, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size317KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

802-005-00 Overview

Circular Connector, Stainless Steel, Male, Solder Terminal, Receptacle

802-005-00 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	MAX CONTACTS (SERIES)=19
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	802
Plug information	NO
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	6; 9
Termination type	SOLDER

Preview

Download Datasheet

View All

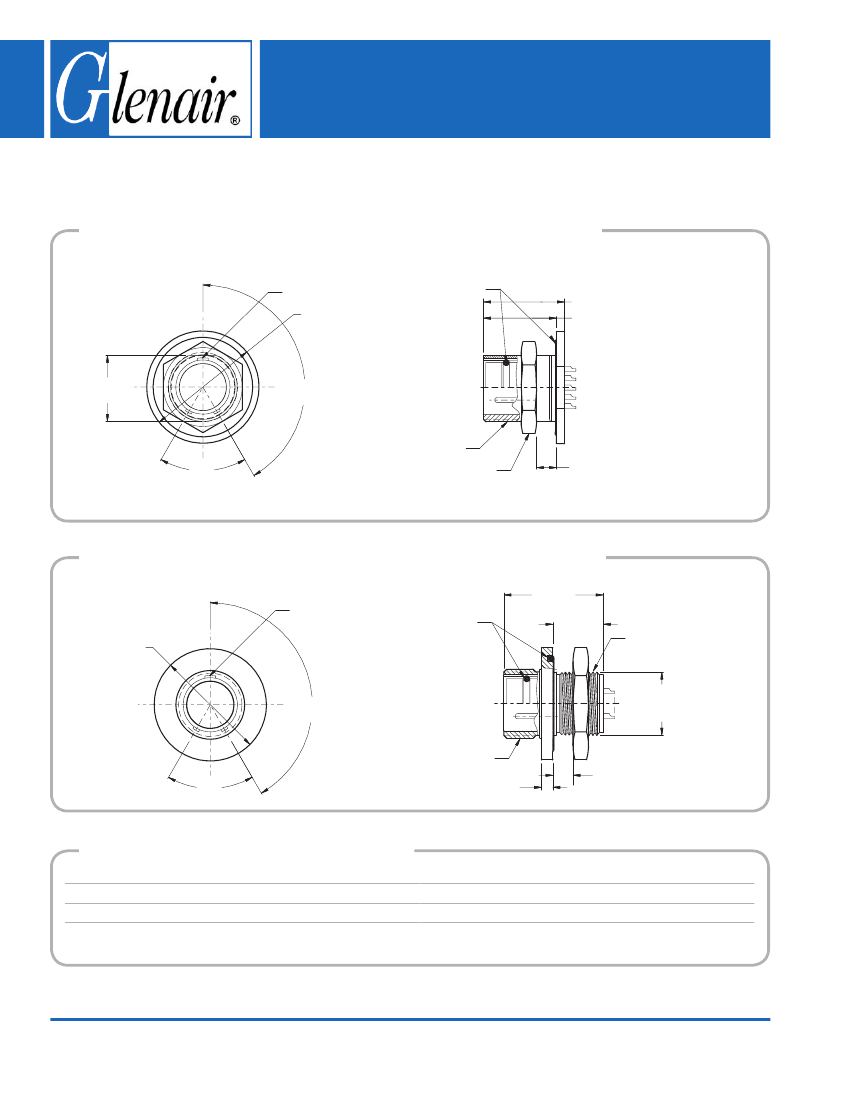

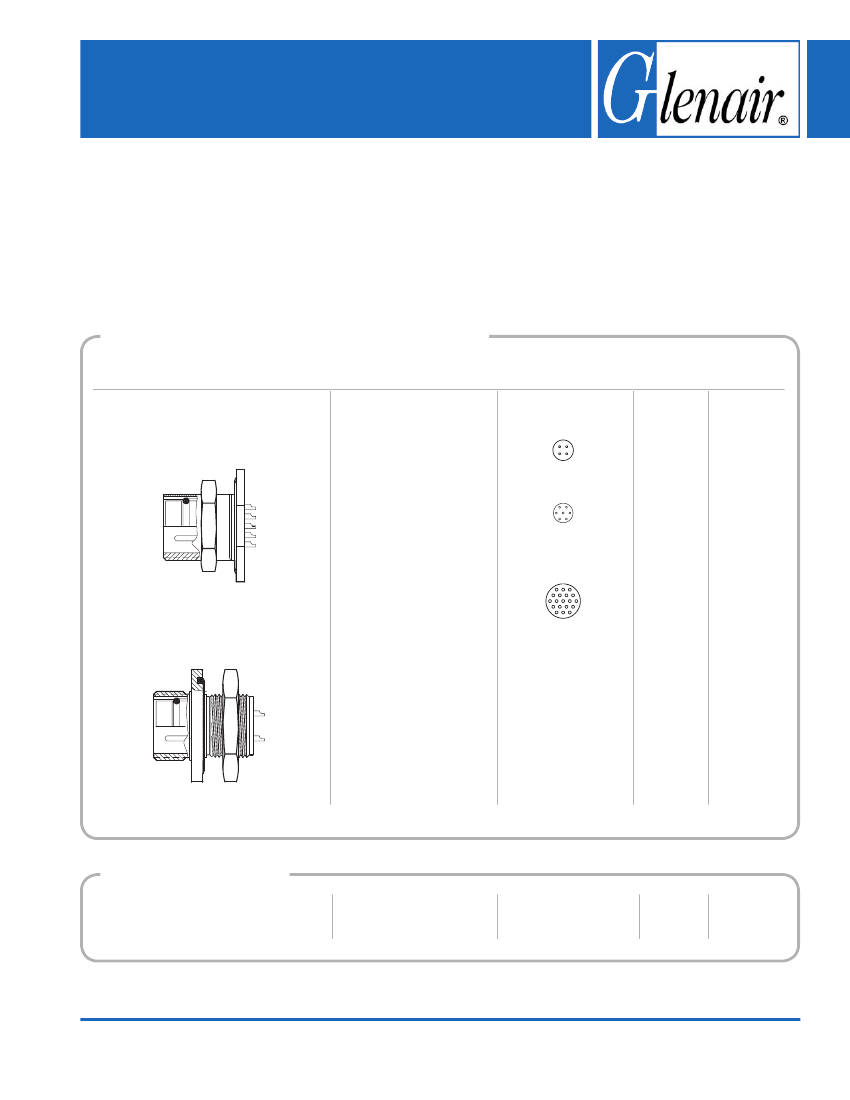

Series 802 “Aqua Mouse”

Hermetic Receptacles

802-004-07 & 802-005-00

How to Order Series 802 Hermetic Receptacles

Series 802 Hermetic Receptacles

offer a 3500 PSI Hydrostatic Pressure Rating, Less Than 1 X

10

-6

cc/sec Helium Leak Rate at 1 Atmosphere, and are available in two shell styles:

Front Mount Jam Nut

Rear Mount Jam Nut

How To Order Series 802 Hermetic Receptacles

Series / Shell Style

Rear Mount Jam Nut

Shell Material / Finish

Stainless Steel, with Passivated Finish

Shell Size / Insert

Arrangement

4 Contacts

Contact

Type

Shell Key

Position

Normal

Alternate Key

Positions

802-004-07

Z1

6-4

P

N

7 Contacts

6-7

x

y

z

19 Contacts

9-19

Front Mount Jam Nut

802-005-00

Part Number Example

802-004-07

Z1

9—19

P

N

www.glenair.com

CAGE Code 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

D-9

Series 802

Submersible
