802-008-06Z112-2PA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 802-008-06Z112-2PA

802-008-06Z112-2PA: DescriptionCircular Connector, 2 Contact(s), Stainless Steel, Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size111KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

802-008-06Z112-2PA Overview

Circular Connector, 2 Contact(s), Stainless Steel, Male, Crimp Terminal, Plug,

802-008-06Z112-2PA Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	12
Termination type	CRIMP
Total number of contacts	2

Preview

Download Datasheet

View All

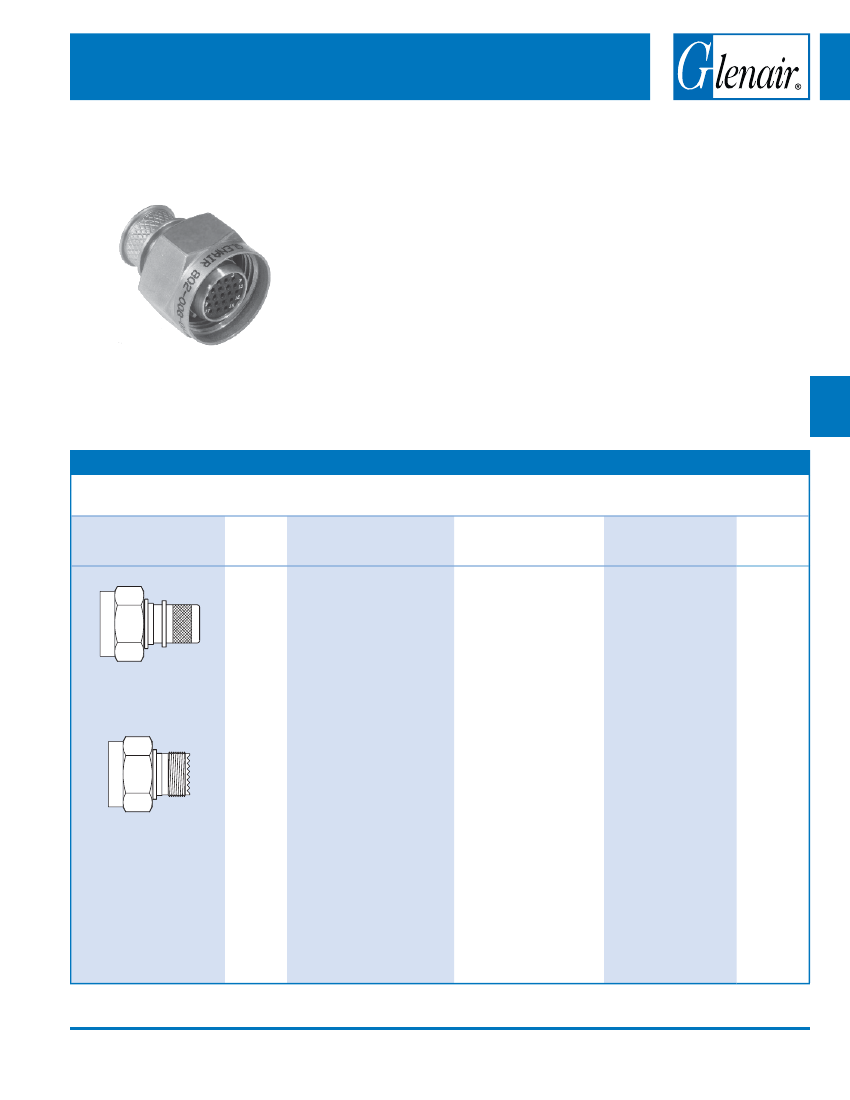

Series 802 “Aqua Mouse”

3500 PSI Rated

Series 802 Plug Connectors

Stainless Steel Shell

and

Nickel-

Aluminum-Bronze Coupling Nut

withstand corrosion in the most

hostile environments. Rated for 3500

PSI when mated and overmolded to

cable, these connectors are suitable

for geophysical and underwater

applications.

Gold-Plated Contacts

are supplied

loose for crimping to wire. High

density size 23 contact arrangements

offer #22 – #30 AWG wire

accommodation, or choose #12 or #16

contacts for higher power needs.

Two Shell Styles:

Integral platform

for direct shield attachment using

BAND-IT® termination system, or

accessory thread for attaching a strain

relief.

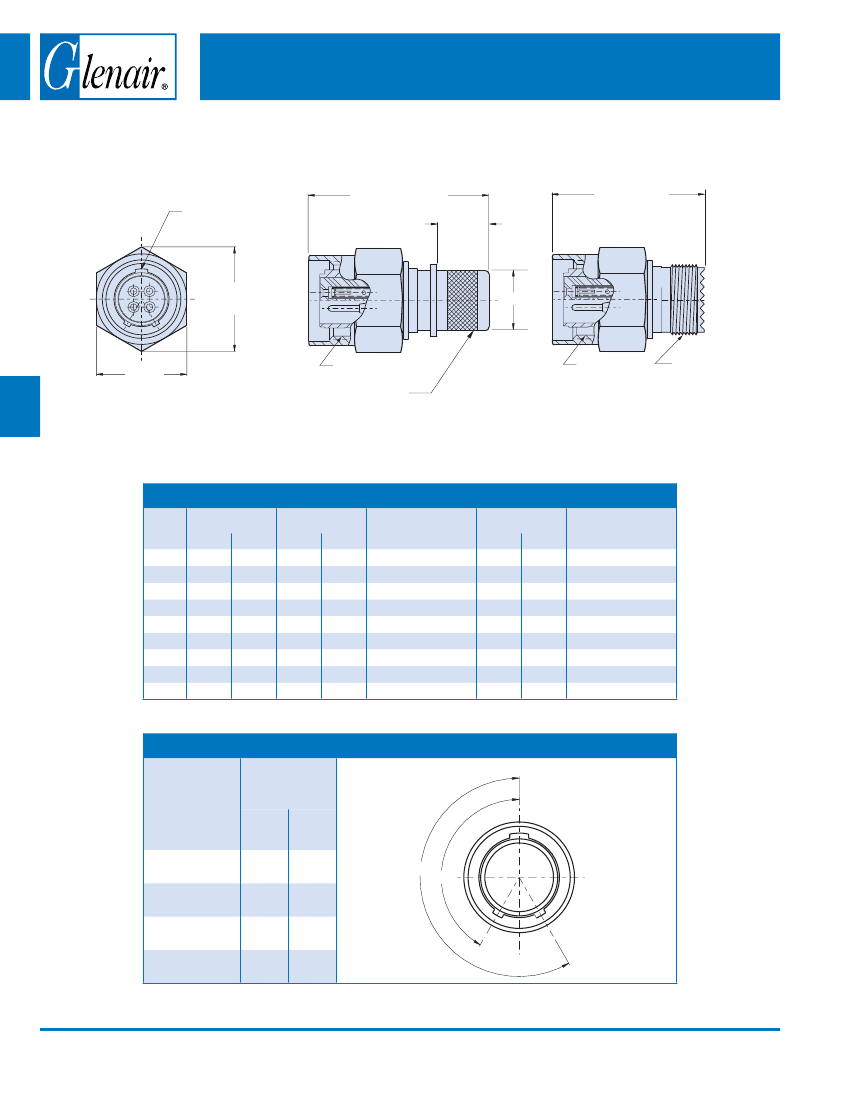

Contact Type

802-008-06Z19-19SN

HOW TO ORDER SERIES 802 PLUGS

Sample Part Number

802-009

Series

– 06

Shell

Style

Plug

Shell Material / Finish

9-19

Shell Size- Insert

Arrangement

3 #23 Contacts

1 #16 Contact

4 #23 Contacts

7 #23 Contacts

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

26 #23 Contacts

2 #12 Contacts

37 #23 Contacts

55 #23 Contacts

85 #23 Contacts

Shell Key

Position

Normal

802-008

Plug with Banding

Platform

5-3

Stainless Steel / Passivated

6-1

6-4

6-7

Stainless Steel / Electroless

7-1

Nickel Plated

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

Socket

Standard #23 contacts

accept #22 through

#28 AWG wire. Special

contacts for #26 to #30

AWG are available. Use

the following contact

codes to specify these

contacts:

Pos. B

Pos. C

Pos. D

802-009

Plug with Accessory

Thread

#23 contacts are packaged

with connectors. #16 and #12

contacts must be ordered

separately.

Pin #2630

Socket #2630

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

E-3

E-Mail: sales@glenair.com
