802-010-02ZI8-13PA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 802-010-02ZI8-13PA

802-010-02ZI8-13PA: DescriptionCircular Connector, 13 Contact(s), Stainless Steel, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size205KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

802-010-02ZI8-13PA Overview

Circular Connector, 13 Contact(s), Stainless Steel, Male, Crimp Terminal, Receptacle,

802-010-02ZI8-13PA Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	8
Termination type	CRIMP
Total number of contacts	13

Preview

Download Datasheet

View All

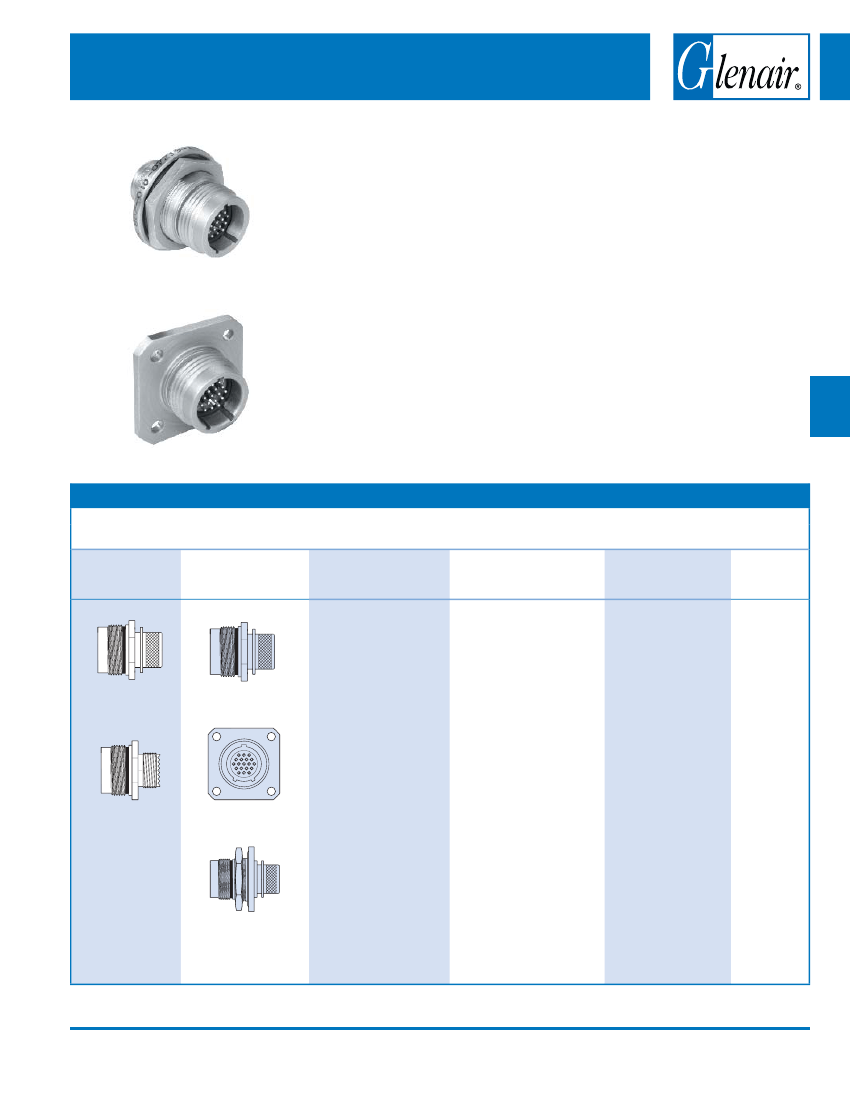

Series 802 “Aqua Mouse”

3500 PSI Rated

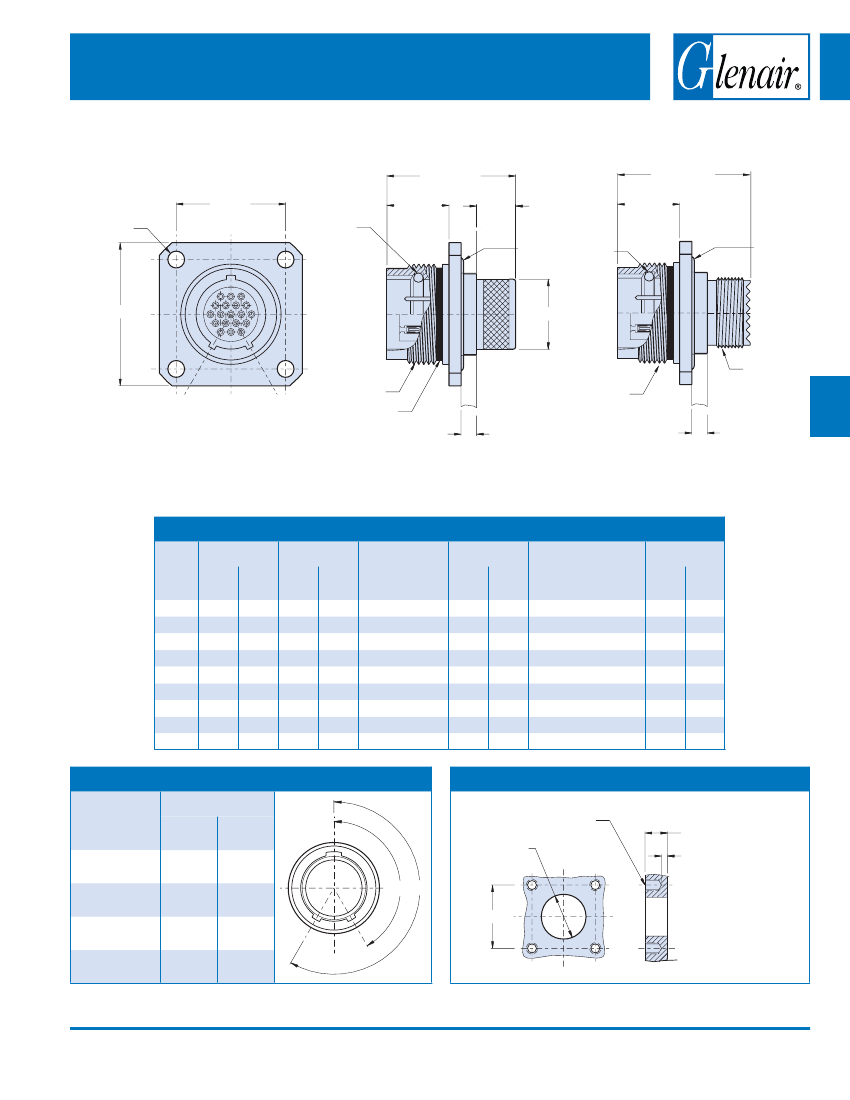

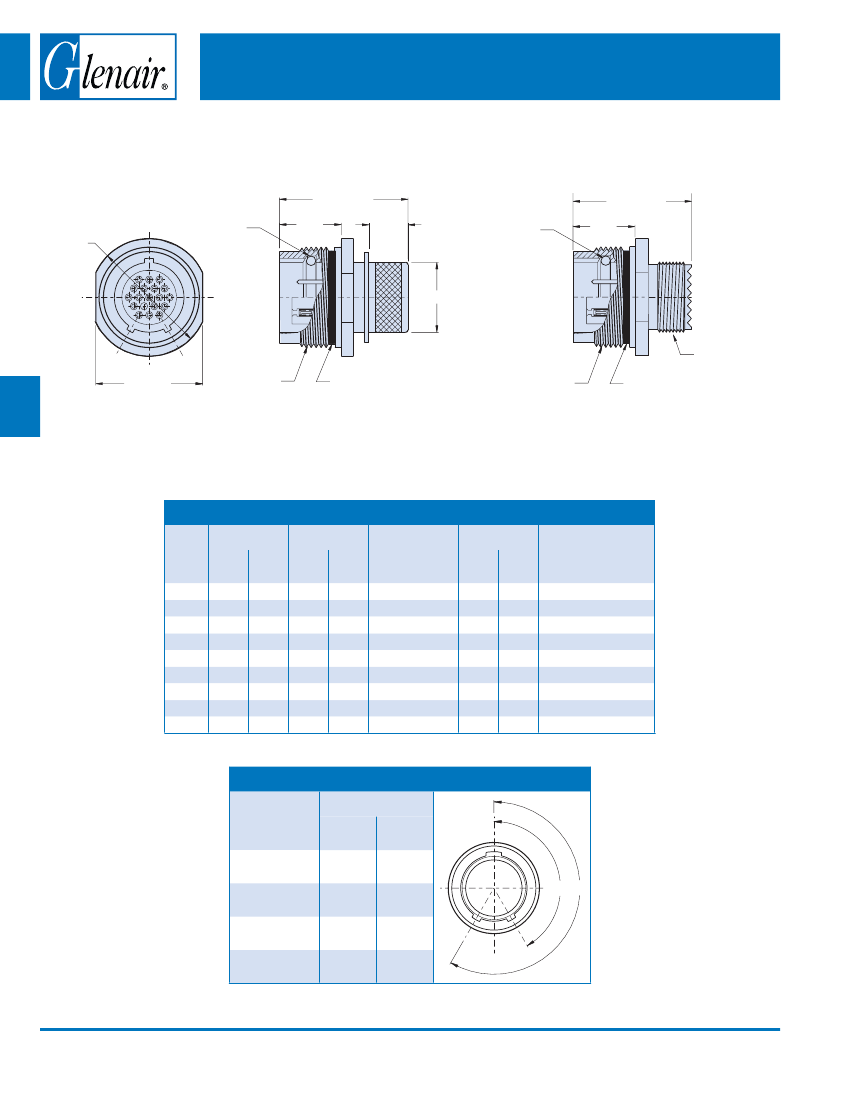

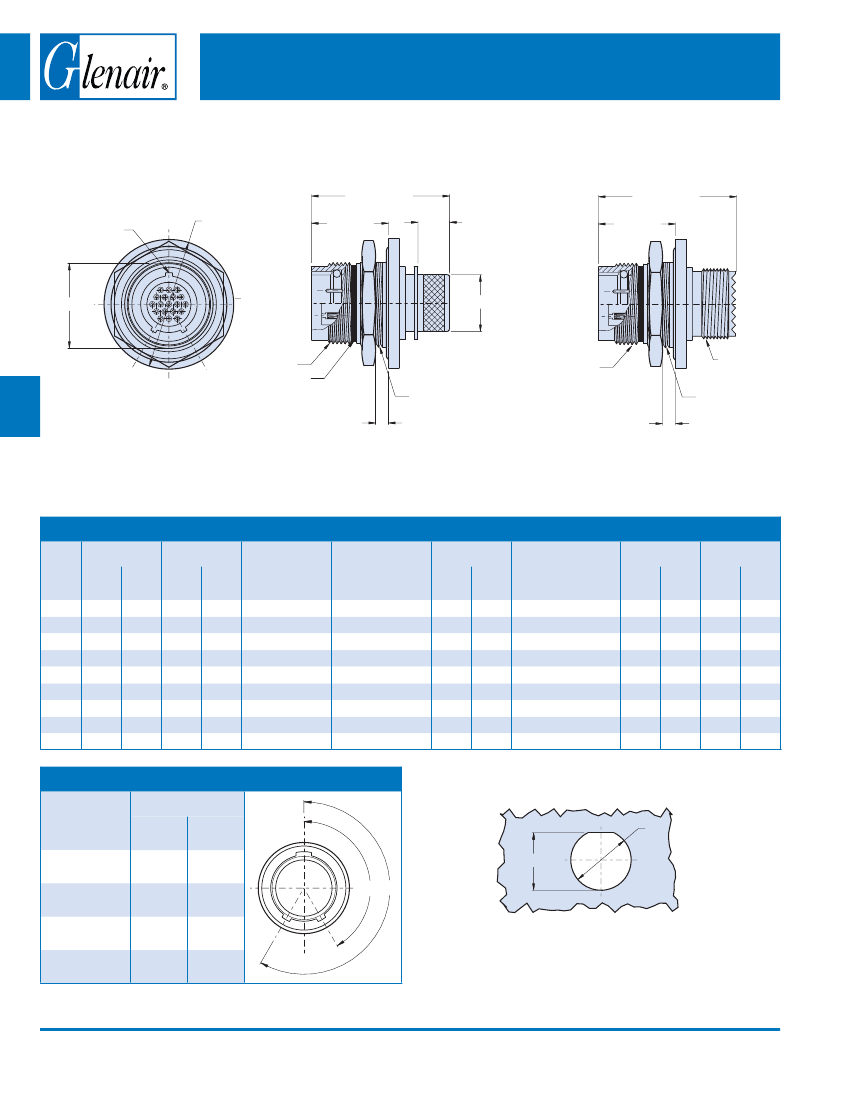

Series 802 Receptacles

Viton® Rubber Seals

offer

outstanding resistance to chemicals.

A piston o-ring provides sealing to the

mating plug. Pin inserts have a Viton

interfacial seal for “cork in bottle” for

extra protection.

316 Series

Stainless Steel

shells

offer maximum resistance to mecanical

and environmental abuse.

Three Shell Mounting Options:

Jam nut with o-ring for rear panel

mounting, square ﬂange for front

panel mounting, or in-line receptacles

for free-hanging cables.

Two Shell Styles:

Choose the

integral band platform for direct

attachment of a cable shield. Install

a boot, or overmold a boot over the

band platform. An accessory thread

is available for attaching strain reliefs

and backshells.

Jam Nut, Rear Mount

Square Flange

HOW TO ORDER SERIES 802 CRIMP RECEPTACLES

Sample Part Number

80 2 -0 11

Series

– 02

Shell Style

Shell Material /

Finish

Stainless Steel /

Passivated

10- 26

Shell Size- Insert

Arrangement

5-3

6-1

6-4

6-7

7-1

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

3 #23 Contacts

1 #16 Contact

4 #23 Contacts

7 #23 Contacts

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

26 #23 Contacts

2 #12 Contacts

37 #23 Contacts

55 #23 Contacts

85 #23 Contacts

Contact Type

Shell Key

Position

Normal

Socket

Standard #23 contacts

accept #22 through

#28 AWG wire. Special

contacts for #26 to #30

AWG are available. Use

the following contact

codes to specify these

contacts:

Pos. B

802-010

Receptacle with

Banding Platform

In-Line

Stainless Steel /

Electroless Nickel

Plated

Pos. C

Pos. D

802-011

Receptacle with

Accessory Thread

Square Flange

Pin #2630

#23 contacts are packaged

with connectors. #16 and #12

contacts must be ordered

separately.

Socket #2630

Jam Nut for Rear

Panel Mounting

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

E-5
