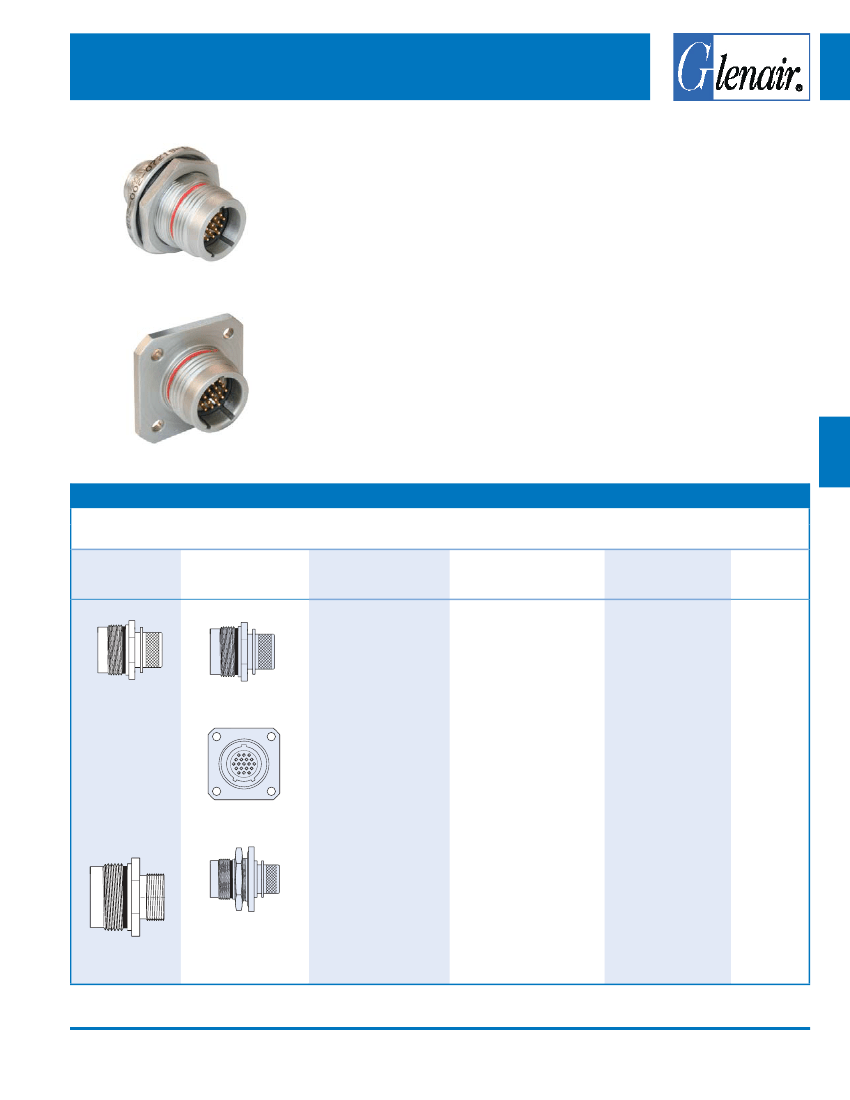

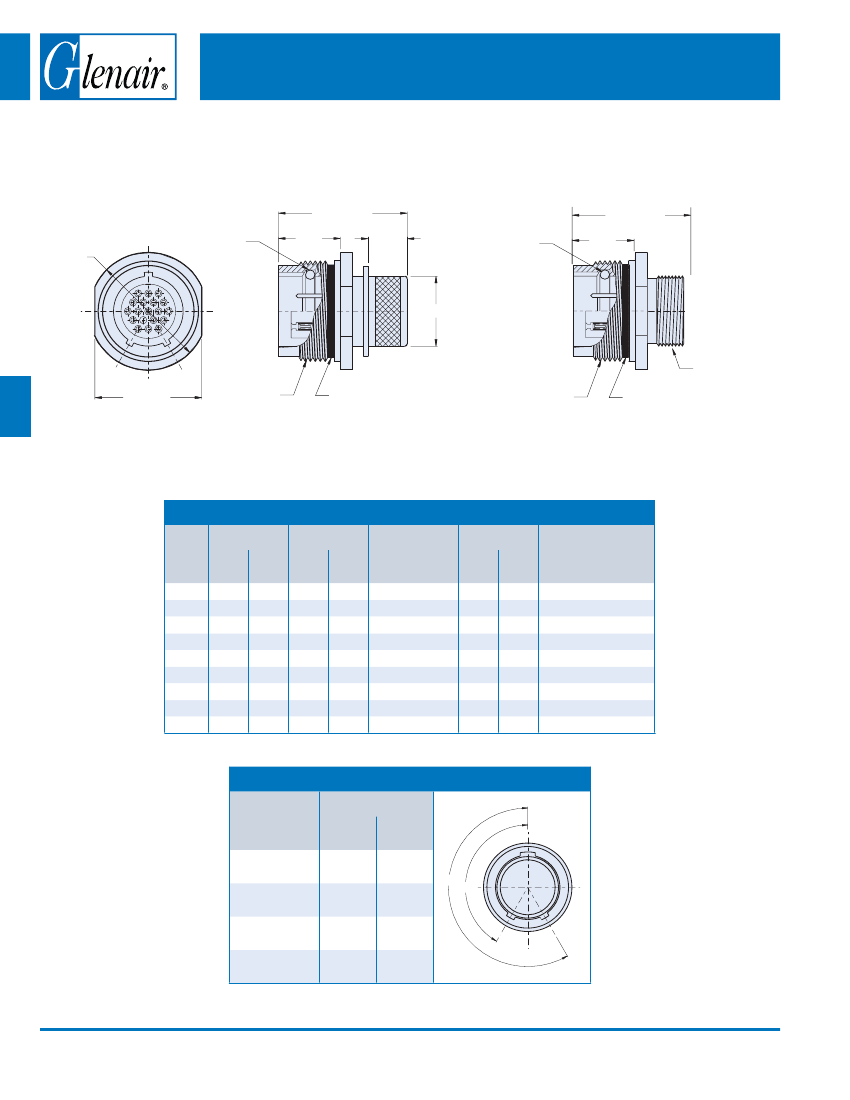

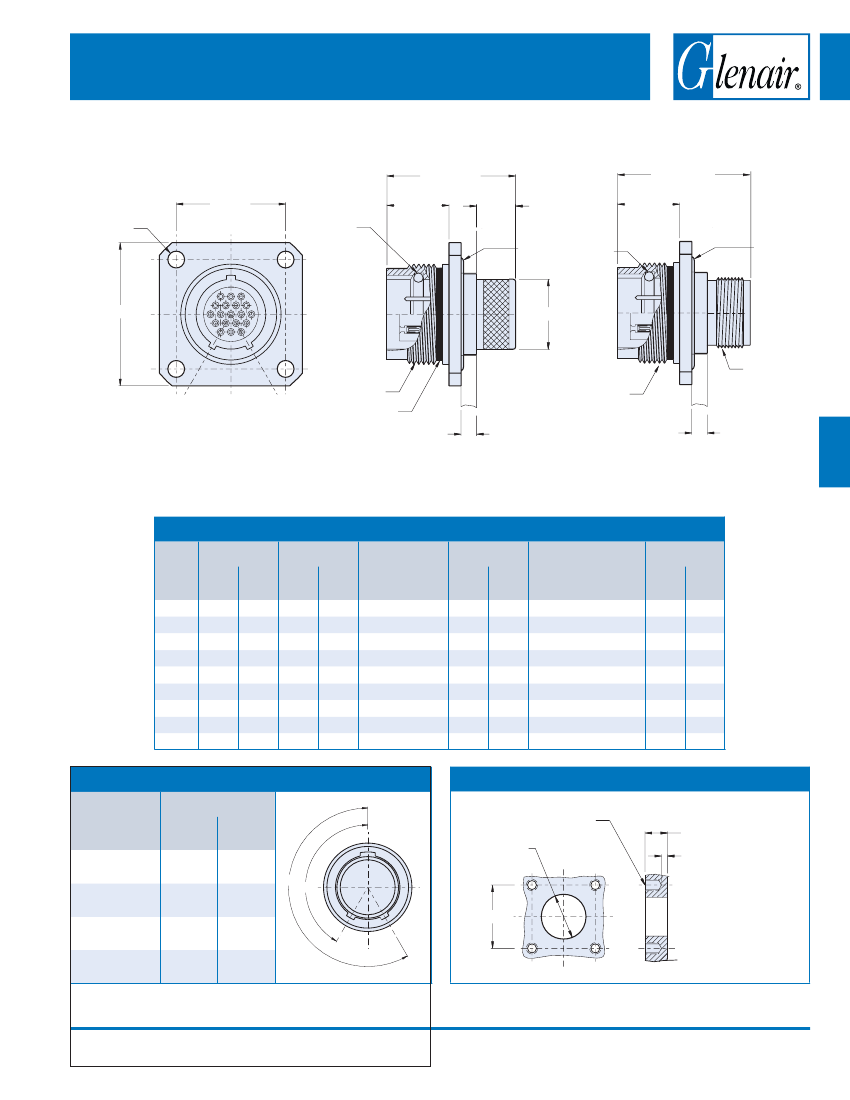

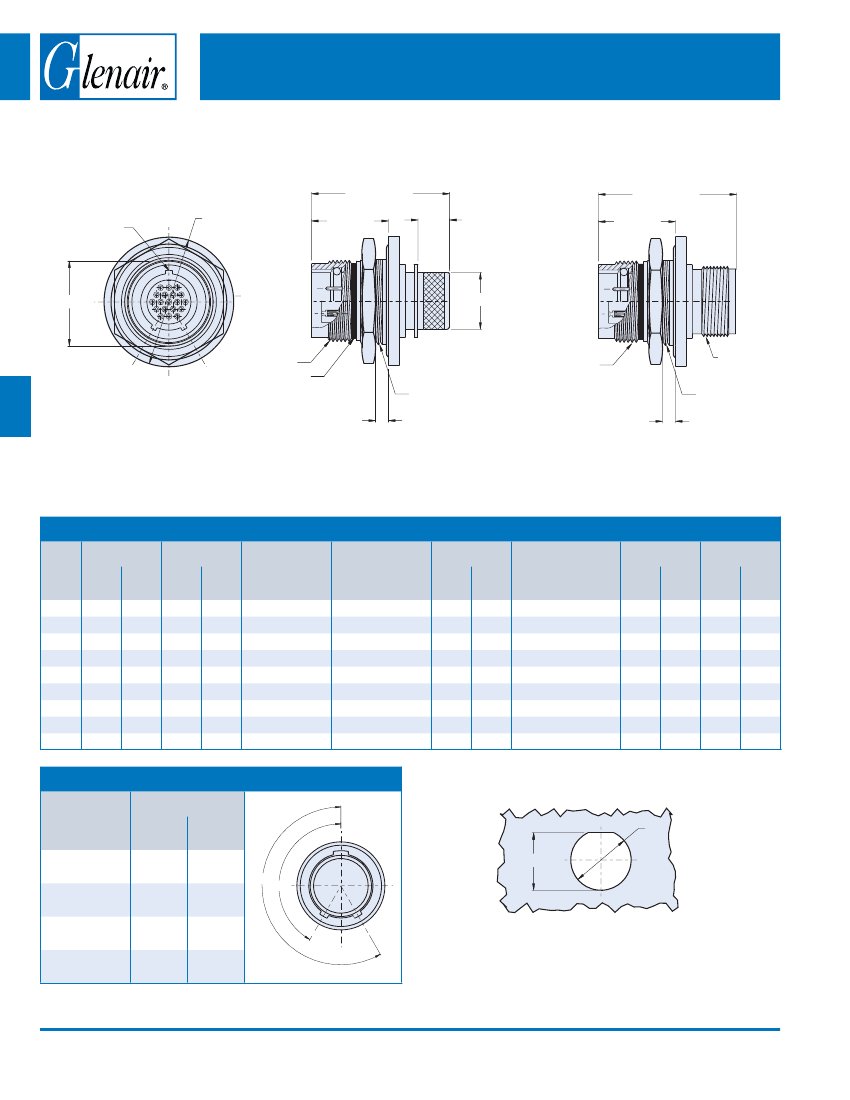

Series 802 “Aqua Mouse”
3500 PSI Rated
Series 802 Receptacles
A
Immersion Rated
to 3500 PSI. A
piston o-ring provides sealing to the
mating plug.
panel mounting, or in-line receptacles
for free-hanging cables.
Two Shell Styles:
Choose the
integral band platform for direct
attachment of a cable shield. Install
a boot, or overmold a boot over the
band platform. An accessory thread
is available for attaching strain reliefs
and backshells.
Jam Nut, Rear Mount
Nut
Moun
316 Series
Stainless Steel
shells
offer maximum resistance to
mechanical and environmental abuse.
Three Shell Mounting Options:
Jam nut with o-ring for rear panel
mounting, square flange for front
Square Flange
HOW TO ORDER SERIES 802 CRIMP RECEPTACLES
Sample Part Number
8 0 2- 0 11
Series
-02
Shell Style
ZM
Shell Material /
Finish
Z1
Stainless Steel /
Passivated
10 -26
Shell Size- Insert
Arrangement
5-3
6-1
6-4
6-7
7-1
7-10
8-13
9-4
9-19
10-26
12-2
12-37
14-55
15-85
3 #23 Contacts
1 #16 Contact
4 #23 Contacts
7 #23 Contacts
1 #12 Contact
10 #23 Contacts
13 #23 Contacts
4 #16 Contacts
19 #23 Contacts
26 #23 Contacts
2 #12 Contacts
37 #23 Contacts
55 #23 Contacts
85 #23 Contacts
P
Contact Type
B
Shell Key
Position
A
802-010
Receptacle with
Banding Platform
-01
In-Line
ZM
Stainless Steel /
Electroless Nickel
Plated
Standard #23 contacts
accept #22 through
#28 AWG wire. Use the
following contact codes
to specify these contacts:
Normal
B
Pos. B
P
Pin
C
Pos. C
S
Socket
Special contacts for
#26 to #30 AWG are
also available. Use the
following contact codes
to specify these contacts:
D
Pos. D
802-011
Receptacle with
Accessory Thread
-02
Square Flange
#23 contacts are packaged
with connectors. #16 and #12
contacts must be ordered
separately.
G
Pin
-07
Jam Nut for Rear
Panel Mounting
H
Socket
© 2007 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-5
Rev. 05-APR-2007
E-Mail: sales@glenair.com
Series 800
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
A Max.
B Flat
In.
In.
.885
1.010
1.072
1.135
1.195
1.260
1.322
1.510
1.572
H
J
K
L
M
N
P
Series 800
MASTER
KEYWAY
ø A MAX
3
B FLAT
C THREAD
RED COLOR BAND
FULL MATE INDICATOR
Series 802 “Aqua Mouse”
3500 PSI Rated
Series 802 Jam Nut Receptacles
1.275 MAX
(32.40)
.705
(17.91)
.25
(6.35)
1.210 MAX
(30.73)
.705
(17.91)
øE
C THREAD
D THREAD
.125 (3.18) MAX
PANEL THICKNESS
.125 (3.18) MAX
PANEL THICKNESS
RECEPTALE WITH
ACCESSORY THREAD
802-011
F
THREAD
D THREAD
RECEPTACLE WITH
INTEGRAL BAND
PLATFORM
802-010
DIMENSIONS
C
Mating
Threads
.438-28 UNEF
.562-20 UN
.625-20 UN
.687-20 UN
.750-20 UNEF
D
Jam Nut
Threads
.500-32 UN-2A
.625-28 UN-2A
.687-28 UN-2A
.750-28 UN-2A
.812-28 UN-2A
.875-28 UN-2A
.938-28 UN-2A
1.125-28 UN-2A
1.188-28 UN-2A
ØE
In.
.250
.312
.375
.438
.500
.562
.656
.812
.875
F
Accessory
Threads
.2500-32 UNEF-2A
.3125-32 UNEF-2A
.4375-28 UNEF-2A
.5000-28 UNEF-2A
.5625-24 UNEF-2A
.6250-24 UNEF-2A
.6875-24 UNEF-2A
.8750-20 UNEF-2A
.9375-20 UNEF-2A
G Flat
In.
± .003
.477
.602
.664
.727
.789
.838
.901
1.088
1.151
ØH
In.
.510
.635
.697
.760
.822
Shell
Size
5
6
7
8
9
10
12
14
15
mm.
±0.08
11.84
15.01
16.59
18.19
19.76
mm.
±0.08
12.12
15.29
16.87
18.47
20.04
mm.
22.48
25.65
27.23
28.83
30.35
± .003
.466
.591
.653
.716
.778
mm.
6.35
7.92
9.53
11.13
12.70
14.27
16.66
20.62
22.23
mm.
12.95
16.13
17.70
19.30
20.88
22.48
24.08
28.83
30.43
32.00
.827
33.58
.890
38.25 1.077
39.93 1.140
21.01 .812-20 UNEF
22.61 .875-20 UNEF
27.36 1.062-20 UN
28.96 1.125-20 UN
21.29
.885
22.89
.948
27.64 1.135
29.24 1.198
SERIES 802 RECEPTACLE KEY POSITIONS
Key Rotation
Key
Position
Normal (A)
B
C
D
øH
G FLAT
B°
A°
A°
150°
75°
95°
140°
B°
210°
210°
230°
275°
RECOMMENDED PANEL CUTOUT
© 2007 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-6
Rev. 08-FEB-2007
E-Mail: sales@glenair.com
Series 802 “Aqua Mouse”
3500 PSI Rated
Series 802 Square Flange Receptacles
THRU HOLES
4X
ø .125 (3.2)
B BSC
O RING
O RING
O RING
O RING
1.09 MAX
(27.69)
.460
.25
(11.68)
(6.35)
1.09 MAX
(27.69)
.460
(11.68)
A SQ
øD
C THREAD
RED COLOR BAND FULL
MATE INDICATOR
E
THREAD
C THREAD
PANEL
.250 (6.35) MAX
.160 (4.06) MIN
RECEPTACLEWITH
INTEGRAL BAND
PLATFORM
802-010
PANEL
.250 (6.35) MAX
.160 (4.06) MIN
RECEPTACLE WITH
ACCESSORY THREAD
802-011
DIMENSIONS
A Square
Shell
Size
5
6
7
8
9
10
12
14
15
In.
.885
1.010
1.072
1.135
1.195
1.260
1.322
1.510
1.572
B Bsc.
In.
.500
.625
.688
.750
.812
C
Mating
Threads
.438-28 UNEF
.562-20 UN
.625-20 UN
.687-20 UN
.750-20 UNEF
ØD
In.
.250
.312
.375
.438
.500
.562
.656
.812
.875
ØF
E Threads
Accessory
.2500-32 UNEF-2A
.3125-32 UNEF-2A
.4375-28 UNEF-2A
.5000-28 UNEF-2A
.5625-24 UNEF-2A
.6250-24 UNEF-2A
.6875-24 UNEF-2A
.8750-20 UNEF-2A
.9375-20 UNEF-2A
mm.
22.48
25.65
27.23
28.83
30.35
mm.
12.70
15.88
17.48
19.05
20.62
mm.
6.35
7.92
9.53
11.13
12.70
14.27
16.66
20.62
22.23
In.
.327
.390
.515
.577
.640
.702
.765
.953
1.015
mm.
8.31
9.91
13.08
14.66
16.26
17.83
19.43
24.21
25.78
32.00
.875
33.58
.938
38.25 1.125
39.93 1.188
22.23 .812-20 UNEF
23.83 .875-20 UNEF
28.58 1.062-20 UN
30.18 1.125-20 UN
SERIES 802 RECEPTACLE KEY POSITIONS
Key Rotation
Key
Position
Normal (A)
B
C
D
SERIES 802 SQ FLANGE PANEL CUTOUT
#4-40 UNC
4-BLIND HOLES
øF
A°
150°
75°
95°
140°
B°
210°
B°
A°
.160 (4.06)
MIN - REF
.045 (1.14) MIN
210°
B
230°
275°
© 2007 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-7
Rev. 05-APR-2007
E-Mail: sales@glenair.com
Series 800
A
B
C
D
E
F
G
H
J
K
L
M
A
B
øA
C
øD
D
E THREAD
E
F
G
H
J
K
L
M
N
P
© 2007 Glenair, Inc.
Series 800
.970 MAX
(24.64)
O RING
.460
(11.68)
B FLAT
C THREAD
Series 802 “Aqua Mouse”
3500 PSI Rated
Series 802 In-Line Receptacles
1.09 MAX
(27.69)
.460
(11.68)
.25
(6.35)
O RING
RED COLOR BAND FULL
MATE INDICATOR
C THREAD
RED COLOR BAND FULL
MATE INDICATOR
IN-LINE RECEPTABLE
WITH INTEGRAL BAND
PLATFORM
802-010
IN-LINE RECEPTABLE
WITH ACCESSORY
THREAD
802-011
DIMENSIONS
ØA
Shell
Size
5
6
7
8
9
10
12
14
15
In.
.560
.720
.780
.860
.930
1.000
1.060
1.250
1.320
B Flat
In.
.500
.625
.688
.750
.812
.875
C
Mating
Threads
.438-28 UNEF
.562-20 UN
.625-20 UN
.687-20 UN
.750-20 UNEF
.812-20 UNEF
ØD
In.
.250
.312
.375
.438
.500
.562
.656
.812
.875
mm.
14.22
18.29
19.81
21.84
23.62
25.40
mm.
12.70
15.88
17.48
19.05
20.62
22.23
mm.
6.35
7.92
9.53
E Threads
Accessory
.2500-32 UNEF-2A
.3125-32 UNEF-2A
.4375-28 UNEF-2A
11.13 .5000-28 UNEF-2A
12.70 .5625-24 UNEF-2A
14.27 .6250-24 UNEF-2A
16.66 .6875-24 UNEF-2A
20.62 .8750-20 UNEF-2A
22.23 .9375-20 UNEF-2A
26.92
.938
31.75 1.125
33.53 1.188
23.83 .875-20 UNEF
28.58 1.062-20 UN
30.18 1.125-20 UN
SERIES 802 RECEPTACLE KEY POSITIONS
Key Rotation
Key
Position
Normal (A)
B
C
D
A°
150°
75°
95°
140°
B°
210°
B°
A°
210°
230°
275°
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-8
Rev. 08-FEB-2007
E-Mail: sales@glenair.com
