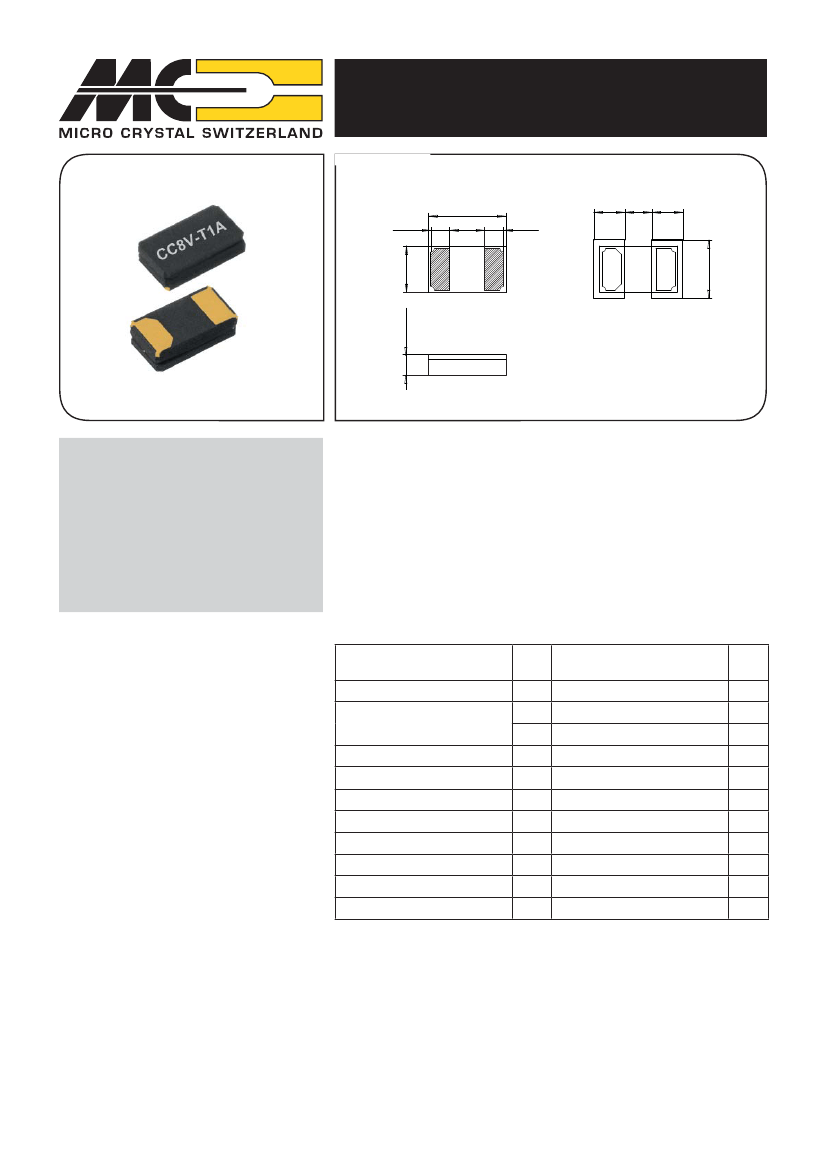

CC8V-T1A
Tuning Fork Crystal 32.768 kHz
DIMENSIONS
Package:
2,0
0,47
0,94
0,47
Recommended Solder Pad:
0,8
0,7
0,8
1,2
100% leadfree, RoHS - compliant
max.0,60
All dimensions in mm typical
AEC-Q200 automotive compliant
Miniature SMT ceramic package
Ultra low profile: 0.60 mm height
Ind. and Ext. temperature ranges
Optimized electrical characteristics
"Low ESR and Low Sensitivity"
High stability, low aging
Low power consumption
High shock and vibration resistance
Qualified for implantable medical
applications
DESCRIPTION:
This SMD ceramic package has been specially designed for miniature
high-reliable applications including implantable medical devices.
The Ultra Miniature Tuning Fork (UMTF) in this product is realized by an
optimized, proprietary design of the Quartz Crystal Resonator and special
manufacturing processes resulting in improved electrical characteristics
"Low ESR and Low Sensitivity".
For pick-and-place equipment, the parts are available in 8 mm tape:
7” (178 mm) reel with 1’000 crystals
7” (178 mm) reel with 3’000 crystals
ELECTRICAL CHARACTERISTICS
AT 25
o
C:
Nominal Frequency
Load capacitance
Frequency tolerance
Series resistance max.
Motional capacitance typ.
Static capacitance typ.
Drive level max.
Insulation resistance min.
Aging first year max.
Turnover temperature
Frequency vs. temperature
1)
F
L
C
L
F/F
F/F
R
S
C
1
C
0
P
R
i
F/F
T
0
32.768
7.0 / 9.0
+/-20
+/-100
60 / 80
4.0
1.1
0.5
500
+/-3
25 +/-5
1,5
kHz
pF
ppm
ppm
k
fF
pF
W
M
ppm
°C
ppm
2)
3)
F/F
0
–0.035
ppm
/
°C²
(T - T
0
)
2
+/-10%
1) Other frequencies on request.
2) Other load capacitances on request.
3) Tighter and wider frequency tolerances on request.
STANDARD FREQUENCIES:
Frequency
kHz
32.768
ENVIRONMENTAL
CHARACTERISTICS:
Storage temp. range
TA Operating temperature range
TB Extended oper. temp. range
Shock resistance
Vibration resistance
Conditions
–55 to +125°C
–40 to +85°C
-40 to +125°C
Max. Dev.
F/F 5000 g, 0.3 ms, ½ sine
F/F
20 g / 10–2000 Hz
+/-5 ppm
+/-5 ppm
TERMINATIONS AND
PROCESSING:
Type
Termination
For SMD mounting
Au plated pads
Sn/Pb plated pads
available on request
Processing
Reflow soldering
260°C / 20 s max.
Reflow soldering
260°C / 20 s max.
CC8V-T1A
CC8V-T2A
PRODUCT DESCRIPTION AND
ORDERING INFORMATION:
CC8V–T1A
Frequency F
L
C
L
Load Capacitance
7.0 pF
9.0 pF
32.768kHz
9.0 pF +/-20ppm
TA QM
Frequency tolerance
+/- 20 ppm
+/- 100 ppm
Temperature Range
TA
= - 40 to 85°C (Standard)
TB
= - 40 to +125°C
Qualification
QC
= Commercial (Standard)
QA
= Automotive AEC-Q200
QM
= Medical
Optional:
if not defined,
‚Standard‘ will apply
A unique part number will be generated for each product specification, i.e:
20xxxx-MC01
1'000 pcs
(
in 8mm tape on 7" reel)
20xxxx-MC03
Please contact us.
3'000 pcs
(
in 8mm tape on 7" reel)
All specifications subject to change without notice.
Micro Crystal AG
Mühlestrasse 14
CH-2540 Grenchen
Switzerland
Tel.
+41 32 655 82 82
Fax
+41 32 655 82 83
sales@microcrystal.com
www.microcrystal.com
Version 0.90/04.2016
