803-006-07P9-19CZ

Description
Circular Connector, 19 Contact(s), Stainless Steel, Male, Receptacle
CategoryThe connector    The connector
File Size311KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

803-006-07P9-19CZ Overview

Circular Connector, 19 Contact(s), Stainless Steel, Male, Receptacle

803-006-07P9-19CZ Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompliant
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeCIRCULAR CONNECTOR
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number803
Plug informationNO
Mixed contactsNO
Installation typePANEL
OptionsGENERAL PURPOSE
Shell surfaceNICKEL PLATED
Shell materialSTAINLESS STEEL
Housing size9
Total number of contacts19
803-006

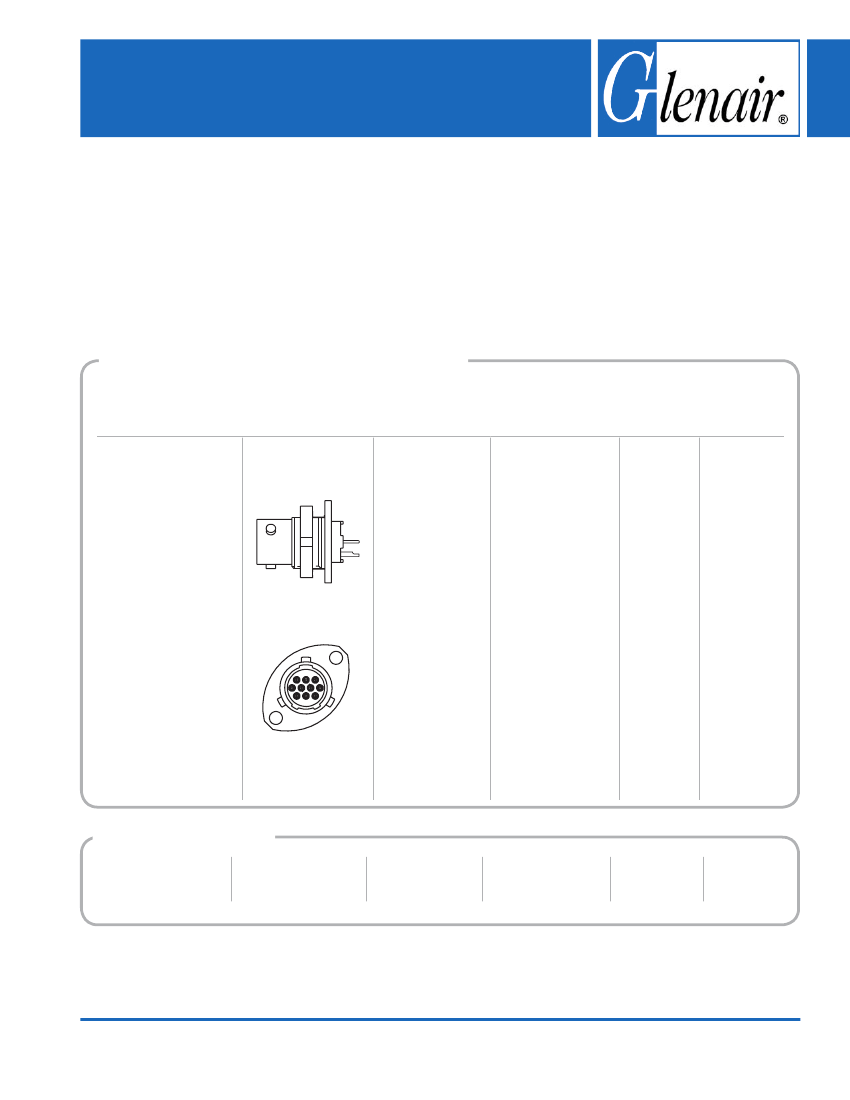

How to Order Series 803 Hermetic Receptacles

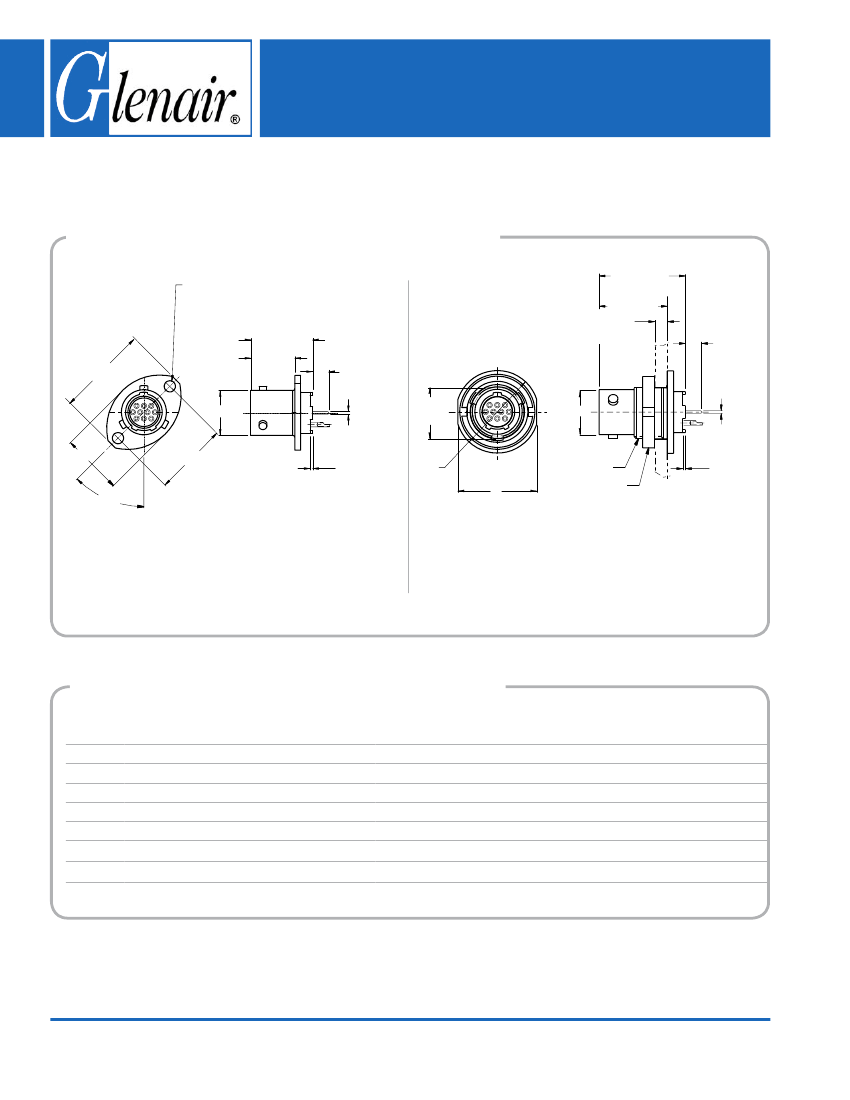

Series 803 Bayonet Hermetic Receptacles
are available in two shell styles:
Jam Nut
style with a “D” flat and o-ring for sealing to the panel. Jam Nut connectors are rear-
panel mounted.
Flange Mount Connectors
are installed on the front of the panel, and require an optional
gasket for sealing.
How To Order Bayonet Hermetic Receptacles
Shell Material /
Finish
Stainless Steel, with
Passivated Finish
Series
803-006
Hermetic Receptacles
Shell Style
Jam Nut
Shell Size / Insert
Arrangement
3 Contacts
4 Contacts
Contact
Type
Pin, Solder
Cup
Shell Key
Position
Normal
Alternate Key
Positions:
07
Z1
5-3
P
N
6-4
6-7
Stainless Steel,
Nickel Plated
P
7 Contacts
10 Contacts
Pin, PC Tail
C
7-10
8-13
9-19
X
Y
Z
Flange Mount
02
13 Contacts
19 Contacts
26 Contacts
37 Contacts
55 Contacts
85 Contacts
10-26
12-37
14-55
15-85
Part Number Example
803-006
—07
Z1
9—19
P
N
© 2004 Glenair, Inc.
www.glenair.com
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
E-15
Series 803
Bayonet
Series 803 “Mighty Mouse”
Hermetic Receptacles
