Substrate Twin (Pair) Cable Swing-Lock Connector for Low-Profile Power Source
DF57 Series

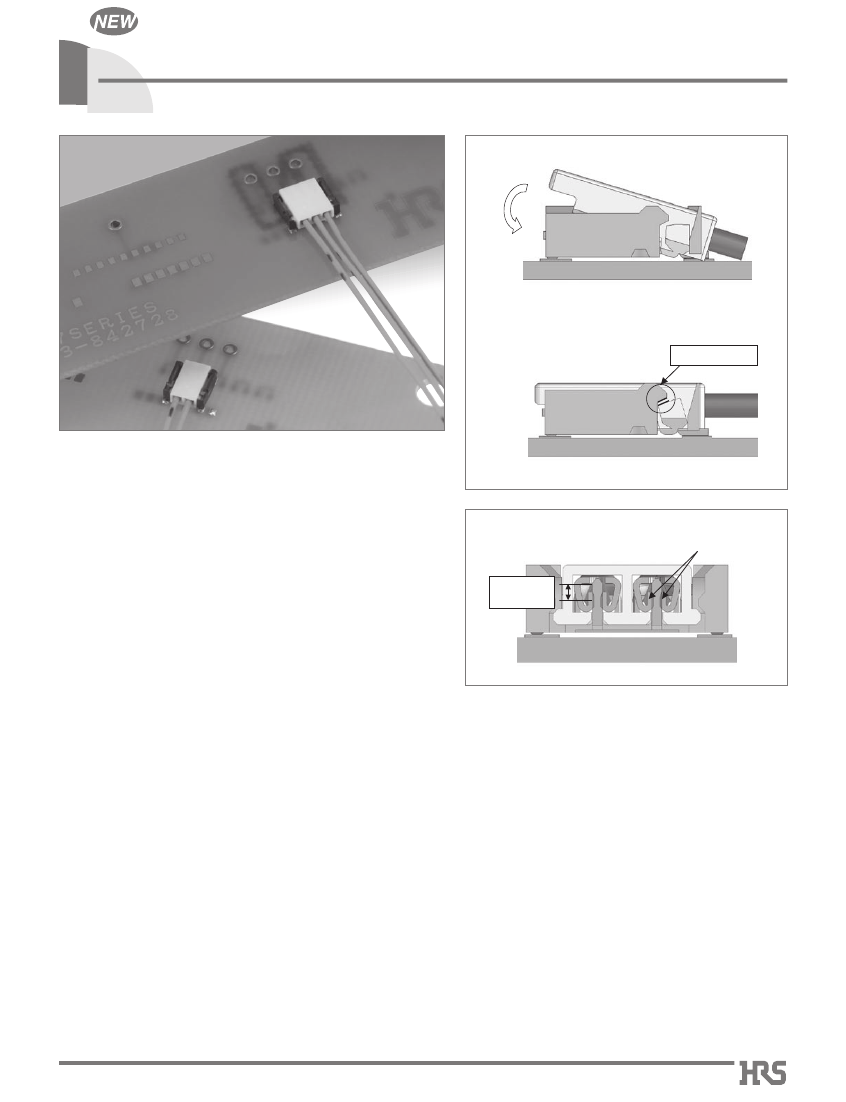

Swing-Lock Structure explanatory drawing
Before mating
Lock portion
■
Features
1.Reinforced lock structure with swing lock
A swing-lock structure, featuring our own unique connection
method, reinforces the lock structure of the electric cable
side, with a structure resistant to tough electric cable routing
and disengagement of cables under load.
In addition, the connection surface has a guide insertion to
facilitate insertability (patent pending)
When connecting, the header connector secures the
molded-lance. Play of molded lance is prevented for added
strength.
After mating
Contact Structure
Two point contact terminals
Effective mating length
0.42mm
3.Highly reliable contact structure
Despite the low-profile design, with a stacking height of
1.4mm, an effective mating length of 0.42mm is achieved. The
structure features two-point contact terminal geometry with
high contact reliability.
Cross-sectional view of the contact surface
4.Solder wicking prevention
The integral molding eliminates any gap between the
terminals and case to prevent solder wicking.
5.Case disengagement prevention
Reinforcing hardware (metal fittings) are integrated in the
molding, which help prevent the case from disengaging with
the terminals due to tough electric cable routing and load.
6.Cost countermeasure
Terminals and metal fittings are collectively integrated into the
molding to reduce assembly cost.
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF57 Series●Substrate Twin (Pair) Cable Swing-Lock Connector for Low-Profile Power Source
■Specifications
2pos.
Current rating
Rating
Voltage rating
Item
1.Insulation
resistance
2.Withstanding voltage
3.Contact resistance
4.Vibration
5.Shock
1,000 Mø min.
No flashover or insulation breakdown
10 mø max.
No electrical discontinuity of 1 μs or longer No
damage, cracks or parts dislocation.
No electrical discontinuity of 1 μs or longer No
damage, cracks or parts dislocation.
AWG28
AWG30
50V AC/DC
Specification
2.5A
1.5A
3pos.
2.0A
1.5A
Operating temperature range -35ç to 85ç (Note 1)
Operating humidity range 20% to 80%
Storage temperature range -10ç to 60ç (Note 2)
Storage humidity range 40% to 70% (Note 2)
Conditions
100 V DC
500 V AC / 1 minute
20 mV max., at 1 mA.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
10 cycles, 3 direction
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave, 3
cycles in each of the 3 axis
96 hours at of 40 ±2ç, and humidity of 90 to 95%
6.Humidity
Contact resistance: 20 mø max., No damage,
Insertion resistance:500Mø min.
cracks or parts dislocation.
Contact resistance: 20 mø max.,
Insulation resistance: 500 M
ø
min.
No damage, cracks or parts dislocation.
Contact resistance: 20 mø max.,
No damage, cracks or parts dislocation.
7.Temperature cycle
-55°C
→
5 to 35°C
→
85°C
→
5 to 35°C
Times: 30 min.
→
3 min.
→
2 min. to 3 min.
→
30 min.
→
2 min. to 3 min. 5 cycles
30 cycles
Reflow: At the recommended temperature profile Manual
soldering: 350°C for 3 seconds
8.Durability
9.Resistance to
soldering heat
No deformation of components affecting performance
Note 1. Includes temperature rise caused by current flow.
Note 2. The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage, shipment or
during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications
for a specific part number shown.
■Material
Product
Header
Crimp socket
Crimp contacts
Part
Insulator
Contacts
Insulator
Contacts
Material
LCP
Brass
PBT
Phosphor bronze
Finish
Color:Black
Tin Plated
Color:White
Tin Plated
Remarks
UL94V-0
---------
UL94V-0
---------
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF57 Series●Substrate Twin (Pair) Cable Swing-Lock Connector for Low-Profile Power Source
■Ordering
information
●Header
DF 57 −
*
P − 1.2 V
❶
❷
❸
❹
❺
❻
❶
Series name : DF
❷
Series No. : 57
❸
Number of contacts:2, 3, 4, 5, 6
❹
Connector type P:Plug
❺
Contact pitch:1.2mm
❻
Termination section
V:Straight SMT
●Crimp
socket
DF 57 −
*
S − 1.2 C
❶
❷
❸
❹
❺
❻
❶
Series name : DF
❷
Series No. : 57
❸
Number of contacts:2, 3, 4, 5, 6
❹
Connector type S: Crimp socket
❺
Contact pitch:1.2mm
❻
Termination section
C:Crimp
●Contacts
DF 57 − 2830 SCF
❶
❶
Applicable conductor
2830: AWG# 28 to AWG# 30
❷
❷
Packaging
SCF: Female crimp contact / reel
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF57 Series●Substrate Twin (Pair) Cable Swing-Lock Connector for Low-Profile Power Source
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF57 Series●Substrate Twin (Pair) Cable Swing-Lock Connector for Low-Profile Power Source

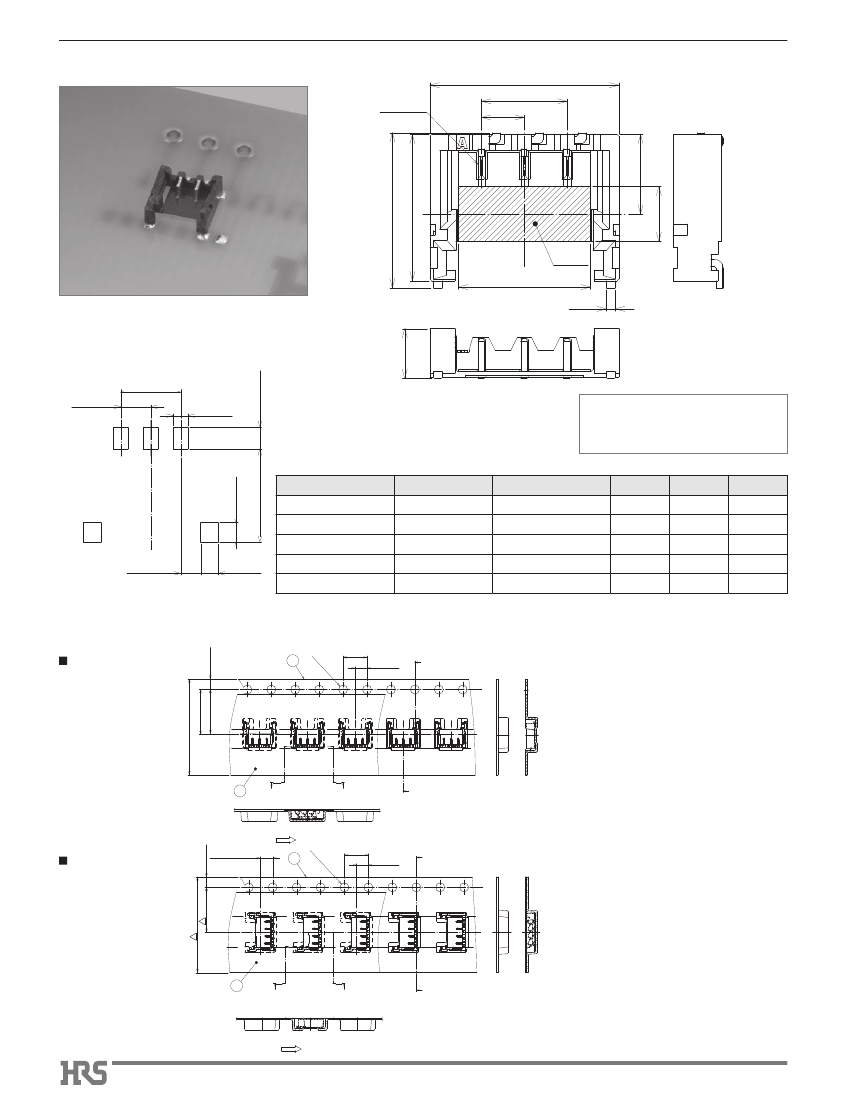

■Crimp
socket
A
B
1.2
Contact No.1 marking
C
D
P=1.2
Unit : mm
Part Number
DF57-2S-1.2C
DF57-3S-1.2C
DF57-4S-1.2C
DF57-5S-1.2C
DF57-6S-1.2C
CL No.
666-0005-5-00
666-0006-8-00
666-0007-0-00
666-0008-3-00
666-0009-6-00
Number of contacts
2
3
4
5
6
A
2.98
4.18
5.38
6.58
7.78
B
2.6
3.8
5.0
6.2
7.4
C
3.15
4.35
5.55
6.75
7.95
D
1.2
2.4
3.6
4.8
6.0
[Packaging Specification]
Blank:1,000 pcs. per bag
Note 1.The quantity is delivered per bag (1,000 pcs.). If needed, please select and order the products per bag.
