SERIES:
ACZ09
DESCRIPTION: MECHANICAL INCREMENTAL ENCODER
ELECTRICAL SPECIFICATIONS
parameter
output waveform
output signals
current consumption
output phase difference
supply voltage
output resolution
switch rating
insulation resistance
withstand voltage
conditions/description
square wave
A, B phase
10 mA
T1, T2, T3, T4
≥
3.5 ms @ 60 rpm
5 V dc max.
10, 15, 20 ppr
12 V dc, 50 mA (ACZ09BRXE models only)
100 MΩ, 300 V dc, 1 min.
300 V ac, 1 minute; no arc, damage or dielectric breakdown
MECHANICAL SPECIFICATIONS
parameter
shaft load
rotational torque
push switch operational force
push switch life
rotational life
conditions/description
axial
with detent click
without detent click
(ACZ09BRXE models only)
(ACZ09BRXE models only)
60
60
300
140
80
min
nom
max
8
220
100
1,500
50,000
30,000
units
kgf
gf•cm
gf•cm
gf•cm
cycles
cycles
ENVIRONMENTAL SPECIFICATIONS
parameter
operating temperature
storage temperature
humidity
vibration
0.75 mm max. travel for 2 hours
conditions/description
min
-10
-20
0
10
nom
max
75
75
95
55
units
°C
°C
% RH
Hz
PART NUMBER KEY
ACZ09 X BR X E- XX XX X1- XXX
Version:
“blank” = switch
N = no switch
Bushing:
1 = M7 x 0.75 (H = 5)
2 = M7 x 0.75 (H = 7)
Resolution (ppr):
20C10P = 10 ppr, 20 detent
30C15P = 15 ppr, 30 detent
20C = 20 ppr, 20 detent
PCB mount:
A = Horizontal
D = Vertical
Shaft length:
10.5, 12, 15,
20, 25, 30
Shaft type:
KQ = knurled
F = D cut
S = round, slotted
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2382
www.cui.com
date
02/2011
page
2 of 3
SERIES:
ACZ09
DESCRIPTION: MECHANICAL INCREMENTAL ENCODER

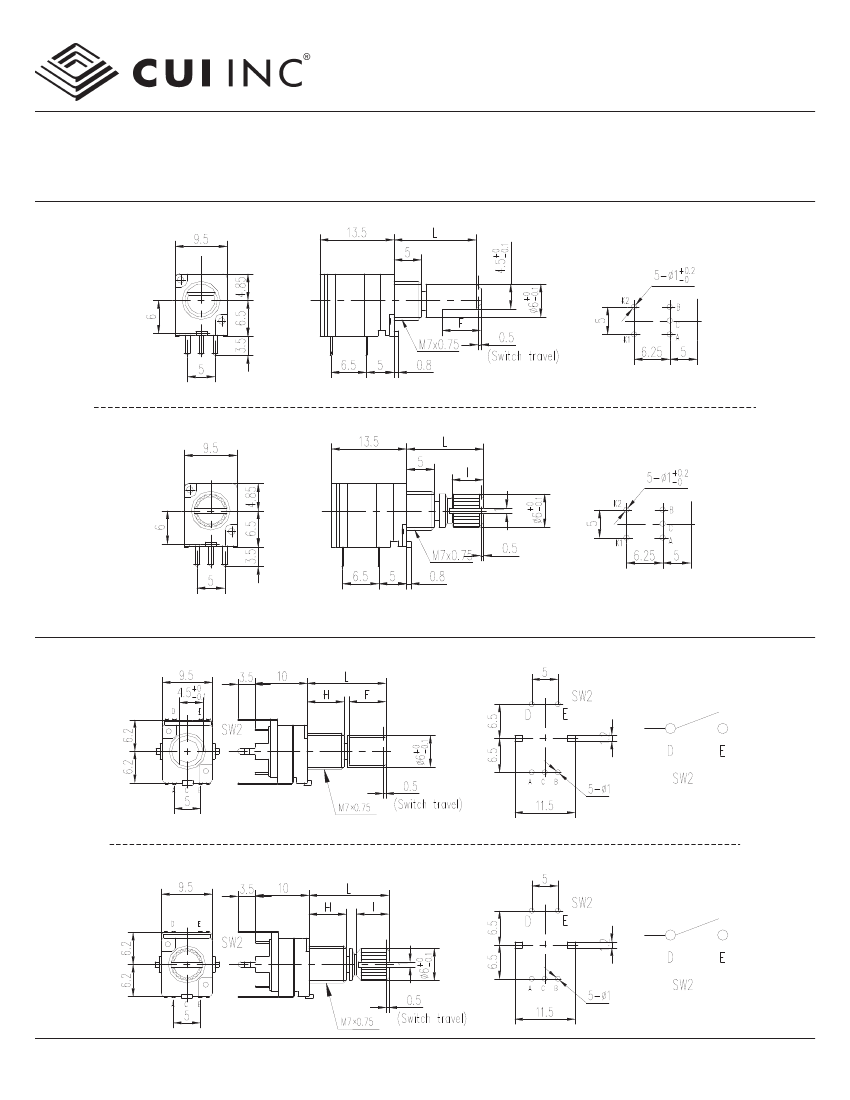

MECHANICAL DRAWING (horizontal)
ACZ09NBRXE
ACZ09BRXE
MECHANICAL DRAWING (vertical)
ACZ09NBRXE
ACZ09BRXE
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2382
www.cui.com
