804-002-06M6-7HB datasheet, PDF

Datasheet> All Categories > The connector> The connector> 804-002-06M6-7HB

804-002-06M6-7HB: DescriptionCircular Connector, 7 Contact(s), Aluminum Alloy, Female, Plug,; CategoryThe connector The connector; File Size120KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

804-002-06M6-7HB Overview

Circular Connector, 7 Contact(s), Aluminum Alloy, Female, Plug,

804-002-06M6-7HB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Housing size	6
Total number of contacts	7

Preview

Download Datasheet

View All

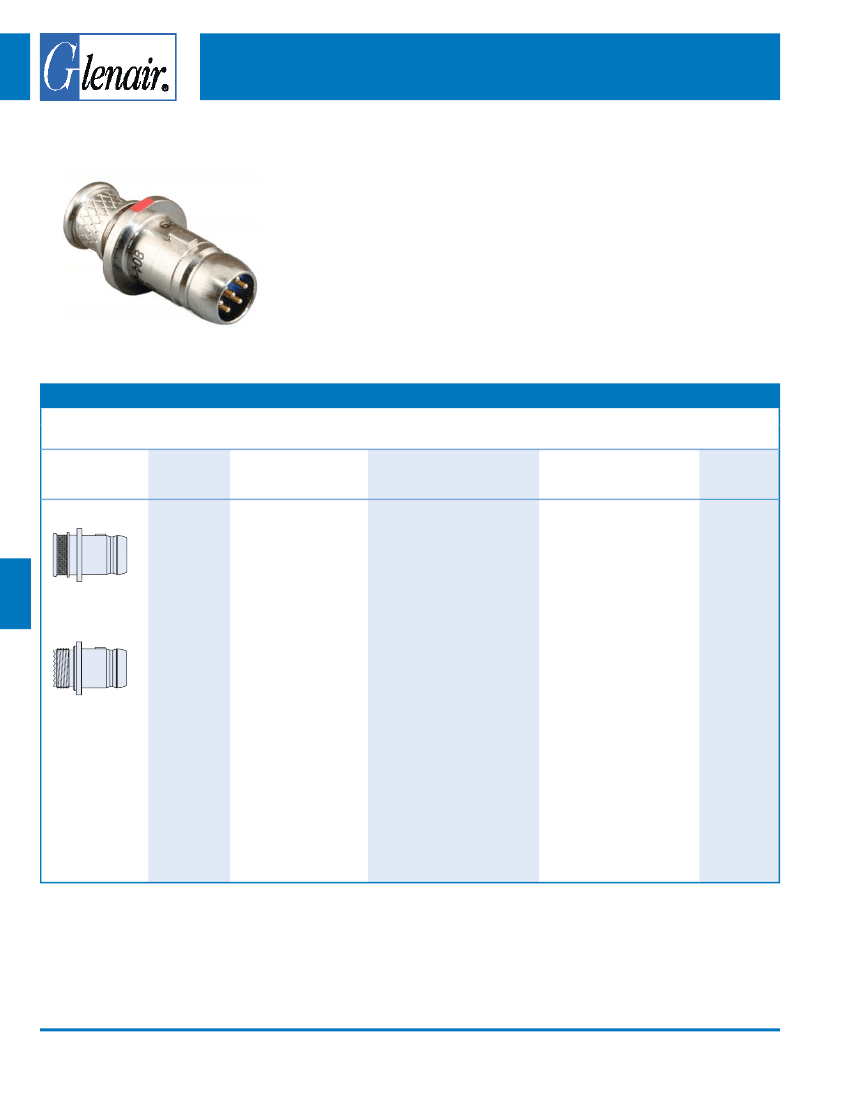

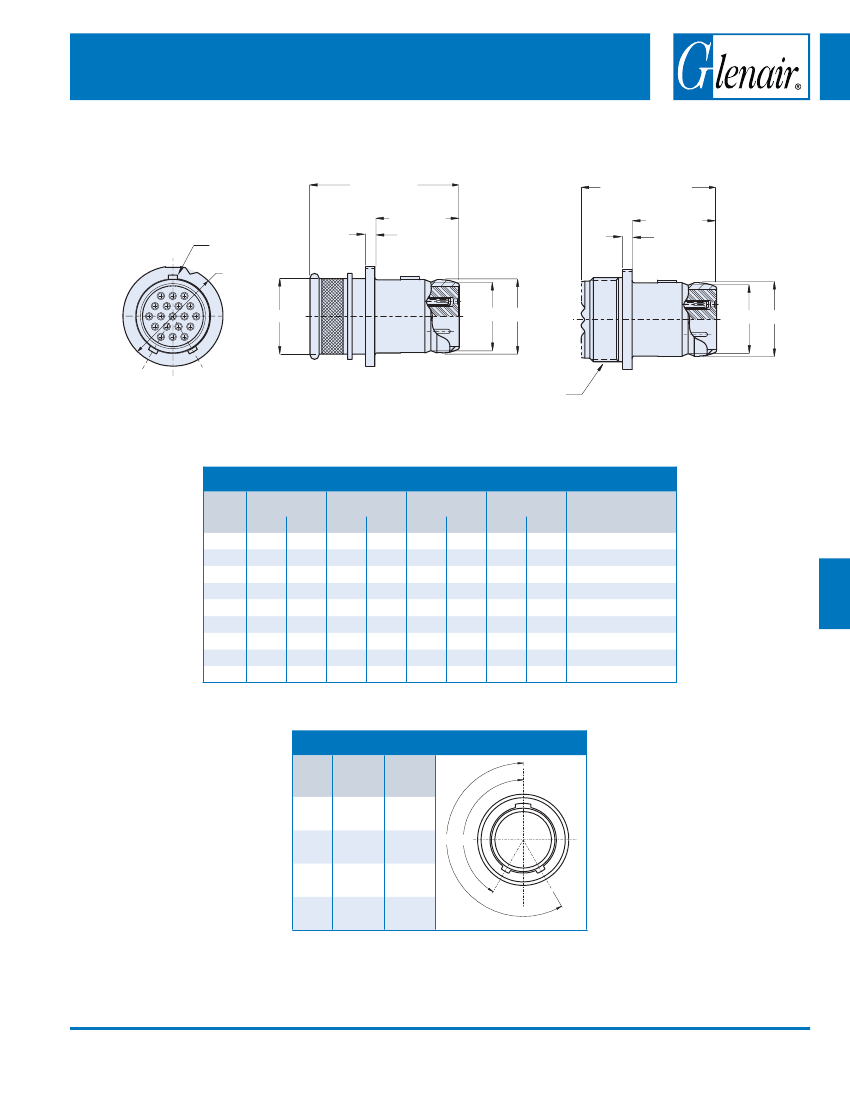

Series 804 Plug Connector

Quick Disconnect

These plugs snap

securely into receptacle housings

and release with a simple pull.

Two Keying Styles:

A single master

key provides fast mating in low-light

situations, or specify three keys for

more polarizing options.

Two Shell Styles:

Integral platform

for direct shield attachment using

the

BAND-IT

termination system, or

an accessory thread for attaching a

strain relief.

804-002

804-001

Plug with Banding

Platform

CAGE Code 06324

Printed in U.S.A.

Series 804

Series 804 “Mighty Mouse”

Push-Pull Quick-Disconnect

Series 804 Plug Connectors

HOW TO ORDER

Sample Part Number

804-001

Series

-06

Shell Style

-06

Plug

Shell Material /

Finish

Aluminum / Black

Anodize

9-19

Shell Size- Insert

Arrangement

5-3

6-1

6-4

6-7

7-1

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

3 #23 Contacts

1 #16 Contact

4 #23 Contacts

7 #23 Contacts

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

26 #23 Contacts

2 #12 Contacts

37 #23 Contacts

55 #23 Contacts

85 #23 Contacts

Contact Type

Standard #23 contacts accept

#22 through #28 AWG wire. Use

the following contact codes to

specify these contacts:

Shell Key

Position

Omit

for Single

Master Key

Aluminum /

Electroless Nickel

Aluminum / Cadmium

with Olive Drab

Chromate

Socket

Special contacts for #26 to #30

AWG are also available. Use

the following contact codes to

specify these contacts:

Pos. A

(Normal)

Plug with

Accessory

Thread

Aluminum / Zinc-

Nickel with Olive Drab

Chromate

Pos. B

Pos. C

ZNU

Aluminum / Zinc-

Nickel with Black

Chromate

#23 contacts are packaged

with connectors. #16 and #12

contacts must be ordered

separately.

Pos. D

Socket

Stainless Steel /

Passivated

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

G-4

Rev. 05-APR-2007
