2MBI400U2B-060
IGBT Module U-Series
Features
· High speed switching
· Voltage drive
· Low inductance module structure
600V / 400A 2 in one-package
2. Equivalent circuit
Equivalent Circuit Schematic
Applications
· Inverter for Motor drive
· AC and DC Servo drive amplifier
· Uninterruptible power supply
· Industrial machines, such as Welding machines
Maximum ratings and characteristics
Absolute maximum ratings (at Tc=25°C unless otherwise specified)
Item
Collector-Emitter voltage
Gate-Emitter voltage
Collector current
Symbol
V
CES
V
GES
I
C
I
C
p
-I
C
-I
C
pulse
P
C
T
j
T
stg
V
iso
Conditions
Rating
650
±20
400
800
400
800
1250
+150
-40 to +125
2500
3.5
3.5
Unit
V
V
A
Continuous
1ms
Collector Power Dissipation
Junction temperature
Storage temperature
Isolation voltage between terminal and copper base *1
Screw Torque
Mounting *
2
Terminals *
2
1 device
W
°C
VAC
N·m
AC:1min.
*
1 :
All terminals should be connected together when isolation test will be done.
*
2 :
Recommendable value : Mounting 2.5 to 3.5N·m(M5), Terminal 2.5 to 3.5 N·m(M5)
Electrical characteristics (at Tj=25°C unless otherwise specified)
Item
Zero gate voltage collector current
Gate-Emitter leakage current
Gate-Emitter threshold voltage
Collector-Emitter saturation voltage
Symbols
I
CES
I
GES
V
GE(th)
V
CE(sat)
(terminal)
V
CE(sat)
(chip)
Input capacitance
Turn-on time
C
ies
t
on
t
r
t
r(i)
t
off
t
f
V
F
(terminal)
V
F
(chip)
Reverse recovery time
Lead resistance, terminal-chip*
3
t
rr
R lead
Conditions
V
GE
=0V, V
CE
=600V
V
CE
=0V, V
GE
=±20V
V
CE
=20V, I
C
=400mA
V
GE
=15V, I
C
=400A Tj=25°C
Tj=125°C
Tj=25°C
Tj=125°C
V
CE
=10V, V
GE
=0V, f=1MHz
V
CC
=300V
I
C
=400A
V
GE
=±15V
R
G
= 6.8
Ω
V
GE
=0V
I
F
=400A
Tj=25°C
Tj=125°C
Tj=25°C
Tj=125°C
I
F
=400A
Characteristics
Min.
Typ.
–
–
–
6.2
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
6.7
2.25
2.50
1.85
2.10
29
0.40
0.22
0.16
0.48
0.07
2.00
2.05
1.60
1.65
–
0.97
Unit
Max.
2.0
400
7.7
2.55
–
–
–
–
1.20
0.60
–
1.20
0.45
2.35
–
–
–
0.35
–
μs
mΩ
nF
μs
mA
nA
V
V
Turn-off time
Forward on voltage
V
*
3
:Biggest internal terminal resistance among arm.
Thermal resistance characteristics
Items
Thermal resistance
Contact Thermal resistance
Symbols
Rth(j-c)
Rth(j-c)
Rth(c-f)*
4
Conditions
IGBT
FWD
With thermal compound
Characteristics
Min.
Typ.
–
–
–
–
–
0.025
Unit
Max.
0.10
0.16
–
°C/W
°C/W
°C/W
*
4
: This is the value which is defined mounting on the additional cooling fin with thermal compound.
2MBI400U2B-060
Characteristics (Representative)

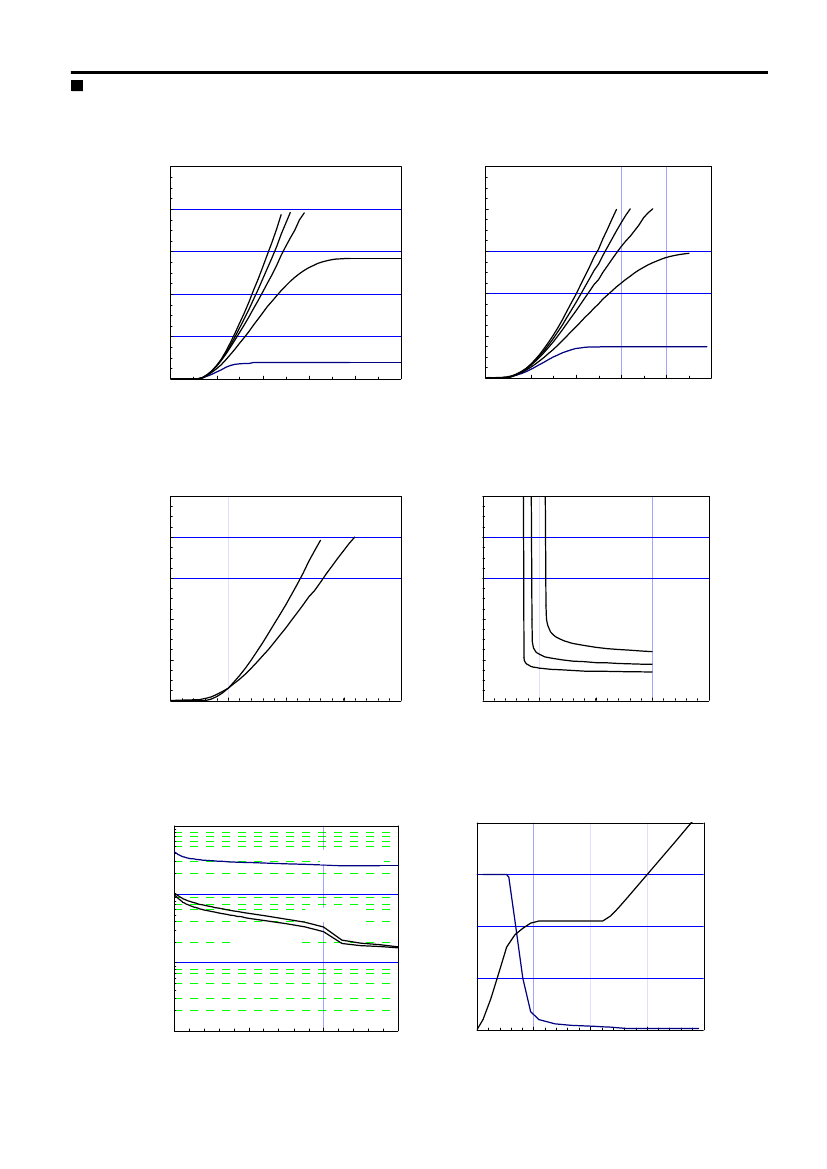

Collector current vs. Collector-Emitter voltage (typ.)
Tj= 25°C / chip
1000
IGBT Module
Collector current vs. Collector-Emitter voltage (typ.)
Tj= 125°C / chip
1000
VGE=20V15V
12V
800
Collector current : Ic [A]
VGE=20V15V 12V
Collector current : Ic [A]
800
600
10V
600
10V
400
400
200
8V
0
0
1
2
3
4
5
Collector-Emitter voltage : VCE [V]
200
8V
0
0
1
2
3
4
5
Collector-Emitter voltage : VCE [V]
Collector current vs. Collector-Emitter voltage (typ.)
VGE=15V / chip
1000
Tj=25°C
Tj=125°C
Collector - Emitter voltage : VCE [ V ]
Collector-Emitter voltage vs. Gate-Emitter voltage (typ.)
Tj=25°C / chip
10.0
800
Collector current : Ic [A]
8.0
600
6.0
400
4.0
Ic=800A
Ic=400A
Ic=200A
200
2.0
0
0
1
2
3
4
0.0
5
10
15
20
25
Collector-Emitter voltage : VCE [V]
Gate - Emitter voltage : VGE [ V ]
Capacitance vs. Collector-Emitter voltage (typ.)
100.0
Capacitance : Cies, Coes, Cres [ nF ]
Cies
Dynamic Gate charge (typ.)
Vcc=300V, Ic=400A, Tj= 25°C
Collector-Emitter voltage : VCE [ 100V/div ]
Gate - Emitter voltage : VGE
[ 5V/div ]
10.0
Cres
Coes
1.0
VGE
VCE
0
400
800
1200
1600
0.1
0
10
20
30
Collector-Emitter voltage : VCE [V]
Gate charge : Qg [ nC ]
2MBI400U2B-060
IGBT Module

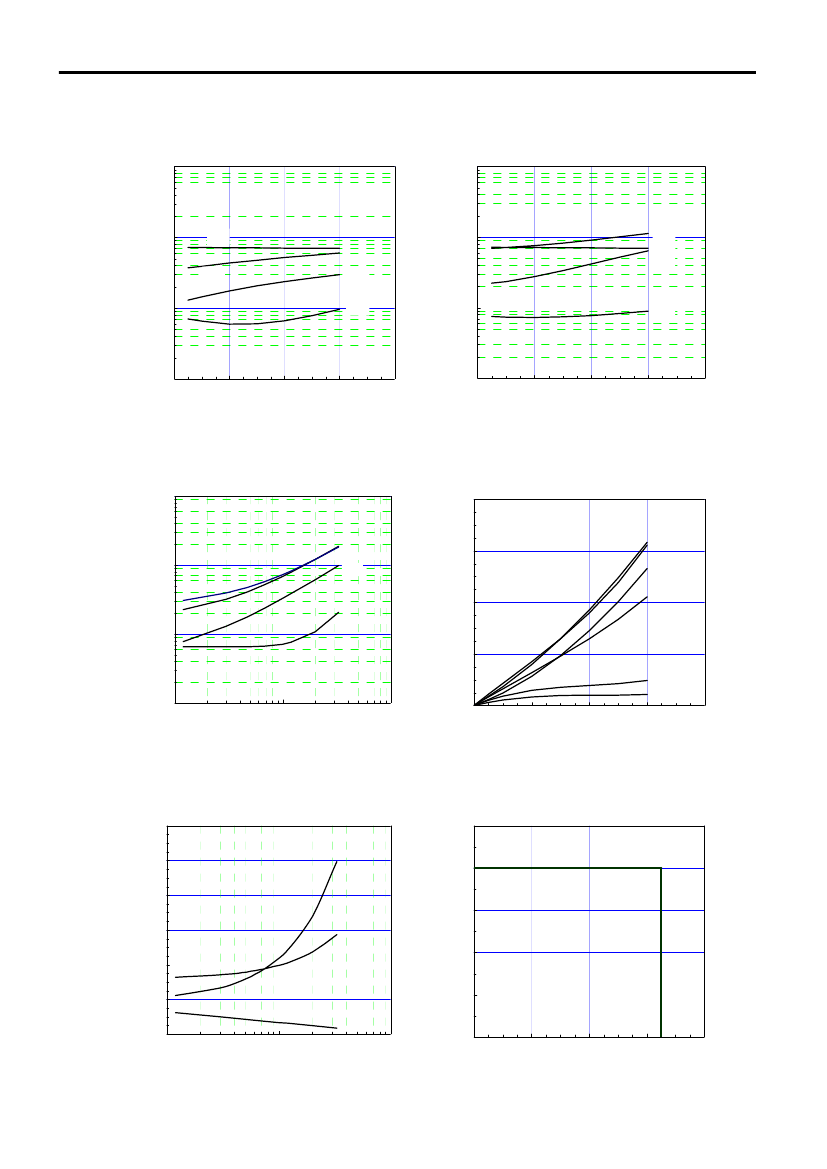

Switching time vs. Collector current (typ.)
Vcc=300V, VGE=±15V, Rg=6.8Ω, Tj= 25°C
10000
Switching time : ton, tr, toff, tf [ nsec ]
Switching time : ton, tr, toff, tf [ nsec ]
10000
Switching time vs. Collector current (typ.)
Vcc=300V, VGE=±15V, Rg=6.8Ω, Tj=125°C
1000
toff
1000
ton
toff
tr
ton
100
tr
tf
100
tf
10
0
200
400
600
800
Collector current : Ic [ A ]
10
0
200
400
600
800
Collector current : Ic [ A ]
Switching time vs. Gate resistance (typ.)
Vcc=300V, Ic=400A, VGE=±15V, Tj= 25°C
10000
Switching loss : Eon, Eoff, Err [ mJ/pulse ]
Switching time : ton, tr, toff, tf [ nsec ]
40
Switching loss vs. Collector current (typ.)
Vcc=300V, VGE=±15V, Rg=6.8Ω
30
Eoff(125°C)
Eon(125°C)
Eoff(25°C)
1000
toff
ton
100
tr
tf
20
Eon(25°C)
10
Err(125°C)
Err(25°C)
0
0
200
400
600
800
10
1.0
10.0
Gate resistance : Rg [
Ω
]
100.0
Collector current : Ic [ A ]
Switching loss vs. Gate resistance (typ.)
Vcc=300V, Ic=400A, VGE=±15V, Tj= 125°C
60
Switching loss : Eon, Eoff, Err [ mJ/pulse ]
50
40
30
20
10
0
1.0
10.0
Gate resistance : Rg [
Ω
]
Err
100.0
Reverse bias safe operating area (max.)
+VGE=15V,-VGE <= 15V, RG >= 6.8Ω ,Tj <= 125°C
1000
Eon
Collector current : Ic [ A ]
800
600
Eoff
400
200
0
0
200
400
600
800
Collector - Emitter voltage : VCE [ V ]
2MBI400U2B-060
a
IGBT Module

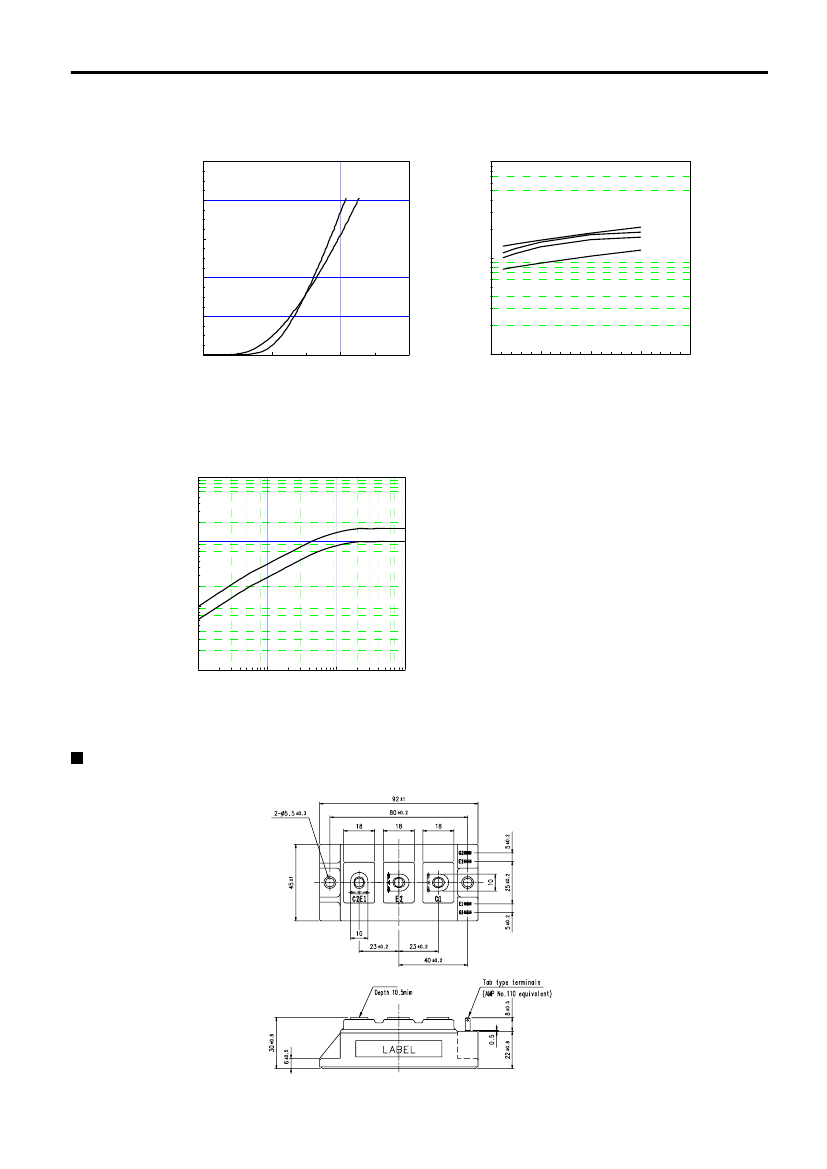

Forward current vs. Forward on voltage (typ.)
chip
1000
Reverse recovery current : Irr [ A ]
Reverse recovery time : trr [ nsec ]
Reverse recovery characteristics (typ.)
Vcc=300V, VGE=±15V, Rg=6.8Ω
1000
Forward current : IF [ A ]
800
Tj=25°C
Tj=125°C
600
100
trr (125°C)
Irr (125°C)
Irr (25°C)
trr (25°C)
400
200
0
0.0
1.0
2.0
3.0
Forward on voltage : VF [ V ]
10
0
200
400
600
800
Forward current : IF [ A ]
Transient thermal resistance (max.)
1.000
Thermal resistanse : Rth(j-c) [°C ]
/W
FWD
0.100
IGBT
0.010
0.001
0.001
0.010
0.100
1.000
Pulse width : Pw [ sec ]
Outline Drawings, mm
