890-001-15PT-0A2-12T datasheet, PDF

Datasheet> All Categories > The connector> The connector> 890-001-15PT-0A2-12T

890-001-15PT-0A2-12T: DescriptionD Nanominiature Connector, 15 Contact(s), Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size994KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

890-001-15PT-0A2-12T Overview

D Nanominiature Connector, 15 Contact(s), Male, Crimp Terminal, Plug,

890-001-15PT-0A2-12T Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	WIRE LENGTH: 12 INCH
Body/casing type	PLUG
Connector type	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	890-001
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	WITH CABLE ASSEMBLY
Shell material	TITANIUM
Termination type	CRIMP
Total number of contacts	15

Preview

Download Datasheet

View All

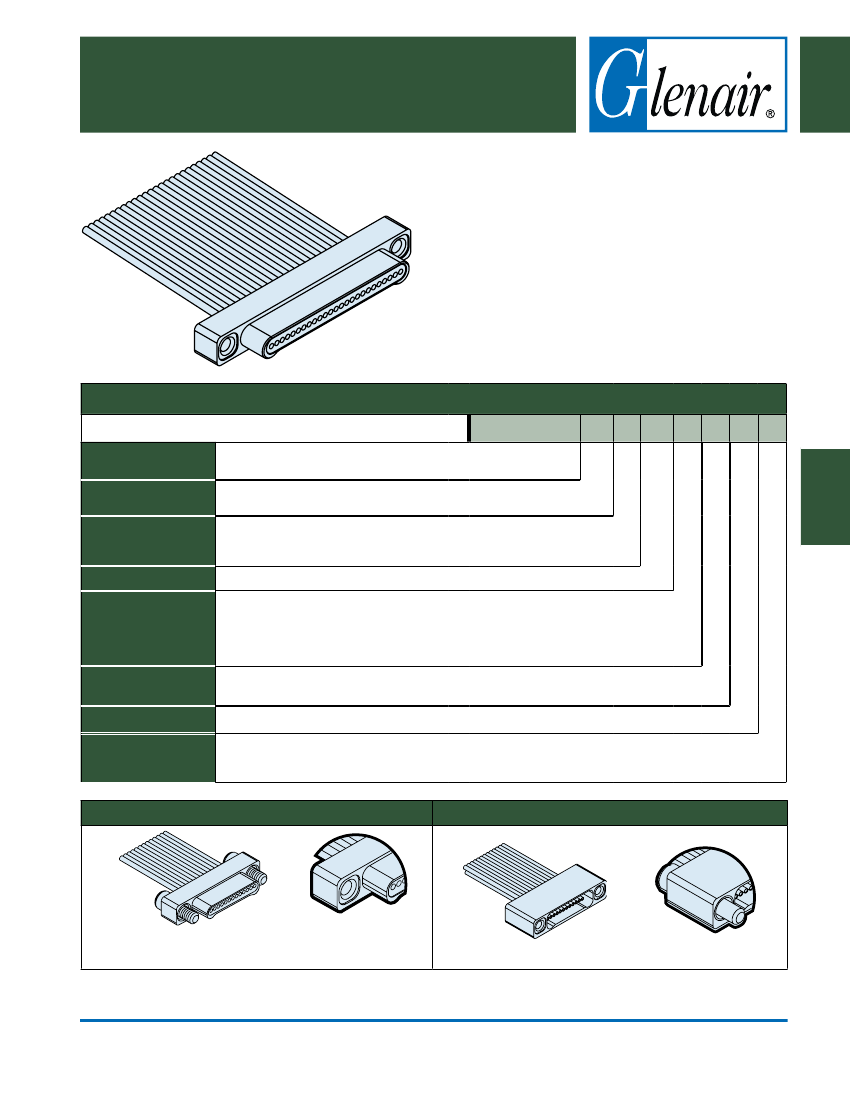

890-001 and 890-002

Single Row Nano Connector

with Insulated Wire

Glenair Insulated Wire Nano Connectors

feature gold

alloy TwistPin contacts. Contacts are precision-crimped to

insulated, stranded wire. These nanomimiature connectors

offer premium performance and reliability for demanding

applications. Contact spacing is .025 inches. 1 amp current

rating, DWV rating 250 volts AC. Wire gages #30 and #32 AWG.

TwistPin Contact System

assures premium performance in

demanding environments. The gold/platinum alloy contacts will

stand up to years of exposure without corrosion.

systems and geophysical instruments.

How To Order Nano Connectors with Insulated Wire

Sample Part Number

Series

Insert Arrangement/

Contact Type

Shell Material and

Finish

Wire Gage

Typical Applications

include uAV's, satellites, missile

890-002

890-001

– Plug, Pin Contacts, Single Row, Nanominiature

890-002

– Receptacle, Socket Contacts, Single Row, Nanominiature

Plugs (890-001):

5P, 9P, 15P, 21P, 25P, 31P, 37P, 51P

Receptacles (890-002):

5P, 9P, 15S, 21S, 25S, 31S, 37S, 51S

- Aluminum Shell, Cadmium Plating

- Aluminum Shell, Electroless Nickel

Plating

-9S A1

-0

-12

- Titanium Shell, Unplated

- Stainless Steel Shell, Passivated

#30 AWG

#32 AWG

- Ultralightweight XLETFE Insulation, Silver-

Coated Ultrahigh-Strength Copper

(Not available for #32 AWG)

- Extruded PTFE Insulation,

NEMA HP3-ETX (MIL-W-16878/6)

- Cross-Linked Modified ETFE Insulation,

MIL-W-22759/33 (Not available for #32 AWG)

Wire Type

Wire Color Code

Wire Length Inches

Hardware

- White

- Yellow

- 10 Color Repeating (wire type A is striped, types B and C are solid colors)

- Wire Length In Inches. “12” Specifies 12 Inches.

- Jackscrew, #0-80

Female threads are available on plug connectors

only if the shell material is titanium or stainless steel.

- Female Thread, #0-80

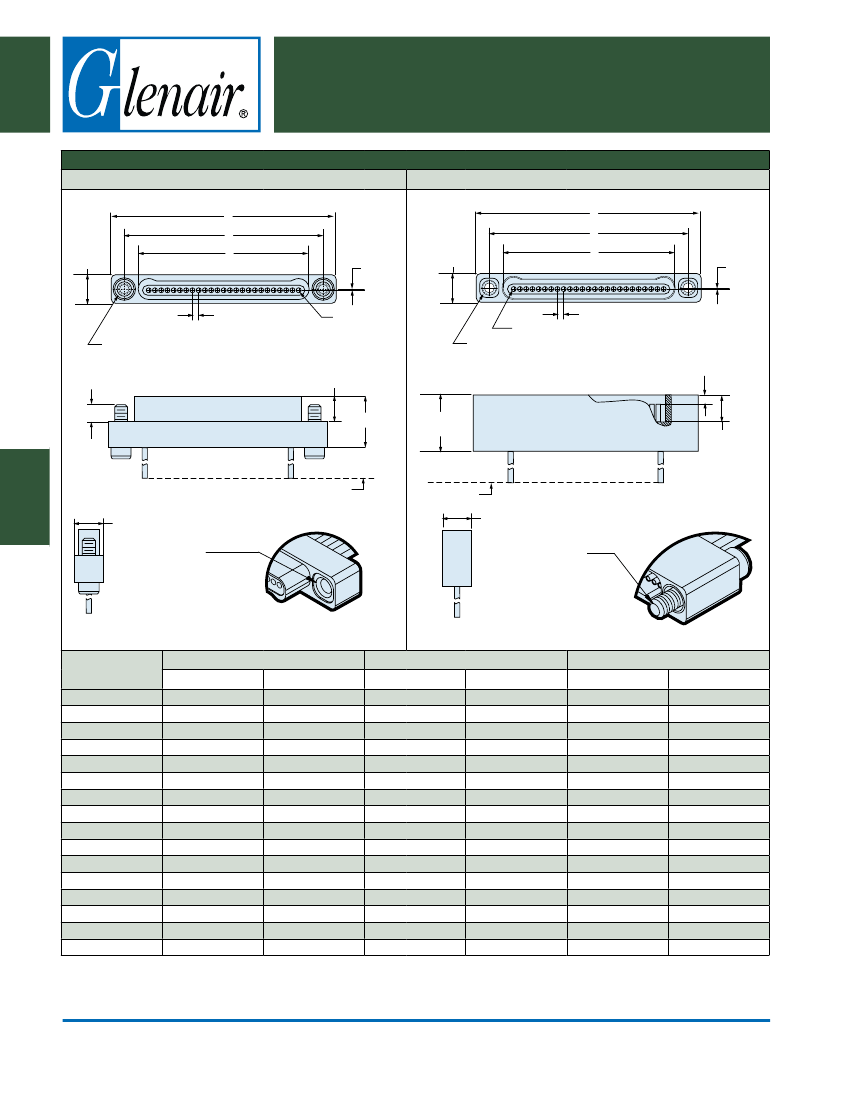

Plug (Pin) Connector

Receptacle (Socket) Connector

“J” Jackscrew Option

“T” Female Thread Option

Titanium or Stainless Steel

Shells Only

“T” Female Thread Option

“J” Jackscrew Option

Dimensions in inches (millimeters) and are subject to change without notice.

Series 89 Nano Catalog

U.S. CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

D-3

E-Mail: sales@glenair.com

Single Row

Connectors
