890-002-15ST-2C7-18J datasheet, PDF

Datasheet> All Categories > The connector> The connector> 890-002-15ST-2C7-18J

890-002-15ST-2C7-18J: DescriptionD Nanominiature Connector, 15 Contact(s), Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size173KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

890-002-15ST-2C7-18J Overview

D Nanominiature Connector, 15 Contact(s), Female, Crimp Terminal, Receptacle,

890-002-15ST-2C7-18J Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	890-002
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	TITANIUM
Termination type	CRIMP
Total number of contacts	15

Preview

Download Datasheet

View All

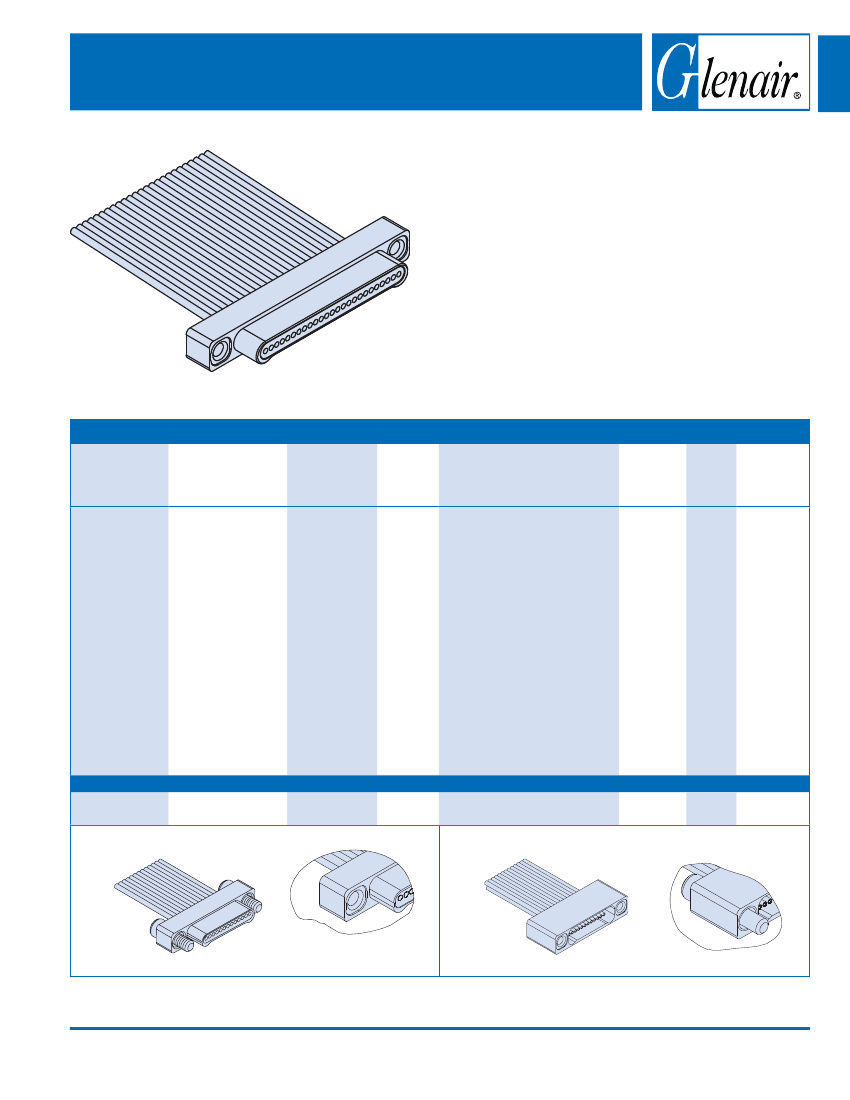

890-001 and -002

Series 89 Nanominiature Connectors

Single Row Insulated Wire Pigtail Assemblies

Glenair’s Pigtail Nano Connectors

feature gold alloy

TwistPin contacts. Contacts are precision-crimped

to insulated, stranded wire. These nanomimiature

connectors offer premium preformance and reliability for

demanding applications. Contact spacing is .025 inches.

1 amp current rating, DWV rating 300 volts AC. Wire

gages #30 and #32 AWG.

TwistPin Contact System

assures premium performance

in demanding environments. The gold/platinum alloy

contacts will stand up to years of exposure without corrosion.

Typical Applications

include UAV's, satellites, missile

systems and geophysical instruments.

HOW TO ORDER NANOMINIATURE CONNECTORS WITH INSULATED WIRE

Series

Insert

Arrangement/

Contact Type

Plugs (890-001)

Shell Material

and Finish

Wire

Gage

Wire Type

Wire

Color

Code

White

Wire

Length Hardware

Inches

Wire

Length In

Inches.

“18”

Speciﬁes

18 Inches.

890-001

Plug, Pin

Contacts,

Single Row,

Nanominiature

Ultralightweight XLETFE Insulation,

Silver-Coated Ultrahigh-Strength

Copper (Not available for #32 AWG)

15P

21P

25P

31P

37P

51P

Jackscrew,

#0-80

Aluminum Shell, #30 AWG

Cadmium Plating

Aluminum Shell,

Electroless

Nickel Plating

#32 AWG

Yellow

#0-80

Female

Thread

Female threads

are available on

plug connectors

only if the

shell material

is titanium or

stainless steel.

Extruded PTFE Insulation, NEMA

HP3-ETX (MIL-W-16878/6)

890-002

Receptacles (890-002)

Receptacle,

Socket Contacts,

Single Row,

15S

Nanominiature

21S

10 Color

Repeating

(wire

type A is

striped,

types B

and C

are solid

colors)

Titanium Shell,

Unplated

Cross-Linked Modiﬁed ETFE

Insulation, MIL-W-22759/33

(Not available for #32 AWG)

25S

31S

37S

51S

Stainless Steel

Shell, Passivated

Sample Part Number

890-002

– 9S

– 0

– 12

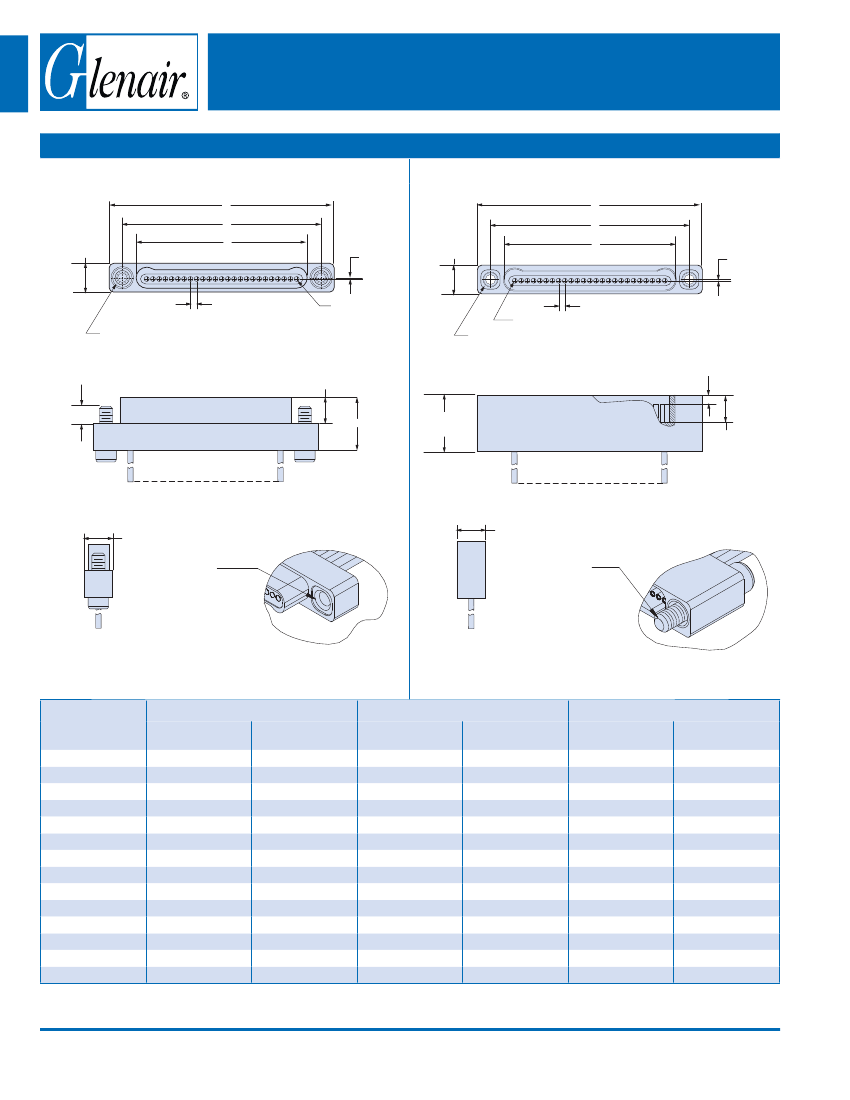

PLUG (PIN) CONNECTOR

RECEPTACLE (SOCKET) CONNECTOR

“J” Jackscrew Option

“T” Female Thread Option

Titanium or Stainless Steel

Shells Only

“T” Female Thread Option

“J” Jackscrew Option

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Single Row

Connectors
