CPTC Thermistor：PS Series
Motor Starter

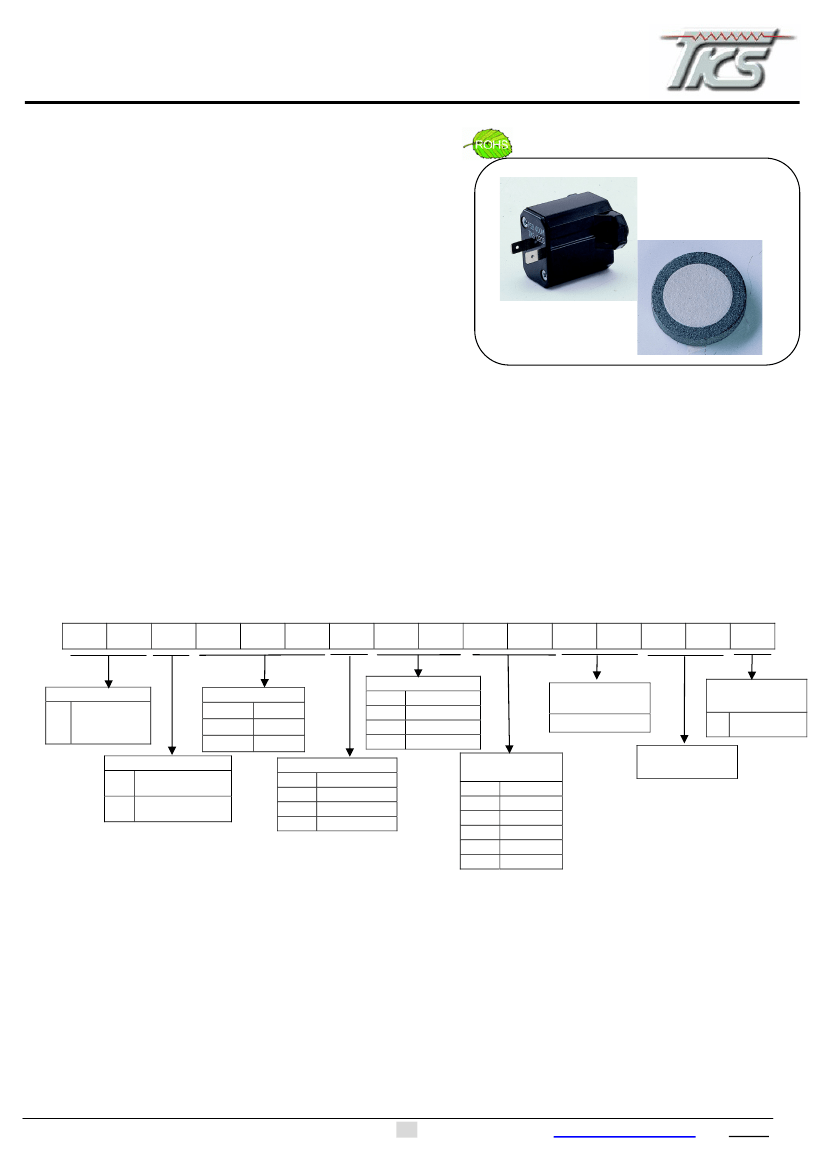

Features
1. RoHS compliant
Two versions available
PSA versions are uncased , metallized disk for clamp-contacting
PSB versions are cased
2. Voltage ratings: from 160V
AC
to 500V
AC
3. Stable over a long life
4. No noise generated
5. Operating temperature range：
-10 ~ +85°C (V=Vmax)
-25 ~ +125°C (V=0)
6. Agency Recognition: UL / cUL / CQC / TUV
Recommended Applications
1. Home appliances (Fridge, Air conditioner)
Part No. Code
P
1
S
2
B
3
3
4
3
5
0
6
M
7
A
8
2
9
C
10
5
11
0
12
1
13
0
14
0
15
Y
16
Product Code
PTC
PS Thermistor for
Motor Starter
Resistance (R
25
)
4R7
330
101
4.7Ω
33Ω
100Ω
M
H
N
Y
Curie Temperature
A0
A2
A3
AG
±20%
±25%
±30%
Special
100℃
120℃
130℃
135℃
Structure
Code
01~09
Maximum
Voltage
RoHS
Control Code
Y
RoHS Series
Series
A
B
Disc Type
Case Type
Tolerance of R
25
Internal Control
Code
A4
A8
B5
C5
D2
E0
140V
180V
250V
350V
420V
500V
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
1
www.thinking.com.tw
2006.07
CPTC Thermistor：PS Series
Motor Starter

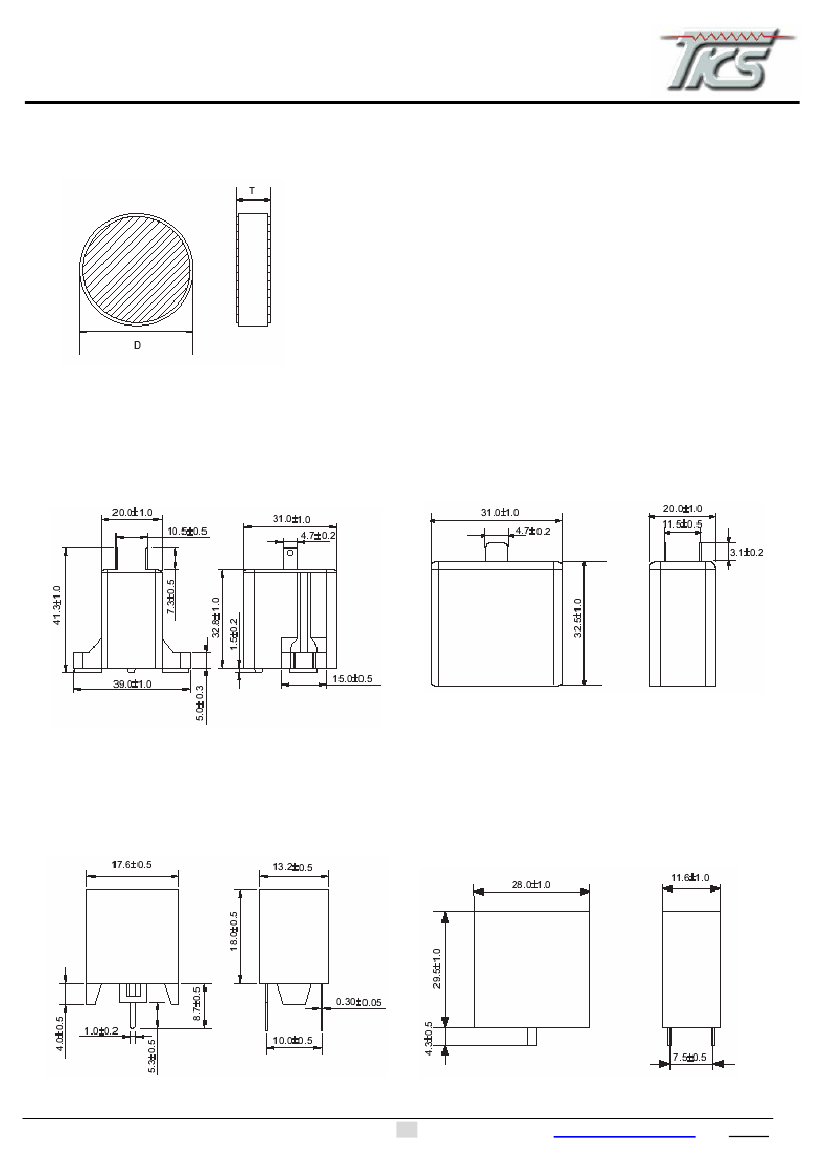

Dimensions
PSA Series
(
Unit: mm)
PSB Series
PSB□□□□□□□□01
PSB□□□□□□□□02
(Unit: mm)
(Unit: mm)
PSB□□□□□□□□03
PSB□□□□□□□□09
(Unit: mm)
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
(Unit: mm)
2
www.thinking.com.tw
2006.07
CPTC Thermistor：PS Series
Motor Starter
Characteristics
PSA Series
Curie
Temperature
Nominal
Zero-power
Resistance
Max.
Voltage
Max.
Current
Operating
Time
Equilibrium
Power
Recovery
Time
Reference
Coil
Resistance
Dimensions
Safety
Approvals
Part No.
Tc (℃)
PSA3R3□A2A604
PSA3R9□A2A604
PSA4R7□A2A804
PSA5R6□A2A804
PSA6R8□A2B204
PSA100□A2B404
PSA150□A2B604
PSA220□A2C004
PSA330□A2C004
PSA470□A2C004
PSA680□A2C204
PSA4R7□A2A705
PSA5R6□A2A905
PSA6R8□A2B205
PSA100□A2B405
PSA150□A2B605
PSA220□A2B805
PSA330□A2B805
PSA470□A2C005
PSA680□A2C005
PSA3R3□AGA604
PSA3R9□AGA604
PSA4R7□AGA804
PSA5R6□AGA804
PSA6R8□AGB004
PSA100□AGB304
PSA150□AGB504
PSA220□AGC004
PSA330□AGC604
PSA470□AGD004
PSA680□AGD304
R
25
(Ω)
3.3
3.9
4.7
5.6
6.8
V
max
(V
AC
)
160
160
180
180
220
240
260
300
300
300
320
170
190
220
240
260
280
280
300
300
160
160
180
180
200
230
250
300
360
400
430
I
max
(A)
12
12
12
12
10
10
10
9
9
9
9
12
12
10
9
8
8
7
6
5
12
12
12
12
10
9
8
7
6
5
4
t
o
(s)
0.3-1.2
0.3-1.2
0.3-1.2
0.3-1.2
0.3-1.2
0.2-0.8
0.2-0.8
0.2-0.8
0.2-0.8
0.2-0.8
0.2-0.8
0.2-1.0
0.2-1.0
0.2-1.0
0.2-1.0
0.2-1.0
0.2-0.8
0.2-0.8
0.2-0.8
0.2-0.8
0.3-1.2
0.3-1.2
0.3-1.2
0.3-1.2
0.3.-1.2
0.2-1.0
0.2-1.0
0.2-1.0
0.2-1.0
0.2-1.0
0.2-1.0
P
max
(W)
3.5
3.5
3.5
3.5
3.5
3
3
3
3
3
3
3.2
3.2
3.2
3
3
3
3
3
3
3.5
3.5
3.5
3.5
3.5
3.2
3.2
3.2
3.2
3.2
3.2
t
rmax
(s)
90
90
90
90
90
85
85
85
85
85
85
80
80
80
80
80
80
80
80
80
70
70
70
70
70
65
65
65
65
65
65
R
ref
(Ω)
10
10
10
10
15
D
(mm)
T
(mm)
UL
cUL
CQC
TUV
√
√
√
√
20.0
2.5
±0.2
√
√
√
√
√
√
√
√
√
√
17.5
2.5
±0.2
√
√
√
√
√
√
√
√
√
√
20.0
2.5
±0.2
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
120±10
10
15
22
33
47
68
4.7
5.6
6.8
10
15
25
25
25
25
25
10
10
15
20
20
15
20
20
20
10
10
10
10
15
15
15
20
25
35
55
+0.5
-1.0
120±10
15
22
33
47
68
3.3
3.9
4.7
5.6
6.8
+0.5
-1.0
135±10
10
15
22
33
47
68
+0.5
-1.0
Note1:
□=Tolerance
of R
25
Note2: UL&cUL File No. E138827 , CQC File No. CQC03001008127~128 , TUV File No. R50030891
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
3
www.thinking.com.tw
2006.07
CPTC Thermistor：PS Series
Motor Starter
PSA Series
Curie
Temperature
Nominal
Zero-power
Resistance
Maximum Maximum Operating Equilibrium Recovery
Voltage
Current
Time
Power
Time
Reference
Coil
Resistance
Dimensions
Part No.
Safety
Approvals
UL
√
√
√
cUL
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
CQC
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
TUV
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
Tc (℃)
PSA4R7□AGA805
PSA5R6□AGA805
PSA6R8□AGB005
PSA100□AGB205
PSA150□AGB405
PSA220□AGB805
PSA330□AGC205
PSA470□AGC505
PSA680□AGD005
PSA4R7□AGA606
PSA5R6□AGA706
PSA6R8□AGA806
R
25
(Ω)
4.7
5.6
6.8
10
V
max
(V
AC
) I
max
(A)
180
180
200
220
240
280
320
350
400
160
170
180
200
230
250
160
180
240
240
250
10
10
9
8
7
6
4
4
4
10
10
9
8
7
6
8
7
6
5
4
t
o
(s)
0.3-1.0
0.3-1.0
0.3-1.0
0.3-1.0
0.2-0.8
0.2-0.8
.0.2-0.8
0.2-0.8
0.2-0.8
0.2-0.6
0.2-0.6
0.2-0.6
0.2-0.6
0.2-0.6
0.2-0.6
0.1-0.6
0.1-0.6
0.1-0.6
0.1-0.5
0.1-0.5
P
max
(W)
3.4
3.4
3.4
3.2
3.2
3.2
3.2
3.2
3.2
3
3
3
3
3
3
2.8
2.8
2.8
2.8
2.8
t
rmax
(s)
65
65
65
65
65
65
65
65
65
50
50
50
50
50
50
45
45
45
45
45
R
ref
(Ω)
15
15
15
20
D
(mm)
T
(mm)
135±10
17.5
15
22
33
47
68
4.7
5.6
6.8
20
25
45
45
45
15
15
15
15
20
20
15
20
14
16
+0.5
-1.0
+0.5
-1.0
2.5
±0.2
√
√
√
√
√
√
√
√
2.5
±0.2
135±10
PSA100□AGB006
PSA150□AGB306
PSA220□AGB506
PSA6R8□AGA607
PSA100□AGA807
PSA150□AGB407
PSA220□AGB407
PSA330□AGB507
√
√
√
√
√
10
15
22
6.8
10
135±10
15
22
33
2.5
±0.2
√
√
√
√
25
25
30
+0.5
-1.0
Note1:
□=Tolerance
of R
25
Note2: UL&cUL File No. E138827 , CQC File No. CQC03001008127~128 , TUV File No. R50030891
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
4
www.thinking.com.tw
2006.07
CPTC Thermistor：PS Series
Motor Starter
PSB Series
Part No.
Curie
Tempe
rature
Tc (℃)
PSB100□A2B2**
PSB150□A2B5**
PSB220□A2C0**
PSB330□A2C5**
PSB400□A2C0**
PSB470□A2D0**
PSB101□A2E0**
PSB330□A2B503
PSB400□A2B503
PSB470□A2B503
PSB150□A3B5**
PSB220□A3C0**
PSB330□A3C5**
PSB470□A3B5**
130
±10
120
±10
Nominal
Zero-power
Resistance
Maximum
Voltage
Maximum
Current
Operating
Time
Equilibrium
Power
Recovery
Time
t
rmax
(s)
130
130
130
130
120
120
95
60
60
60
120
120
120
120
Reference
Coil
Resistance
R
ref
(Ω)
25
25
25
30
25
25
10
30
30
30
15
25
25
25
√
√
√
√
UL
√
√
√
√
√
√
√
Safety
Approvals
cUL
√
√
√
√
√
√
√
CQC
√
√
√
√
√
√
√
TUV
√
√
√
√
√
√
√
R
25
(Ω)
10
15
22
33
40
47
100
33
40
47
15
22
33
47
V
max
(V
AC
)
220
250
300
350
300
400
500
250
250
250
250
300
350
250
I
max
(A)
9
8
7
6
5
5
4
4.5
4
4
8
7
6
5
t
o
(s)
0.4-2.0
0.4-2.0
0.4-2.0
0.2-2.0
0.2-1.5
0.2-1.5
0.2-1.5
0.1-0.5
0.1-0.5
0.1-0.5
0.4-2.0
0.4-2.0
0.2-2.0
0.2-2.0
P
max
(W)
5
5
5
5
4
4
4
2.3
2.3
2.3
5
5
5
5
√
√
√
√
√
√
√
√
√
√
√
√
Note1:
□=Tolerance
of R
25
Note2: **= Dimensions code for 01 , 02 or 09
Note3: UL&cUL File No. E138827 , CQC File No. CQC03001008127~128 , TUV File No. R50031360
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
5
www.thinking.com.tw
2006.07
