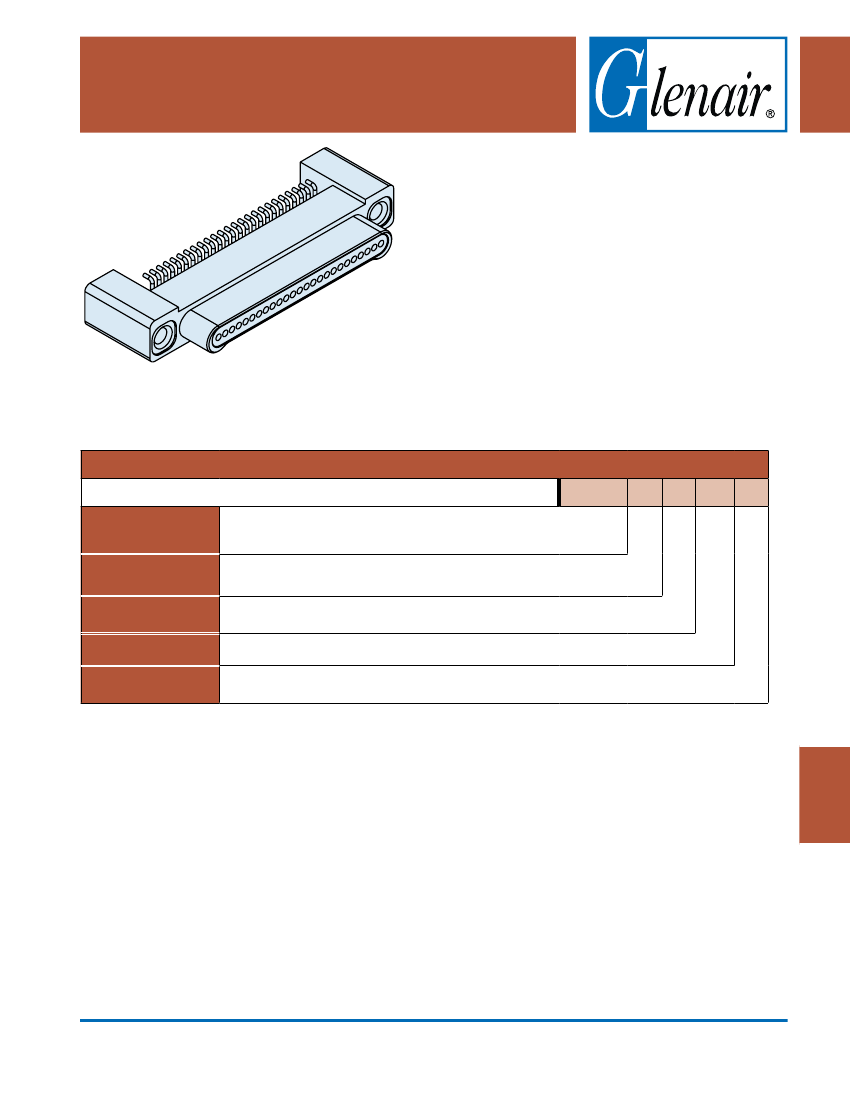

Surface Mount Type
Right Angle SMT PCB Nano Connectors
feature gold alloy
TwistPin contacts. These nanomimiature connectors offer premium
performance and reliability for demanding applications. Available
with #0-80 female threads.
excellent solderability.
Pre-Tinned PC Tails
are coated with Sn63Pb37 tin-lead for
Choose Aluminum, Titanium or Stainless Steel
Shells
in eight layouts from 5 to 51 contacts. Complies to
the requirements of MIL-DTL-32139. These connectors are
intermateable with any corresponding Glenair Series 890
single row metal shell nanominiature connector.
How to Order Right Angle SMT PCB Connectors
Sample Part Number
Series
Insert Arrangement/
Contact Type
Shell Material
and Finish
Termination Type
Hardware
890-012
890-012
Plug, Pin Contacts, Single Row, Right Angle SMT Nanominiature
890-013
Receptacle, Socket Contacts, Single Row, Right Angle SMT
Nanominiature
Plugs (890-012):
5P, 9P, 15P, 21P, 25P, 31P, 37P, 51P,
Receptacles (890-013):
5S, 9S, 15S, 21S, 25S, 31S, 37S, 51S
A1
- Aluminum Shell, Cadmium Plating
A2
- Aluminum Shell, Electroless Nickel Plating
BRS
- Board Right Angle Surface Mount
T
- Female Thread, #0-80
T
- Titanium Shell, Unplated
S
- Stainless Steel Shell, Passivated
-51P
T
-BRS
T
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-13
E-Mail: sales@glenair.com
Single Row
Connectors
890-012 and 890-013
Right Angle Mount PCB, Single Row Nano Connector
D
E
F
G
890-012 and 890-013
Right Angle Mount PCB, Single Row Nano Connector
Surface Mount Type
D
E
F
G
Single Row
Connectors
A
B
.115
(2.92)
C
.015
(0.38)
.025 (0.64) TYP
#0-80 UNF-2B, 2X

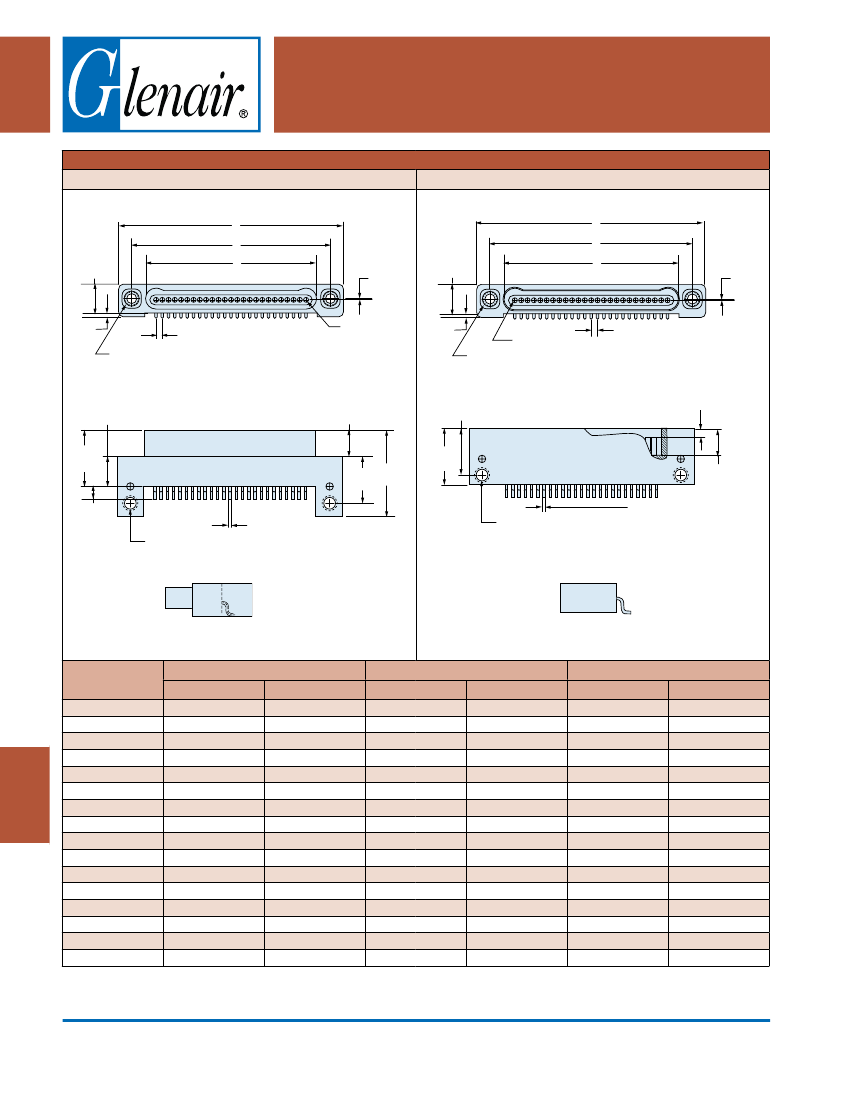

Single Row Nano Right Angle SMT Dimensions
890-012 Plug (Pin) Connectors
890-013 Receptacle (Socket) Connectors
A
B
.115
(2.92)
.005
(0.13)
C
.005
(0.13)
PIN 1
.015
(0.38)
Socket 1
#0-80 UNF-2B, 2
X
.025 (0.64) Typ
.120
(3.05)
.225
(5.72)
.105 ±.003
(2.67)
.187
(4.75)
.225
(5.72)
.042/.037
(1.07/0.94)
.187 .345
(4.75)(8.76)
Ø.010 +.002 (0.26) Typ
–.000
.110 ± .003
(2.79)
#0-80 UNF-2B, 2X
Ø.010 +.002 (0.26) Typ
–.000
.051
(1.30)
#0-80 UNF-2B, 2X
A
Layout
5P
5S
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
In. ± .005
.400
.400
.500
.500
.650
.650
.800
.800
.900
.900
1.050
1.050
1.200
1.200
1.550
1.550
mm. ± 0.13
10.16
10.16
12.70
12.70
16.51
16.51
20.32
20.32
22.86
22.86
26.67
26.67
30.48
30.48
39.37
39.37
B BSC.
C BSC.
In.
.295
.295
.395
.395
.545
.545
.695
.695
.795
.795
.945
.945
1.095
1.095
1.445
1.445
mm.
7.49
7.49
10.03
10.03
13.84
13.84
17.65
17.65
20.19
20.19
24.00
24.00
27.81
27.81
36.70
36.70
In.
.184
.185
.284
.285
.434
.435
.584
.585
.684
.685
.834
.835
.984
.985
1.334
1.335
mm.
4.67
4.70
7.21
7.24
11.02
11.05
14.83
14.86
17.37
17.40
21.18
21.21
24.99
24.02
33.88
33.91
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-14
E-Mail: sales@glenair.com
Surface Mount Type

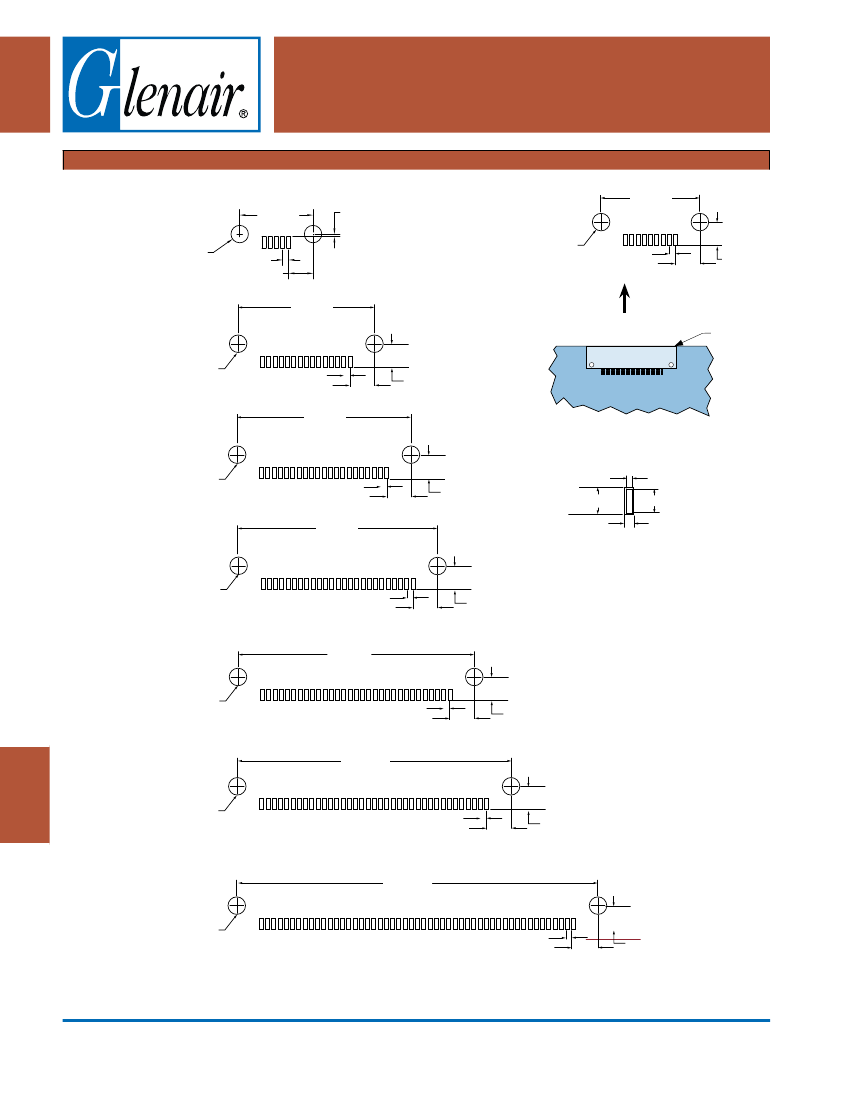

Right Angle SMT Plug (Pin) Connector Layout 890-012
.011
(0.28)
.0975 (2.48)
.025 (0.64) TYP
123456 78 9
5 Contacts
.011 (.28) Typ
.0975 (2.48)
.025 (0.64) Typ
1 2 3 4 5
9 Contacts
Ø.070 (1.78) 2 PLS
.295 (7.49)
.0975 (2.48)
.025 (0.64) TYP
.395(10.03)
Ø.070 (1.78) 2 PLCS
15 Contacts
.011
(0.28)
1 2 34 5 6 78 9 1 1 1 1 11
012345
Pin #1
Ø.070 (1.78) 2 PLCS
Connector Mating Face
.545 (13.84)
.0975 (2.48)
.025 (0.64) TYP
1 2 34 56 789 11 1 111 11 11 22
012345678901
21 Contacts
.011
(0.28)
Component Mounting Side of PCB
(25P actual size)
Ø.070 (1.78) 2 PLCS
.695 (17.65)
.0975 (2.48)
.025 (0.64) TYP
1 2 34 5 6 7 8 9 1 1 11 1 1 1 1 1 1 2 2 2 2 2 2
0 123 456789012345
.010 (0.25) LEAD DIA.
.045 (1.14) PAD HEIGHT
.035 (0.89) LEAD LENGTH
.016 (0.41) TYP.
PAD/FOOTPRINT DETAIL
Ø.070 (1.78) 2 PLCS
25 Contacts
.011
(0.28)
.795 (20.19)
.0975 (2.48)
.025 (0.64) TYP
31 Contacts
.011
(0.28)
1 2 34 56 7 8 91 11 1 1 11 11 1 22 2 2 2 22 222 3 3
01234567890123456 789 0 1
.945 (24.00)
.0975 (2.48)
.025 (0.64) TYP
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 3 33 3 3 3 3 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 12 3 4 5 6 7
Ø.070 (1.78) 2 PLCS
37 Contacts
011
(0.28)
1.095 (27.81)
Ø.070 (1.78) 2 PLCS
51 Contacts
.011
(0.28)
.0975 (2.48)
.025 (0.64) TYP
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 3 33 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5 5
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 12 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
1.445 (36.71)
Ø.070 (1.78) 2 PLCS
Layouts shown are for connector mounting side of PC Board.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-15
E-Mail: sales@glenair.com
Single Row
Connectors
890-012 and 890-013
Right Angle Mount PCB, Single Row Nano Connector
D
E
F
G
890-012 and 890-013
Right Angle Mount PCB, Single Row Nano Connector
Surface Mount Type
D
E
F
G
Single Row
Connectors

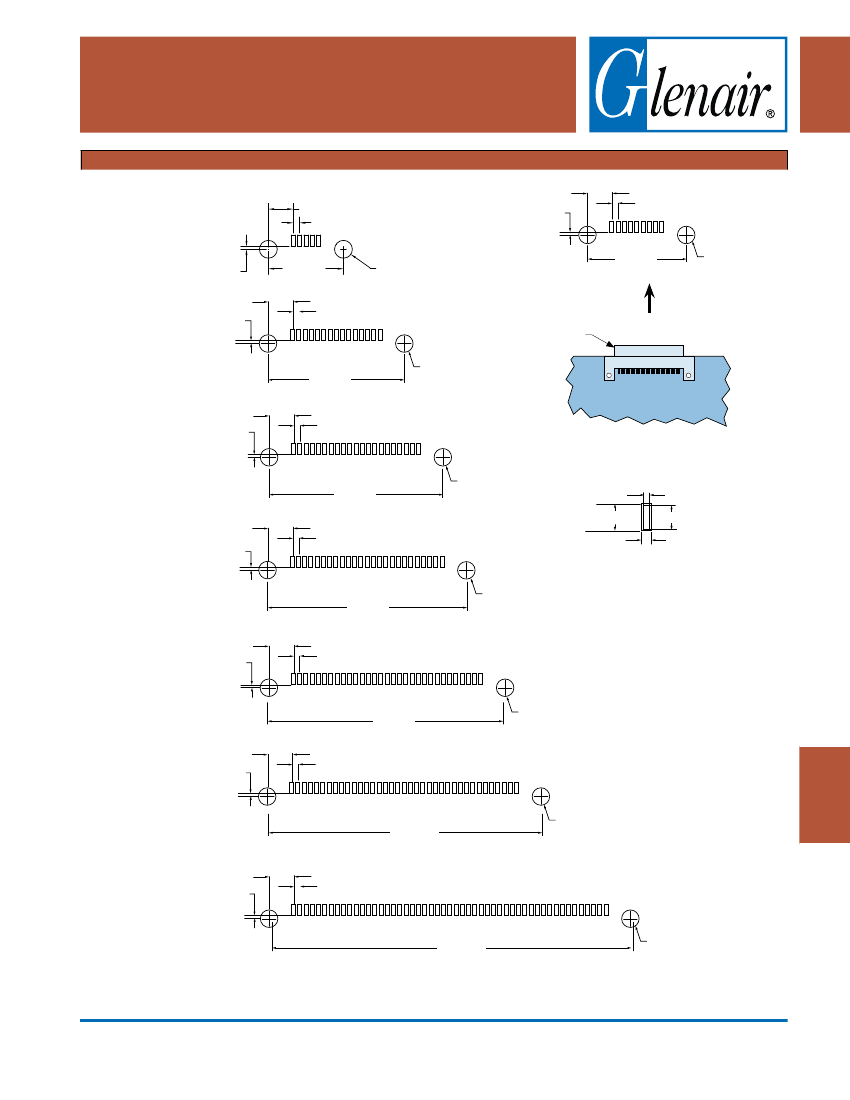

Right Angle SMT Receptacle (Socket) Connector Layout 890-013
.395(10.03)
5 Contacts
Ø.070 (1.78) 2 PLS
.295 (7.49)
5 4 3 2 1
.094 (2.39) Typ
9 Contacts
Ø.070 (1.78) 2 PLCS
9 87 654321
.025 (0.64) Typ
.0975 (2.48)
.025 (0.64) TYP
.0975 (2.48)
.094 (2.39)
.545 (13.84)
15 Contacts
Ø.070 (1.78) 2 PLCS
Connector Mating Face
11 1 1 1 1 9 87 6 5 43 2 1
543210
Socket #1
.025 (0.64) TYP
.0975 (2.48)
.695 (17.65)
.094 (2.39)
21 Contacts
Ø.070 (1.78) 2 PLCS
22 11 11 111 1 11 987 65 43 2 1
109876543210
Component Mounting Side of PCB
(25S actual size)
.094 (2.39)
.025 (0.64) TYP
.0975 (2.48)
.795 (20.19)
.010 (0.25) LEAD DIA.
.045 (1.14) PAD HEIGHT
.035 (0.89) LEAD LENGTH
.016 (0.41) TYP.
PAD/FOOTPRINT DETAIL
25 Contacts
Ø.070 (1.78) 2 PLCS
2 2 2 2 2 2 1 1 1 1 1 1 11 1 1 9 8 7 6 5 43 2 1
543210987654 321 0
.025 (0.64) TYP
.0975 (2.48)
.094 (2.39)
.945 (24.00)
31 Contacts
Ø.070 (1.78) 2 PLCS
3 3 222 22 2 2 2 22 1 11 11 1 1 11 19 8 765 43 2 1
1 0 987 65432109876543210
.025 (0.64) TYP
.0975 (2.48)
.094 (2.39)
1.095 (27.81)
37 Contacts
3 3 3 3 3 33 3 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1
7 6 5 4 3 21 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0
Ø.070 (1.78) 2 PLCS
.025 (0.64) TYP
.0975 (2.48)
.094 (2.39)
1.445 (36.71)
51 Contacts
Ø.070 (1.78) 2 PLCS
5 5 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 3 3 33 3 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1
1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 21 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0
.025 (0.64) TYP
.0975 (2.48)
.094 (2.39)
Layouts shown are for connector mounting side of PC Board.
