TPM1S103P120R

Description
SMD PTC Thermistor for Temperature Sensing
File Size262KB,11 Pages
ManufacturerThinking-Electronic-Industrial-Co
Download Datasheet View All

TPM1S103P120R Overview

SMD PTC Thermistor for Temperature Sensing

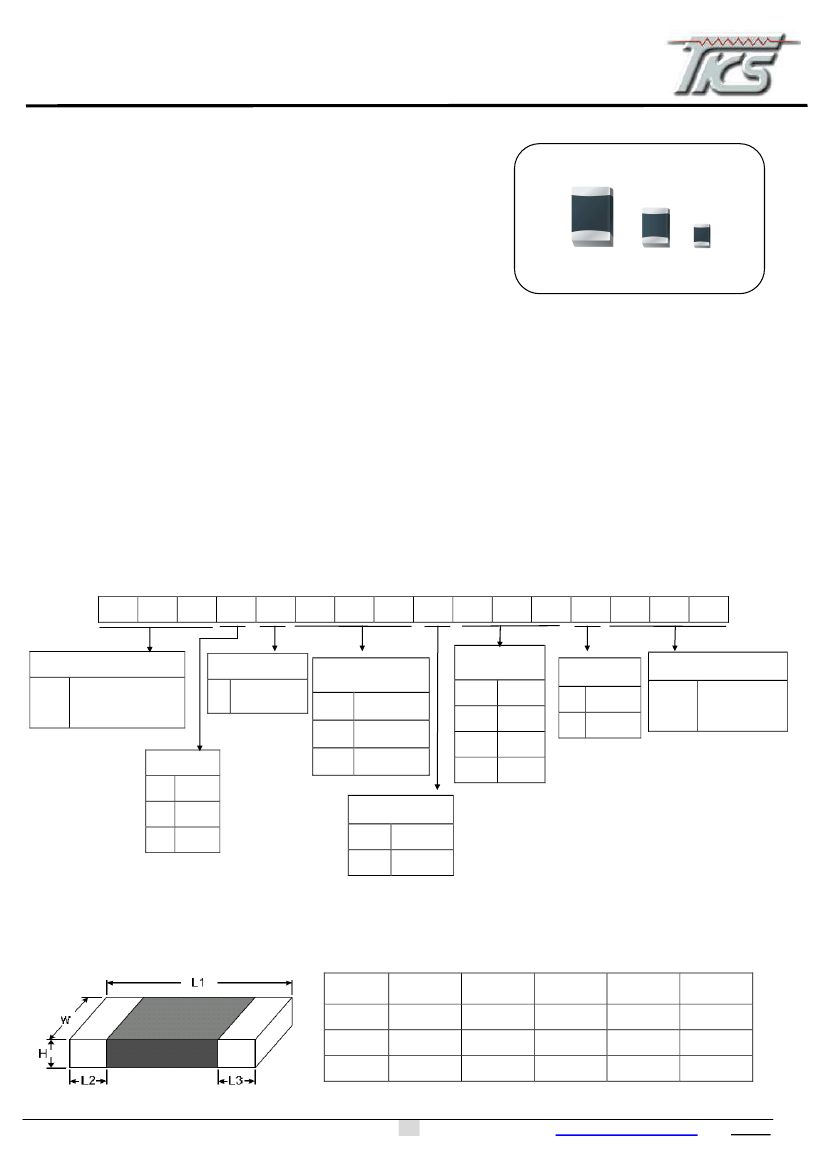

PTC Thermistor:TPM-S Series
SMD PTC Thermistor for Temperature Sensing
Features
1. RoHS & Halogen-free compliant
2. Thermistor chip with lead-free tinned terminals
3. EIA size 0402,0603,0805
4. Fast and reliable response
5. Suitable for reflow soldering
6. Agency Recognition:
UL & cUL:File No. E138827
TUV:File No. R50133294
Recommended Applications
1. DC/DC converters
2. AC adapter
3. Inverter
4. Overheat protection for transistor and ICs
5. LED
Part Number Code
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Product Type
THINKING PTC
Thermistor
TPM Series
S
Series
Temperature
Sensing
Zero Power
Resistance at 25℃
471
103
470
Sensing
Temperature
105
115
105℃
115℃
125℃
130℃
Packaging
R
B
Reel
Bulk
T
Optional Suffix
Dual Sensing
Temperature
Series
TPM
10K
125
47K
130
Size (EIA)
0
1
2
0402
0603
0805
473
Tolerance of R25
N
P
±
30﹪
±
50﹪
Structure and Dimensions
(Unit: mm)
Part No.
TPM0
TPM1
TPM2
Size (EIA)
0402
0603
0805
L1
1.00±0.15
1.60±0.15
2.00±0.20
W
0.50±0.10
0.80±0.15
1.25±0.20
H max.
0.60
0.95
1.20
L2 and L3
0.20±0.10
0.40±0.20
0.45±0.25
THINKING ELECTRONIC INDUSTRIAL CO., LTD.
All specifications are subject to change without notice
1
www.thinking.com.tw
2011.05
