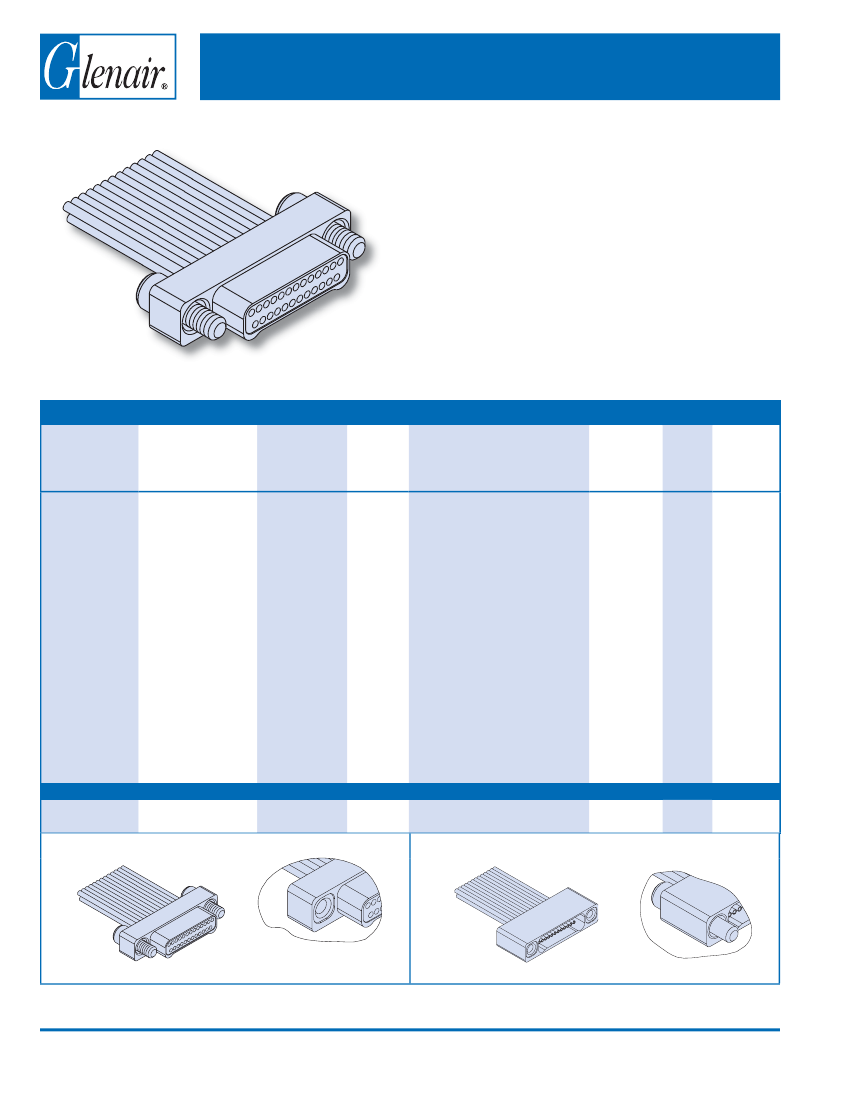

Series 89 Nanominiature Connectors
Two Row Pigtail Assemblies, Insulated Wire
891-001 and -002
Glenair’s Pigtail Nano Connectors
feature gold alloy
NanoPin contacts. Contacts are precision-crimped
to insulated, stranded wire. These nanomimiature
connectors offer premium preformance and reliability
for demanding applications. Contact spacing is .025
inches. 1 amp current rating, DWV rating 300 volts AC.
Wire gages #30 and #32 AWG.
NanoPin Contact System
assures premium performance in
demanding environments. The gold/platinum alloy contacts
will stand up to years of exposure without corrosion.
Typical Applications
include UAV's, satellites, missile
systems and geophysical instruments.
HOW TO ORDER NANOMINIATURE CONNECTORS WITH INSULATED WIRE
Insert
Arrangement/
Contact Type
Plugs (891-001)
Series
891-001
Plug, Pin
Contacts,
Two Row,
Nanominiature
Shell Material
and Finish
A1
Wire
Gage
0
Wire Type
A
Ultralightweight XLETFE Insulation,
Silver-Coated Ultrahigh-Strength
Copper (Not available for #32 AWG)
Wire
Color
Code
1
White
Wire
Length
Inches Hardware
18
Wire
Length In
Inches. “18”
Specifies 18
Inches.
J
Jackscrew,
#0-80
891-002
Receptacle,
Socket Contacts, Receptacles (891-002)
Two Row,
9S
Nanominiature
9P
15P
21P
25P
31P
37P
51P
Aluminum Shell, #30 AWG
Cadmium Plating
2
A2
Aluminum Shell,
Electroless
Nickel Plating
#32 AWG
2
Yellow
T
Threaded
Inserts, #0-
80 Female
(Titanium
or Stainless
Steel Shells
Only)
B
Extruded PTFE Insulation, NEMA
HP3-ETX (MIL-W-16878/6)
7
10 Color
Repeating
(wire type
A is striped,
types B and
C are solid
colors)
T
Titanium Shell,
Unplated
C
Cross-Linked Modified ETFE
Insulation, MIL-W-22759/33
(Not available for #32 AWG)
15S
21S
25S
31S
37S
51S
S
Stainless Steel
Shell, Passivated
Sample Part Number
891-002
— 37S
A1
—0
A
1
— 12
J
PLUG (PIN) CONNECTOR
RECEPTACLE (SOCKET) CONNECTOR
“J” Jackscrew Option
)“T” Threaded Insert Option
Titanium or Stainless Steel
Shells Only
“T” Threaded Insert Option
“J” Jackscrew Option
© 2006 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
P-28
E-Mail: sales@glenair.com
Series 89 Nanominiature Connectors
Two Row Pigtail Assemblies, Insulated Wire
891-001 and -002

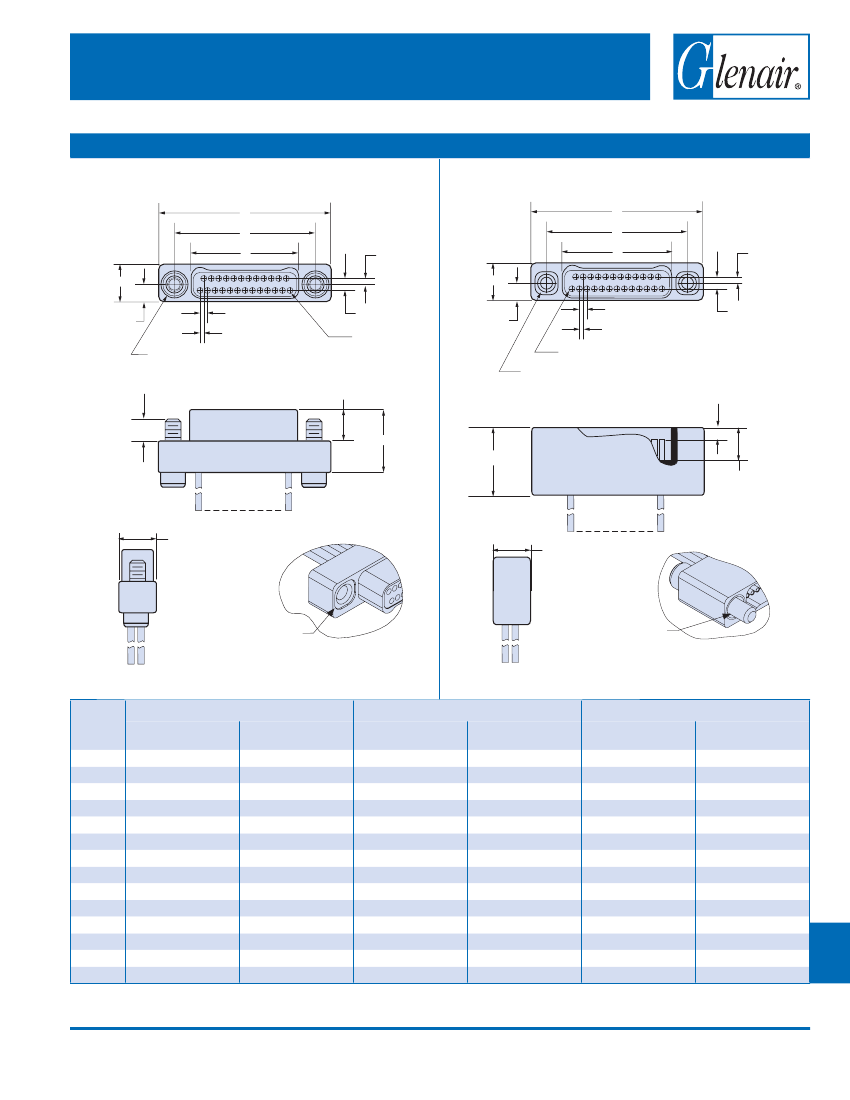

TWO ROW NANO PIGTAIL DIMENSIONS
Plug (Pin) Connectors
A
B
C
.125 (3.18)
.025 (0.64) TYP
.0125 (0.32) TYP
#0-80 UNF-2A, 2X
.108 / .102
2.74 / 2.59
.040 (1.02)
PIN 1
.020 (0.51)
.125 (3.18)
.025 (0.64) TYP
.0125 (0.32) TYP
SOCKET #1
Receptacle (Socket) Connectors
A
B
C
.020 (0.51)
.0575 (1.46)
.0575 (1.46)
.040 (1.02)
#0-80 UNF-2B, 2X
.042/.037
(1.07/0.94)
.210 (5.33)
.225 (5.72)
.080
(2.03)
.110 ± .003
(2.79 ± 0.08)
.125 (3.18)
.125 (3.18)
PLUG WITH
“T” THREADED
INSERT OPTION
Titanium or Stainless Steel
Shells Only
RECEPTACLE
WITH “J”
JACKSCREW
OPTION
A Dimension
Layout
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
In.
.375
.375
.450
.450
.525
.525
.575
.575
.650
.650
.725
.725
.900
.900
B Basic Dimension
mm.
In .
.270
.270
.345
.345
.420
.420
.470
.470
.545
.545
.620
.620
.795
.795
C Basic Dimension
In.
.160
.163
.235
.238
.310
.313
.360
.363
.435
.438
.510
.513
.685
.688
mm.
6.86
6.86
8.76
8.76
10.67
10.67
11.94
11.94
13.84
13.84
15.75
15.75
20.19
20.19
mm.
4.06
4.14
5.97
6.04
7.87
7.95
9.14
9.22
11.05
11.12
12.95
13.03
17.40
17.47
9.52
9.52
11.43
11.43
13.33
13.33
14.60
14.60
16.51
16.51
18.41
18.41
22.86
22.86
P
© 2006 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
P-29
E-Mail: sales@glenair.com
