891-015-9SS-STMT

Description
D Nanominiature Connector, 9 Contact(s), Female, Surface Mount Terminal, Receptacle,
CategoryThe connector    The connector
File Size453KB,4 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric Compare View All

891-015-9SS-STMT Overview

D Nanominiature Connector, 9 Contact(s), Female, Surface Mount Terminal, Receptacle,

891-015-9SS-STMT Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompliant
Other featuresSTANDARD: MIL-DTL-32139
Body/casing typeRECEPTACLE
Connector typeD NANOMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN LEAD
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceYES
Manufacturer's serial number891-015
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell materialSTAINLESS STEEL
Termination typeSURFACE MOUNT
Total number of contacts9
Series 89 Nanominiature Connectors
Straddle Mount
891-014 and -015
M
N
P
Insulator
Contacts
Hardware
PC Tails
PCB Trays
Encapsulant
Nano
A
B
C
D
E
F
G
H
J
K
L

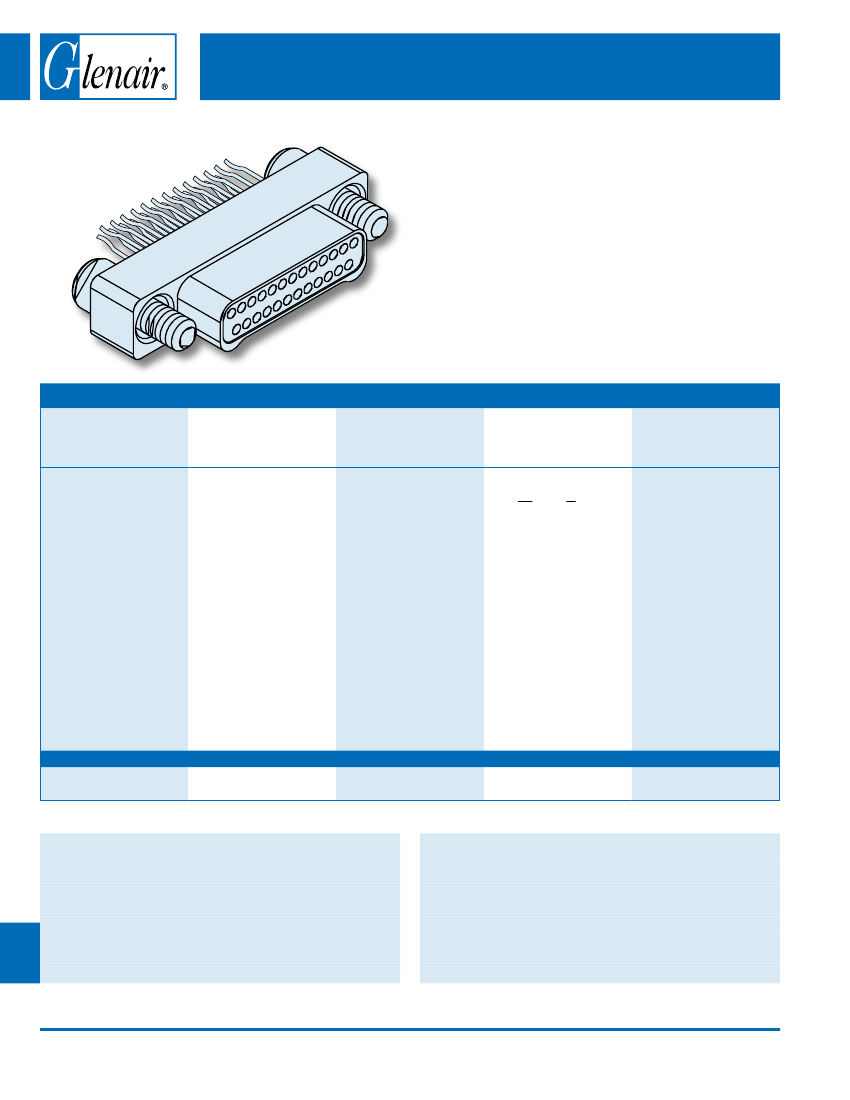

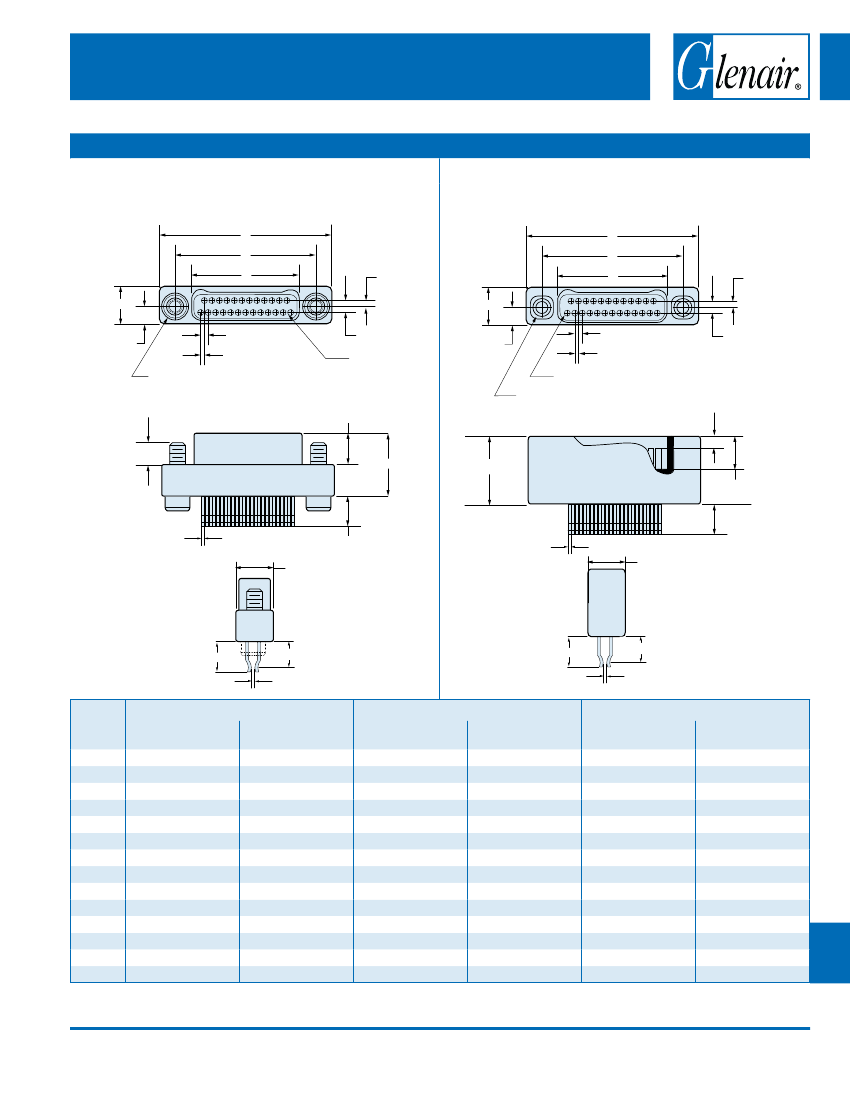

891-015
Series
891-014
Plug, Pin Contacts, Two
Row, Straddle Mount
Nanominiature
Straddle Mount PCB Nano Connectors
feature gold alloy
NanoPin contacts. These nanomimiature connectors
offer premium performance and reliability for
demanding applications. Available with #0-80 threaded
inserts, or with jackscrews for use with flexible circuits.
Pre-Tinned PC Tails
are coated with Sn63Pb37 tin-lead
for excellent solderability.
Choose Aluminum, Titanium or Stainless Steel Shells
in seven layouts from 9 to 51 contacts. Complies to the
requirements of MIL-DTL-32139. These connectors are
intermateable with any corresponding Glenair Series
891 two row metal shell nanominiature connector.
HoW to oRDER StRADDLE MouNt PCB CoNNECtoRS
Insert Arrangement/
Contact type
Plugs (891-014)
Shell Material and Finish
A1
Aluminum Shell, Cadmium
Plating
termination type
StM
”Straddle
Mount”
Hardware
Jackscrew, #0-80
Threaded Inserts, #0-80
Female
Threaded inserts are available on
plug connectors only if the shell
material is titanium or stainless
steel.
891-015
Receptacle, Socket
Contacts, Two Row,
Straddle Mount
Nanominiature
9P
15P
21P
25P
31P
37P
51P
Receptacles (891-015)
J
t
A2
Aluminum Shell, Electroless
Nickel Plating
9S
15S
21S
25S
31S
37S
51S
t
Titanium Shell, Unplated
S
Stainless Steel Shell,
Passivated
Sample Part Number
— 37S
A1
—StM
t
MAtERIALS AND FINISHES
Connector Shell
See Ordering Information
Liquid Crystal Polymer (LCP),30% Glass-Filled
Gold Alloy, Unplated
300 Series Stainless Steel
#30 (.010 Dia.) Copper Wire, Solder Dipped
Liquid Crystal Polymer (LCP) or Epoxy
Epoxy
Durability
Current Rating
SPECIFICAtIoNS
200 Cycles Minimum
1 AMP Maximum
300 VAC RMS Sea Level
5000 Megohms Minimum
-55° C. to +125° C.
71 mV. @1 AMP #30 AWG Wire
1.0% Max TML, 0.1% Max.
Voltage Rating (DWV)
Insulation Resistance
Operating Temperature
Contact Resistance
Thermal Vacuum Outgassing
© 2006 Glenair, Inc.
www.glenair.com
CAGE Code 06324/0CA77
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
P-50
