891003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 891003

891003: DescriptionFEMALE; MALE, D NANOMINIATURE CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size369KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

891003 Overview

FEMALE; MALE, D NANOMINIATURE CONNECTOR, CRIMP, PLUG

891003 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	MAX CONTACTS (SERIES)=51
Body/casing type	PLUG
Connector type	D NANOMINIATURE CONNECTOR
Contact point gender	FEMALE; MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	891-003
Mixed contacts	NO
Installation type	CABLE
Options	WITH CABLE ASSEMBLY
Shell surface	CADMIUM/NICKEL; TITANIUM
Shell material	ALUMINUM ALLOY; STAINLESS STEEL
Termination type	CRIMP

Preview

Download Datasheet

View All

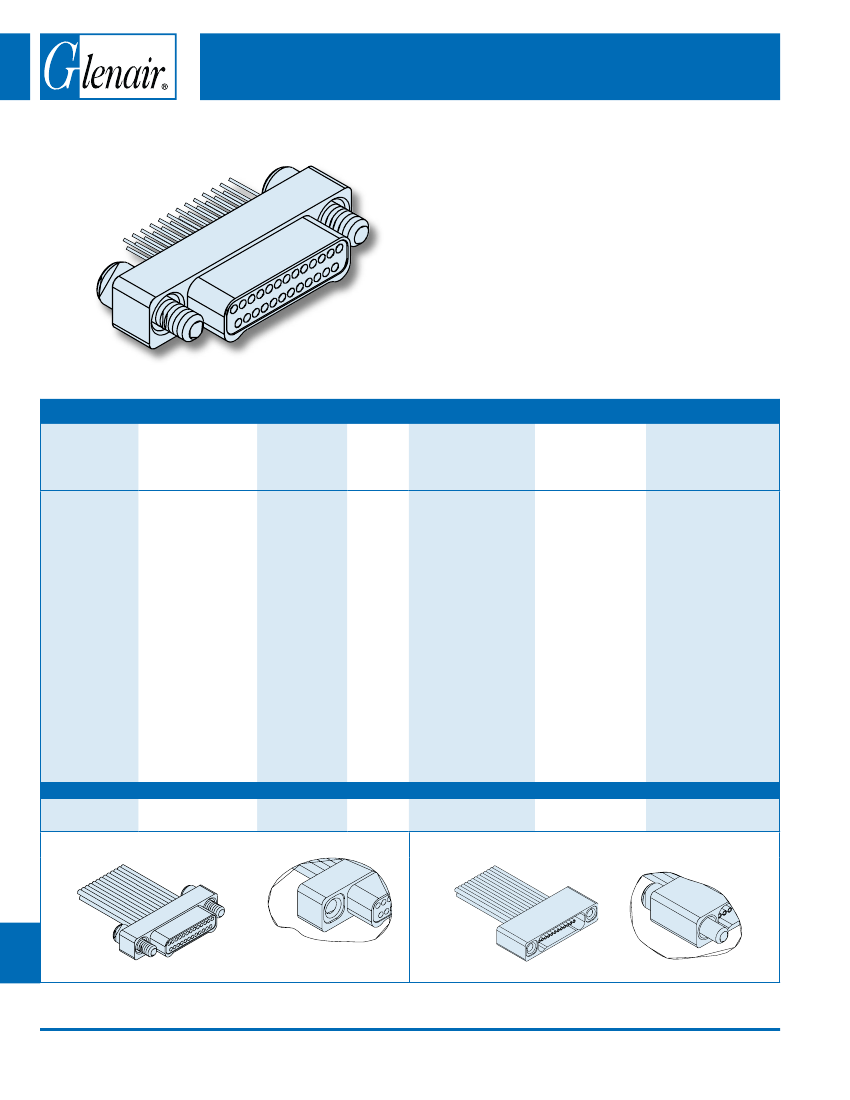

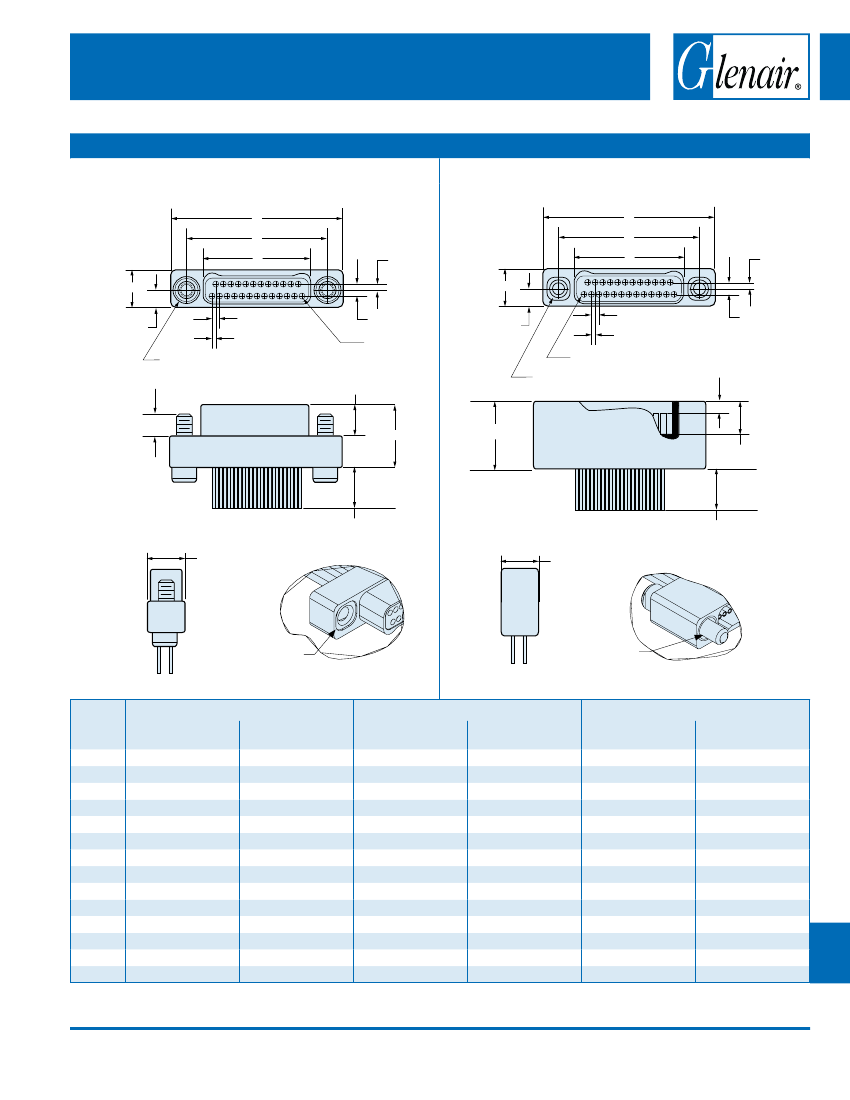

series 89 Nanominiature Connectors

two Row Pigtail Assemblies, uninsulated Wire

891-003 and -004

Nano

891-003

series

891-003

Plug, Pin

Contacts,

Two Row,

Nanominiature,

Uninsulated Wire

Glenair’s Pigtail Nano Connectors

feature gold alloy

NanoPin contacts. Contacts are precision-crimped

to insulated, stranded wire. These nanomimiature

connectors offer premium preformance and reliability

for demanding applications. Contact spacing is .025

inches. 1 amp current rating, DWV rating 300 volts AC.

Wire gages #30 and #32 AWG.

NanoPin Contact System

assures premium performance in

demanding environments. The gold/platinum alloy contacts

will stand up to years of exposure without corrosion.

Typical Applications

include UAV's, satellites, missile

systems and geophysical instruments.

HoW to oRDER NANoMINIAtuRE CoNNECtoRs WItH uNINsuLAtED WIRE

Insert

Arrangement/

Contact type

Plugs (891-003)

shell Material

and Finish

Wire

Gage

Wire type

Single Strand Copper

Wire, Uninsulated, with

Gold Plating

Wire Length

.125

.250

.375

.500

Wire Length in Inches

Hardware

Jackscrew, #0-80

Threaded Inserts, #0-80

Female

Threaded inserts are available

on plug connectors only if the

shell material is titanium or

stainless steel.

891-004

Receptacle,

Socket Contacts, Receptacles (891-004)

Two Row,

Nanominiature,

15s

Uninsulated Wire

15P

21P

25P

31P

37P

51P

Aluminum Shell, #30 AWG

Cadmium Plating

Aluminum Shell,

Electroless

Nickel Plating

#32 AWG

Titanium Shell,

Unplated

21s

25s

31s

37s

51s

Stainless Steel

Shell, Passivated

Sample Part Number

— 9P

—0

— .125

PLuG (PIN) CoNNECtoR

RECEPtACLE (soCKEt) CoNNECtoR

“J” Jackscrew Option

“T” Threaded Insert Option

Titanium or Stainless Steel

Shells Only

“T” Threaded Insert Option

“J” Jackscrew Option

www.glenair.com

CAGE Code 06324/0CA77

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

P-30

891003 Related Products

	891003	891004
Description	FEMALE; MALE, D NANOMINIATURE CONNECTOR, CRIMP, PLUG	FEMALE; MALE, D NANOMINIATURE CONNECTOR, CRIMP, RECEPTACLE
Maker	Glenair	Glenair
Reach Compliance Code	compliant	compliant
Other features	MAX CONTACTS (SERIES)=51	MAX CONTACTS (SERIES)=51
Body/casing type	PLUG	RECEPTACLE
Connector type	D NANOMINIATURE CONNECTOR	D NANOMINIATURE CONNECTOR
Contact point gender	FEMALE; MALE	FEMALE; MALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	891-003	891-004
Mixed contacts	NO	NO
Installation type	CABLE	CABLE
Options	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY
Shell surface	CADMIUM/NICKEL; TITANIUM	CADMIUM/NICKEL; TITANIUM
Shell material	ALUMINUM ALLOY; STAINLESS STEEL	ALUMINUM ALLOY; STAINLESS STEEL
Termination type	CRIMP	CRIMP
