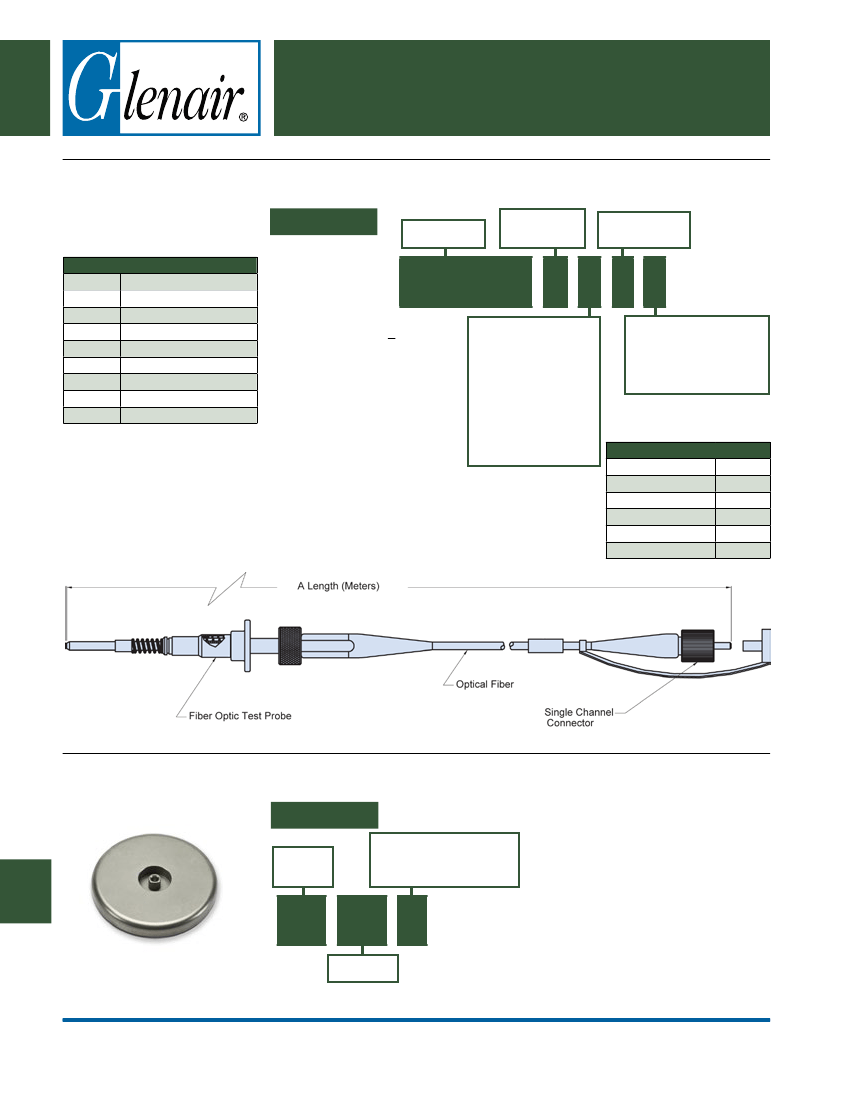

ABC 54705
Replacement Fiber Optic Test Probe Jumper
Simplex
Test Probes
and Kits
Table I: Fiber Size
Symbol
Size
A
B
C
D
E
F
G
H
100/140 µm
62.5/125 µm
50/125 µm
200/230 µm
Singlemode 9.3/125
Customer Defined
SM 5.8/125 M/F DIA. .21na
SM 7.5/125 M/F DIA. .17na
Fiber optic test probe for fast and easy optical analysis of installed fiber optic systems
How To Order
Basic No.
Fiber Size
(Table I)
“A” Length
(in meters)
ABC 54705
-
A
-
A
-
3 C
Optical insertion loss < 1.0 dB @
850 or 1300 nm wavelength.
Glenair Fiber Optic Test Probe U.S.
Patent Number 5,960,137.
Connector Type:
A
= ST Connector
B
= FC Connector
C
= SC Connector
D
= FC/APC Connector
E
= Customer Defined
F
= LC Connector
G
= SC/APC Connector
H
= M29504/04 Pin
J
= M29504/05 Socket
F
= Flat Polish
C
= Concave Polish
(Probe end only. Omit for
standard “PC” physical
contact polish)
Standard Tolerance
Length
Tolerance
5 in, up to 2 ft
+1/-0 in
Over 2 ft, up to 10 ft
+3/-0 in
Over 10 ft, up to 50 ft +6/-0 in
Over 50 ft, up to 100 ft +1/-0 ft
Over 100 ft
+2/-0 ft
Fiber optic polishing tool for fiber optic test probes
How To Order
Product
Series
W=
Wet Polish
Supplied with V-grooves
(Omit for Dry Polish)
L
182
-
002 W
Basic No.
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-14
