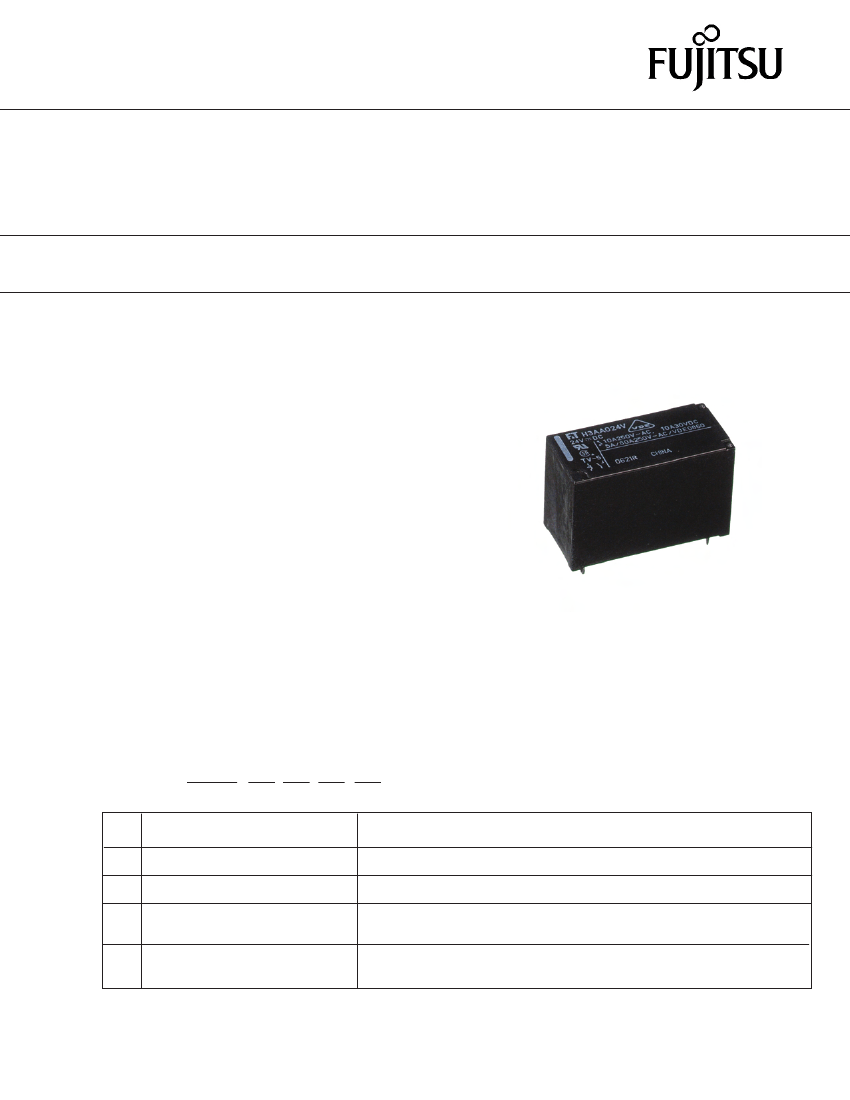

FTR-K1 SERIES
SILENT POWER RELAY
1 POLE - 78A/120A Inrush Current Type
FTR-H3 Series
n
FEATURES
l
l
l
l
l
l
l
l
l
l
l
Pin compatible with widely used VS and FTR-H1 series
power relays
Silent relay with patented unique U-shape spring.
Noise level ≈ 50dB at 5cm.
Low profile (height 18.8 mm) / cadmium free contacts
High insulation in small package
Insulation distance : 8 mm (between coil and contacts)
Dielectric strength : 5,000 VAC
Surge strength :10,000 V
Electric life of 100,000 operations at rated load
(10A, 250VAC, cos Phi 1). TV-5 / TV-8 standard version.
Low coil power (530mW)
UL (conforms to UL508, 873), CSA (conforms to CSA22.2
No.14), VDE (conforms to VDE 0435, 0631, 0700, 0860)
Conforms to FIMKO, DEMKO
Sealed type relay, RT III
Complies with TV-5 / TV-8
Inrush 78A (TV-5) / 120A (TV-8)
RoHS compliant
Please see page 6 for more information
n
PARTNUMBER INFORMATION
[Example]
(a)
(b)
(c)
(d)
(e)
FTR-H3
(a)
A
(b)
A
(c)
012
(d)
V
(e)
FTR-H3: FTR-H3 Series
A
K
012
V
T
: 1 form A (SPST-NO)
: Standard type (530mW)
: 5.....24VDC
Coil rating table at page 3
: Silver tin oxide + TV-5 rating
: Silver tin oxide + TV-8 rating
Relay type
Contact configuration
Coil type
Coil rated voltage
Contact material / TV type
Actual marking does not carry the type name : "FTR"
E.g.: Ordering code: FTR-H3AA012V
Actual marking: H3AA012V
1
FTR-H3 SERIES
FTR-K1 SERIES
n
SPECIFICATION
Item
Contact
Data
Configuration
Construction
Material
Resistance (initial)
Contact rating
Max. carrying current *¹
Max. switching voltage
Max. switching power
Min. switching load *²
Max. inrush current
Life
Mechanical
AC resistive
Electrical
Coil Data
Rated power
Operate power
Operating temperature range
Timing Data
Insulation
Operate
Release
Resistance (initial)
Dielectric strength
Surge strength
Clearance
Creepage
EN61810-1, VDE0435
Voltage
Pollution degree
Material group
Category
Other
Vibration Resistance
Shock
Weight
Average sound pressure
Sealing
Endurance
Endurance
Open contacts
Contacts to coil
Coil to contacts
DC resistive
Lamp load
FTR-H3 AA ( ) V
1 form A (SPST-NO)
Single
Silver tin oxide (movable: gold plated)
Max. 100mOhm at 6VDC, 1A
10A, 250VAC / 30VDC
14A
400VAC / 300 VDC
2,500VA / 300W
10mA, 5VDC
78A / 120VAC
120A / 240VAC
20 x 10
6
operations minimum
100 x 10
3
operations minimum
100 x 10
3
operations minimum
TV-5
530mW
260mW
-40 °C to +75 °C (no frost)
Max. 10ms (no diode, without bounce)
Max. 5ms (no diode, without bounce)
Min. 1,000MOhm at 500VDC
1,000VAC (50/60Hz) 1min
5,000VAC (50/60Hz) 1min
10,000V / 1.2 x 50µs standard wave
8mm
8mm
250V
2
III a
B / 250V
10 to 55Hz double amplitude 3.3mm
Min. 1,000m/s² (6 ± 1ms)
Approximately 12g
Approximately 50dB at 5cm
Sealed, RT III
TV-8
FTR-H3 AA ( ) T
Misoperation>1us 10 to 55Hz double amplitude 1.65mm
Misoperation>1us Min. 100m/s² (11 ± 1ms)
* 1 When maximum carrying current is more than 10A, PCB layout needs to be considered.
* 2 Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual
load before production since reference values may vary according to switching frequencies, environmental contions
and expected reliability levels.
2
FTR-K1 SERIES
FTR-H3 SERIES
n
COIL RATING
Coil
Code
005
009
012
024
Rated Coil
Voltage
(VDC)
5
9
12
24
Coil Resistance
+/- 10% (Ohm)
47
155
270
1,100
Must Operate
Voltage
(VDC) *
3.5
6.3
8.4
16.8
Must Release-
Max. Coil Voltage
Voltage
(VDC)
(VDC) *
0.5
0.9
1.2
2.2
8.2
9.9
19.8
39.6
530
Rated Power
(mW)
Note: All values in the table are valid for 20°C and zero contact current.
* Specified operate values are valid for pulse wave voltage.
n
SAFETY STANDARDS
Type
UL
Compliance
UL 508
E63614
CSA
C22.2 No. 14
LR 40304
Contact rating
Flammability: UL 94-V0 (plastics)
10A, 30 VDC/ 277 VAC (resistive)
1/3 HP, 125VAC
1/2 HP, 250VAC
TV-5, 120VAC
TV-8, 120VAC/240VAC (T type)
Pilot duty: B300, Q300 (T type)
10A, 250 VAC (cosφ=1)
3A, 250 VAC (cosφ=0.4)
10A, 30 VDC (0ms)
5/80A, 250 VAC (V-type) 30k
8/120A, 250VAC (T type) 30k
VDE
0435, 0860, 0700, 0631
40015008
Complies with CQC
3
FTR-K1 SERIES
FTR-H3 SERIES
n

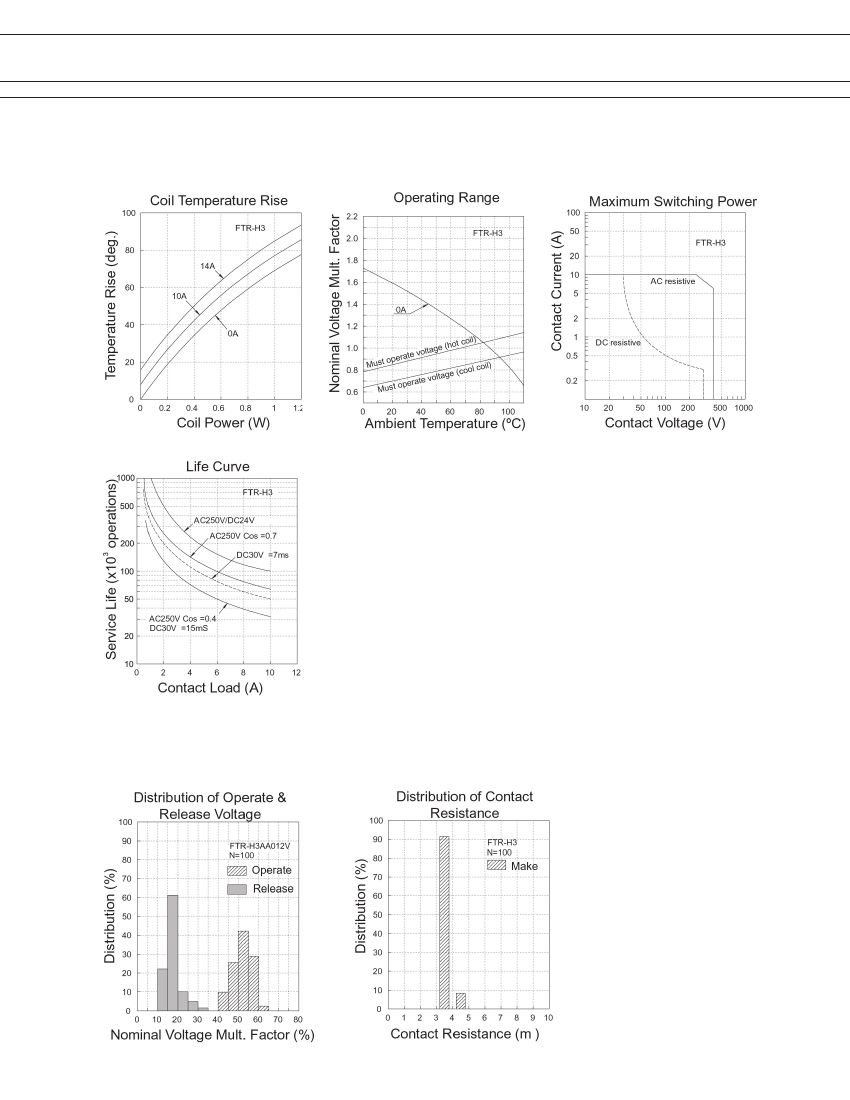

CHARACTERISTIC DATA
n
REFERENCE DATA
4
FTR-K1 SERIES
FTR-H3 SERIES
n

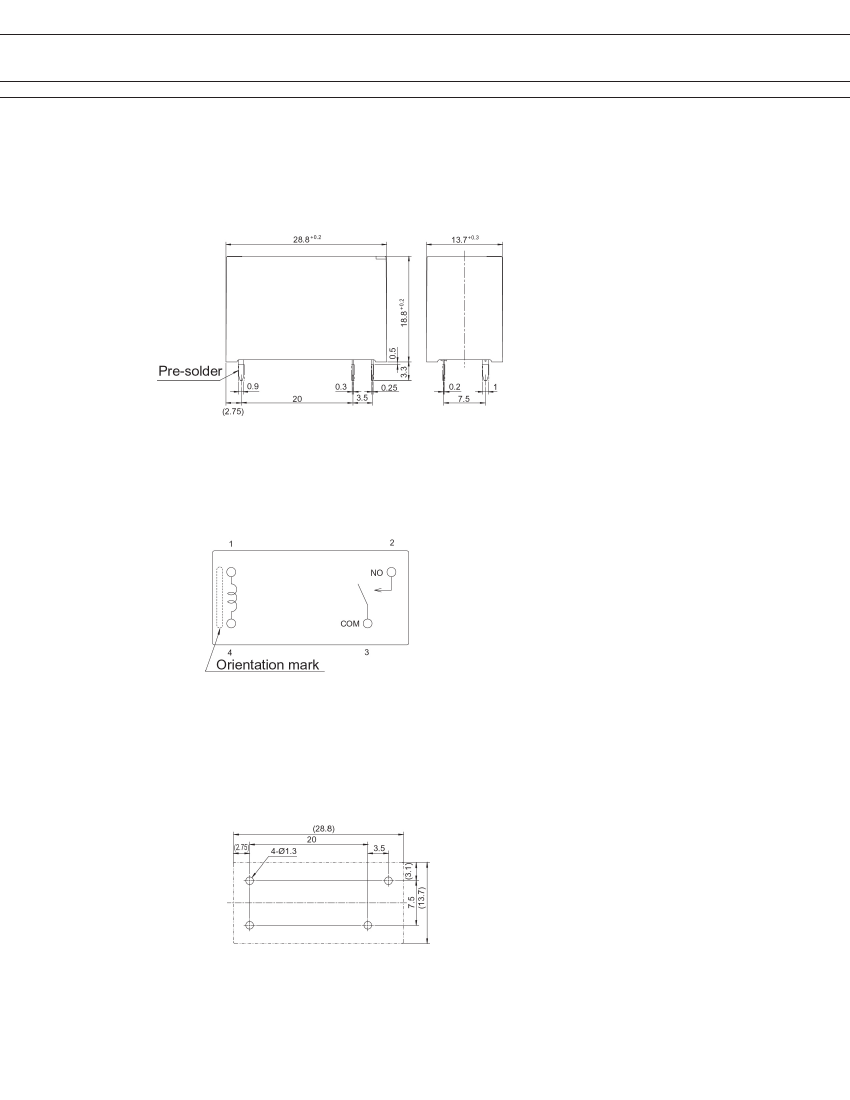

DIMENSIONS
l
Dimensions
l
Schematics
(BOTTOM VIEW)
l
PC board mounting
hole layout
(BOTTOM VIEW)
Unit: mm
5
