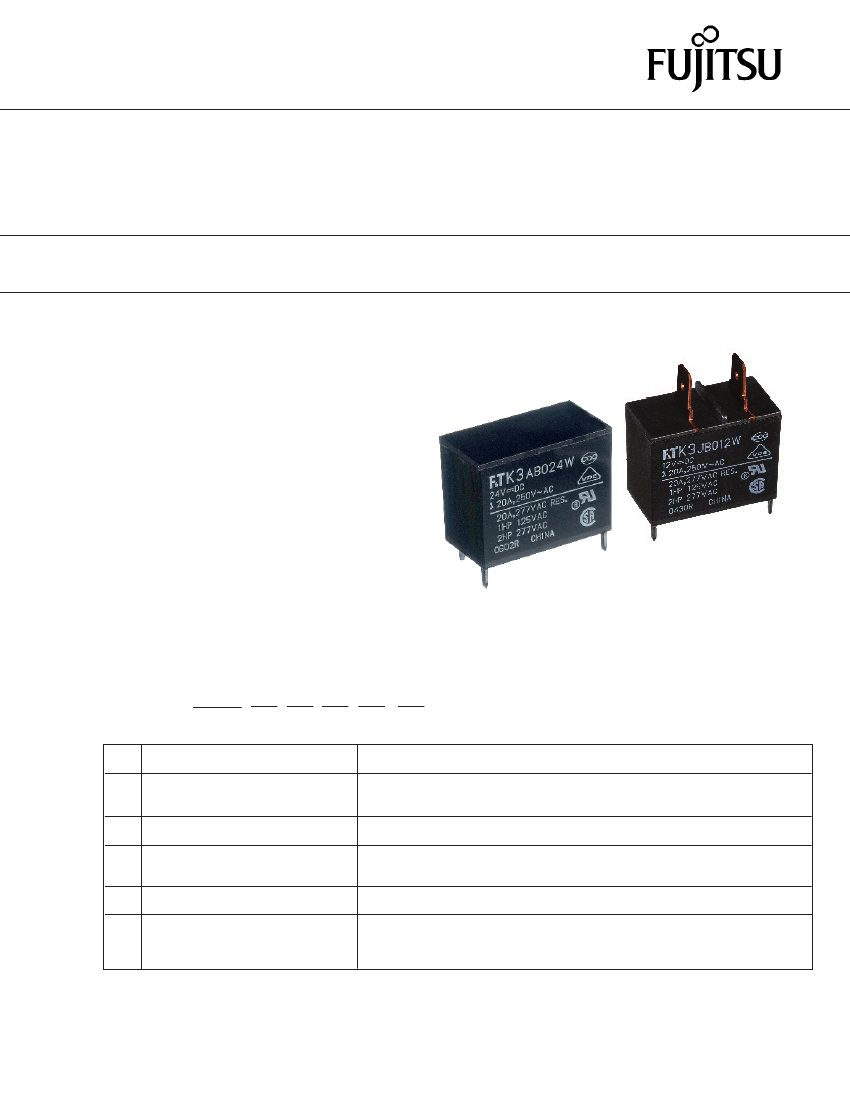

FTR-K1 SERIES
POWER RELAY
1 POLE - 20A Heavy Load
FTR-K3 Series
n
FEATURES
SPST 20A and #250 tab terminal type is also available
l
Low coil power (780mW)
l
Type of service: continuous duty
l
Cadmium free contacts
l
SAFETY STANDARDS
UL, CSA, VDE,CQC approved
l
RoHS compliant
Please see page 6 for more information
l
n
PARTNUMBER INFORMATION
FTR-K3
(a)
J
(b)
B
(c)
[Example]
(a)
(b)
(c)
(d)
(e)
(f)
012
(d)
W - HC
(e)
(f )
FTR-K3 : FTR-K3-Series
A
J
B
012
W
Nil
LS
HC
: 1 form A (SPST-NO) (PCB terminal)
: 1 form A (SPST-NO) (Tab terminal)
: Standard type (780mW)
: 5.....48 VDC
Coil rating table at page 3
: Silver alloy
: Standard type (20A)
: High isolation type (20A)
: High current type (25A)
Relay type
Contact configuration
Coil type
Coil rated voltage
Contact material
Option
Actual marking does not carry the type name : "FTR"
E.g.: Ordering code: FTR-K3AB012W Actual marking: K3AB012W
1
FTR-K1 SERIES
FTR-K3 SERIES
n
SPECIFICATION
Item
Contact Data
Configuration
Construction
Material
Resistance (initial)
Contact rating (resistive)
Max. carrying current
Max. switching current *¹
Max. switching voltage
Max. switching power
Min. switching load *²
Life
Mechanical
Resistive load
FTR-K3
1 form A
Single
Silver alloy
Max. 100mΩ at 1A, 6VDC
20A, 250VAC
25A
25A
250VAC
6,250VA
100 mA, 5VDC
Min. 2 x 10
6
operations
Min. 100 x 10
3
operations
Min. 200 x 10
3
operations
(250VAC
inrush 80A
cosφ=0.7
cut off 20A
cosφ=0.9)
Min. 200 x 10
3
operations
(250VAC
inrush 80A
cosφ=0.7
cut off 20A
cosφ=0.9)
Min. 200 x 10
3
operations
(250VAC
inrush 80A
cosφ=0.7
cut off 25A
cosφ=0.9)
20A, 250VAC
25A, 250VAC
FTR-K3-LS
FTR-K3-HC
Electrical
Motor load
Inverter load
Coil Data
Rated power (at 20 °C)
Operate power (at 20 °C)
Operating temperature range
Timing Data
Insulation
Operate (at nominal voltage)
Release (at nominal voltage)
Resistance
Dielectric strength
Surge strength
Other
Open contacts
Contacts to coil
Coil to contacts
Misoperation
Endurance
Misoperation
Endurance
Clearance/creepage distance
Vibration resistance
Shock
Weight
Sealing
Min. 30 x 10
3
operations
100VAC, inrush 200A / cut off 20A
780 mW
380 mW
-40 °C to +60 °C (no frost)
Max. 20ms (without bounce)
Max. 10ms (no diode, without bounce)
Min. 1,000MΩ at 500VDC
1,000VAC (50/60Hz) 1min
5,000VAC (50/60Hz) 1min
8,500V / 1.2 x 50µs standard wave
6.4mm / 9.5mm
8.0mm / 9.5mm
6.4mm / 9.5mm
10 to 55Hz double amplitude 1.5 mm
10 to 55Hz double amplitude 1.5 mm
Min. 200m/s² (11 ± 1ms)
Min. 1,000m/s² (6 ± 1ms)
Approximately 25 g
Flux proof, RTII
* 1 Need to consider the heat from PCB when max. current is more than 10A
* 2 Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual
load before production since reference values may vary according to switching frequencies, environmental conditions
and expected reliability levels.
2
FTR-K1 SERIES
FTR-K3 SERIES
n
COIL RATING
Coil
Code
005
006
009
012
018
024
048
Rated Coil
Voltage
(VDC)
5
6
9
12
18
24
48
Coil Resistance
+/- 10% (Ohm)
32
46
105
185
415
740
2,955
Must Operate
Voltage
(VDC) *
3.5
4.2
6.3
8.4
12.6
16.8
33.6
Must Release-
Voltage
(VDC) *
0.5
0.6
0.9
1.2
1.8
2.4
4.8
780
Rated Power
(mW)
Note: All values in the table are valid for 20°C and zero contact current.
* Specified operate values are valid for pulse wave voltage.
n
SAFETY STANDARDS
Type
UL
Compliance
UL508
No. E63614
Contact rating
FTR-K3
FTR-K3-LS
FTR-K3-HC
25A, 277VAC
(resistive at 60 °C)
1hp, 125VAC (at 60 °C)
2hp, 277VAC (100,000 ops.
at 60 °C)
-
25A, 277VAC (resistive)
1hp, 125VAC
2hp, 277VAC (100,000
ops.)
25A, 250VAC (cos
φ=1)
60 °C
25A, 250VAC
-
20A, 250VAC, 40T60/
20 (13.33) A
250VAC, 40T60
20/200A
100VAC, 40T60
-
20A, 277VAC (resistive at 60 °C)
1hp, 125VAC (at 60 °C)
2hp, 277VAC (100,000 ops. at 60 °C)
CSA
C22.2 No. 14
No. LR40304
20A, 277VAC (resistive)
1hp, 125VAC
2hp, 277VAC (100,000
ops.)
20A, 250VAC (cos
φ=1)
60 °C
VDE
IEC61810-1
CQC
GB15092-1
GB8898
GB/T21711.1
No. 04001009179
EN61058-1
EN61095
20A, 250VAC
SEMKO
-
-
TUV
EN61810-1
IEC61810-1
20A, 250VAC (cos
φ=1)
60 °C
-
3
FTR-K1 SERIES
FTR-K3 SERIES
n

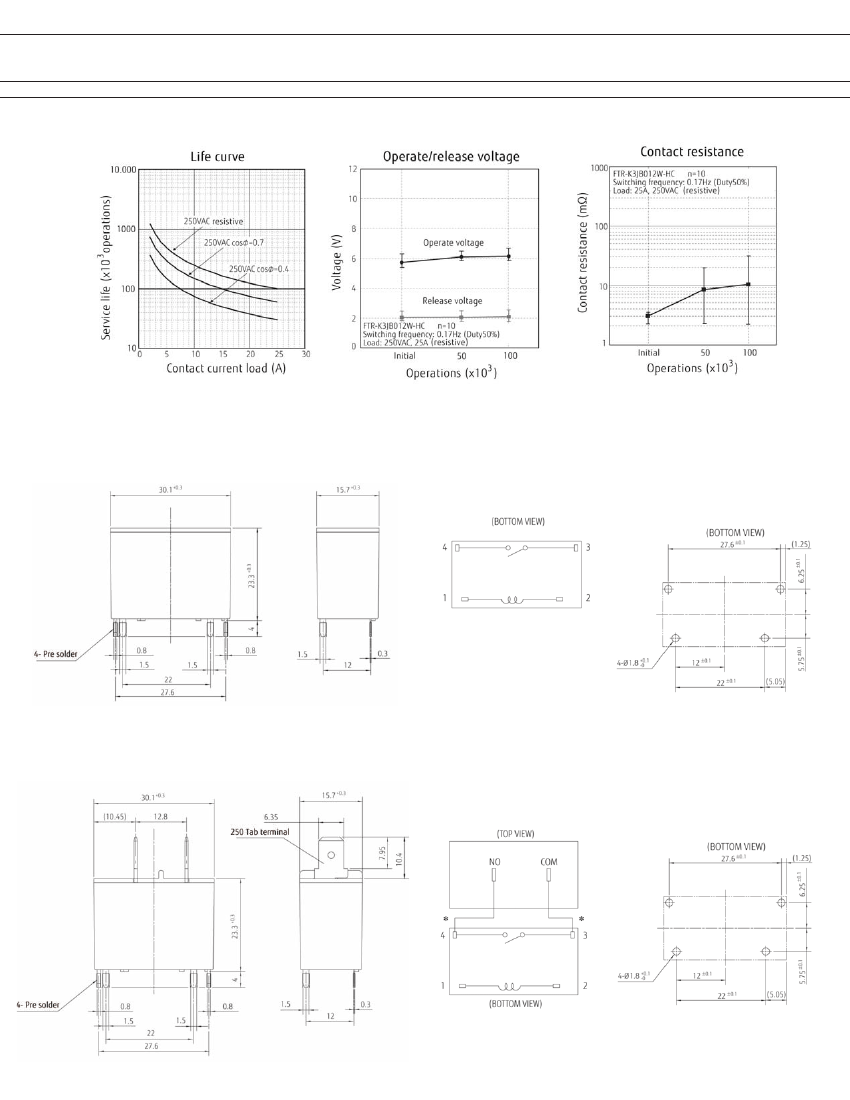

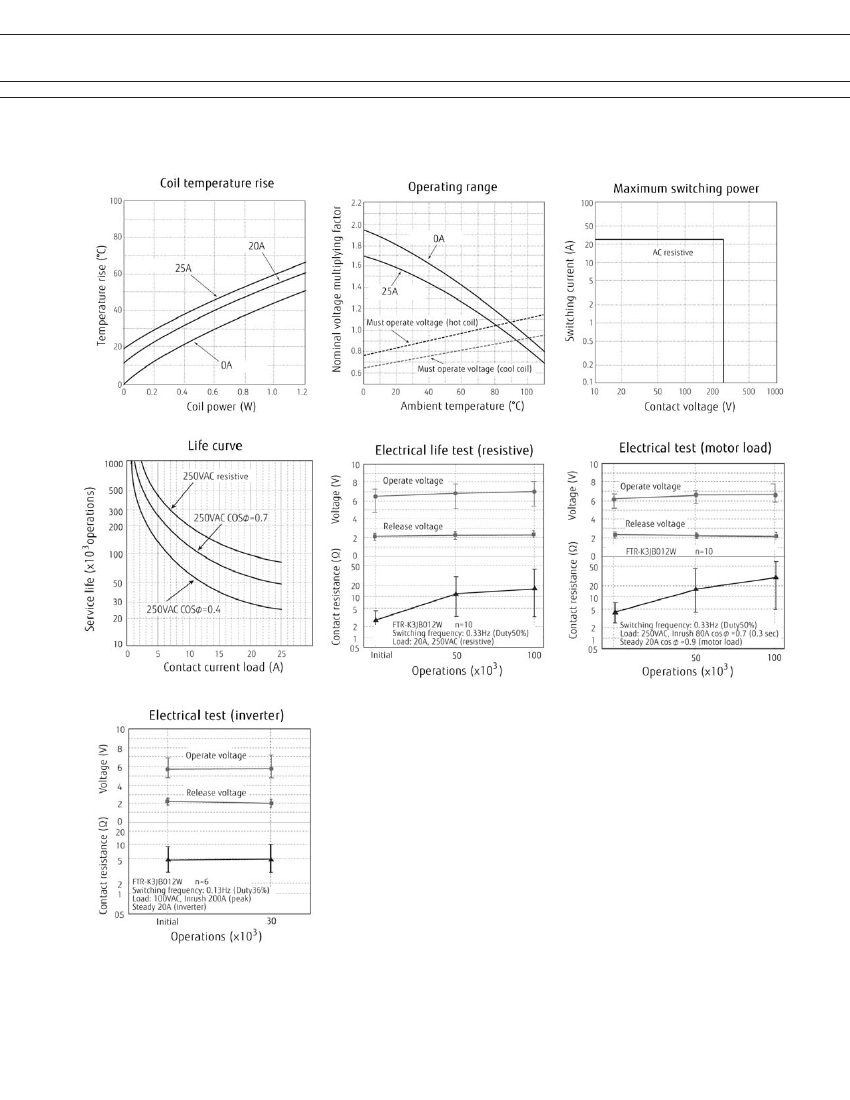

CHARACTERISTIC DATA
4
FTR-K1 SERIES
FTR-K3 SERIES
FTR-K3-HC type
Electrical life tests (resistive load)
n
DIMENSIONS
FTR-K3 AB type
l
Dimensions
l
Schematics
l
PC board mounting
hole layout
(BOTTOM VIEW)
FTR-K3 JB type
l
Dimensions
l
Schematics
l
PC board mounting
hole layout
(BOTTOM VIEW)
5
