MB91590 Series
32-bit MCU with Integrated Graphics Controller SoC
Description0
The MB91590 series provides a System-on-a-Chip (SoC)
solution for color display, video input and meter control
systems for automotive dashboard and human machine
interface (HMI) applications. It integrates a high performance
FR81S CPU core offering the highest CPU performance level in
the industry, a graphics display controller (GDC) with strong
sprite functionality, rendering engine, and external video
capture capabilities. The MB91590 series also features support
for dual LCD displays.
The MB91590 series offers a single-chip solution for
applications that require robust color display and video-input
capabilities. It is particularly well-suited for use in automotive
instrument clusters and center consoles using color displays to
generate flexible and intuitive driver interfaces.
The integrated GDC supports dual displays at a maximum
800×480 resolution, and features a powerful sprite and ren-
dering engine capable of producing sophisticated effects for
dashboard applications. It supports 512 sprites sized at up to
512×512 dots each with functions such as automatic blinking,
movement, image switching and anti-aliased font display. The
rendering engine can operate in combination with the video
capture and NTSC-decoder functions to enable image manipu-
lation, including zooming and 90-degree rotation. Overlaid
graphics such as needles or parking guidelines can also be
rendered in conjunction with captured video. Layered graphical
images can be sent to either LCD flexibly.
Applications0
•
Automotive instrument clusters
•
Center consoles using color display
•
Vehicle camera system
•
Industrial controllers with color display
2-D Rendering Engine
and Video Capture
Parking guidelines and
proximity warning
Key Features0
The MB91590 series utilizes a FR81S CPU core operating at a
maximum internal operating frequency of 128MHz. The MCU
also includes a built-in single-precision floating point unit for
high-speed operations, and a memory protection unit capable
of providing selective access to protected memory areas.
Peripheral functions optimized for dashboard systems reduce
the need for extra components. Multiple built-in regulators and
a flexible standby mode enable the MB91590 series to operate
with low power consumption.
Product Lineup
CPU Speed
Flash Size
RAM Size
VRAM Size
Package
MB91F591
80MHz
576KB
32KB
260KB
LQFP-208
MB91F592
80MHz
576KB
32KB
800KB
LQFP-208
MB91F594
80MHz
1MB
64KB
800KB
LQFP-208
MB91F596
128MHz
576KB
32KB
260KB
QFP-208
MB91F597
128MHz
576KB
32IKB
800KB
QFP-208
MB91F599
128MHz
1MB
64KB
800KB
QFP-208

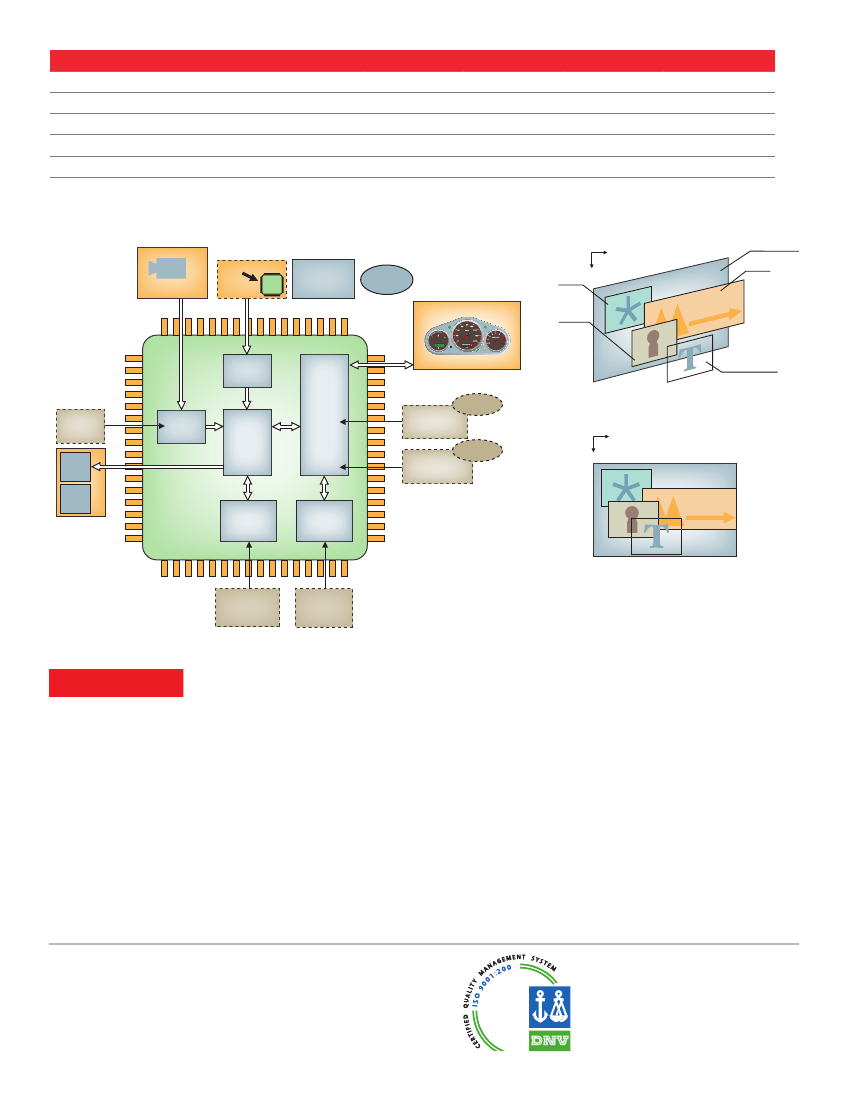

System Example
Flash memory capacity for images reduced
through the adoption of compressed data
Flash memory
Camera
NTSC
Power supply
Oscillator
3 oscillators for GDC
and control MCUx2
reduced to 1
Sprite Engine
X
Y
SPR0
SPR2
background
SPR1
Inputting on NTSCC
signal possible
without an external
decoder
Video
decoder
LCD 1
LCD 2
MB9 1590
Series
Video
decoder
RLD
MCU
GDC
Meter
SPR3
transparent
MCU
(GDC control)
Oscillator
X
Y
Image Layer
Oscillator
MCU
(meter control)
Data
Flash
memory
Control MCUx2
Incorporated
Frame
buffer
(VRAM)
Display on Screen
No external SRAM
necessary thanks to
built-in SRAM as a
frame buffer
Frame
buffer
(VRAM)
E
2
PROM
Data Flash memory
works as an
alternative to E
2
PROM
Specifications0
•
FR81S CPU – 32-bit RISC,
load/store architecture
•
Maximum operating frequency
CPU: 128MHz / 80MHz
GDC: 81MHz
•
DMA controller: 16 channels
•
Timer
—
16-bit reload timer
—
16-bit base timer
—
6-bit PPG timer
—
32-bit free-run time
—
32-bit input capture
4-ch
2-ch
24-ch
2-ch
6-ch
•
UART/SIO
UART/SIO/LIN-UART
Multifunction serial
•
10-bit A/D converter
•
Sound generator
•
External interrupt
•
CRC generator
•
Clock supervisor
•
Hardware / software watchdog
•
Data Flash memory
•
Flash memory security function
6-ch
2-ch
32-ch
5-ch
16-ch
•
Low-voltage detection reset circuit GDC function
Sprite engine: 512 sprites
2-D rendering engine
Line/polygon drawing, Bit Blt
Run-length decoder (RLD)
VRAM: 800Kbyte / 260Kbyte
Video capture
NTSC/PAL, digital RGB, BT656
•
On-chip debug
One-wire serial control
•
Power supply: 4.5 – 5.5V
•
Operating temperature: –40 to 105°
—
32-bit output compare 4-ch
8
