FMA1127DA-20S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> FMA1127DA-20S

FMA1127DA-20S: DescriptionTouch Sensor Controller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size204KB，2 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

FMA1127DA-20S Overview

Touch Sensor Controller

FMA1127DA-20S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FUJITSU
package instruction	6.50 X 6.40 MM, 1.85 MM HEIGHT, 0.65 MM PITCH, SSOP-20
Reach Compliance Code	compli
JESD-30 code	R-PDSO-G20
length	6.5 mm
Number of terminals	20
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Maximum seat height	1.85 mm
Maximum supply voltage	2.6 V
Minimum supply voltage	2.4 V
Nominal supply voltage	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR CIRCUIT

Preview

Download Datasheet

View All

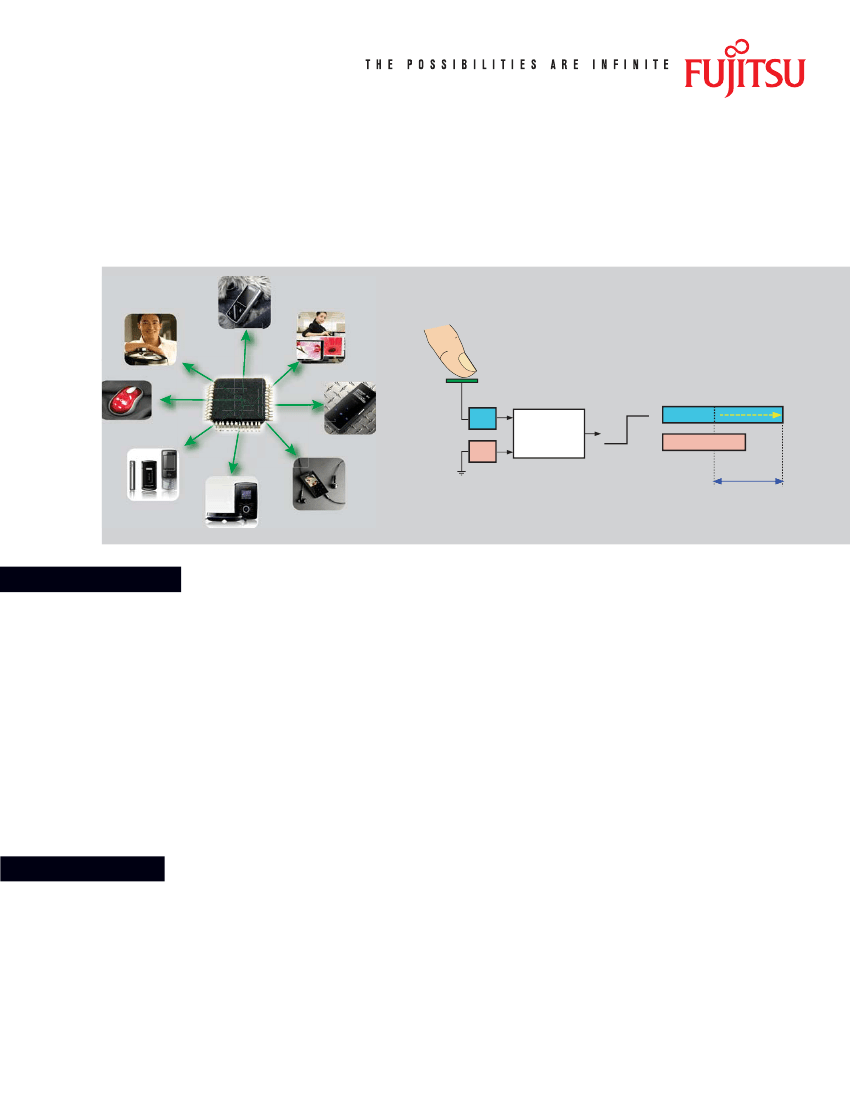

FMA1127

Touch Sensor Controller

Principle of Touch Detection

Touch Pad

Fujitsu

FMA1127

Zin

Zref

Impendance

Change

Detection

Zin

Zref

Touch

Detected

Finger

Contact

Detected

Touch Pad System Model

Impedance Status

Description

The FMA1127 is a low-power, compact, flexible touch sensor

controller that converts capacitance generated between the human

body and a conductive touch pad to digital data without any

analog signal processing. It includes touch sensor technology that

compares reference and sensor input impedances to detect touch,

all in digital domain.

Its programmability increases design flexibility and gives better

performance and stability for a broad range of applications. The

FMA1127’s Automatic Impedance Calibration (AIC™) function

can be easily configured to support different sensitivities for

individual channels independently as well as to change values of

parameters such as calibration intervals. AIC may also be

temporarily paused and resumed by a host MCU.

Among the many features of the FMA1127 touch sensor

controller, is the Adjacent Pattern Interference Suppression

(APIS™) which acts as a filter to eliminate adjacent key or

pattern interference. The FMA1127 also gives touch-strength

output in addition to touch on/off output. There are a number of

general-purpose DIOs depending on the package type that can be

configured and programmed to meet customers’specific needs. This

gives customers greater flexibility and value.

The FMA1127 comes in various package types to support different

numbers of input channels and DIOs.

The FMA1127 touch sensor controller is developed and owned by

ATLab Inc., South Korea, and is distributed by Fujitsu

Microelectronics America, Inc.

Features

• Patented full-digital architecture

• Supports 12 input channels (40QFN and 30SSOP) or 9 input

channels (32QFN and 24SSOP) or 6 input channels

(24QFN and 20SSOP)

• Programmable registers to characterize applications

• I2C interface with the host MCU

• Configurable Automatic Impedance Calibration (AIC™ )

• Two types of interrupts (GINT for general purpose and

TINT for touch detection)

• 8-bit resolution of touch strength data (256 steps)

• Three different modes for Adjacent Pattern Interference

Suppression (APIS™)

• Configurable DIO pins as direct touch outputs, extended

GPIOs, or external interrupt inputs.

• Beep generation for tactile feeling

• Idle and Sleep modes for power saving

• De-bounced touch outputs

FMA1127DA-20S Related Products

	FMA1127DA-20S	FMA1127	FMA1127DA-24N	FMA1127DA-24S	FMA1127DA-30S	FMA1127DA-32N	FMA1127DA-40N
Description	Touch Sensor Controller	Touch Sensor Controller	Touch Sensor Controller	Touch Sensor Controller	Touch Sensor Controller	Touch Sensor Controller	Touch Sensor Controller
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to
Maker	FUJITSU	-	-	-	FUJITSU	FUJITSU	FUJITSU
package instruction	6.50 X 6.40 MM, 1.85 MM HEIGHT, 0.65 MM PITCH, SSOP-20	-	HVQCCN,	SSOP,	12.70 X 10.30 MM, 2.50 MM HEIGHT, 0.80 MM PITCH, SSOP-30	4 X 4 MM, 0.90 MM HEIGHT, 0.40 MM PITCH, QFN-32	5 X 5 MM, 0.85 MM HEIGHT, 0.40 MM PITCH, QFN-40
Reach Compliance Code	compli	-	compli	compli	compli	compli	compli
JESD-30 code	R-PDSO-G20	-	S-XQCC-N24	R-PDSO-G24	R-PDSO-G30	S-XQCC-N32	S-XQCC-N40
length	6.5 mm	-	4 mm	8.2 mm	12.74 mm	4 mm	5 mm
Number of terminals	20	-	24	24	30	32	40
Maximum operating temperature	90 °C	-	90 °C	90 °C	90 °C	90 °C	90 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	-	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED
encapsulated code	SSOP	-	HVQCCN	SSOP	SSOP	HVQCCN	HVQCCN
Package shape	RECTANGULAR	-	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	SMALL OUTLINE, SHRINK PITCH	-	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Maximum seat height	1.85 mm	-	0.85 mm	2 mm	2.5 mm	0.9 mm	0.85 mm
Maximum supply voltage	2.6 V	-	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V
Minimum supply voltage	2.4 V	-	2.4 V	2.4 V	2.4 V	2.4 V	2.4 V
Nominal supply voltage	2.5 V	-	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	-	YES	YES	YES	YES	YES
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	-	NO LEAD	GULL WING	GULL WING	NO LEAD	NO LEAD
Terminal pitch	0.65 mm	-	0.5 mm	0.65 mm	0.8 mm	0.4 mm	0.4 mm
Terminal location	DUAL	-	QUAD	DUAL	DUAL	QUAD	QUAD
width	4.4 mm	-	4 mm	5.4 mm	7.5 mm	4 mm	5 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR CIRCUIT	-	MICROPROCESSOR CIRCUIT	MICROPROCESSOR CIRCUIT	MICROPROCESSOR CIRCUIT	MICROPROCESSOR CIRCUIT	MICROPROCESSOR CIRCUIT
