HC49J/220FFFREQ2 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> HC49J/220FFFREQ2

HC49J/220FFFREQ2: DescriptionParallel - Fundamental Quartz Crystal, 2MHz Min, 2.4MHz Max, RESISTANCE WELDED PACKAGE-3; CategoryPassive components Crystal/resonator; File Size65KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

HC49J/220FFFREQ2 Overview

Parallel - Fundamental Quartz Crystal, 2MHz Min, 2.4MHz Max, RESISTANCE WELDED PACKAGE-3

HC49J/220FFFREQ2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
package instruction	RESISTANCE WELDED PACKAGE-3
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	20 ppm
load capacitance	20 pF
Manufacturer's serial number	HC49J
Installation features	SURFACE MOUNT
Maximum operating frequency	2.4 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
physical size	L13.46XB11.0XH5.3 (mm)/L0.53XB0.433XH0.209 (inch)
Series resistance	500 Ω
surface mount	YES

Preview

Download Datasheet

View All

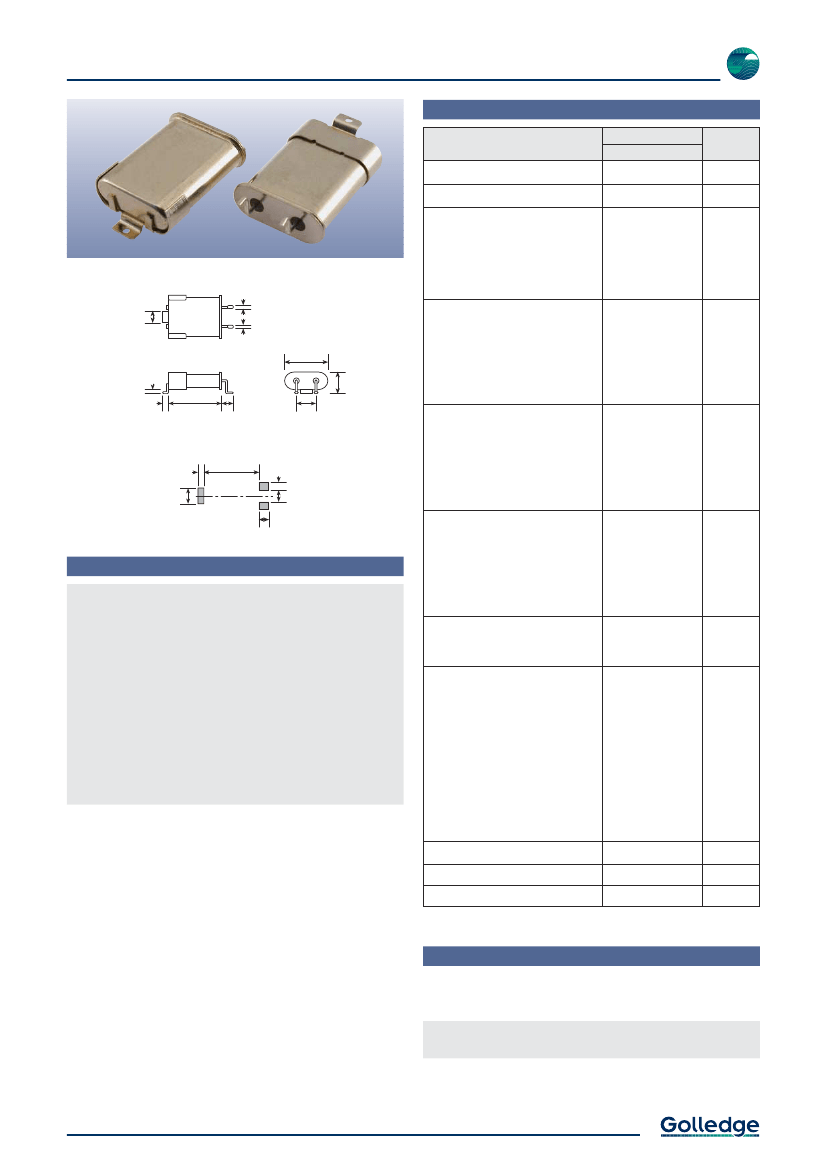

SM Crystal Formed Leads

Specifications

HC49J

Parameters

Package:

Resistance weld

Frequency range:

1.80 ~ 160MHz

Calibration tolerance:

±5ppm

±10ppm

±20ppm

±30ppm

±50ppm

Other values (±3ppm ~ ±100ppm)

±5ppm

±10ppm

±20ppm

±30ppm

±50ppm

±100ppm

Other values (±3ppm ~ ±100ppm)

specify

Product

HC49J

Option

Code

0.50

3.00

0.50

11.00

(max)

5.30

(max)

13.46

3.00

4.88

Temperature stability:

0.60

1.20

SOLDER PAD LAYOUT

1.60

4.00

14.00

2.00

2.90

Operating temperature range:

0 to +50°C

-10 to +60°C

-20 to +70°C

-30 to +80°C

-40 to +85°C

Other values

Scale 1:1

Circuit condition:

12pF

16pF

18pF

20pF

30pF

Series resonant

Other values

Fundamental

3rd overtone

5th overtone

2.40

Features

Ideal for custom specifications

Fundamental mode available up to 40.0MHz

Custom frequencies easily produced

Tight specifications available

Wide frequency range available

Low cost for volume applications

Express manufacturing service

Oscillation mode:

Equivalent series resistance (max):

800 (1.80 ~ 2.0MHz)

500 (>2.0 ~ 2.4MHz)

300 (>2.4 ~ 3.0MHz)

150 (>3.0 ~ 3.5MHz)

120 (>3.5 ~ 4.0MHz)

100 (>4.0 ~ 4.4MHz)

80 (>4.4 ~ 6.0MHz)

50 (>6.0 ~ 9.0MHz)

30 (>9.0 ~ 36.0MHz)

40 (25.0 ~ 90.0MHz, 3rd OT)

70 (60.0 ~ 160MHz, 5th OT)

Static capacitance (C

Ageing:

Test drive level:

Standard.

7pF max

±3ppm max first year

100µW

Optional - Please specify required code(s) when ordering

Ordering Information

Product name + frequency + specification code

eg:

HC49J/351DF 16.1760MHz

30/50/10/16-F

HC49J/232S3 48.0MHz

20/30/20/S-3

Available on T&R - 700 pcs per reel.

Refer to our website for T&R and soldering details.

Tel:

+44 1460 256 100

26 Jul 2002

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
