XO1HVT/A81.84MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> XO1HVT/A81.84MHZ

XO1HVT/A81.84MHZ: DescriptionCMOS Output Clock Oscillator, 81.84MHz Nom; CategoryPassive components oscillator; File Size55KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

XO1HVT/A81.84MHZ Overview

CMOS Output Clock Oscillator, 81.84MHz Nom

XO1HVT/A81.84MHZ Parametric

Parameter Name	Attribute value
Maker	Golledge Electronics
Reach Compliance Code	unknown
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	XO1HVT
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	81.84 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
physical size	20.3mm x 13.2mm x 5.1mm
longest rise time	3 ns
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

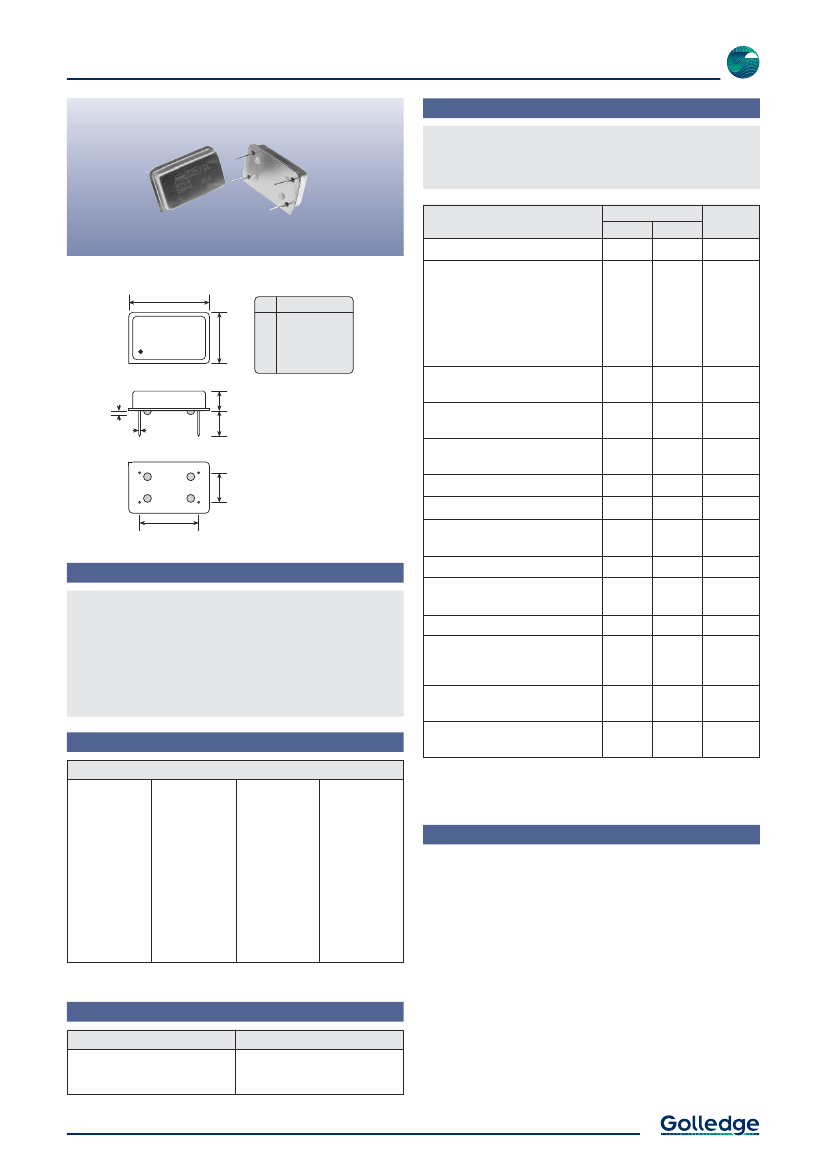

3.3V Oscillator Mil Temp High Freq

XO1HV & XO1HVT

Specifications

XO1HV: Standard stability option

XO1HVT: Tight stability option

Product

XO1HV

XO1HVT

Parameters

Frequency range:

20.0 ~ 160MHz

20.30

(max)

Option

Codes

13.20

(max)

5.10

(max)

6.40

(max)

CONNECTION

Not connected or

Enable/Disable

Ground

Output

Supply

Frequency stability* (max):

±50ppm over 0 to +70°C

±80ppm over -40 to +85°C

±100ppm over -55 to +125°C

±20ppm over 0 to +70°C

±30ppm over -40 to +85°C

±50ppm over -55 to +125°C

Operable temperature range:

-55 to +125°C

Storage temperature range:

-65 to +125°C

Supply voltage (V

+3.3V (±5%)

1.00

0.50Ø

7.62

Supply current (max):

Driving ability:

30mA

CMOS

15.24

Scale 1:1

Logic levels:

‘0’ level = 0.4V max

‘1’ level = 90% V

min

5ms max

Features

Start up time:

Military temperature range option

Frequencies up to 160MHz

Excellent shock resistance

Enable / disable tristate option

Waveform symmetry:

40:60 max @ 50%V

Rise / fall times:

3ns max

Enable / disable function:

None (pin 1 NC)

Tristate (control via pin 1)

Shock resistance:

5,000G, 0.3ms, ½ sine

Vibration resistance:

10G / 10 ~ 2,000Hz

Standard.

108.0000

110.5920

117.9640

120.0000

125.0000

128.0000

131.0720

132.7104

144.0000

150.0000

160.0000

Optional - Please specify required code(s) when ordering

Standard Frequencies

Frequencies in MHz

22.1184

24.0000

25.0000

32.0000

32.7860

36.8640

40.0000

40.6000

40.9600

44.2368

48.0000

49.1520

50.0000

50.7500

51.1500

51.2000

52.0000

55.2960

58.9824

60.0000

60.9000

61.3800

61.4400

64.0000

65.0000

65.5360

66.3552

72.0000

73.7280

76.8000

78.0000

80.0000

81.2000

81.8400

81.9200

88.4736

90.0000

96.0000

98.3040

100.0000

102.4000

104.0000

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change and ageing over 10 years.

Ordering Information

Product + option codes + frequency

eg:

XO1HV/A 80.0MHz

±50ppm 0+70°C

XO1HVT/B 100MHz

±30ppm -40+85°C

Option code X (eg XO1HV/X) denotes a custom specification.

Other frequencies may be available. Please consult our sales office.

Enable / Disable Function

Input (pin 1)

Open

‘1’ level

‘0’ level

Output (pin 8)

Enabled

High Impedance

Tel:

+44 1460 256 100

19 Mar 2002

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
