HA2-2645-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> HA2-2645-5

HA2-2645-5: DescriptionOperational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, MBCY8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size189KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HA2-2645-5 Overview

Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, MBCY8

HA2-2645-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	, CAN8,.2
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.05 µA
Maximum bias current (IIB) at 25C	0.03 µA
Minimum Common Mode Rejection Ratio	74 dB
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	YES
Maximum input offset voltage	7000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-50 V
Nominal Negative Supply Voltage (Vsup)	-40 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-40 V
Certification status	Not Qualified
minimum slew rate	2.5 V/us
Nominal slew rate	5 V/us
Maximum slew rate	4.5 mA
Supply voltage upper limit	50 V
Nominal supply voltage (Vsup)	40 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Nominal Uniform Gain Bandwidth	4000 kHz
Minimum voltage gain	100000

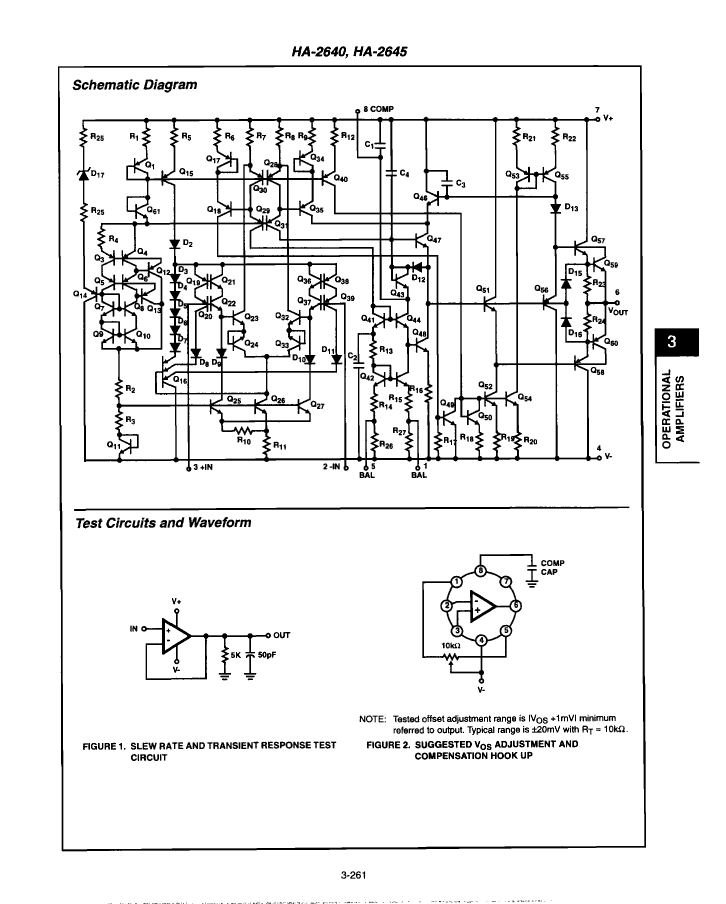

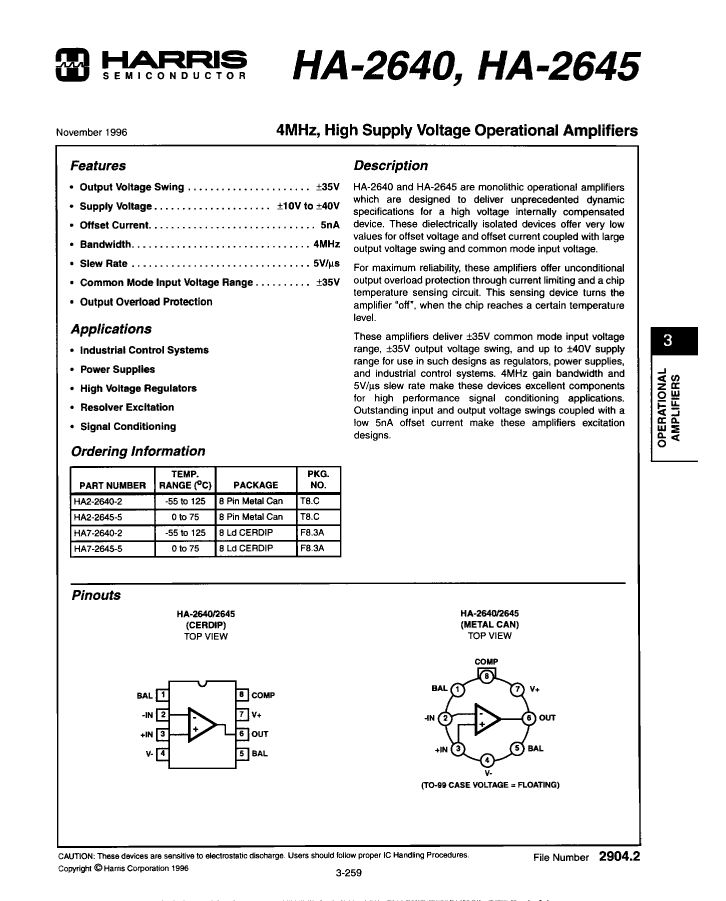

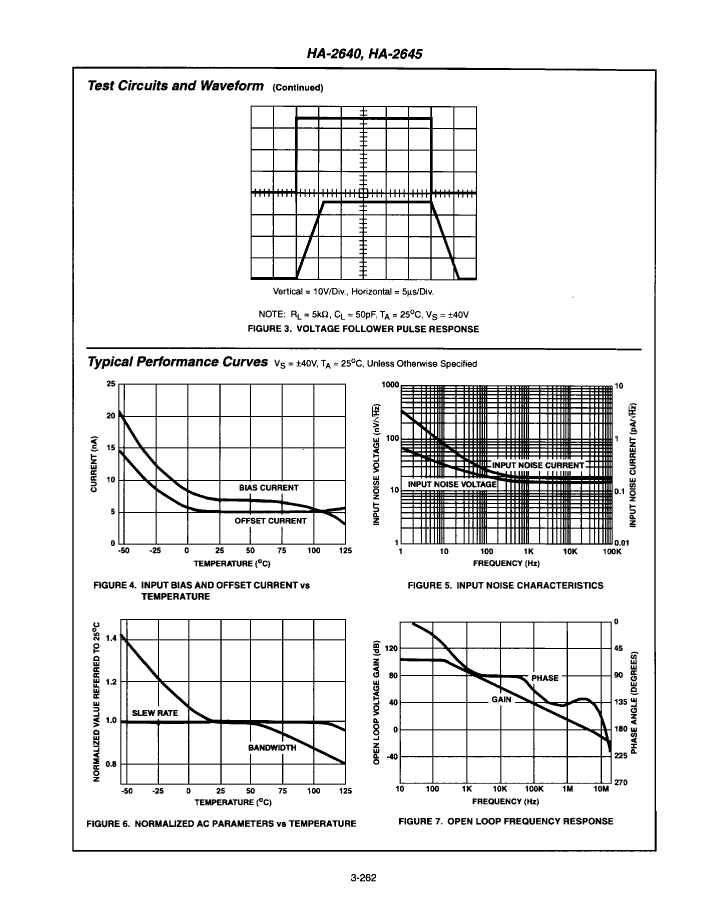

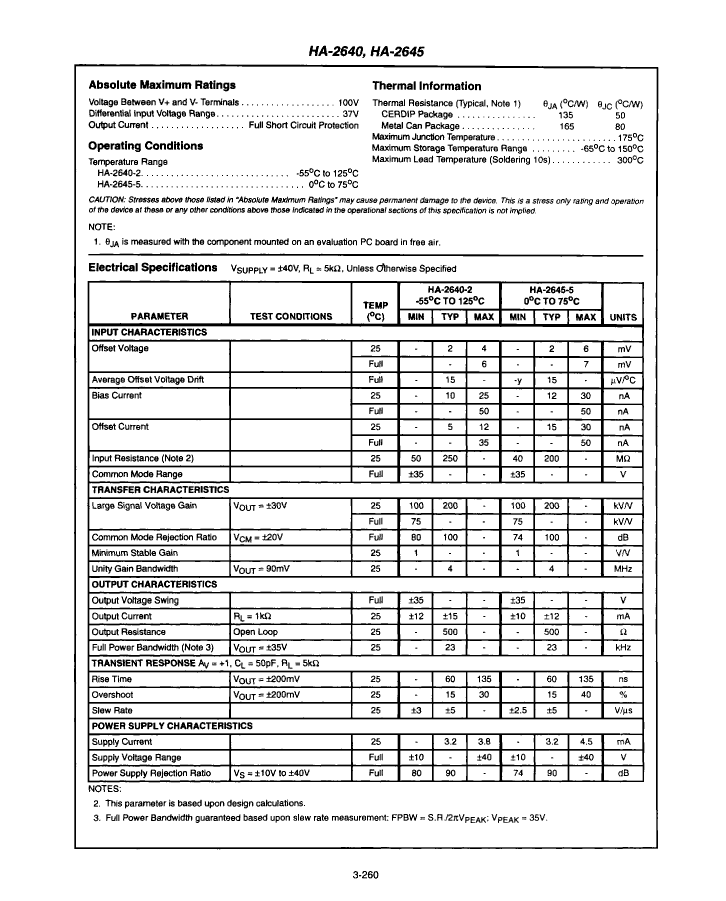

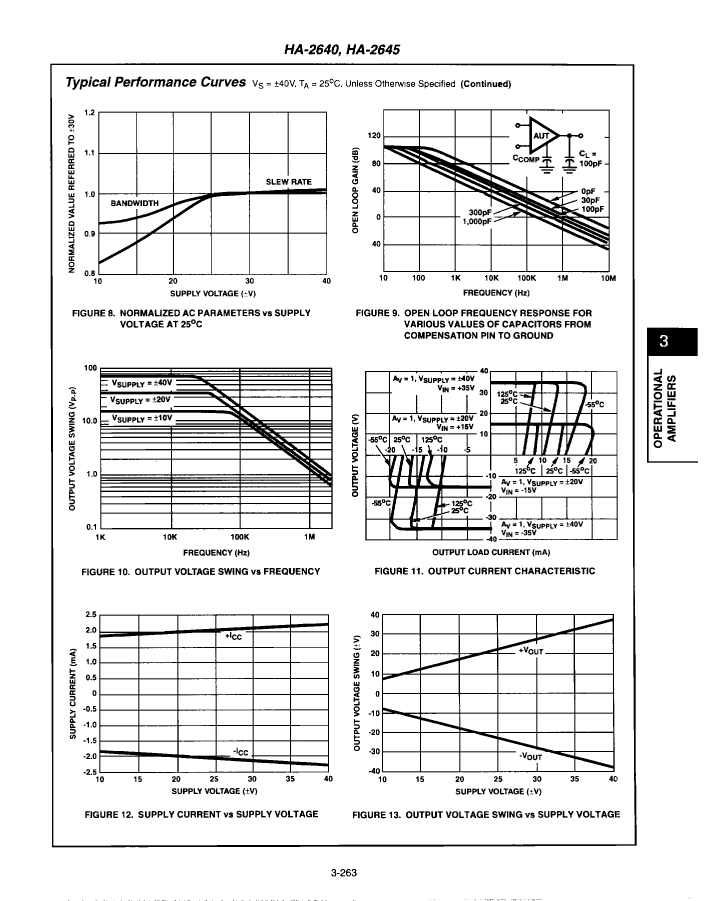

Preview

Download Datasheet

View All

HA2-2645-5 Related Products

	HA2-2645-5	HA2-2640-2	HA7-2640-2	HA7-2645-5
Description	Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, MBCY8	Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, MBCY8	Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, CDIP8	Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, CDIP8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	, CAN8,.2	, CAN8,.2	DIP, DIP8,.3	DIP, DIP8,.3
Reach Compliance Code	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.05 µA	0.05 µA	0.05 µA	0.05 µA
Maximum bias current (IIB) at 25C	0.03 µA	0.025 µA	0.025 µA	0.03 µA
Minimum Common Mode Rejection Ratio	74 dB	80 dB	80 dB	74 dB
Nominal Common Mode Rejection Ratio	100 dB	100 dB	100 dB	100 dB
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	7000 µV	6000 µV	6000 µV	7000 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8	R-GDIP-T8	R-GDIP-T8
JESD-609 code	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO
Negative supply voltage upper limit	-50 V	-50 V	-50 V	-50 V
Nominal Negative Supply Voltage (Vsup)	-40 V	-40 V	-40 V	-40 V
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	75 °C	125 °C	125 °C	75 °C
Package body material	METAL	METAL	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Encapsulate equivalent code	CAN8,.2	CAN8,.2	DIP8,.3	DIP8,.3
Package shape	ROUND	ROUND	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	IN-LINE	IN-LINE
power supply	+-40 V	+-40 V	+-40 V	+-40 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	2.5 V/us	3 V/us	3 V/us	2.5 V/us
Nominal slew rate	5 V/us	5 V/us	5 V/us	5 V/us
Maximum slew rate	4.5 mA	3.8 mA	3.8 mA	4.5 mA
Supply voltage upper limit	50 V	50 V	50 V	50 V
Nominal supply voltage (Vsup)	40 V	40 V	40 V	40 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	MILITARY	MILITARY	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	DUAL	DUAL
Nominal Uniform Gain Bandwidth	4000 kHz	4000 kHz	4000 kHz	4000 kHz
Minimum voltage gain	100000	100000	100000	100000
Maker	Harris	-	Harris	Harris
