M50-482545: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size465KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M50-482545 Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

M50-482545 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	POLARIZATION AVAILABLE, SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M50-4
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

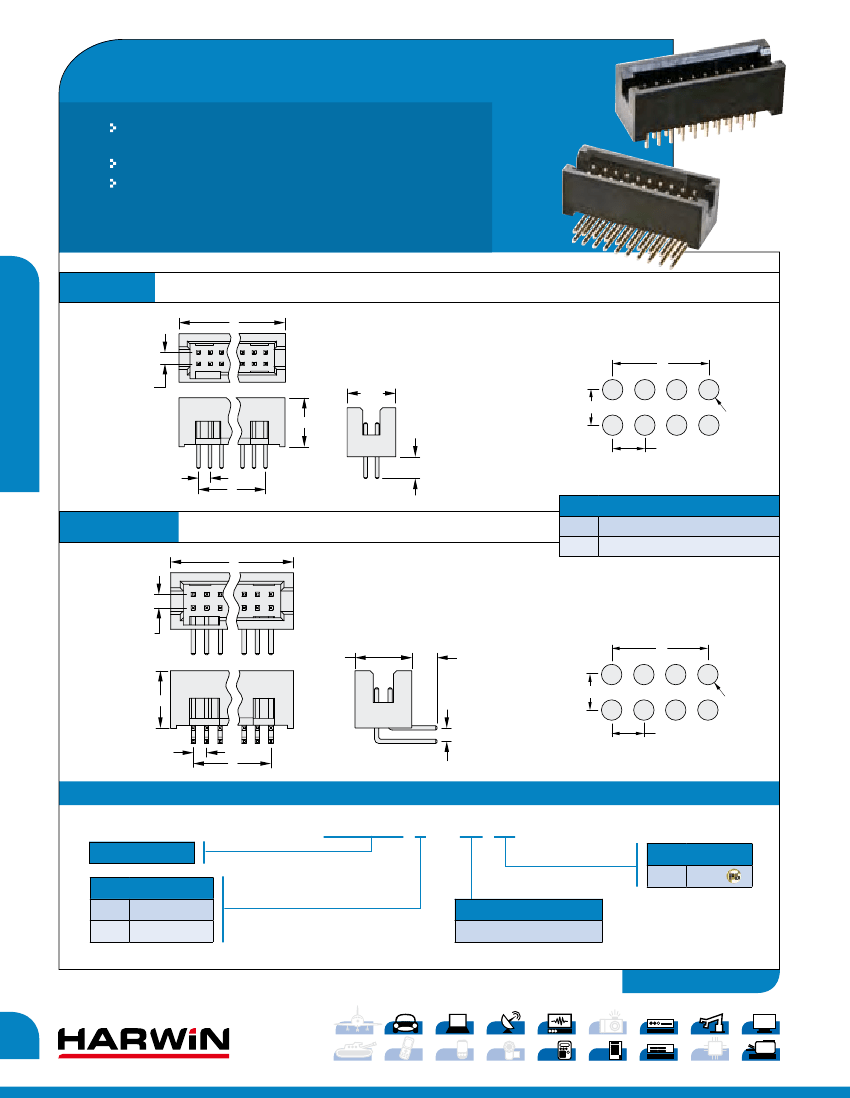

M50 Connectors

Polarised Male Connectors

Pc tail male connectors suitable for use with female

connector M50-430 (page 79).

single polarisation to prevent mis-mating.

shrouded for additional pin protection.

VeRtiCal

A

1.27mm (.050") PitCh

80

B

1.27

5.70

5.65

1.27

2.30

ø

0.55

1.27

B

Recommended PC Board Pattern

CalCulation

hORiZOntal

A

a

B

B + 4.27

1.27 x (no. of ways per row – 1)

1.27

5.35

2.40

B

5.40

1.27

ø

0.55

1.27

B

1.27

Recommended PC Board Pattern

hOW tO ORDeR

M50 – 4 X 0 XX 45

series Code

type

7

8

Vertical

horizontal

finish

45

Gold

no of ways per row

05 to 40

All dimensions in mm.
