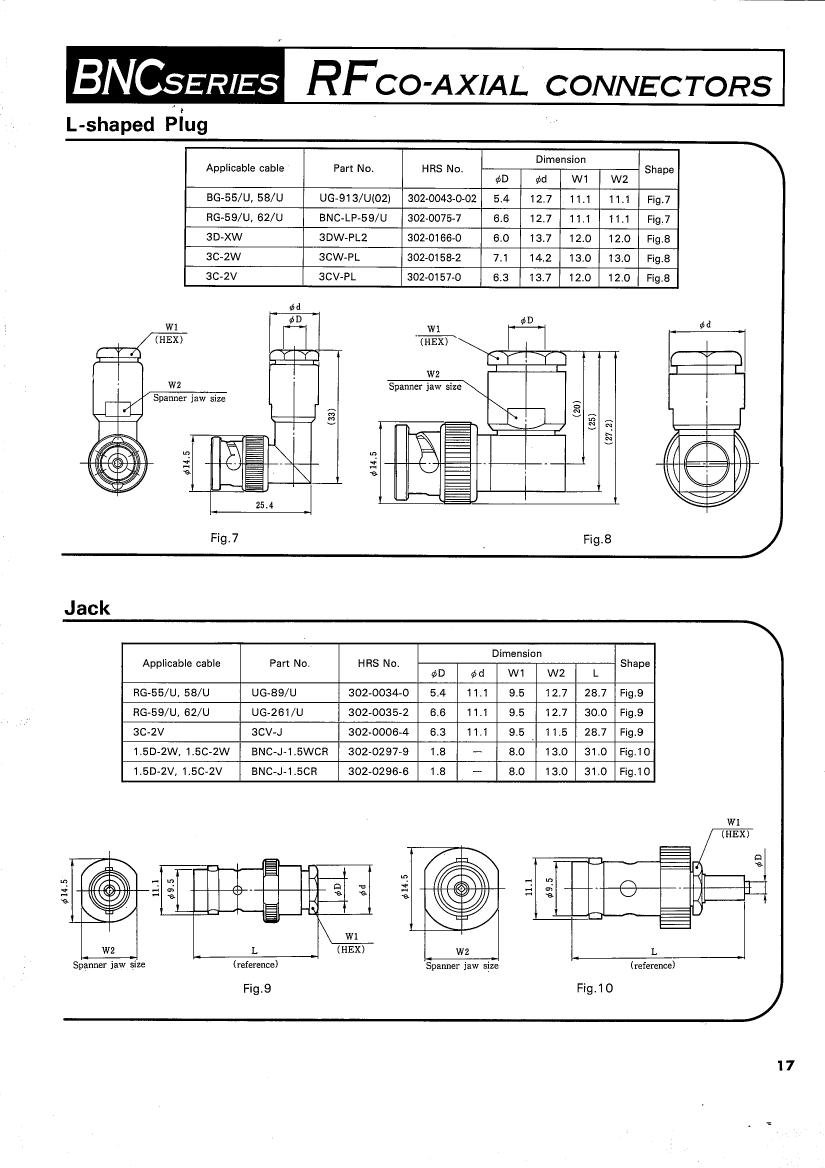

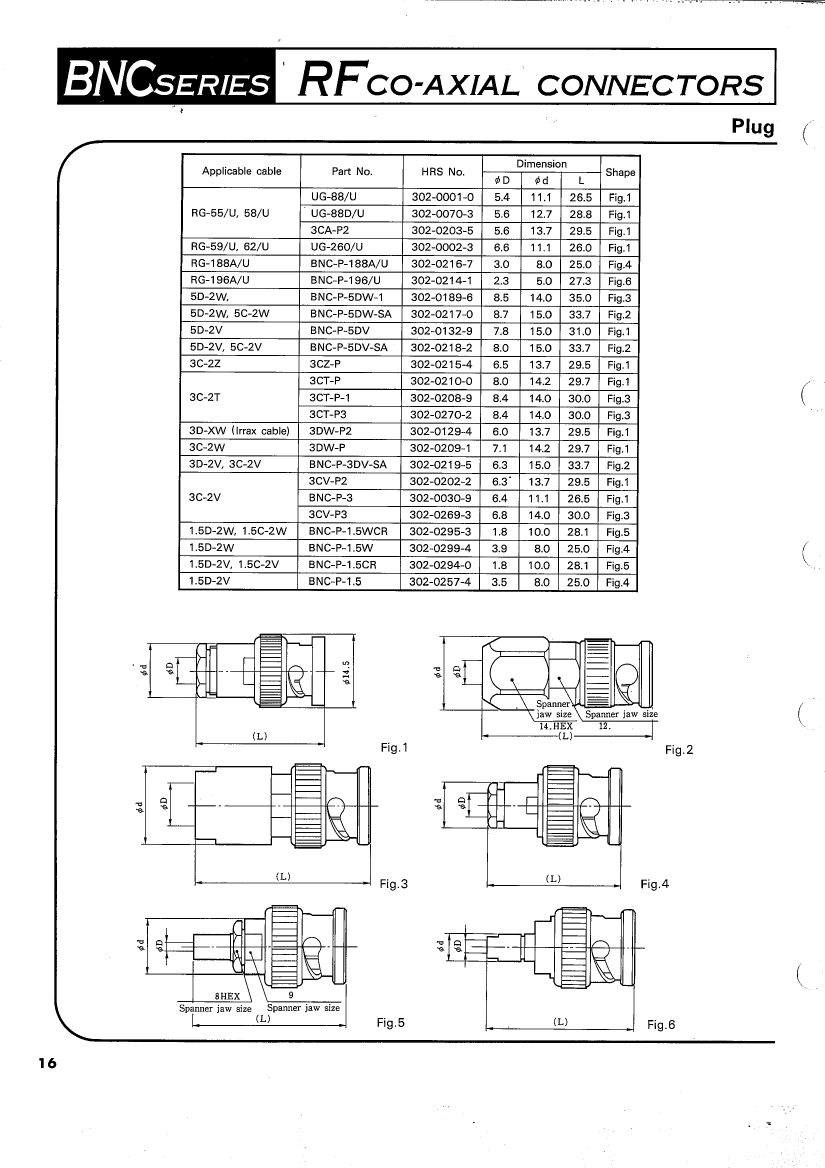

BNC-LP-59/U

Description
RF BNC Connector, Male, Cable Mount, Clamp Solder Terminal, Plug
CategoryThe connector    The connector
File Size629KB,18 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric View All

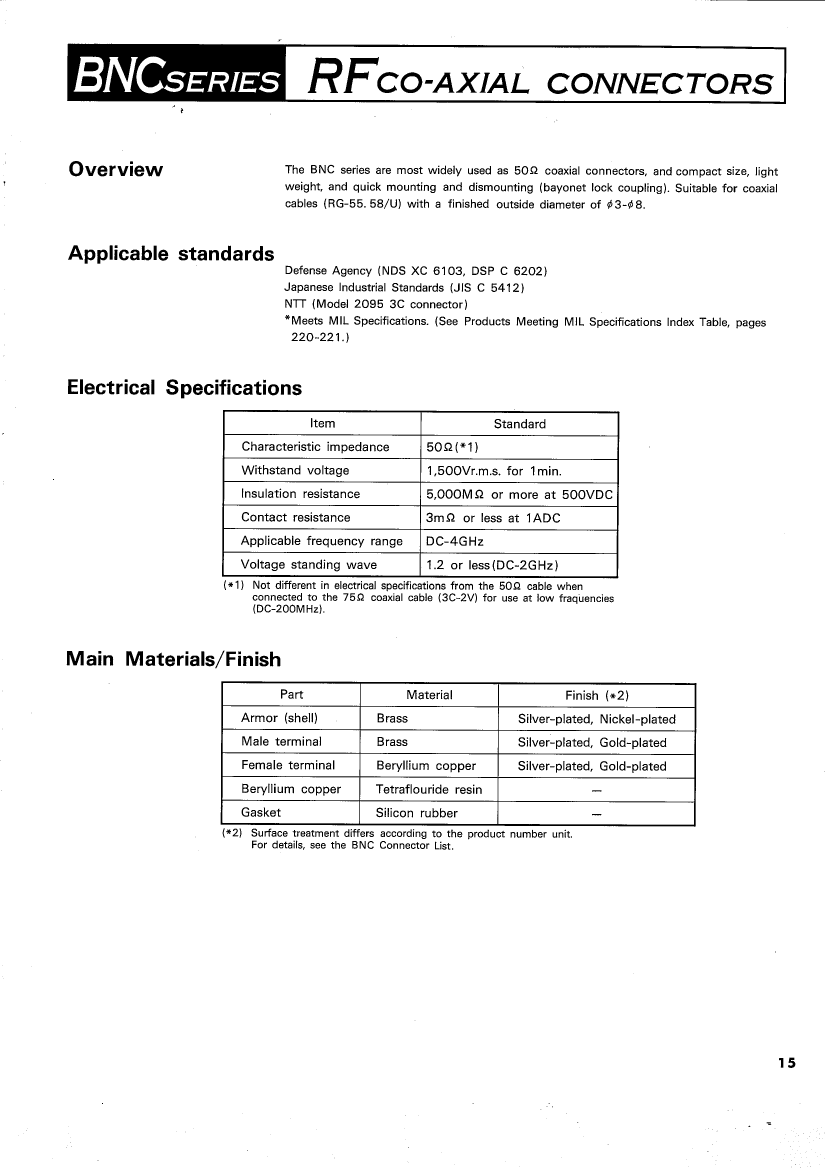

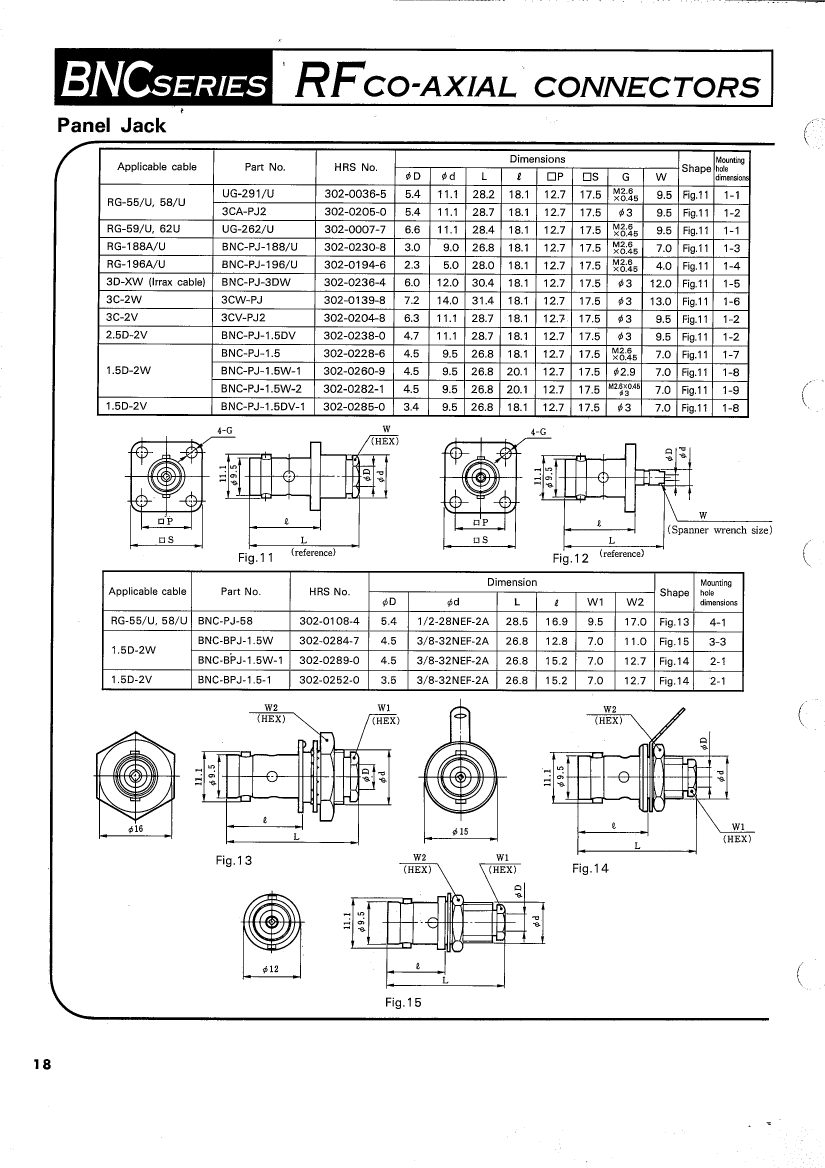

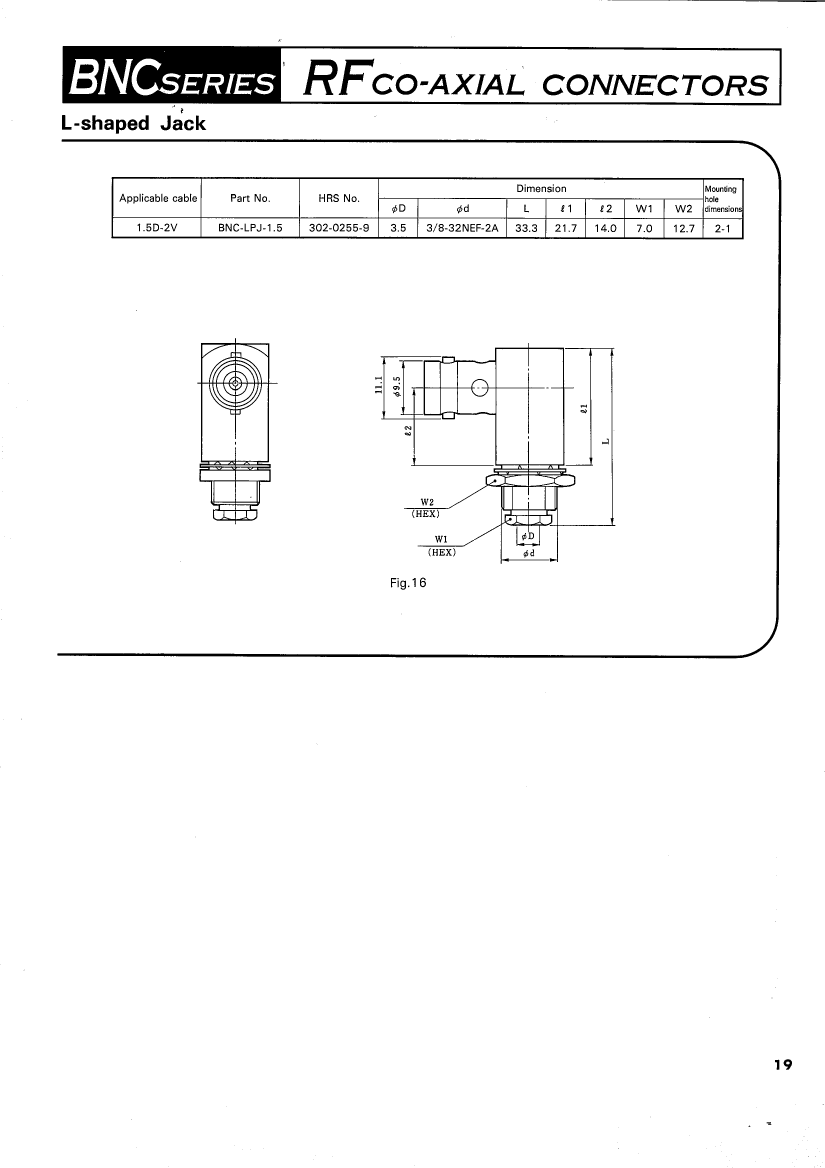

BNC-LP-59/U Overview

RF BNC Connector, Male, Cable Mount, Clamp Solder Terminal, Plug

BNC-LP-59/U Parametric

Parameter NameAttribute value
MakerHirose
Reach Compliance Codeunknown
Other featuresAPPLICABLE CABLES: RG-59/U; RG-62/U, VSWR MAX AT 2GHZ
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationSILVER
Contact completed and terminatedSILVER
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberBNC
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCLAMP SOLDER
voltage standing wave ratio1.2
