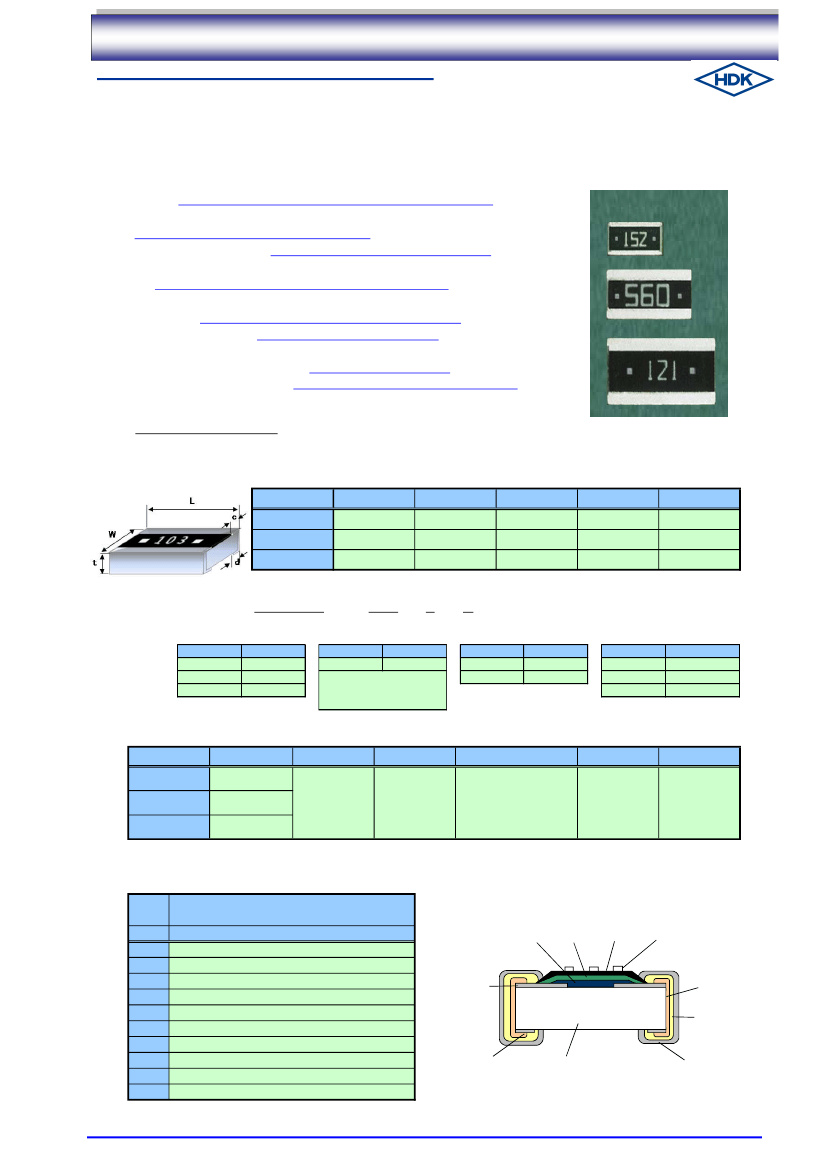

Sulfurization-proof Type Wide Terminal Chip Resistor
Hokuriku Electric Industry Co.,Ltd
【Model Number】
WCRES**
【Features】
■This is
high power type sulfurization-proof by wide terminal.
■
Use of pecial material for top electrode
provides
excellent sulfurization characteristic.
■By
high power capability, reduction of mounting area
is possible.
■By making
terminal wide side (terminal area increased)
,
higher reliability at solder joint
was realized.
■Large terminal area provides
excellent heat radiation
,
and help
suppress heat generation of circuitry.
■Europe RoHS compliant product.
【Dimensions】
Model No.
(Unit: mm)
L
3.20±0.15
5.00±0.20
6.30±0.15
W
1.60±0.15
2.50±0.20
3.20±0.15
t
0.55 +0.15/-0.05
c
0.30±0.20
0.50±0.20
0.50±0.20
d
0.50±0.20
0.60±0.20
0.90±0.20
WCRES32
WCRES50
WCRES64
0.56±0.20
0.56±0.15
【Designation】
WCＲEＳ３２
①
-
１０３
②
Ｊ
③
Ｖ
④
③Resistance Tolerance
Symbol
Tolerance
Ｆ
±1.0％
J
±5.0％
③Packing Form
Symbol
Form
V
Paper tape
Ｅ
Emboss tape
B
Bulk
①Model No.
Model No.
Size
WCRES32
1632
WCRES50
2550
WCRES64
3264
②Resistance Value
Marking
Resistance
103
10KΩ
103＝10×10
３
＝10,000Ω＝10KΩ
【Specification】
Model No.
Rated power (W)
at 70℃
Tolerance
Class F (±1%)
Range (Ω)
TCR (ppm/℃)
±200
Max.Working Voltage
Max.Overload Voltage
WCRES32
WCRES50
WCRES64
0.5
1.0
Class J (±5%)
2.0
1½1M
1½91Ω:
Ω:±100)
(Class F, 1½91Ω:±100)
200V
400V
* Operating temperature range: -55½+155 ℃
【Structure】
Model
No.
No.
1
2
3
4
5
6
7
8
9
10
WCRES32 / WCRES50 / WCRES64
Element Name
Ceramic substrate
Bottom electrode
Special electrode
Resistive element
Protective coat Ⅰ
Protective coat Ⅱ
Marking
Side electrode
Ni plating
Sn plating
4
5
6
7
3
8
9
2
１
10
* Design・specification are subject to change without prior notice. Please check before purchase and use.
