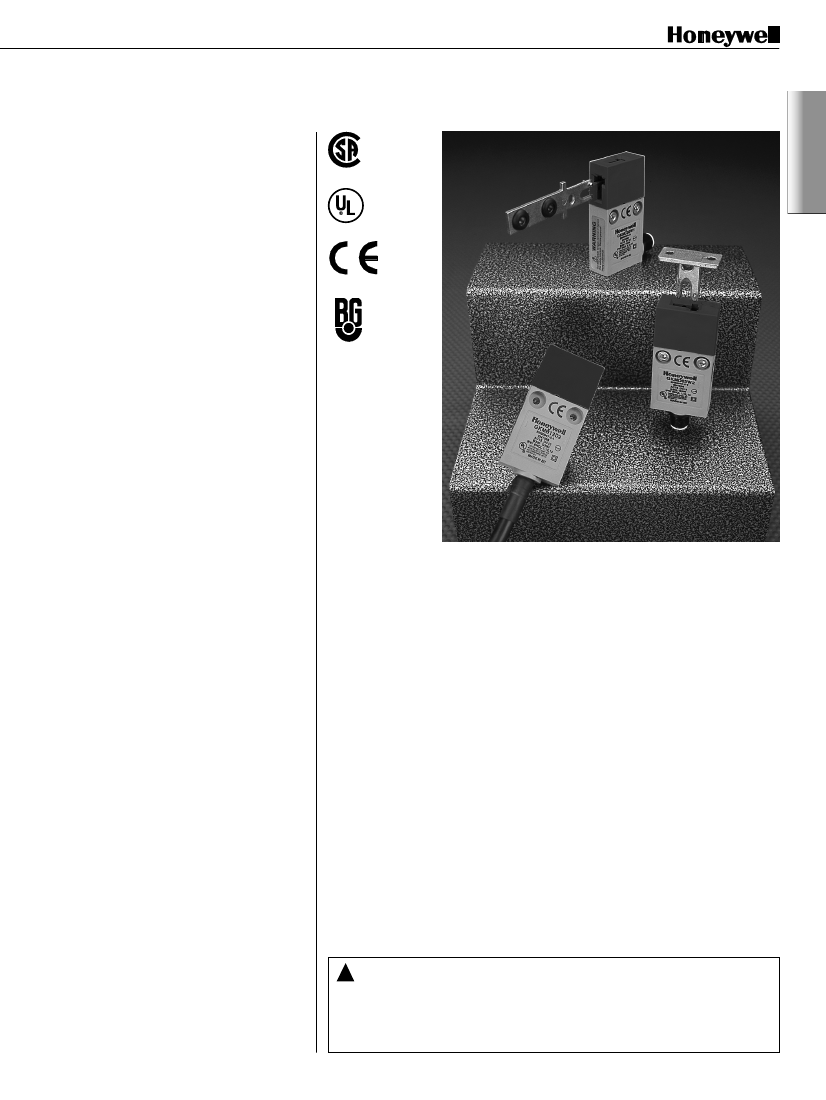

GKM Series
(Global Miniature Safety Key Interlock Switch)
FEATURES
• Red body colour
• Integrated cable or connector(s)
• Bottom or side entry cable
• 90° and straight key
• Top or side key entry
• High switching current capabilities
• Extremely compact enclosure
• Positive opening operation of Normally
Closed contacts conforming to
IEC/EN 60947-5-1-3
• IP 67 Enclosure rating
• Stackable design allows one switch on
top of the other
• Through wiring option (dual connector)
• Dust cap for unused key entry
• Robust stainless steel keys
• UL listed; CSA certified, CE approved
BENEFITS
• Immediately recognisable as safety
component
• Reduced installation time and costs
• Flexibility in mounting/actuation options
• Switch equipment directly and through
safety control modules
• Fits into extremely compact spaces
• Suitable for wet applications
• Extremely simple mechanical redundancy
as well as electrical redundancy
• Very easy to apply to multiple door
modular machinery - no difficulty in
wiring small switch enclosures
• Durable and tough design
®
(Pending)
Used alone as Category 1 safety components or, in conjunction with other safety
switches and our complete range of safety relays, it is possible to construct compre-
hensive protection schemes with Category 2, 3 or 4 compliance.
The preleaded versions allow rapid fit, easy cable routing and function testing which
cut costs dramatically in OEM applications. Simple upgrade guarding solution for
End User applications.
Low energy basic switches are rated as follows:
Operating Voltage U
e
Operating Current I
e
1 to 50Vac or Vdc
1 microamp to 100mA
Example of catalog listing using a low energy basic switch - GKMA19W1
!
WARNING
MISUSE OF DOCUMENTATION
• The information presented in this product sheet (or catalogue) is for reference only. DO NOT USE this document as system installation
information.
• Complete installation, operation and maintenance information is provided in the instructions supplied with each product.
Failure to comply with these instructions could result in death or serious injury.
GKM Series
•
Industrial Safety Products
•
145
GKM

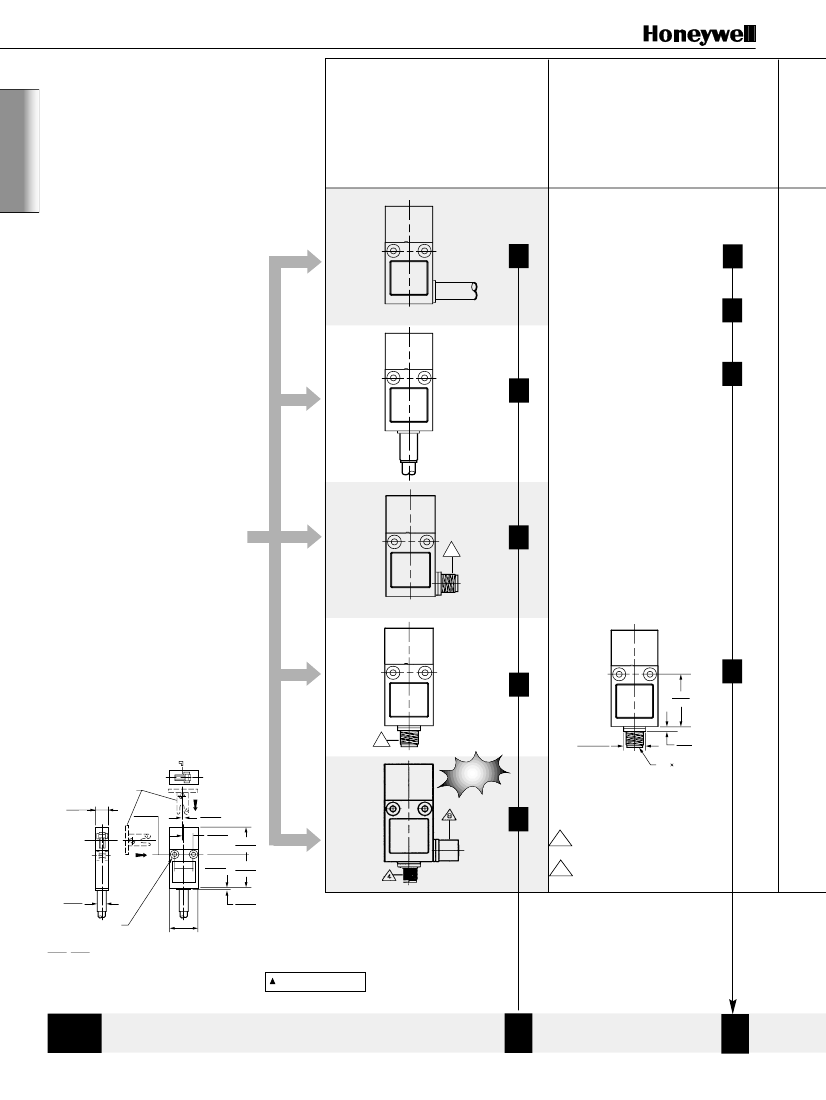

GKM Series
Miniature Safety Key
Interlock Switches
Technical Data
Mechanical
life
>1
Million operations
Degree of
protection
Body Style
Cable/Connector
GKM
146
A
CABLE LENGTHS IN
1 METRE INCREMENTS
CABLE SPEC: SJTO RATED
P.V.C. TYPE
3 METRES IS NORMAL
MAXIMUM CABLE LENGTH.
1
2
3
IP 66/67, EN 60529
NEMA 1, 12, 13
Temperature
range
-25 to +85 °C
(-13 to +185 °F)
Approvals*
IEC 60947-5-1,
EN 60947-5-1, EN 1088,
EN 60204,
UL508,
CSA22-2-14, UL748C
Utilization category
AC15, B300
DC13, Q300
4
B
C
ZERO INDICATES NO CABLE BUT
CONNECTOR
Vibration
IEC 68-2-6
(BS 2011, Part 2.1 Fc) 10g
IEC 68-2-27
(BS 2011, Part 2.1 Ea) 50g
BODY STYLE ’D’
Shock
Minimum
160mm (6.3 in.)
Door Radius
* See Standards (page 139)
4
OF KEY
SLOT
90˚ -
KEY
SHOWN IN OPTIONAL
ACTUATING POSITIONS
16 MAX
(.63)
17.2
(.670)
BODY STYLE 'B'
D
fl 16 MAX
( .63 )
0
37.4
(1.47)
3.8
( .15)
M12 1 THD.
New
1.6
(.058)
12.8
(.504)
32 MAX
(1.26)
37.4
(1.47)
F
4
8
Micro-change DC Style M12, 4
Pin with external threads/male
‘F’ version also has 4 Pin with
internal threads/female
KEY
SLOT
37.4
(1.47)
10 MAX
(.30)
2 X MOUNTING HOLES
FOR M4 OR #8 SCREWS.
COUNTER BORED BOTH SIDES
08.3 X 4.5
DEEP.
(.366) (.177)
34 MAX
(.34)
2.3
(.69)

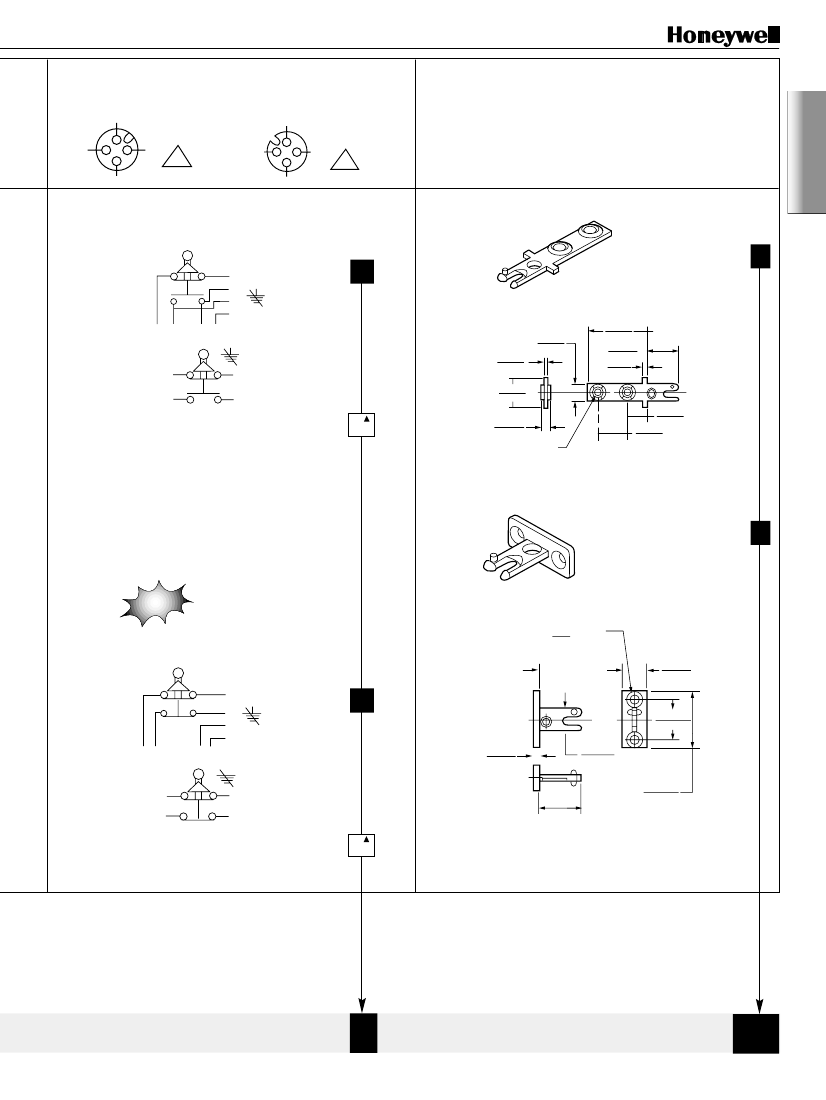

Low Energy Contacts
Ordering:
Note: See page 145
GKM
Example:
GKMD03W2
•
Industrial Safety Products
•
X
X
GKM Series
