Pressure Sensors
Fixed Output, Amplified
Calibrated with Ratiometric Output Voltage
FEATURES
•
Precise Temperature
Compensation
•
Low Cost
•
High Performance
•
Gage, Absolute and
Differential Versions
•
Constant Voltage
Excitation
•
Calibrated Output
•
Ratiometric Output Voltage
TYPICAL APPLICATIONS
•
Ventilators
•
Continuous Positive
Airway Pressure (CPAP)
Systems
•
Audiometers
•
Air Compressors
•
Chemical Analyzers
•
Variable Air Volume (VAV)
Controllers
•
Airflow
XCA Series

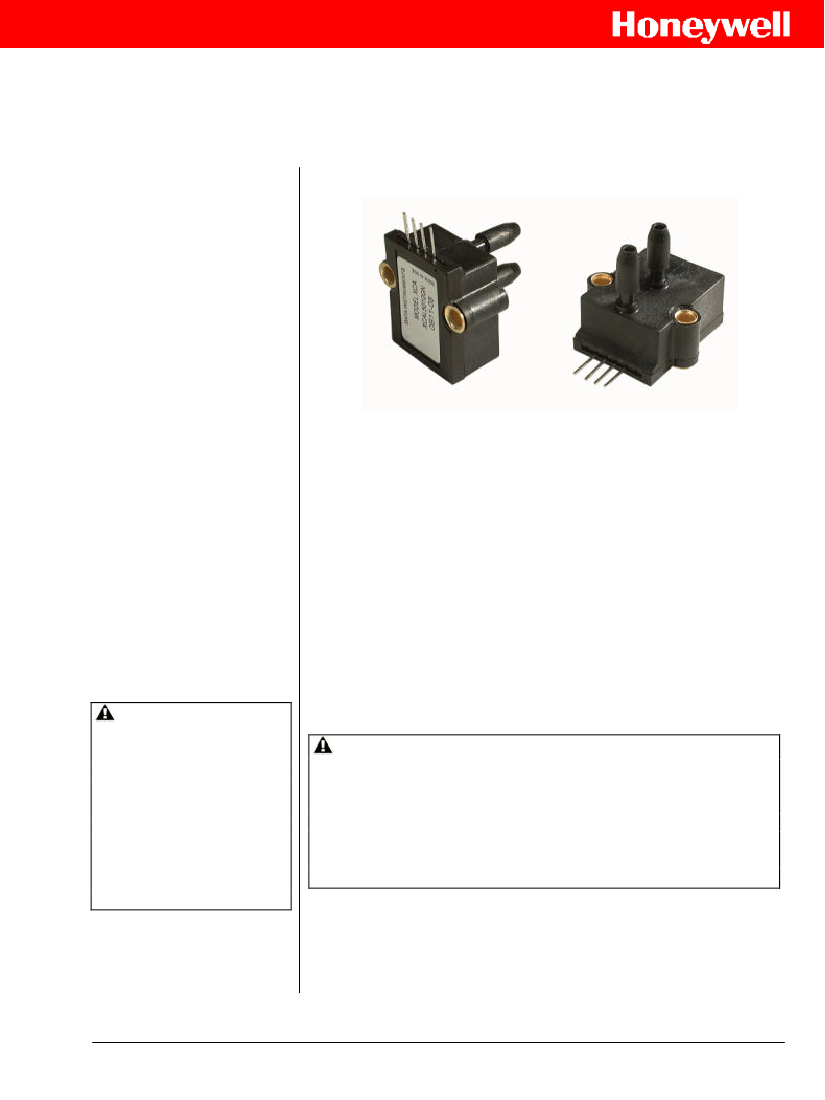

The XCA Series of pressure sensors use state of the art silicon
micromachined pressure sensors in conjunction with stress free packaging
techniques to provide highly accurate, amplified, calibrated and
temperature compensated pressure sensors for the most demanding
applications.
When operated from a fixed 5.0 Vdc supply, the XCA gage and absolute
sensors provide a 0.25 Vdc to 4.25 Vdc output (4.0 Vdc Span). The XCA5
Series offers an industry standard 1-6 Vdc output (5 Vdc Span) when
operated from a fixed 8.0 Vdc supply.
All other features are the same for the entire family, incorporating stress
isolation and factory calibration to achieve optimum accuracy in this
industry standard package.
WARNING
PERSONAL INJURY
DO NOT USE these products
as safety or emergency stop
devices or in any other
application where failure of the
product could result in
personal injury.
Failure to comply with these
instructions could result in
death or serious injury.
WARNING
MISUSE OF DOCUMENTATION
•
The information presented in this product sheet is for reference only. Do
not use this document as product installation information.
•
Complete installation, operation, and maintenance information is
provided in the instructions supplied with each product.
Failure to comply with these instructions could result in death or serious
injury.
Sensing and Control
Pressure Sensors
Calibrated with Ratiometric Output Voltage
XCA Series
XCA4 Electrical Specifications at 5 Vdc Excitation, XCA5 Electrical Specifications at 8 Vdc Excitation, 25
°C*
Min.
Typ.
Max.
Units
Excitation Voltage
Null XCA4 (except Differential)
Null XCA4 Differential
Null XCA5
Null XCA5 Differential
Span XCA4 (except Differential)
Span XCA4 Differential, changes with
±
pressure applied
Span XCA5
Span XCA5 Differential, changes with
±
pressure applied
Linearity, Hysteresis Error***
Repeatability
Temp. Change Span (0 °C to +50 °C [+32 °F to +122 °F])**
Temp. Change Offset (0 °C to +50 °C [+32 °F to +122 °F])**
Operating Temperature
Storage Temperature
Common Mode Pressure
Proof pressure (times span pressure)****
Burst pressure (times span pressure)****
*Note 1:
3.0
0.15
2.20
0.95
2.45
3.90
±1.95
4.90
±2.45
--
--
--
--
-25
-40
--
--
5.0
0.25
2.25
1.00
3.50
4.00
±2.00
5.00
±2.50
±0.30
±0.1
±0.6
±0.6
--
--
3X
5X
16
0.35
2.30
1.05
3.55
4.10
±2.05
5.10
±2.55
±0.50
--
±1.0
±1.0
+85
+125
50
--
--
V
V
V
V
V
V
V
V
V
%Span
%Span
%Span
%Span
°C
°C
psi
FS
FS
**Note 2:
***Note 3:
****Note 4:
All parameters are measured at 5.0 volt excitation for XCA4 and at 8.0 volt excitation for XCA5, for the nominal full
scale pressure and room temperature unless otherwise specified. Pressure measurements are with positive pressure
applied to Port 2 or Vacuum to Port 1. For absolute devices, pressure is applied to Port 2.
Shift is relative to 25
°C
Measured at ½ full scale rated pressure using BFSL
Proof pressure should not exceed 200 psi and burst pressure should not exceed 300 psi

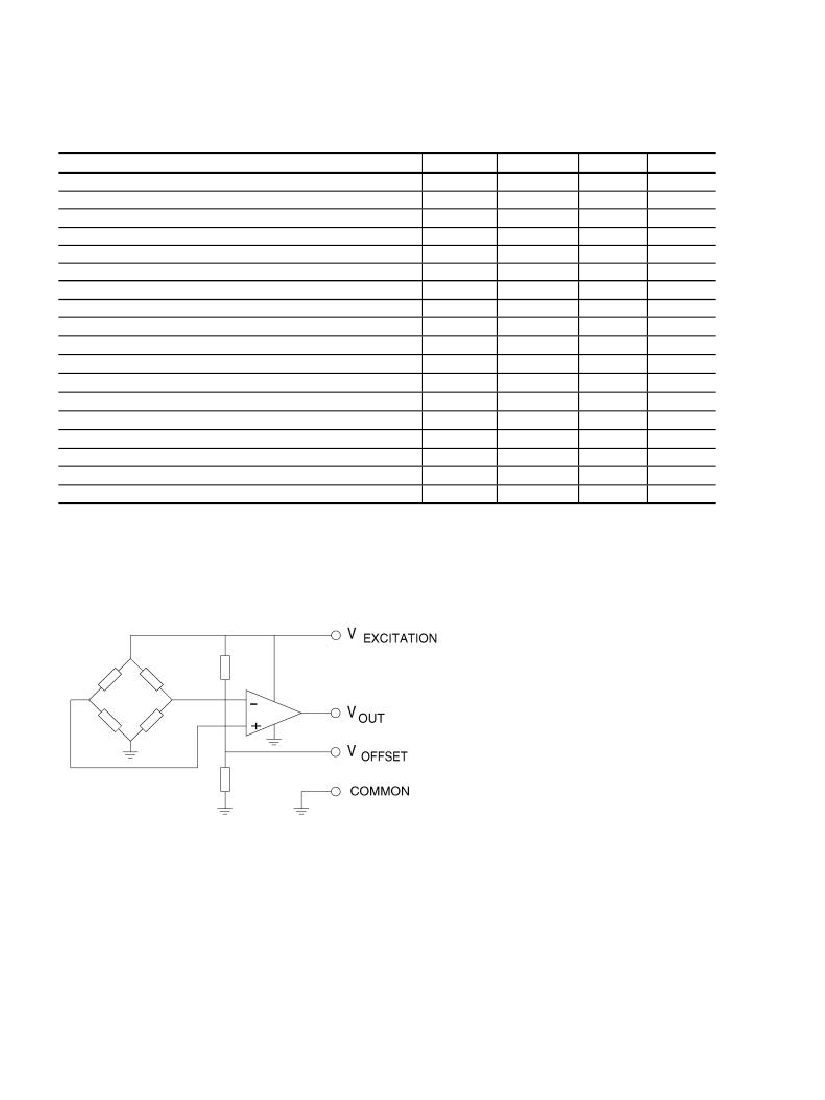

Equivalent Circuit
Pinout
1. V Excitation
2. Common
3. V Output
4. V Offset
2
Honeywell
•
Sensing and Control
Pressure Sensors
Calibrated with Ratiometric Output Voltage

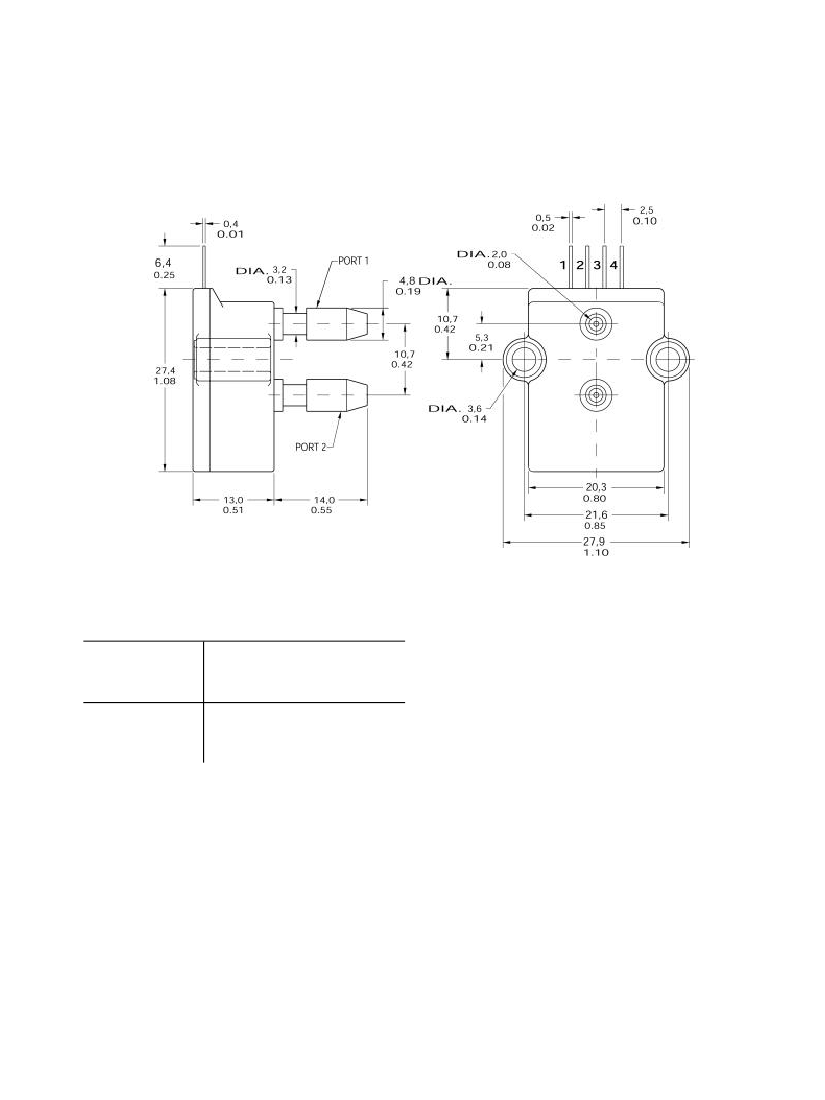

MOUNTING DIMENSIONS
(for reference only) mm/in
XCA SERIES, XCA MOLDED PACKAGE
XCA Series
APPLICATION INFORMATION
MEDIA COMPATIBILITY, WETTED MATERIALS
(Apply clean air dry only)
Port 2
P2 Port:
Media must be
compatible with nylon housing,
epoxy adhesive and silicon.
Port
not used for absolute devices.
Port 1
P1 Port: Dry Gases Only.
Media
must be compatible with epoxy
based adhesive. Dead volume of
0.0102 cubic inches.
PRESSURE COMPATIBILITY
XCA4 Gage and Absolute:
Measures gage pressure
only with positive pressure to port 2. There will be a
small output voltage between the actual offset voltage
and ground proportional to vacuum if applied to port 2.
XCA4 Differential:
Measures differential pressure with
positive pressure to port 2 and negative pressure,
vacuum, to port 1. The offset is set to 2.25 volts at 0
psid. It will change slightly with changes in common
mode (line) pressure. The maximum common mode or
line pressure is 50 psi except for 5 psi and less where
the maximum is 190 psi.
XCA5 Gage and Absolute:
Measures gage pressure
only with positive pressure to port 2. There will be a
small output voltage between the actual offset voltage
and ground proportional to vacuum if applied to port 2.
Honeywell
•
Sensing and Control
3
Pressure Sensors
Calibrated with Ratiometric Output Voltage
XCA SERIES ORDER GUIDE
(
Not all product combinations are released.)
D
N
XCA Series
XCA
Series
XCA - compensated and calibrated, mV
L
4
01
Package Type
N - Plastic
Pressure Measurement
L - Low Pressure (in H
2
O)
No Character - Indicates Pressure (psi)
Pressure Reference
G - Gage
D - Differential
A - Absolute > 5 psi
Output Voltage
4 - Calibrated 4.0 Volt Output
5 - Calibrated 5.0 Volt Output
Pressure Reference
1
10 in H
2
O
01, 05, 15, 30, 60, 100, 150 psi
NOTE 1: The 10 in H
2
O and 1 psi range exhibit a slight sensitivity to change in position (gravity sensitivity).
WARRANTY/REMEDY
Honeywell warrants goods of
its manufacture as being free of
defective materials and faulty
workmanship. Contact your local
sales office for warranty
information. If warranted goods
are returned to Honeywell during
the period of coverage,
Honeywell will repair or replace
without charge those items it
finds defective. The foregoing is
Buyer’s sole remedy and is
in
lieu of all other warranties,
expressed or implied,
including those of
merchantability and fitness for
a particular purpose.
Specifications may change
without notice. The information
we supply is believed to be
accurate and reliable as of this
printing. However, we assume no
responsibility for its use.
While we provide application
assistance personally, through
our literature and the Honeywell
web site, it is up to the customer
to determine the suitability of the
product in the application.
For application assistance,
current specifications, or name of
the nearest Authorized
Distributor, contact a nearby
sales office. Or call:
1-800-537-6945 USA
1-800-737-3360 Canada
1-815-235-6847 International
FAX
1-815-235-6545 USA
INTERNET
www.honeywell.com/sensing
info.sc@micro.honeywell.com
Sensing and Control
Honeywell
11 West Spring Street
Freeport, Illinois 61032
Printed with Soy Ink
on 50% Recycled Paper
008051-2-EN IL50 GLO 0801 Printed in USA
Copyright
©
1997- 2001 by Honeywell Data Instruments Inc. All rights reserved.
www.honeywell.com/sensing
