XRAL5004GN datasheet, PDF - EEWORLD Datasheet

XRAL5004GN: DescriptionPeizoresistive Sensor, Gage, 0Psi Min, 0.145Psi Max, 1-6V, Rectangular, Through Hole Mount; CategoryThe sensor; File Size146KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

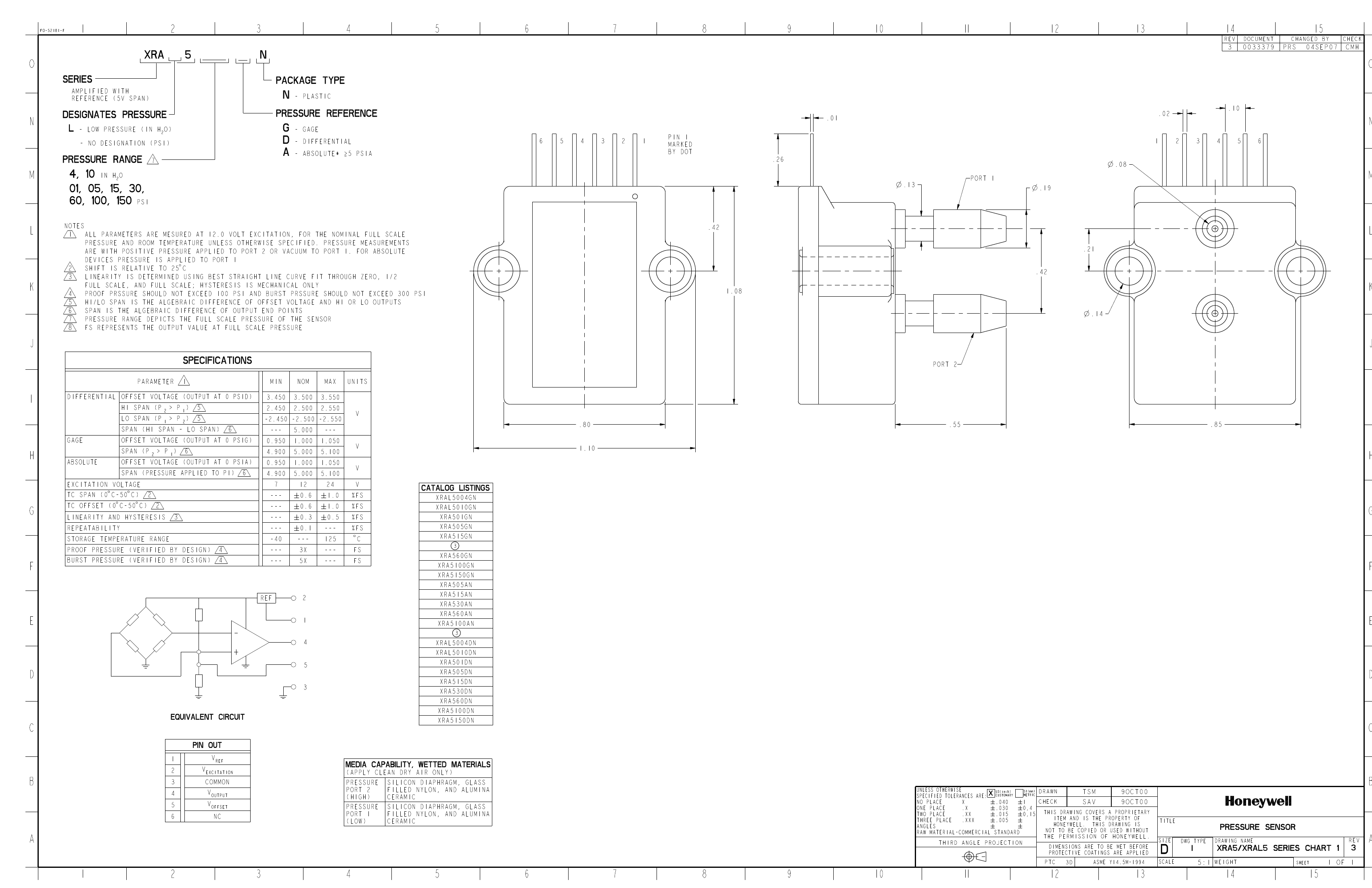

XRAL5004GN Overview

Peizoresistive Sensor, Gage, 0Psi Min, 0.145Psi Max, 1-6V, Rectangular, Through Hole Mount

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
body height	27.43 mm
Body length or diameter	27.94 mm
Linearity(%)	0.5 %
Installation features	THROUGH HOLE MOUNT
Nominal offset	1V
Output interface type	5-WIRE INTERFACE
Output range	1-6V
Output type	ANALOG VOLTAGE
Package Shape/Form	RECTANGULAR
port type	BARBED
Maximum pressure range	0.145 Psi
Minimum pressure range
Pressure sensing mode	GAGE
Sensor/temperature sensor type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	24 V
Minimum supply voltage	7 V
surface mount	NO
Termination type	SOLDER

	XRAL5004GN	XRAL5010DN	XRA5150DN	XRA505GN
Description	Peizoresistive Sensor, Gage, 0Psi Min, 0.145Psi Max, 1-6V, Rectangular, Through Hole Mount	Peizoresistive Sensor, Differential, 0Psi Min, 0.361Psi Max, 3.5-8.5V, Rectangular, Through Hole Mount	Peizoresistive Sensor, Differential, 0Psi Min, 150Psi Max, 3.5-8.5V, Rectangular, Through Hole Mount	Peizoresistive Sensor, Gage, 0Psi Min, 5Psi Max, 1-6V, Rectangular, Through Hole Mount
Reach Compliance Code	unknown	unknown	unknown	unknown
body height	27.43 mm	27.43 mm	27.43 mm	27.43 mm
Body length or diameter	27.94 mm	27.94 mm	27.94 mm	27.94 mm
Linearity(%)	0.5 %	0.5 %	0.5 %	0.5 %
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal offset	1V	3.50V	3.50V	1V
Output interface type	5-WIRE INTERFACE	5-WIRE INTERFACE	5-WIRE INTERFACE	5-WIRE INTERFACE
Output range	1-6V	3.5-8.5V	3.5-8.5V	1-6V
Output type	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE
Package Shape/Form	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
port type	BARBED	BARBED	BARBED	BARBED
Maximum pressure range	0.145 Psi	0.361 Psi	150 Psi	5 Psi
Pressure sensing mode	GAGE	DIFFERENTIAL	DIFFERENTIAL	GAGE
Maximum supply voltage	24 V	24 V	24 V	24 V
Minimum supply voltage	7 V	7 V	7 V	7 V
surface mount	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
