AH4807SS datasheet, PDF - EEWORLD Datasheet

AH4807SS: DescriptionDatacom Transformer, 10/100 BASE-T Application(s), 1CT:1CT, ROHS COMPLIANT; CategoryPower management transformer; File Size556KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

AH4807SS Overview

Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1CT, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
application	10/100 BASE-T
high	7.5 mm
Insulation voltage	1500 V
length	27.8 mm
Installation features	SURFACE MOUNT
Number of functions	4
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L27.8XB12.2XH7.5 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT
width	12.2 mm

RoHS

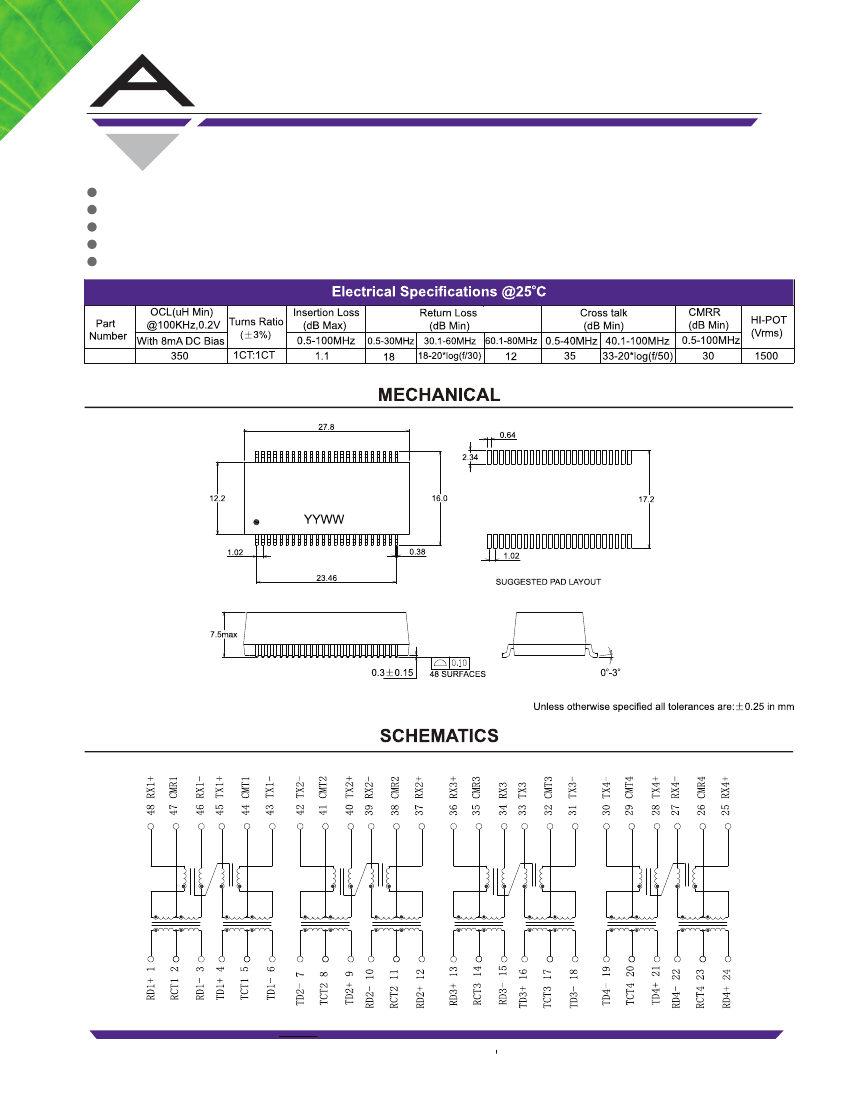

10/100 BASE-T QUAD PORT SURFACE MOUNT MAGNETICS

Meets IEEE 802.3af & ANSI X 3.263

Surface mount, closed header construction

Many parts are PoE enabled

Standard operating temp: 0ºC to +70ºC (see footnote)

Industrial operating temp: -40ºC to +85ºC (see footnote)

AH4807S__

*Complete part number by inserting “S” for Standard Temp or “I” for Industrial Temp.

All specifications subject to change without notice.

ALLIED

AH4807S_

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 3/06/09

15

www.alliedcomponents.com

	AH4807SS	AH4807SI
Description	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1CT, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1CT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	ALLIED [Allied Electronics]	ALLIED [Allied Electronics]
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	10/100 BASE-T	10/100 BASE-T
high	7.5 mm	7.5 mm
Insulation voltage	1500 V	1500 V
length	27.8 mm	27.8 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	4	4
Maximum operating temperature	70 °C	85 °C
physical size	L27.8XB12.2XH7.5 (mm)	L27.8XB12.2XH7.5 (mm)
Primary inductance	350 µH	350 µH
surface mount	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT	1CT:1CT
width	12.2 mm	12.2 mm
