ARF523-2112S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ARF523-2112S

ARF523-2112S: DescriptionTelecom and Datacom Connector, ROHS COMPLIANT; CategoryThe connector The connector; File Size430KB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

ARF523-2112S Overview

Telecom and Datacom Connector, ROHS COMPLIANT

ARF523-2112S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

RoHS

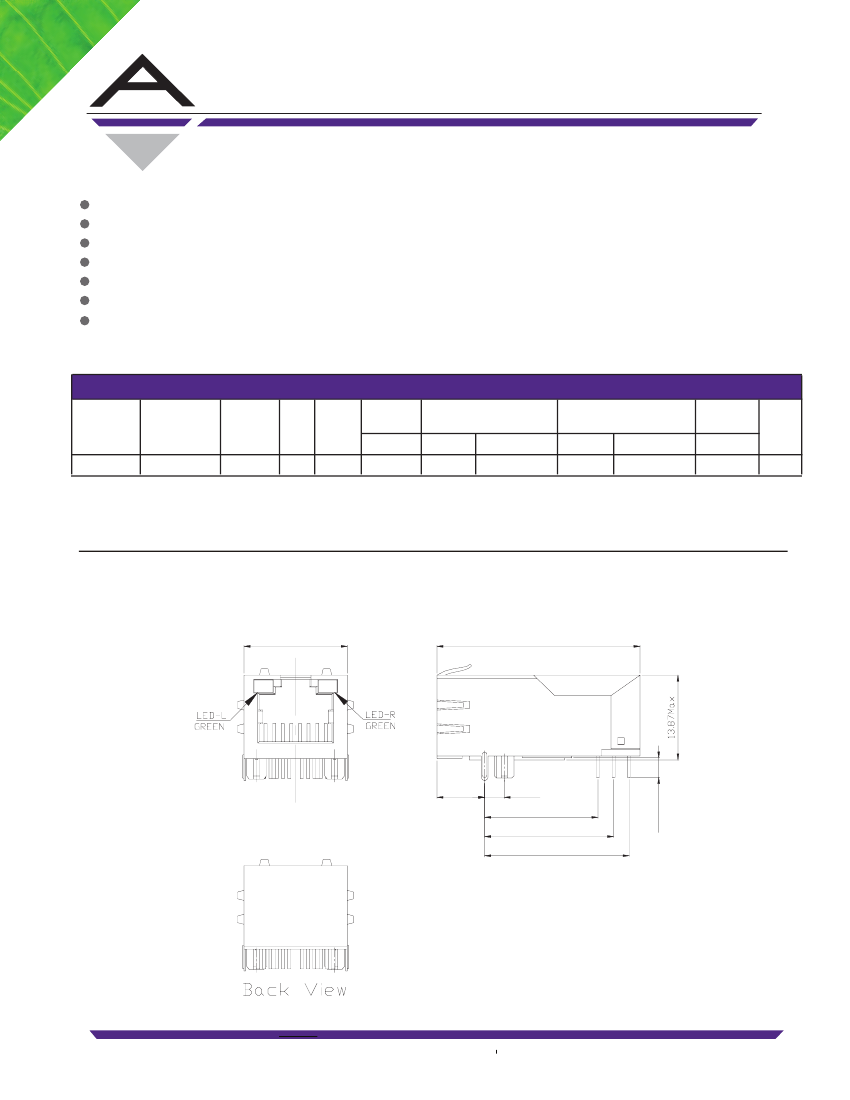

Single Port RJ45 CONNECTOR

WITH INTEGRATED MAGNETICS,TAB UP

10/100/1000 Base-T Ethernet Application

Meets IEEE 802.3 & ANSI X 3.263 standards

Impedance: 100OHMS

Transmit open circuit inductance (OCL): 350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias

Always EU RoHS/ELV Compliant, wave solder capable to 265°C

RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F

Standard operating temp: 0ºC to +70ºC

Electrical Speciﬁcations @ 25°C

Part

Number

OCL(uH min)

Turns Ratio

EMI

@100KHz/0.1V chip: cable

Fingers

wi/ 8mA DC Bias

(±3%)

350

1CT:1CT

YES

LED

(L/R)

Insertion

Loss

(dB Max)

Return Loss

(dB Min)

40.1-100MHz

12-20*LOG(f/80)

Cross talk

(dB Min)

0.5-40MHz

CMRR

(dB Min)

0.5-100MHz

HI-POT

(VDC)

0.5-100MHz 0.5-40MHz

G/G

1.1

40.1-100MHz

33-20*LOG(f/50)

ARF523-2112S

2250

All specifications subject to change without notice.

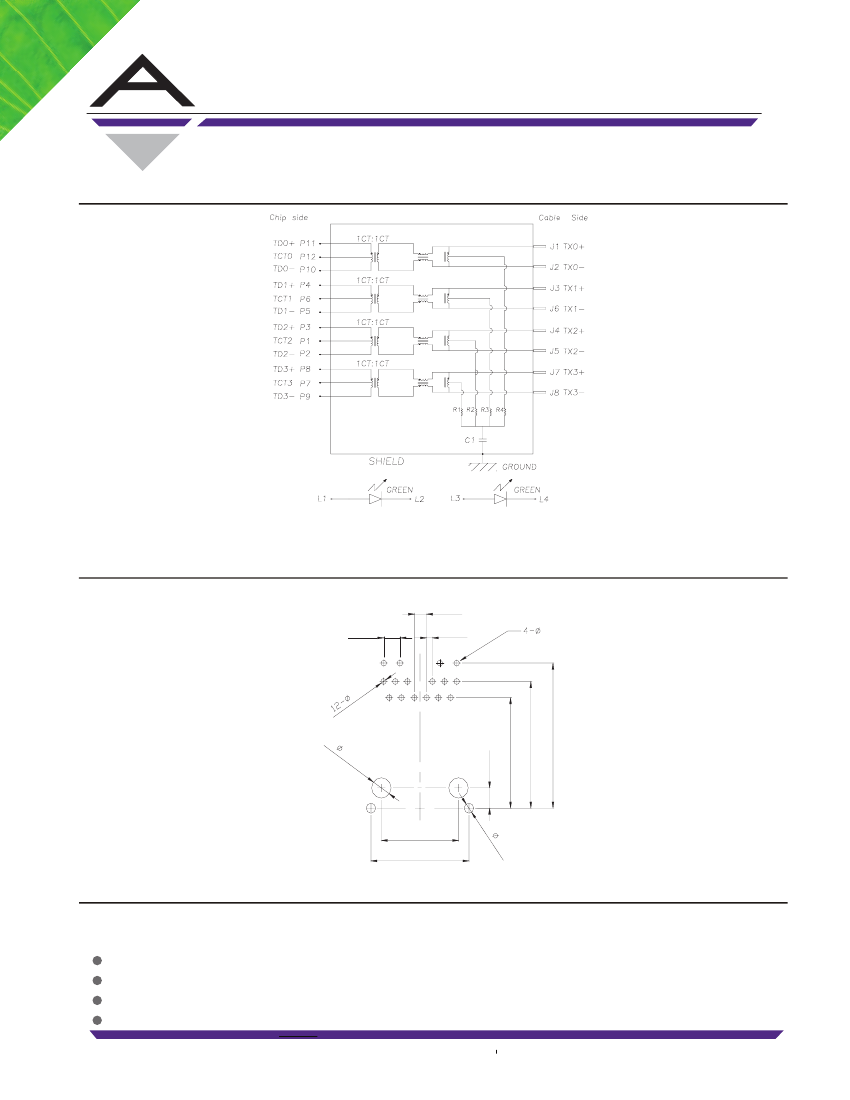

MECHANICAL

Unless otherwise specified all tolerances are:

0.25 in mm

ARF523-2112S

16.79 Max

33.02 Max

7.75

3.18

20.96

23.50

ALLIED

ARF523-2112S

YYWW

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

01/07/11

www.alliedcomponents.com

3.20

18.42
