AT1608SS

Description
Datacom Transformer, 10 BASE-T Application(s), 1CT:1CT; 1CT:1CT, ROHS COMPLIANT
CategoryPower management    transformer
File Size699KB,2 Pages
ManufacturerALLIED [Allied Electronics]
Environmental Compliance
Download Datasheet Parametric View All

AT1608SS Overview

Datacom Transformer, 10 BASE-T Application(s), 1CT:1CT; 1CT:1CT, ROHS COMPLIANT

AT1608SS Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerALLIED [Allied Electronics]
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresHEIGHT DIM INCLUDE TERMINAL ALSO
application10 BASE-T
high6.3 mm
Insulation voltage1500 V
length11.6 mm
Installation featuresSURFACE MOUNT
Number of functions1
Maximum operating temperature70 °C
Minimum operating temperature
physical sizeL11.6XB6.9XH6.3 (mm)
Primary inductance100 µH
surface mountYES
Transformer typeDATACOM TRANSFORMER
Turns ratio (Np:Ns)1CT:1CT; 1CT:1CT
width6.9 mm
RoHS

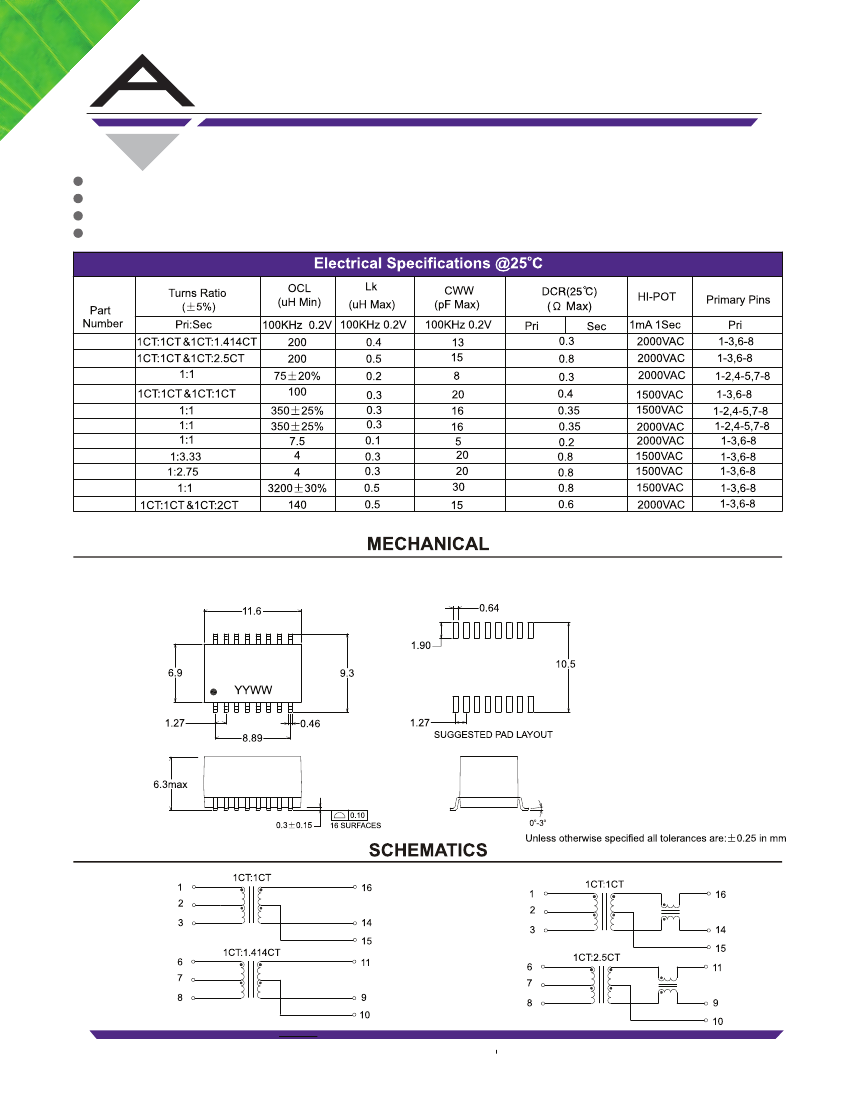

10 BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS
Meets IEEE 802.3af & ANSI X 3.263
Surface mount, closed header construction
Standard operating temp: 0ºC to +70ºC (see footnote)
Industrial operating temp: -40ºC to +85ºC (see footnote)
AT1601S__
AT1602S__
AT1606S__
AT1608S__
AT1609S__
AT1610S__
AT1611S__
AT1612S__
AT1613S__
AT1614S__
AT1615S__
*Complete part number by inserting “S” for Standard Temp or “I” for Industrial Temp.
All specifications subject to change without notice.
AT1601S_, AT1602S_, AT1606S_, AT1608S_, AT1609S_, AT1610S_,
AT1611S_, AT1612S_, AT1613S_, AT1614S_, AT1615S_
ALLIED

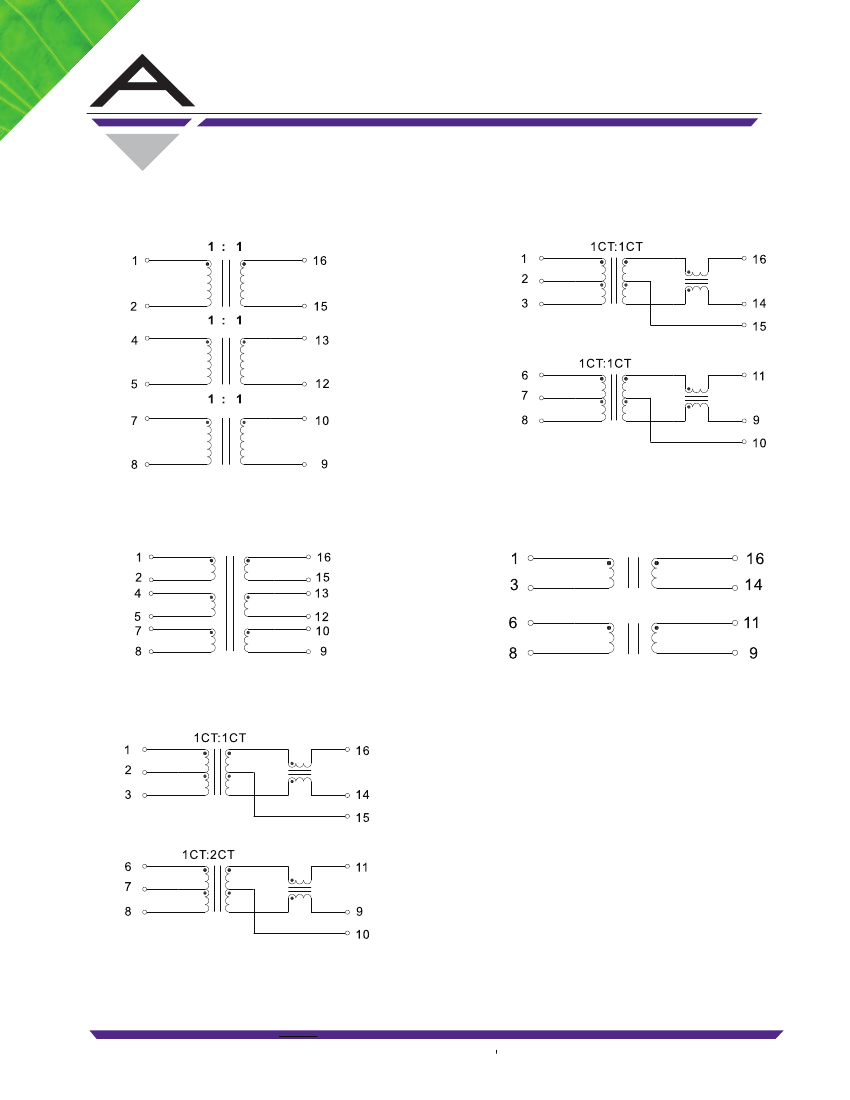

AT16XXS_
AT1601S_
AT1602S_
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED 3/06/09
