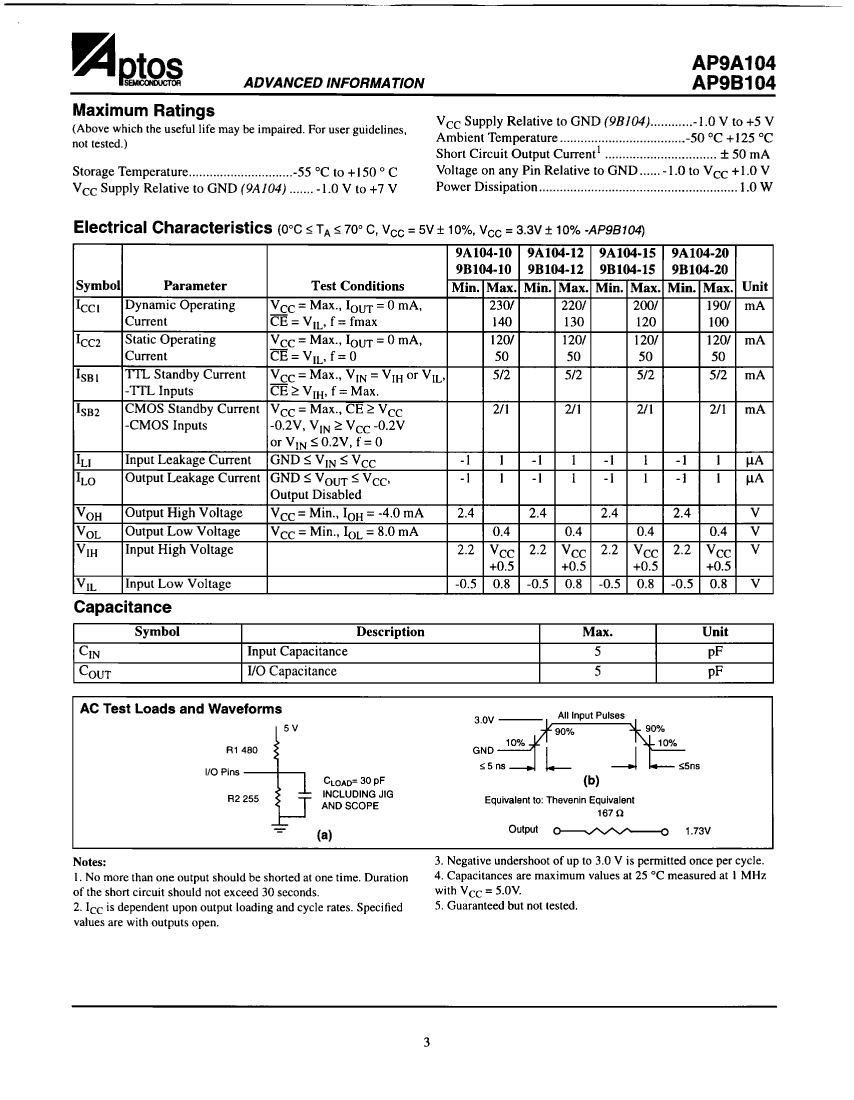

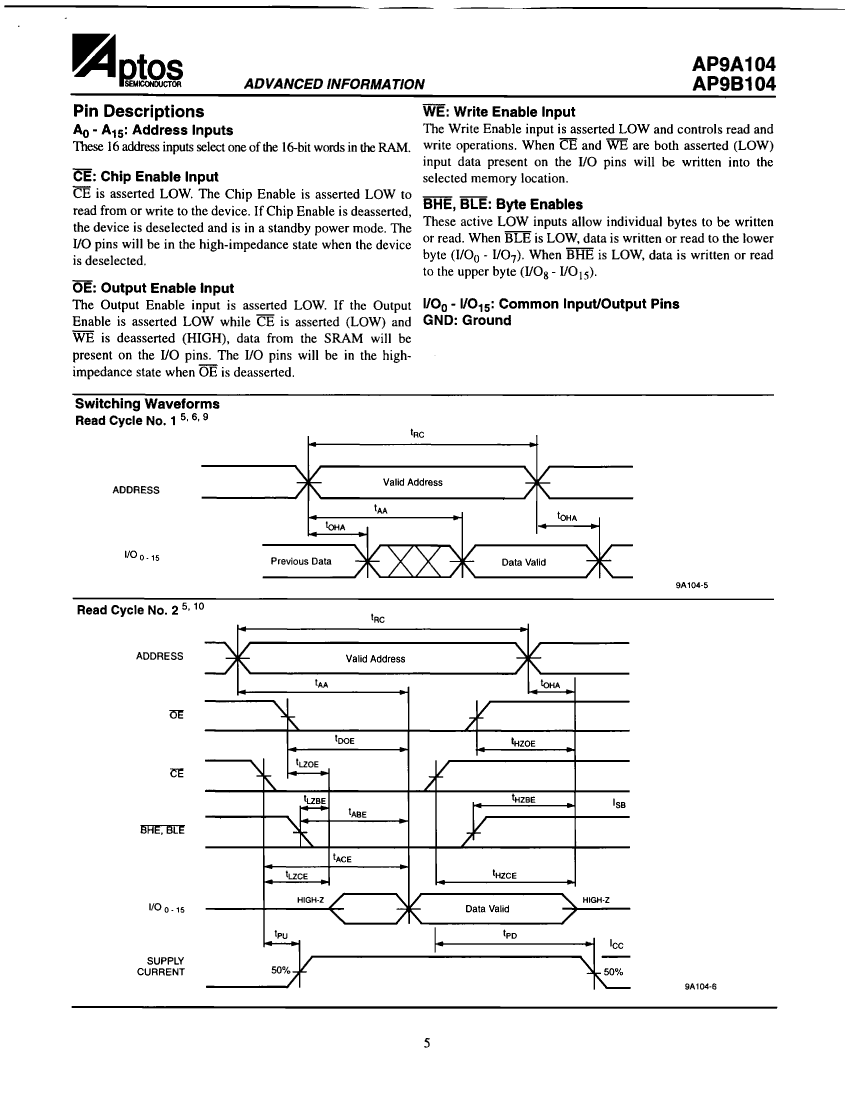

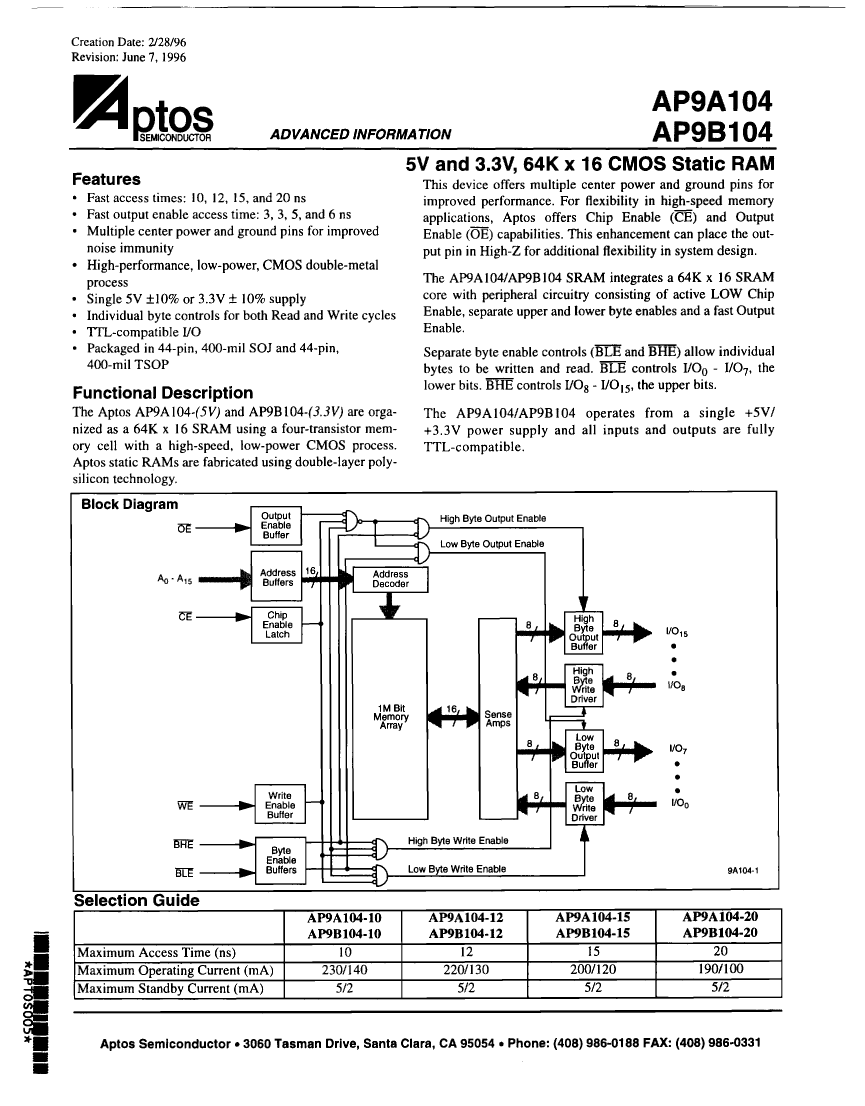

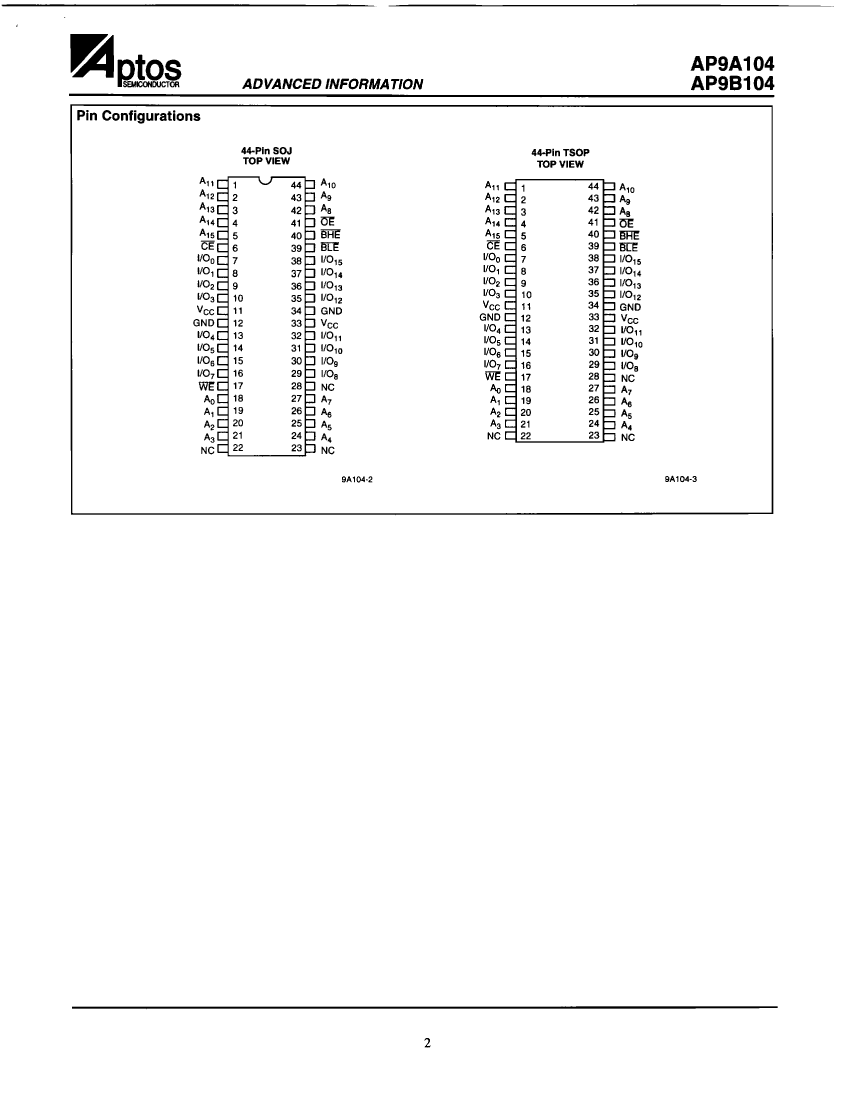

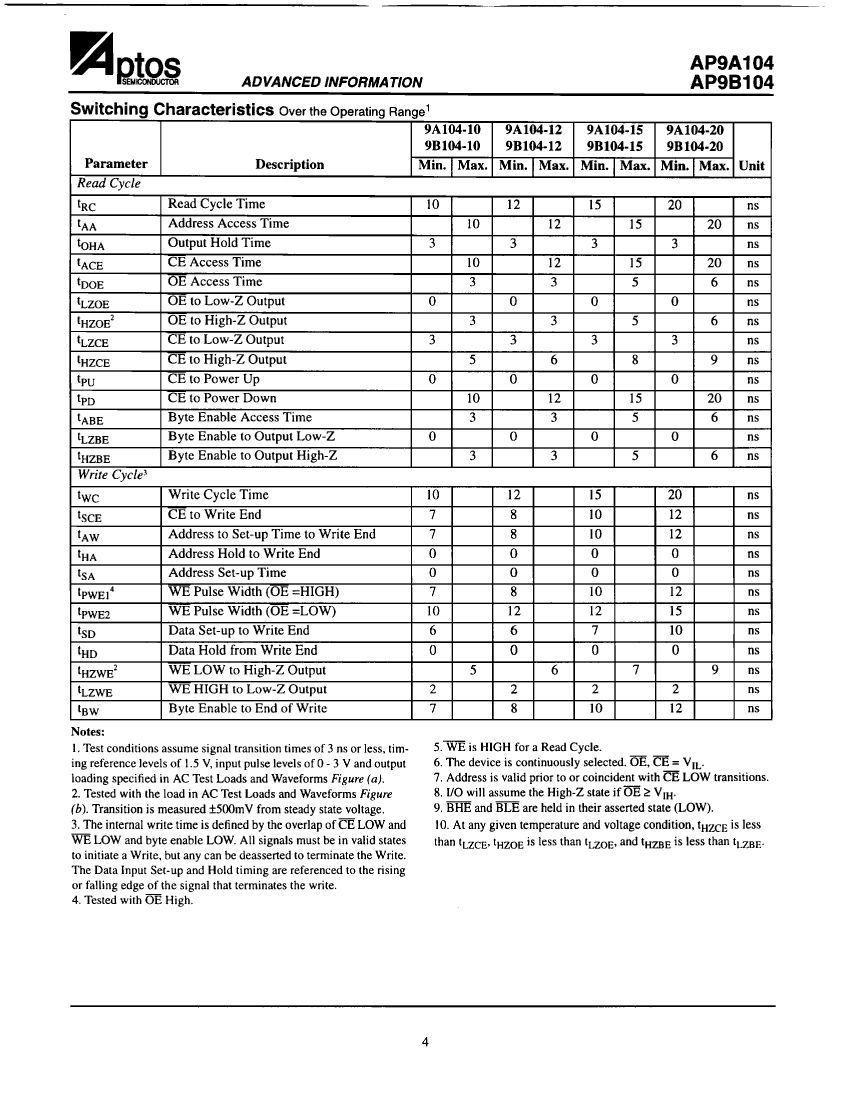

AP9B104-10VC: DescriptionStandard SRAM, 64KX16, 10ns, CMOS, PDSO44; Categorystorage storage; File Size283KB，9 Pages; ManufacturerIntegrated Silicon Solution ( ISSI )

Download Datasheet Parametric Compare View All

AP9B104-10VC Overview

Standard SRAM, 64KX16, 10ns, CMOS, PDSO44

AP9B104-10VC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Integrated Silicon Solution ( ISSI )
package instruction	SOJ, SOJ44,.44
Reach Compliance Code	unknown
ECCN code	3A991.B.2.B
Maximum access time	10 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J44
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	44
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX16
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ44,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum standby current	0.001 A
Minimum standby current	3 V
Maximum slew rate	0.14 mA
Maximum supply voltage (Vsup)	3.63 V
Minimum supply voltage (Vsup)	2.97 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
