AN80C196JT-20: DescriptionMicrocontroller, 16-Bit, 20MHz, CMOS, PQCC52, PLASTIC, LCC-52; CategoryThe embedded processor and controller Microcontrollers and processors; File Size664KB，19 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

AN80C196JT-20 Overview

Microcontroller, 16-Bit, 20MHz, CMOS, PQCC52, PLASTIC, LCC-52

AN80C196JT-20 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	52
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	16
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
JESD-30 code	S-PQCC-J52
length	19.1262 mm
Number of I/O lines	56
Number of terminals	52
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.57 mm
speed	20 MHz
Maximum supply voltage	5 V
Minimum supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	19.1262 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

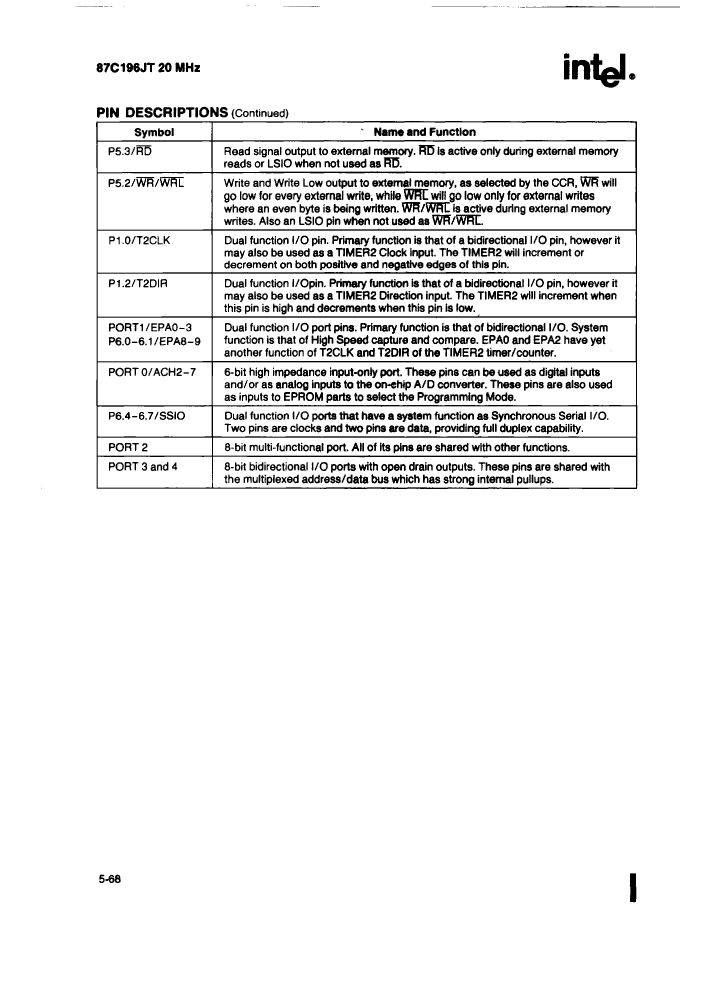

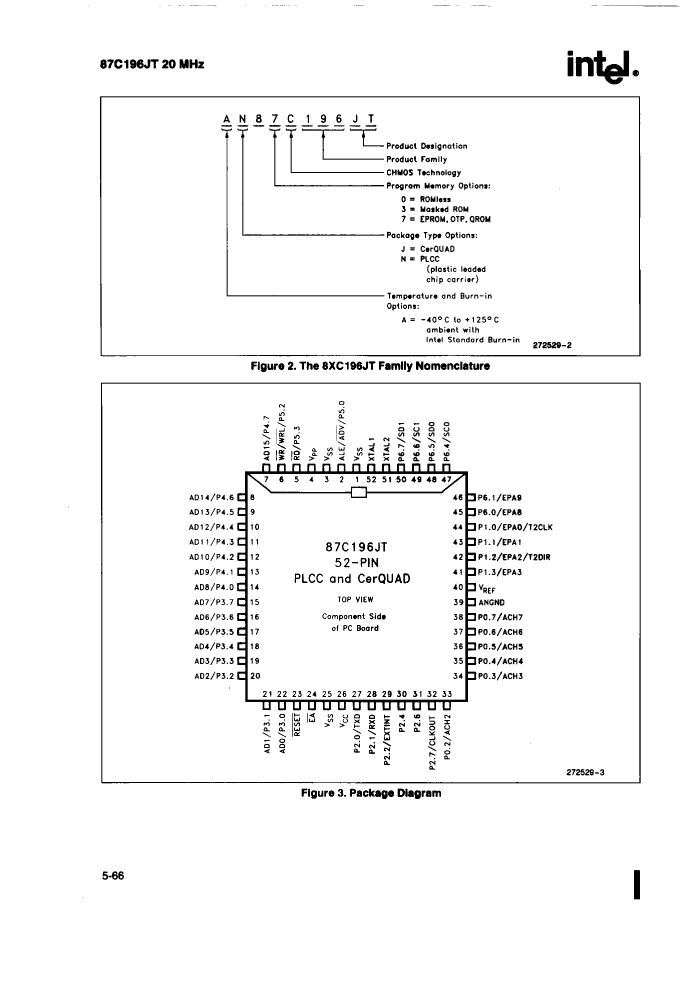

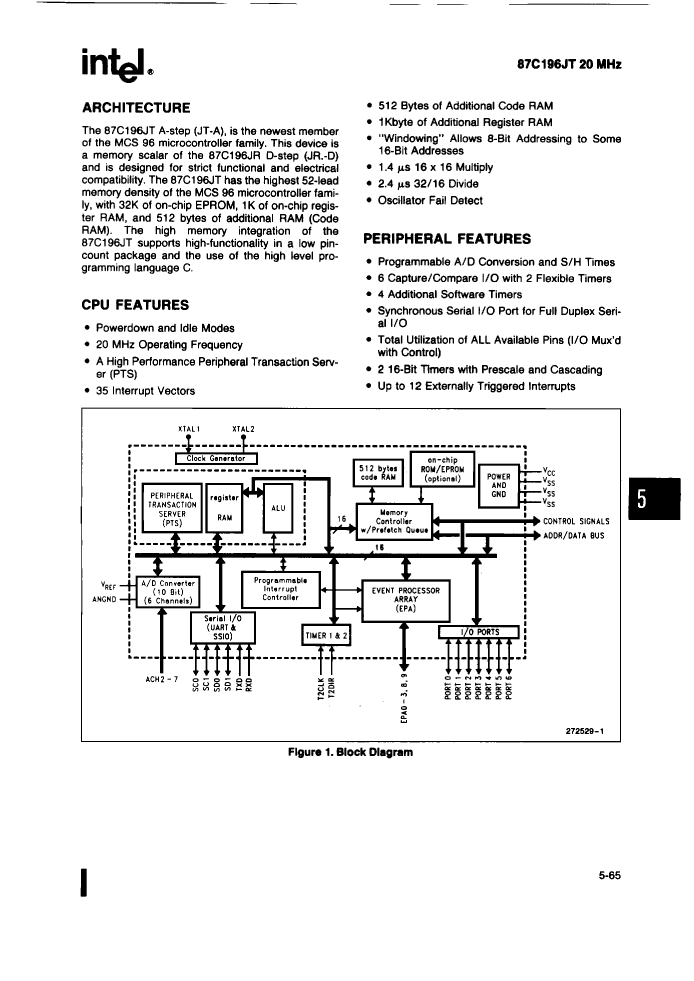

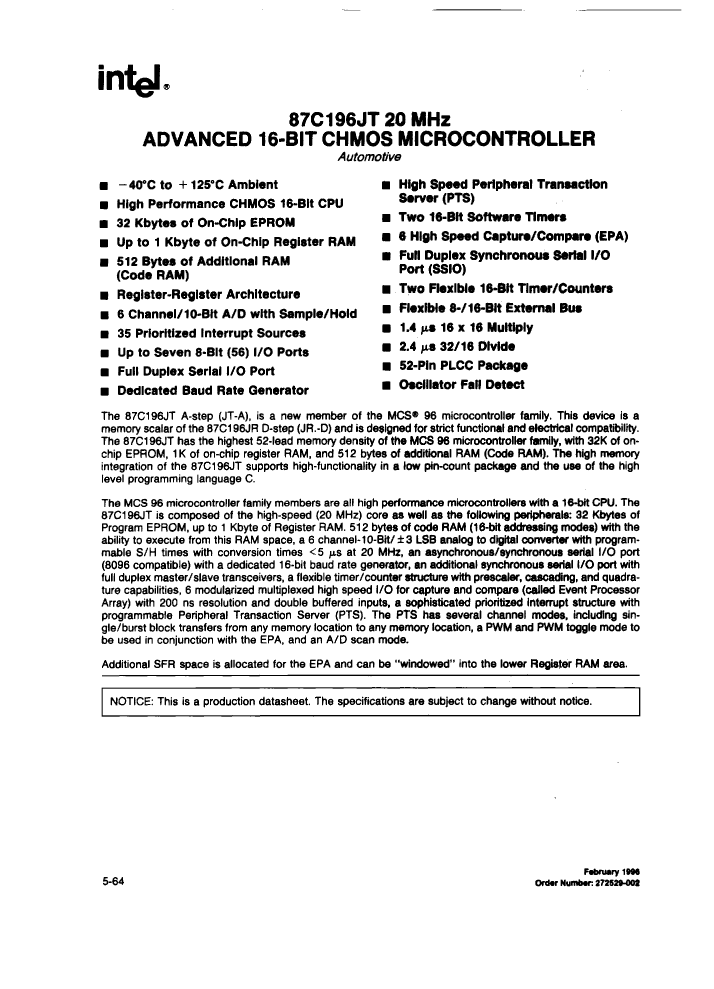

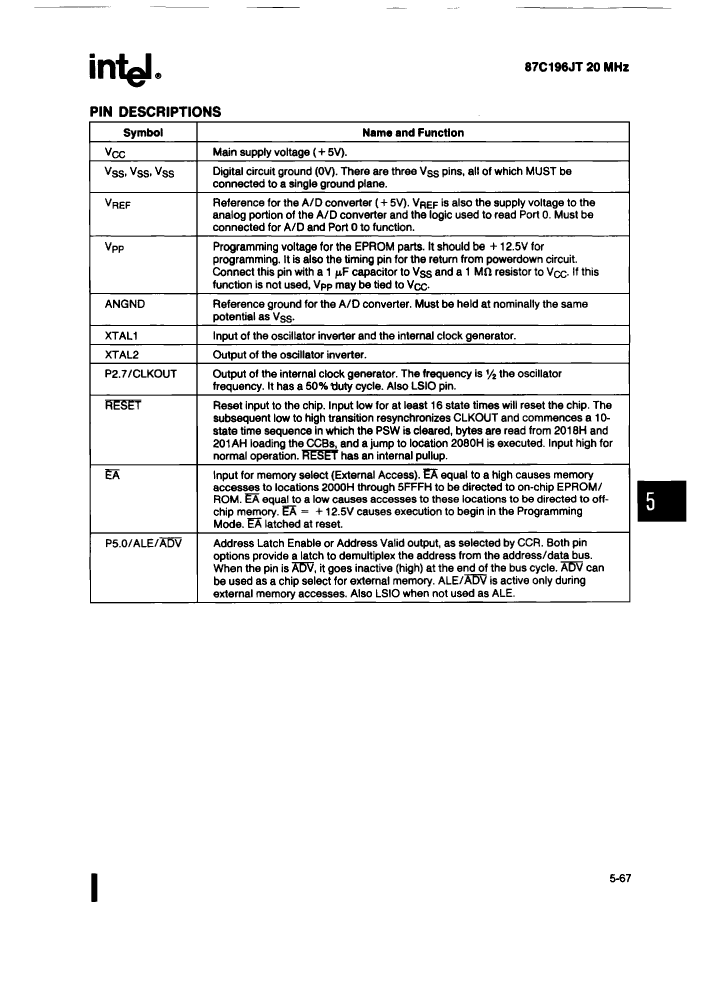

Preview

Download Datasheet

View All

AN80C196JT-20 Related Products

	AN80C196JT-20	AN87C196JT20	AN87C196JT-20	AJ87C196JT-20	AN83C196JT-20	AJ80C196JT-20	AJ83C196JT-20
Description	Microcontroller, 16-Bit, 20MHz, CMOS, PQCC52, PLASTIC, LCC-52	16-BIT, UVPROM, 20MHz, MICROCONTROLLER, PQCC52, PLASTIC, LCC-52	Microcontroller, 16-Bit, OTPROM, 8096 CPU, 20MHz, CMOS, PQCC52, PLASTIC, LCC-52	Microcontroller, 16-Bit, UVPROM, 20MHz, CMOS, CQCC52, CERQUAD-52	Microcontroller, 16-Bit, MROM, 20MHz, CMOS, PQCC52, PLASTIC, LCC-52	Microcontroller, 16-Bit, 20MHz, CMOS, CQCC52, CERQUAD-52	Microcontroller, 16-Bit, MROM, 20MHz, CMOS, CQCC52, CERQUAD-52
Parts packaging code	LCC	LCC	LCC	QFN	LCC	QFN	QFN
package instruction	QCCJ,	PLASTIC, LCC-52	QCCJ, LDCC52,.8SQ	WQCCJ,	QCCJ,	WQCCJ,	WQCCJ,
Contacts	52	52	52	52	52	52	52
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16	16	16
bit size	16	16	16	16	16	16	16
maximum clock frequency	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO
External data bus width	16	16	16	16	16	16	16
JESD-30 code	S-PQCC-J52	S-PQCC-J52	S-PQCC-J52	S-CQCC-J52	S-PQCC-J52	S-CQCC-J52	S-CQCC-J52
length	19.1262 mm	19.1262 mm	19.1262 mm	19.05 mm	19.1262 mm	19.05 mm	19.05 mm
Number of I/O lines	56	56	56	56	56	56	56
Number of terminals	52	52	52	52	52	52	52
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	NO	YES	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ	QCCJ	QCCJ	WQCCJ	QCCJ	WQCCJ	WQCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER, WINDOW	CHIP CARRIER	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.83 mm	4.57 mm	4.83 mm	4.83 mm
speed	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum supply voltage	5 V	5.5 V	5.5 V	5.5 V	5 V	5 V	5 V
Minimum supply voltage	5 V	4.5 V	4.5 V	4.5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	19.1262 mm	19.1262 mm	19.1262 mm	19.05 mm	19.1262 mm	19.05 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Intel	Intel	Intel	Intel	-	-	Intel
DMA channel	NO	-	NO	NO	NO	NO	NO
ROM programmability	-	UVPROM	OTPROM	UVPROM	MROM	-	MROM
Base Number Matches	-	1	1	1	1	1	-
