TN80C151SB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TN80C151SB

TN80C151SB: DescriptionMicrocontroller, 8-Bit, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size590KB，33 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

TN80C151SB Overview

Microcontroller, 8-Bit, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44

TN80C151SB Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	LCC
package instruction	PLASTIC, LCC-44
Contacts	44
Reach Compliance Code	compliant
Has ADC	NO
Other features	256 BYTES RAM; CAPTURE/COMPARE OPERATION
Address bus width	16
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J44
length	16.5862 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

8XC151SA SB

HIGH-PERFORMANCE

CHMOS MICROCONTROLLER

Commercial Express

MCS 51 Microcontroller Compatible

Instruction Set

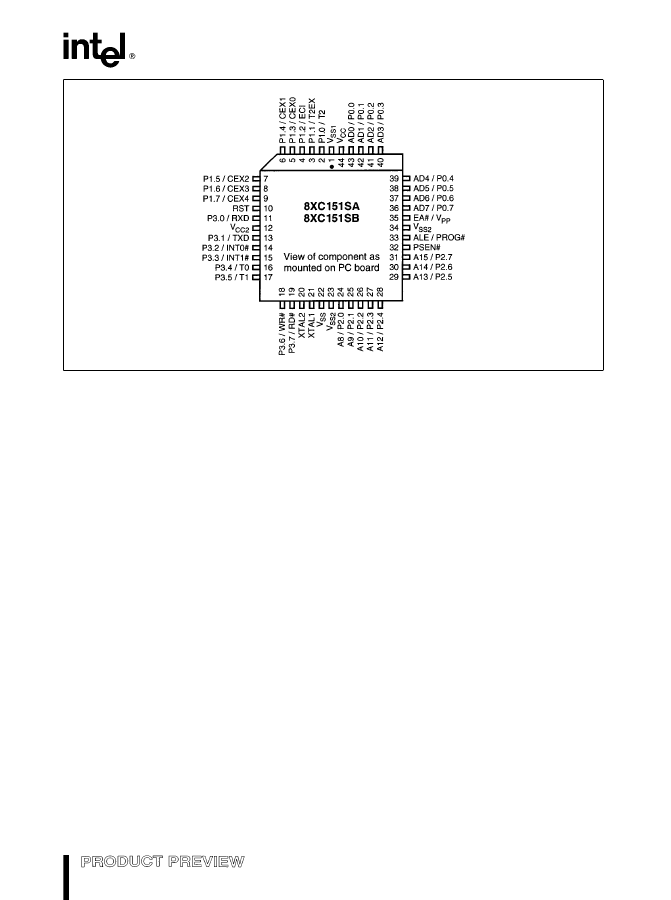

Pin Compatible with 44-lead PLCC and

40-lead PDIP MCS 51 Sockets

Fast Instruction Pipeline

16-bit Internal Code Fetch

8-bit Min 2-clock External Code Fetch

in Page Mode

User-selectable Configurations

External Wait States (0-3 wait states)

Page Mode

64K External Code Memory Space

64K External Data Memory Space

ROM OTPROM Options

8 Kbytes (SA) 16 Kbytes (SB)

or without ROM OTPROM

256 Bytes On-Chip RAM

Power Management

Idle Mode

Powerdown Mode

32 Programmable I O Lines

Seven Maskable Interrupt Sources with

Four Programmable Priority Levels

Three Flexible 16-bit Timer counters

Hardware Watchdog Timer

Programmable Counter Array

High-speed Output

Compare Capture Operation

Pulse Width Modulator

Watchdog Timer

Programmable Serial I O Port

Framing Error Detection

Automatic Address Recognition

High-performance CHMOS Technology

Static Standby to 16-MHz Operation

Package Options (PDIP PLCC)

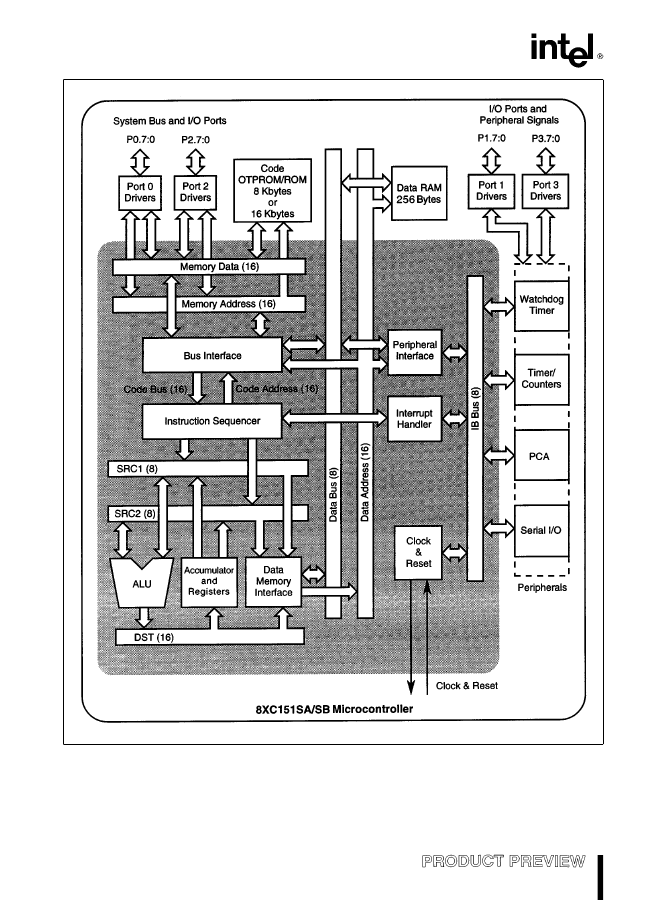

The 8XC151SA SB has an MCS 51 microcontroller compatible instructon set It is available in 40-pin PDIP and

44-lead PLCC compatible with the MCS 51 microcontroller The 8XC151SA SB has 256 bytes of on-chip RAM

and is available in 8 16 Kbytes of on-chip ROM OTPROM or without ROM OTPROM A variety of new

features such as programmable wait states page mode and extended ALE can be selected using the new

user-programmable configuration

Other brands and names are the property of their respective owners

Information in this document is provided in connection with Intel products Intel assumes no liability whatsoever including infringement of any patent or

copyright for sale and use of Intel products except as provided in Intel’s Terms and Conditions of Sale for such products Intel retains the right to make

changes to these specifications at any time without notice Microcomputer Products may have minor variations to this specification known as errata

INTEL CORPORATION 1996

March 1996

Order Number 272814-001
