72U120AYPDPBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 72U120AYPDPBF

72U120AYPDPBF: DescriptionRectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,; CategoryDiscrete semiconductor diode; File Size111KB，7 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

72U120AYPDPBF Overview

Rectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,

72U120AYPDPBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	O-MUPM-H1
Reach Compliance Code	compliant
ECCN code	EAR99
application	HIGH POWER
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-205AB
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	6850 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	200 °C
Minimum operating temperature	-40 °C
Maximum output current	250 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1200 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	40

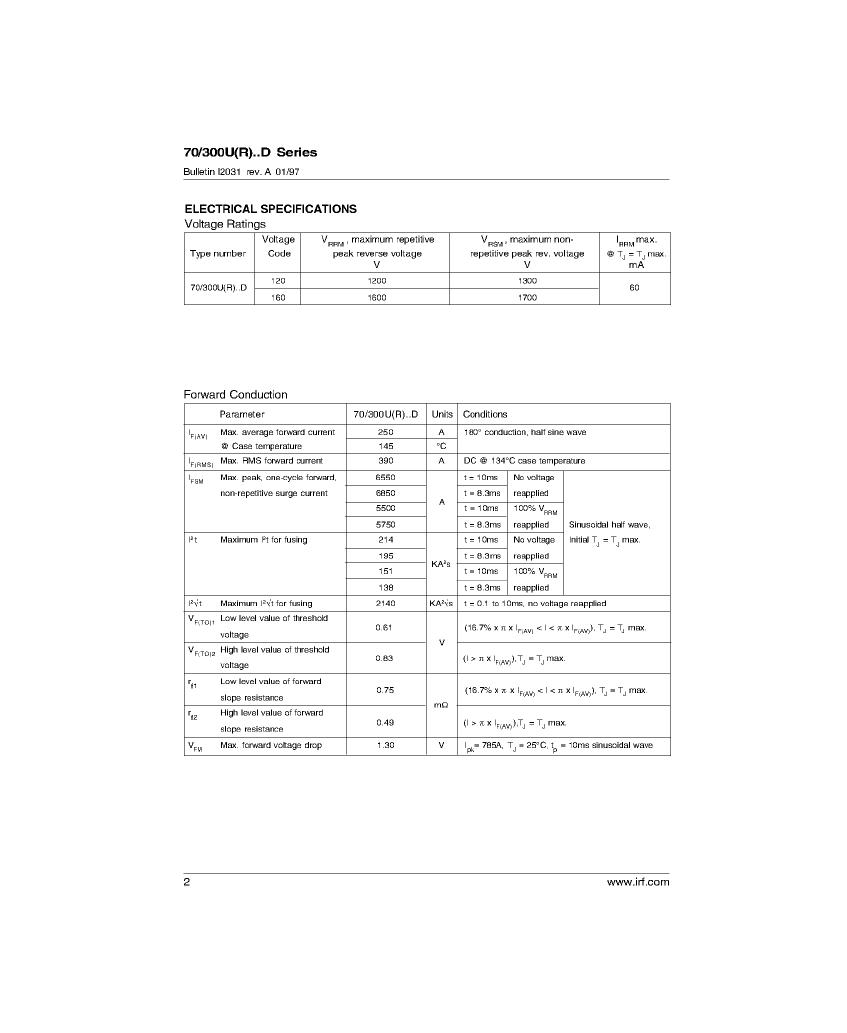

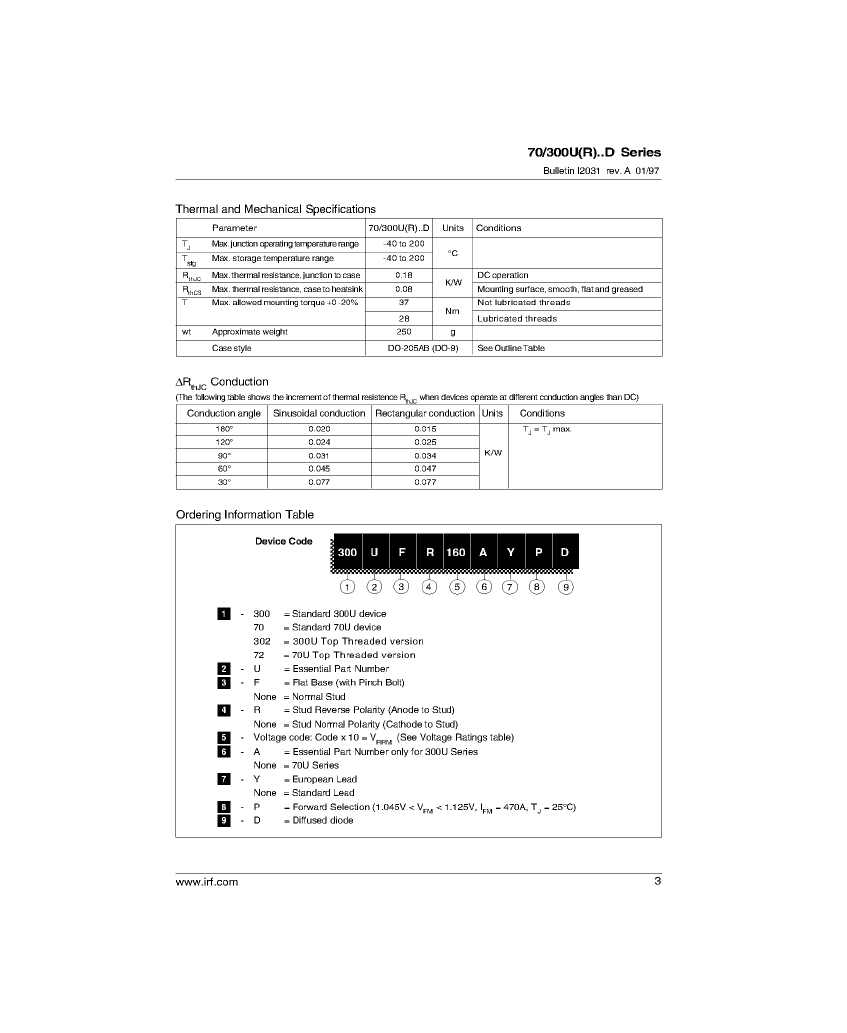

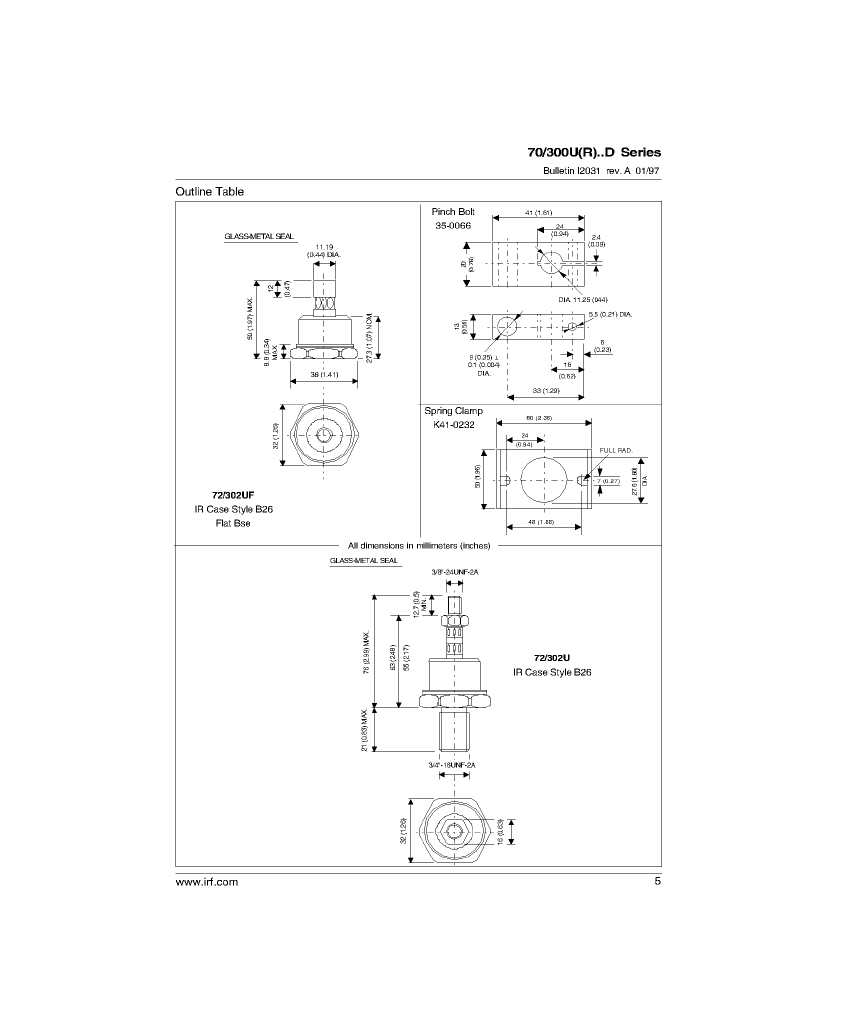

Preview

Download Datasheet

View All

72U120AYPDPBF Related Products

	72U120AYPDPBF	72U160APDPBF	70U120AYPDPBF	72U120YPDPBF	70U160AYPDPBF	70U160APDPBF	72UF120APDPBF	72U160AYPDPBF	72U120PDPBF
Description	Rectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,	Rectifier Diode, 1 Phase, 1 Element, 250A, 1600V V(RRM), Silicon, DO-205AB,	Rectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,	Rectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,	Rectifier Diode, 1 Phase, 1 Element, 250A, 1600V V(RRM), Silicon, DO-205AB,	Rectifier Diode, 1 Phase, 1 Element, 250A, 1600V V(RRM), Silicon, DO-205AB,	Rectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,	Rectifier Diode, 1 Phase, 1 Element, 250A, 1600V V(RRM), Silicon, DO-205AB,	Rectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	HIGH POWER	HIGH POWER	HIGH POWER	HIGH VOLTAGE HIGH POWER	HIGH POWER	HIGH POWER	HIGH POWER	HIGH POWER	HIGH VOLTAGE HIGH POWER
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB
JESD-30 code	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Maximum non-repetitive peak forward current	6850 A	6850 A	6850 A	6850 A	6850 A	6850 A	6850 A	6850 A	6850 A
Number of components	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	250 A	250 A	250 A	250 A	250 A	250 A	250 A	250 A	250 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1200 V	1600 V	1200 V	1200 V	1600 V	1600 V	1200 V	1600 V	1200 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	40	40	40	40	40	40	40	40
Base Number Matches	-	1	1	1	1	1	-	-	-
