Component Specification
For
Ceramic Hermetically Sealed
High Gain Photon Optocouplers
Up-to-date lists and bibliographical references of IEQC-CECC publications may be downloaded from
www.iecq.org
Further copies of this document may be obtained from:
IEC
International Electrotechnical Commission
Commission Electrotechnique Internationale
Box 131, rue de Varembé, CH 1211 Geneva 20, Switzerland
For sales enquiries, or further information, please contact our sales office at:
Isocom Ltd, Hutton Close, Crowther Industrial Estate, District 3, Washington, NE38 0AH
Tel: +44 0191 4166 546 Fax: +44 0191 4155 055
©2007 Copyright reserved to Isocom Limited
Page 1 of 12
QC 88000-C004: 2011
ISOCOM
LTD
®
FOREWORD
The IECQ Quality Assessment System for Electronic Components (IECQ) is composed of those member countries of
the International Electrotechnical Commission (IEC) who wish to take part in a harmonized system for electronic
components of assessed quality. IECQ is also known in some European member countries as IECQ-CECC.
The object of the System is to facilitate international trade by the harmonization of the specifications and quality
assessment procedures for electronic components, and by the grant of an internationally recognised Mark, or
Certificate of Conformity. The components produced or services provided under the system are thereby acceptable in
all member countries without further testing.
This Component Specification is based upon the requirements of IEC Publication QC 001002-2, and has been
prepared by:
Isocom Ltd
Hutton Close
Crowther Industrial Estate
Washington
Tyne and Wear
NE38 0AH
Tel:
Fax:
+44 0191 4166 546
+44 0191 4155 055
and published under the authority of:
BSI Product Services
Maylands Avenue
Hemel Hempstead
Hertfordshire
HP2 4SQ
United Kingdom
AMENDMENT RECORD
Issue 1 – Original as per IECQ-CECC Certificate E1280/F Issue 1 07/03/2007
Issue 2 – RoHS Compliance Statement added and CSM169 – 2 and 4 channel models identified.
REQUIREMENTS
The requirements for IECQ-CECC Component Specifications as detailed in QC 001002-2 Amendment 1 clause 5.4 are
satisfied by the following data sheet.
It should note that IECQ-CECC are not responsible for manufacturers declarations made in data sheets which fall
outside the limits of approved detailed in IECQ-CECC certificates.
This Component Specification is intended for use with applicable IECQ-CECC Assessment Specifications. Eg: QC
88000-A0001
For sales enquiries, or further information, please contact our sales office at:
Isocom Ltd, Hutton Close, Crowther Industrial Estate, District 3, Washington, NE38 0AH
Tel: +44 0191 4166 546 Fax: +44 0191 4155 055
©2007 Copyright reserved to Isocom Limited
Page 2 of 12
QC 88000-C004: 2011
ISOCOM
LTD
®
Ceramic Hermetically Sealed High Gain Photon
Optocouplers
■
■
■
■
Features
▪
Release to IECQ-CECC
▪
Hermetically Sealed
▪
High Density Packaging
▪
1500V DC withstand Test Voltage
▪
Low Input Requirements
▪
High Current Transfer Ratio
▪
RoHS Compliant
6N134
CD650/651
CH350
CS600
■
■
■
■
CSM169-2
CSM169-4
CSM1600
MC600
Applications
▪
Military, high reliability system
▪
Medical instruments
▪
Mos, Cmos Applications
▪
Logic Interfacing
▪
Data Transmission
▪
Transportation
Description
Each channel contains a light emitting diode which is optically coupled to an integrated high speed
photon detector. The output of the detector is an open collector Schottky clamped transistor.
Internal shields provide a guaranteed common mode transient immunity specification of 1000 V/µs.
These optocouplers are for Isolation Voltage applications requiring up to 2500 Vdc.
The optocoupler family is also available in various package styles including 6, 8 and 16 pin DIP
through hole, 16 pin surface mount DIP flat pack and a 6 Pin leadless ceramic chip carrier. The
devices can be purchased with lead bend and plating options.
ISOCOM optocouplers are offered on the basis of similarity of emitter and detector therefore the
performance characterization is identical, subject to the limitations of the packages. The wafer die
similarities apply to the optocouplers for high reliability screening and radiation testing.
For sales enquiries, or further information, please contact our sales office at:
Isocom Ltd, Hutton Close, Crowther Industrial Estate, District 3, Washington, NE38 0AH
Tel: +44 0191 4166 546 Fax: +44 0191 4155 055
©2007 Copyright reserved to Isocom Limited
Page 3 of 12
QC 88000-C004: 2011
ISOCOM
LTD
®
Selection Guide Package Styles and Configuration Options
5 pin
Hybrid
6 pin
Metal Can
TO-5
1
16 pin
Flat Pack
2/4
Package
6 Pad LCC
1
8 pin DIP
1/2
16 pin DIP
2
Lead Style
Channels
1
Common Channel Wiring
Isocom Part Numbers and Options
Commercial
Defense Level
Space Level
Standard Gold Plate Finish
Solder Dipped
Butt Cut/Gold Plate
Gull Wing/Soldered
Crew Cut/Gold Plate
CH350
CH350/L2
CH350/L2S
CSM1600
CSM1600/L
CSM1600/L2
Gold Plate
MC600
MC600/L2
MC600/L2S
Gold Plate
CD650/651
CS600
CD650/651/L2
CS600/L2
CD650/651/L2S
CS600/L2S
Gold Plate
Option 20
Option 10
Option 30
Option 60
6N134
6N134/L2
6N134/L2S
Gold Plate
Option 20
Option 10
Option 30
Option 60
CSM169
CSM169/L2
CSM169/L2S
Gold Plate

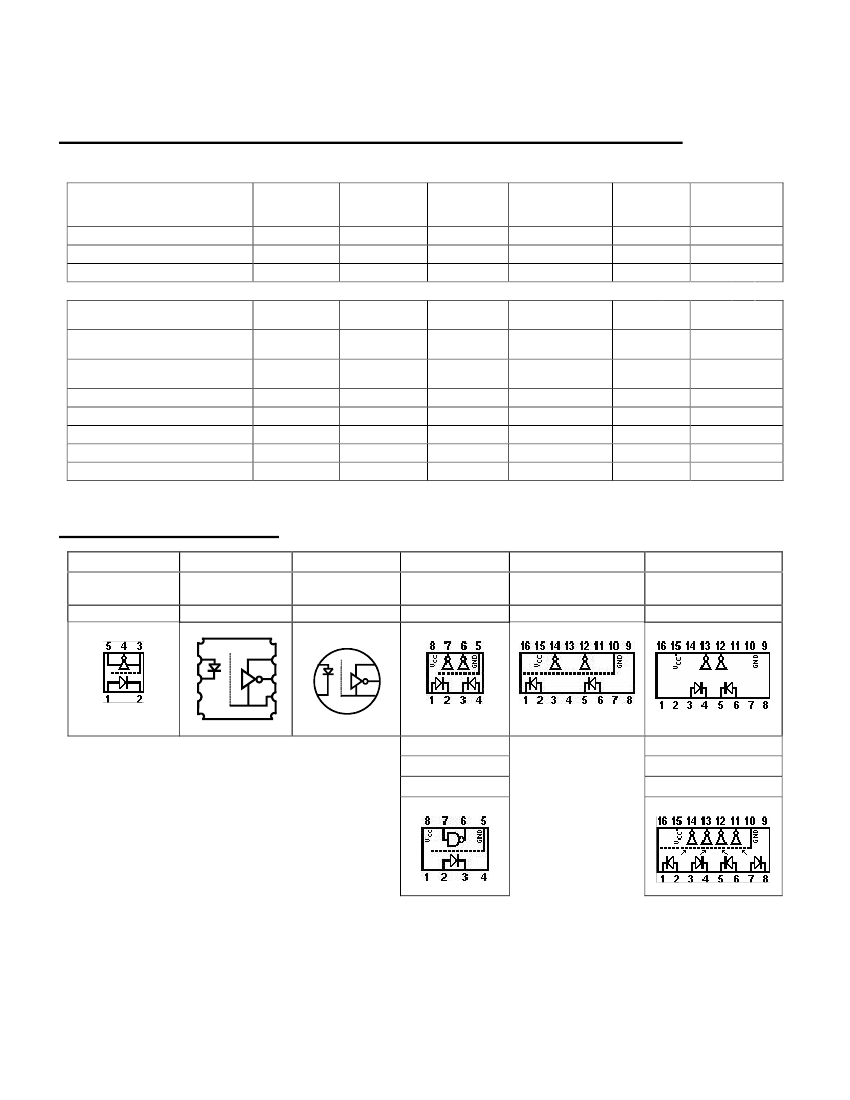

Functional Diagrams
CH350
5 pin Hybrid
1 Channel
CSM1600
6 pad LCC
1 Channel
MC600
6 pin Metal
Can
1 Channel
CD650/651
8 pin DIP
2 Channel
6N134
16 pin DIP
2 Channel
CSM169-2
16 pin Flat Pack
2 Channel
6
1
2
5
4
3
5
3
2
7
1
CS600
8 pin DIP
1 Channel
CSM169-4
16 pin Flat Pack
4 Channel
For sales enquiries, or further information, please contact our sales office at:
Isocom Ltd, Hutton Close, Crowther Industrial Estate, District 3, Washington, NE38 0AH
Tel: +44 0191 4166 546 Fax: +44 0191 4155 055
©2007 Copyright reserved to Isocom Limited
Page 4 of 12
QC 88000-C004: 2011
ISOCOM
LTD
®

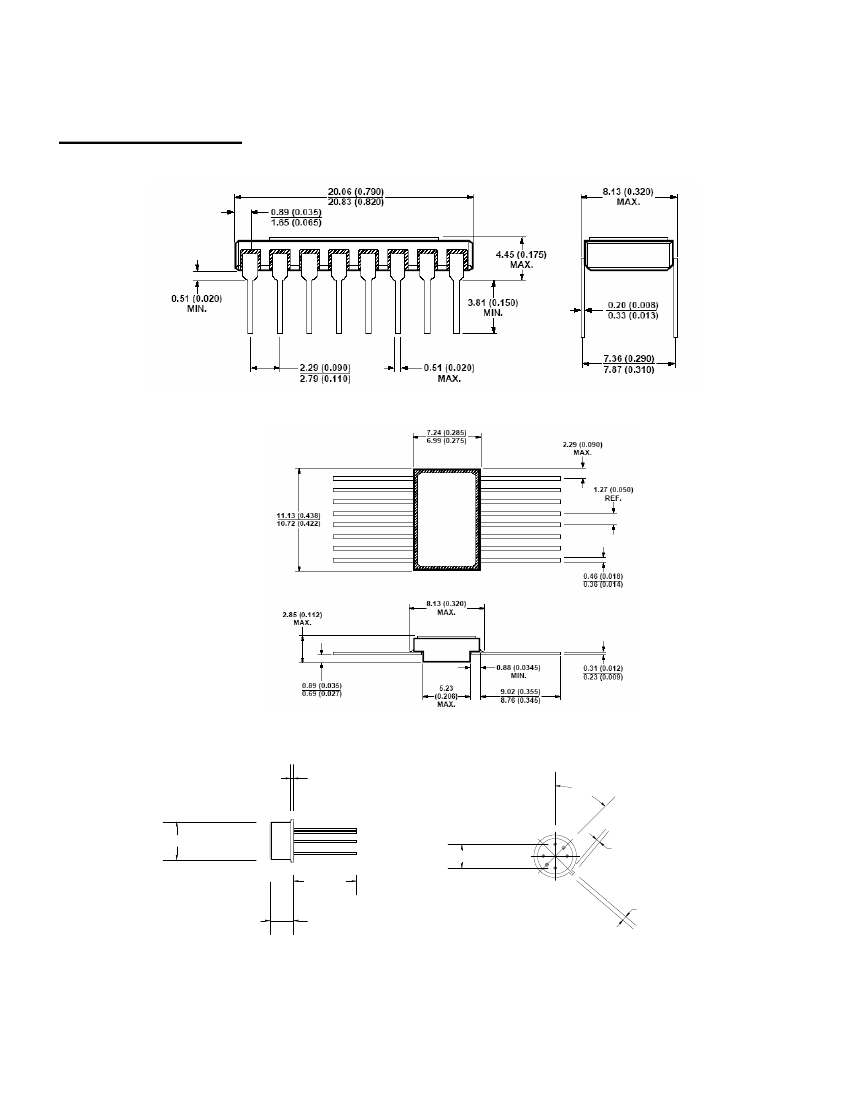

Outline Drawings
16 pin DIP, 4 Channel
16 pin Flat Pack, 2 and 4 Channel
NOTE: DIMENSIONS IN
MILLIMETERS
6 pin TO-5, 1 Channel
6 LEADS
0.0175 (0.445)
0.040(1.02)
45.
0
°
0.32 (8.13)
0.022 (5.08)
0.5 (12.70)
3
2
1
5
6
7
0.037 (0.935)
0.031 (0.787)
0.17 (4.32)
