MOLDED POWER CHOKE COIL
1. PART NO. EXPRESSION :
PIC0402HP SERIES
PIC0402HPR10YN-
(a)
(b)
(c)
(d) (e) (f)
(g)
(a) Series code
(b) Dimension code
(c) Type code
(d) Inductance code : R10 = 0.10uH
(e) Tolerance code : M = ± 20%, Y = ± 30%
(f) Non-coating
(g) Internal control number : 11 ~ 99

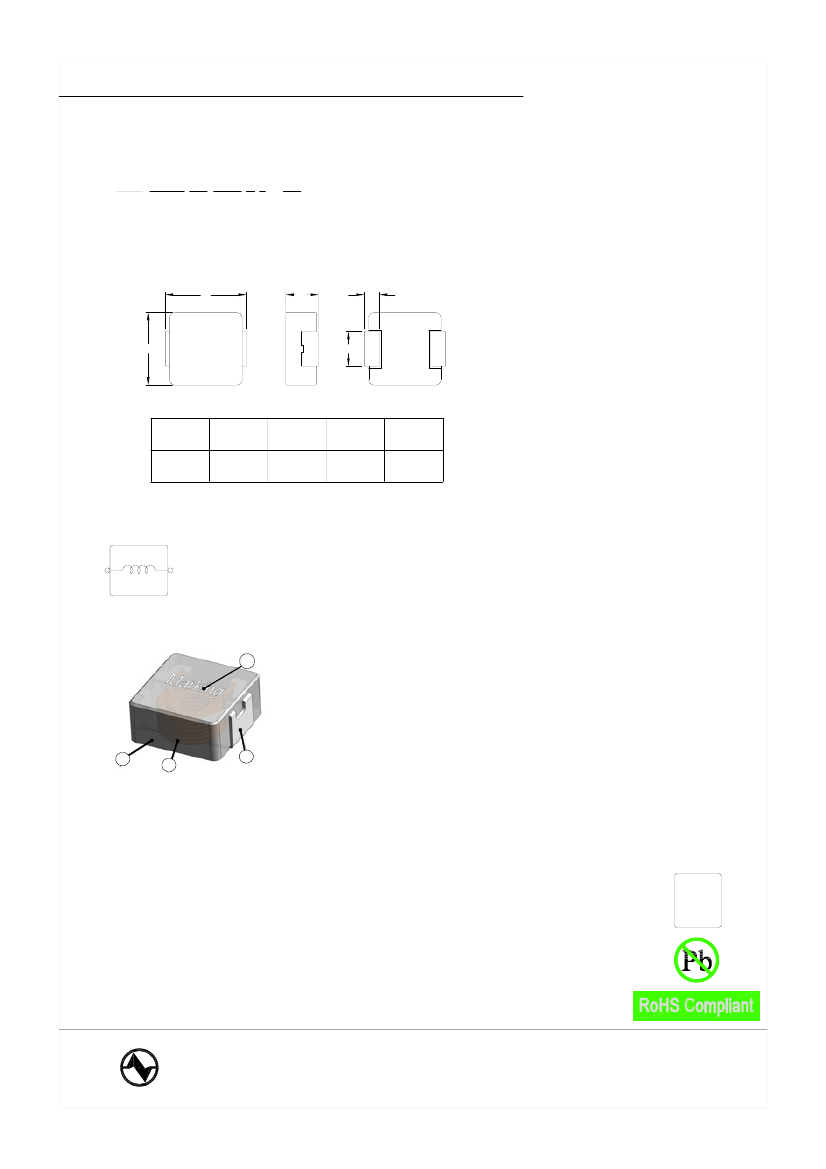

2. CONFIGURATION & DIMENSIONS :
A
C
D
R10
B
E
Unit:m/m
A
B
C
1.8± 0.2
D
E
4.45± 0.25 4.06± 0.25
0.76± 0.30 2.0± 0.20
3. SCHEMATIC :
4. MATERIALS :
d
(a) Core : Magnetic metal powder or equivalent
(b) Wire : Polyester wire or equivalent
(c) Solder Plating : 100% Pb free solder
(d) Ink : Halogen-free ketone
a
c
b
5. GENERAL SPECIFICATION :
a) Test Freq. : L : 100KHz/1V
b) Ambient Temp. : 25° C
c) Operating Temp. : -40° C to +125° C
d) Storage Temp. : -10° C to +40° C
e) Humidity Range : 50 ~ 60% RH (Product without taping)
f) Heat Rated Current (Irms) : Will cause the coil temp. rise approximately t of 40°C (keep 1min.)
g) Saturation Current (Isat) : Will cause L0 to drop 20% typical (keep quickly)
h) Part Temperature (Ambient+Temp. Rise) : Should not exceed 125° C under worst case operating conditions.
NOTE : Specifications subject to change without notice. Please check our website for latest information.
Halogen
Free
HF
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
MOLDED POWER CHOKE COIL
6. ELECTRICAL CHARACTERISTICS :
Inductance L
0
( µH )
@ 0A
0.10 ± 30%
0.22 ± 30%
0.33 ± 20%
0.47 ± 20%
0.56 ± 20%
0.68 ± 20%
1.00 ± 20%
1.20 ± 20%
1.50 ± 20%
2.20 ± 20%
3.30 ± 20%
4.70 ± 20%
5.60 ± 20%
6.80 ± 20%
8.20 ± 20%
10.0 ± 20%
22.0 ± 20%
Irms
(A)
Typ.
12
13
10
8
7.3
7
5.0
4.8
4.5
4.0
3.5
2.6
2.2
2.1
2.0
1.8
1.2
Isat
(A)
Typ.
35
24
18
12
10
10
8.5
7.8
7.0
6.0
4.0
3.5
3.0
2.8
2.5
2.3
1.4
PIC0402HP SERIES
Part No.
PIC0402HPR10YN
PIC0402HPR22YN
PIC0402HPR33MN
PIC0402HPR47MN
PIC0402HPR56MN
PIC0402HPR68MN
PIC0402HP1R0MN
PIC0402HP1R2MN
PIC0402HP1R5MN
PIC0402HP2R2MN
PIC0402HP3R3MN
PIC0402HP4R7MN
PIC0402HP5R6MN
PIC0402HP6R8MN
PIC0402HP8R2MN
PIC0402HP100MN
PIC0402HP220MN
DCR
(m )
Typ. @ 25° C
3.2
6.6
7.8
11.2
13.5
16
22
25
34.8
51
69
95
112
150
158
215
470
DCR
(m )
Max. @ 25° C
4
7.3
8.6
14
16
19
27
30
42
61
76
105
125
172
180
243
500

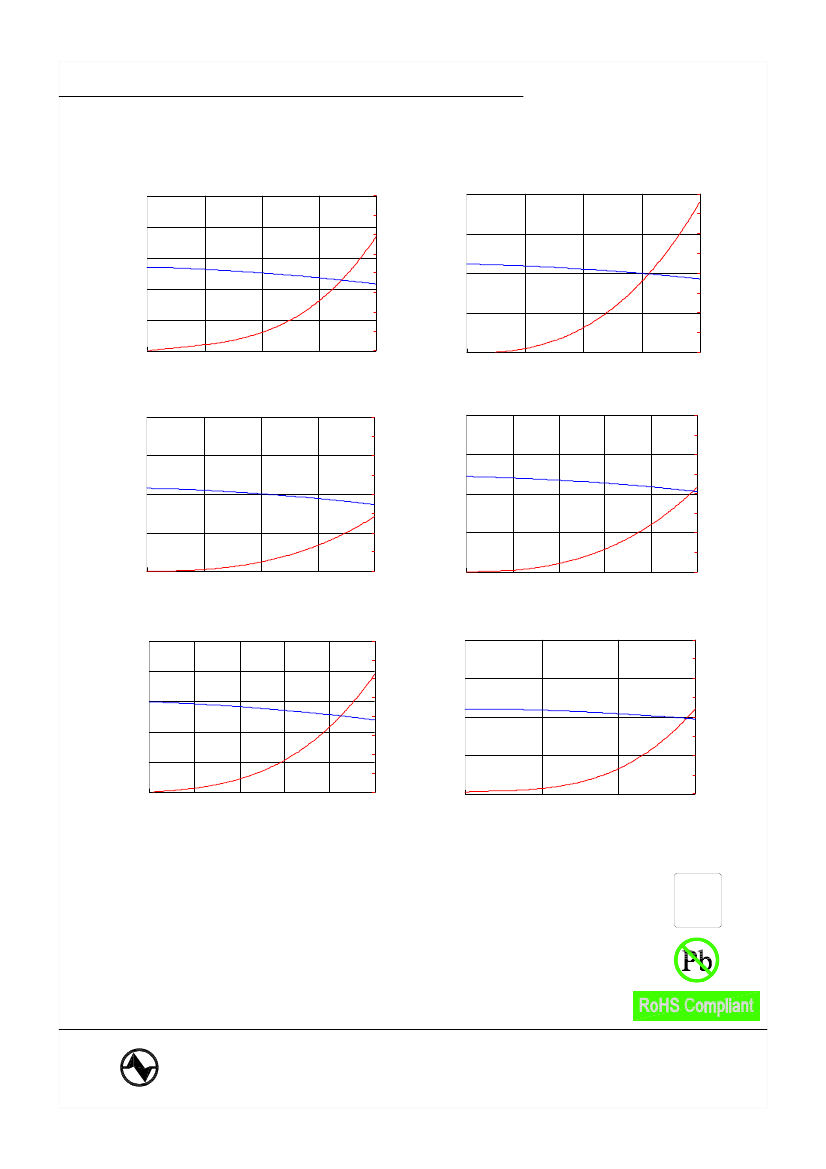

7. CHARACTERISTICS CURVES :
PIC0402HPR10YN
TMPC0402HP-R10
PIC0402HPR22YN
TMPC0402HP-R22
0.2
100
0.4
80
70
80
INDUCTANCE (uH)
INDUCTANCE (uH)
0.15
0.3
60
50
60
0.1
40
TEMP. RISE(
o
C)
0.2
40
30
0.05
20
0.1
20
10
0
0
0
0
0
6
12
18
24
30
0
4.5
9
13.5
18
DC CURRENT(A)
DC CURRENT(A)
Halogen
Free
HF
NOTE : Specifications subject to change without notice. Please check our website for latest information.
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
TEMP. RISE(
o
C)
25.02.2011
MOLDED POWER CHOKE COIL

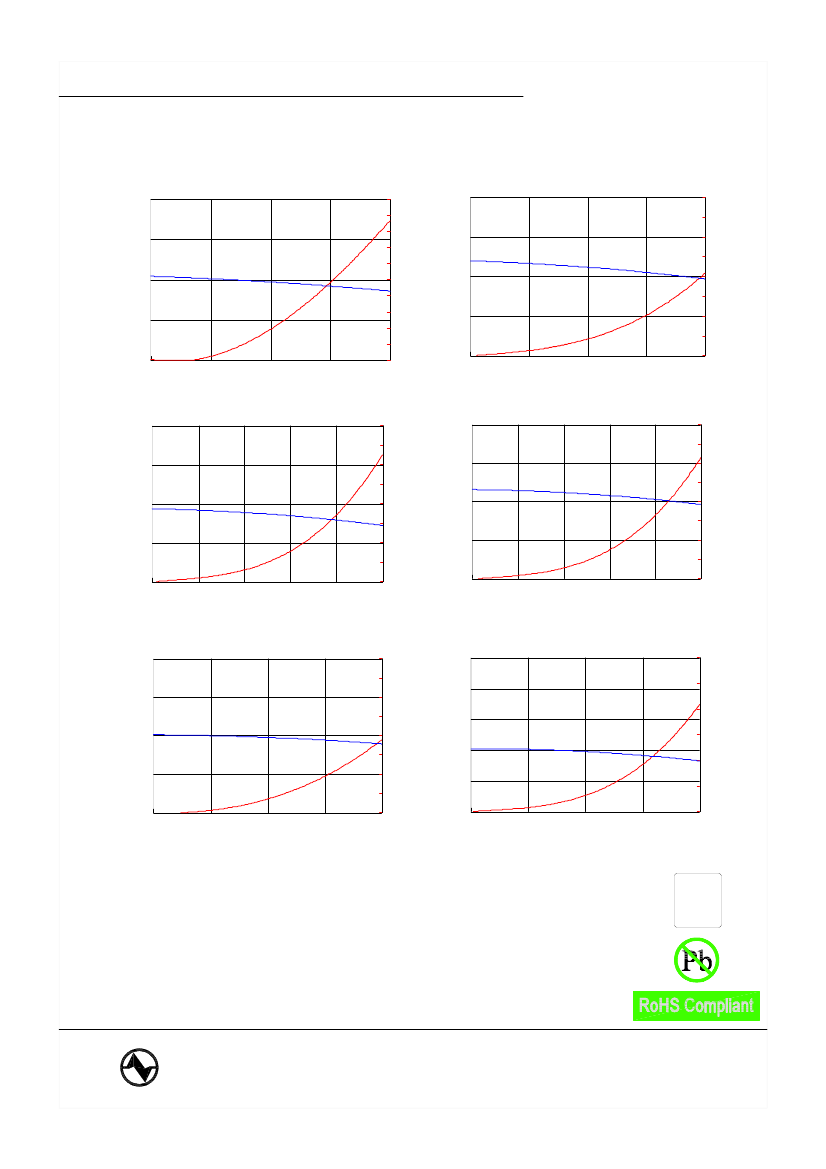

7. CHARACTERISTICS CURVES :
PIC0402HP SERIES
0.6
PIC0402HPR33MN
TMPC0402HP-R33
100
90
80
0.8
PIC0402HPR47MN
TMPC0402HP-R47
80
70
INDUCTANCE (uH)
TEMP. RISE(
o
C)
50
0.4
40
30
0.2
20
10
60
0.3
50
40
30
0.15
20
10
0
0
0
0
0
4 .5
9
13.5
18
0
3
6
9
12
DC CURRENT(A)
DC CURRENT(A)
1.2
PIC0402HPR56MN
TMPC0402HP-R56
80
70
1.2
PIC0402HPR68MN
TMPC0402HP-R68
80
70
INDUCTANCE (uH)
INDUCTANCE (uH)
0.9
60
0.9
60
50
50
0.6
40
30
0.3
20
10
0
0
TEMP. RISE(
o
C)
0.6
40
30
0.3
20
10
0
0
0
2.2
4.4
6.6
8.8
11
0
2
4
6
8
10
DC CURRENT(A)
DC CURRENT(A)
2
PIC0402HP1R0MN
TMPC0402HP-1R0
80
70
3
PIC0402HP1R2MN
TMPC0402HP-1R2
120
2.4
100
INDUCTANCE (uH)
INDUCTANCE (uH)
1.5
60
TEMP. RISE(
o
C)
80
1.8
60
1.2
40
0.6
50
1
40
30
0.5
20
20
10
0
0
0
0
0
2
4
6
8
0
2
4
6
8
DC CURRENT(A)
DC CURRENT(A)
Halogen
Free
HF
NOTE : Specifications subject to change without notice. Please check our website for latest information.
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
70
INDUCTANCE (uH)
0.45
0.6
60
MOLDED POWER CHOKE COIL
7. CHARACTERISTICS CURVES :
PIC0402HP1R5MN
TMPC0402HP-1R5
PIC0402HP SERIES
3
80
70
4
PIC0402HP2R2MN
TMPC0402HP-2R2
80
70
2.4
INDUCTANCE (uH)
INDUCTANCE (uH)
60
3
60
50
1.8
50
40
2
40
30
1.2
30
20
1
20
10
0.6
10
0
0
0
1.875
3.75
5.62 5
7.5
0
0
DC CURRENT(A)
0
1.5
3
4.5
6
DC CURRENT(A)
6
PIC0402HP3R3MN
TMPC0402HP-3R3
80
70
8
PIC0402HP4R7MN
TMPC0402HP-4R7
80
70
INDUCTANCE (uH)
INDUCTANCE (uH)
4.5
60
6
60
50
50
3
40
30
1.5
20
10
0
0
4
40
30
2
20
10
0
0
0
1
2
3
4
0
0.7
1.4
2 .1
2.8
3.5
DC CURRENT(A)
DC CURRENT(A)
10
PIC0402HP5R6MN
TMPC0402HP-5R6
80
70
12
PIC0402HP6R8MN
TMPC0402HP-6R8
80
70
8
INDUCTANCE (uH)
60
9
60
50
INDUCTANCE (uH)
TEMP. RISE(
o
C)
6
50
40
6
40
30
4
30
20
2
10
0
0
3
20
10
0
0.7
1.4
2.1
2.8
3.5
0
0
DC CURRENT(A)
0
0.9
1.8
2 .7
DC CURRENT(A)
Halogen
Free
HF
NOTE : Specifications subject to change without notice. Please check our website for latest information.
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
MOLDED POWER CHOKE COIL
7. CHARACTERISTICS CURVES :
PIC0402HP8R2MN
TMPC0402HP-8R2
PIC0402HP SERIES
16
80
70
20
PIC0402HP100MN
TMPC0402HP-100
80
70
16
INDUCTANCE (uH)
INDUCTANCE (uH)
12
60
60
TEMP. RISE(
o
C)
50
8
40
30
4
20
10
0
0
12
50
40
8
30
20
4
10
0
0
0
0.6
1.2
1.8
2.4
3
0
0.575
1.15
1.725
2.3
DC CURRENT(A)
DC CURRENT(A)
40
PIC0402HP220MN
TMPC0402HP-220
80
70
30
60
50
INDUCTANCE (uH)
20
40
30
10
20
10
0
0
0
0.4
0.8
1.2
1.6
DC CURRENT(A)
TEMP. RISE(
o
C)
Halogen
Free
HF
NOTE : Specifications subject to change without notice. Please check our website for latest information.
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
TEMP. RISE(
o
C)
