CA3101R28-1P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CA3101R28-1P

CA3101R28-1P: DescriptionMIL Series Connector, 9 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

CA3101R28-1P Overview

MIL Series Connector, 9 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug

CA3101R28-1P Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-5015, HIGH RELIABILITY
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact completed and terminated	SILVER
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	CA3101
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CHROMATE PLATED
Shell material	ALUMINUM ALLOY
Housing size	28
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

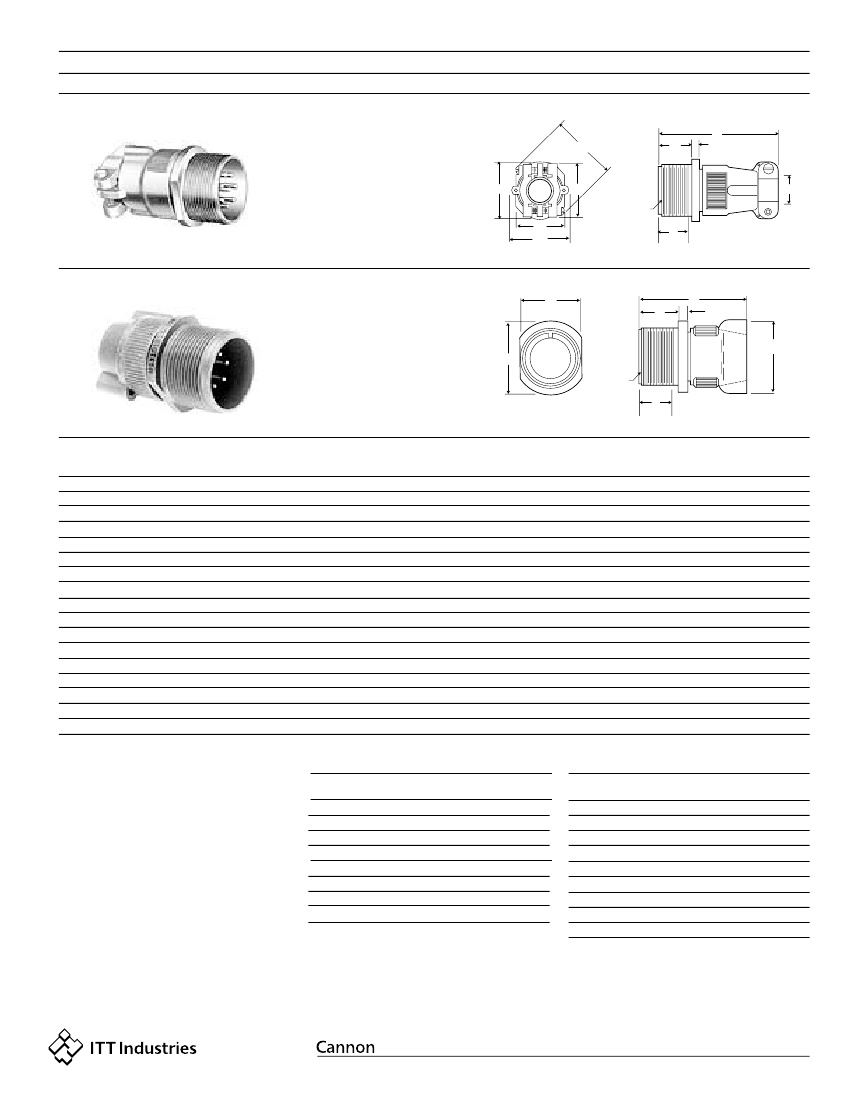

MIL-C-5015 Connectors

Cable Connecting Plug (Receptacle with no mounting flange)

MS3101E/MS3101F

Integral Cable Clamp

CA3101E/CA3101E

MS-E/F/R/ER

MS3101E cable connecting

plugs are used for cable

extension requirements, where

mounting provisions are

unnecessary.

MS3101E plugs mate with

3106, 3107 and 3108 plugs.

Note: the D revision of

MIL-C-5015 has changed the

nomenclature of the 3101 from

receptacle to plug.

A Thd.

MS3101R

CA3101R

MS3101R cable connecting plug

is identical in purpose to the

MS3101E. The MS3101R

features a shorter lightweight

endbell and mates with 3106,

3107 and 3108 plugs. Note:

The D revision of the

MIL-C-5015 specification has

changed the nomenclature of

the 3101 from receptacle to

plug.

Max.

2.250 (57.15)

2.625 (66.68)

2.625 (66.58)

2.688 (68.28)

2.750 (69.85)

2.969 (75.44)

3.031 (76.99)

3.281 (83.34)

3.560 (89.66)†

Max.

A Thd.

Shell

Size

10S

10SL

12S

14S

16S

*40

Min.

.375 (9.53)

.625(15.88)

Max.

.235 (5.97)

.297 (7.54)

.422 (10.72)

.547 (13.89)

.297 (7.54)

.422 (10.72)

.547 (13.89)

.610 (15.49)

.735 (18.67)

.740 (18.80)

Min.

.102 (2.59)

.140 (3.56)

.195 (4.95)

.255 (6.48)

.140 (3.56)

.195 (4.95)

.255 (6.48)

.285 (7.24)

.350 (8.89)

Max.

+.031(0.79)

-.000(0.00)

.562 (14.27)

.750 (19.05)

.812 (20.62)

.875 (22.23)

Max.

.890 (22.61)

.970 (24.64)

1.150 (29.21)

1.250 (31.75)

.970 (24.64)

1.150 (29.21)

1.250 (31.75)

1.450 (36.83)

1.570 (39.88)

1.880 (47.75)

2.205 (56.01)

2.400 (60.96)

2.840 (72.14)

Max.

.515 (13.08)

.640 (16.26)

.765 (19.43)

.890 (22.61)

1.015 (25.78)

.765 (19.43)

.890 (22.61)

1.015 (25.78)

1.140 (28.96)

1.265 (32.13)

1.390 (35.31)

1.515 (38.48)

1.765 (44.83)

2.015 (51.18)

2.270 (57.66)

2.427 (61.65)

Max.

.840 (21.34)

.900 (22.86)

1.00 (27.94)

1.200 (30.48)

.900 (22.86)

1.100 (27.94)

1.200 (30.48)

1.300 (33.02)

1.500 (38.10)

1.740 (44.20)

2.075 (52.71)

2.300 (58.42)

2.688 (68.28)

Max.

1.046 (26.57)

1.125 (28.58)

1.343 (34.11)

1.484 (37.69)

1.125 (28.58)

1.343 (34.11)

1.484 (37.69)

1.609 (40.87)

1.890 (48.01)

2.170 (55.12)

2.656 (67.46)

2.922 (74.22)

.844 (21.44) .125 (3.18)

.969 (24.61) .125 (3.18)

1.062 (26.97) .125 (3.18)

1.062 (26.97) .140 (3.56)

1.156 (29.36) .140 (3.56)

1.281 (32.54) .140 (3.56)

1.062 (26.97) .146 (3.71)

1.156 (29.36) .146 (3.71)

1.281 (32.54) .146 (3.71)

1.344 (34.14) .180 (4.57)

1.500 (38.10) .180 (4.57)

1.625 (41.28) .180 (4.57)

1.750 (44.45) .203 (5.16)

2.000 (50.80) .203 (5.16)

2.250 (57.15) .203 (5.16)

2.500 (63.50) .203 (5.16)

2.750 (69.85) .203 (5.16)

1.838 (46.69)

2.181 (55.40)

2.281 (55.40)

2.322 (58.98)

2.427 (61.65)†

.922 (23.42) .468 (11.89)

1.235 (31.37) .664 (15.87)

1.360 (34.54) .694 (17.63)

1.628 (41.35) .911 (23.14)

†Not to MS specification

*Not Available in MS3101E and MS3101R.

Shell

Size

10S

10SL

12S

14S

16S

Thread

1/2-28UNEF-2A

5/8-24UNEF-2A

3/4-20UNEF-2A

7/8-20UNEF-2A

1-20UNEF-2A

3/4-20UNEF-2A

7/8-20UNEF-2A

Shell

Size

Thread

1-20UNEF-2A

1-1/8-18UNEF-2A

1-1/4-18UNEF-2A

1-3/8-18UNEF-2A

1-1/2-18UNEF-2A

1-3/4-18UNS-2A

2-18UNS-2A

2-1/4-16UN-2A

2-1/2-16UN-2A

Performance Specifications - Page 168

Contact, Sealing Plugs, Assembly Tools - Page

187

Contact Arrangements - Page 171-174

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

www.ittcannon.com

175
