WIREWOUND CHIP INDUCTORS

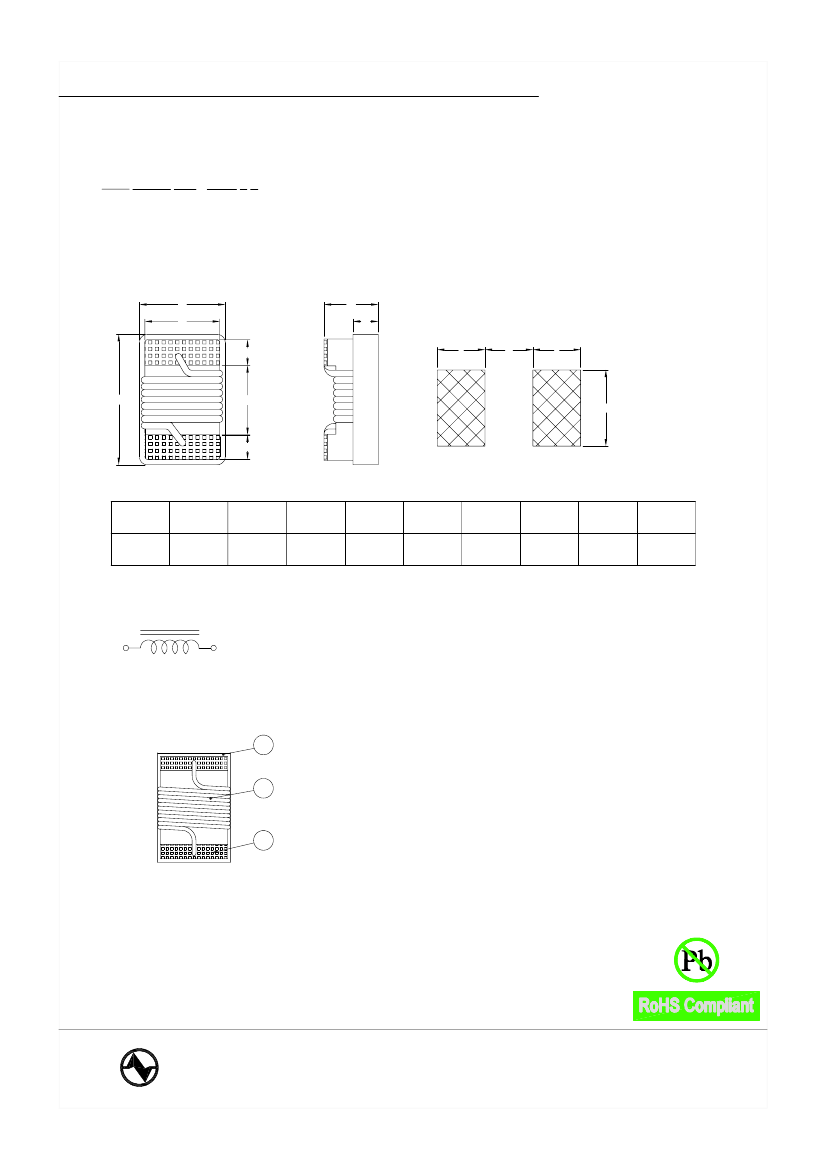

1. PART NO. EXPRESSION :
SCI0805HQ SERIES
SCI0805HQ-2N5JF
(a)
(b)
(c)
(d) (e)(f)
(a) Series code
(b) Dimension code
(c) Type code : HQ ( High Q factor )
(d) Inductance code : 2N5 = 2.5nH
(e) Tolerance code : G = ±2%, J = ±5%, K = ±10%
(f) F : RoHS Compliant
2. CONFIGURATION & DIMENSIONS :
B
E
C
D
I
J
I
A
G
F
F
PCB Pattern
Unit:m/m
A
2.29 Max.
B
C
D
0.51 Ref.
E
1.27 Ref.
F
0.44 Ref.
G
1.02 Ref.
H
1.78 Ref.
I
1.02 Ref.
J
0.76 Ref.
1.73 Max. 1.52 Max.
3. SCHEMATIC :
4. MATERIALS :
a
(a) Core : Ceramic U core
(b) Wire : Enamelled Copper Wire
b
(c) Terminal Metallization : Ag + Ni + Au
c
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
WIREWOUND CHIP INDUCTORS
5. GENERAL SPECIFICATION :
a) Storage temp. : -25°C to +80°C
b) Operating temp. : -40°C to +125°C
c) Temperature rise : 40°C Max.
d) Rated current : Base on temp. rise & L/L0A=10% Max.
e) Resistance to solder heat : 260°C.10sec
SCI0805HQ SERIES
6. ELECTRICAL CHARACTERISTICS :
Part No.
SCI0805HQ-2N5 F
SCI0805HQ-5N6 F
SCI0805HQ-6N2 F
SCI0805HQ-6N8 F
SCI0805HQ-8N2 F
SCI0805HQ-12N F
SCI0805HQ-16N F
SCI0805HQ-18N F
SCI0805HQ-20N F
SCI0805HQ-27N F
SCI0805HQ-30N F
SCI0805HQ-39N F
SCI0805HQ-48N F
SCI0805HQ-51N F
Inductance tolerance :
: G : ±2%
J : ±5%
K : ±10%
Tolerance
Available
K, J
K, J
K, J
K, J
K, J
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
L
( nH )
2.5
5.6
6.2
6.8
8.2
12
16
18
20
27
30
39
48
51
Test
Freq
( MHz )
250
250
250
250
250
250
250
250
250
250
250
250
200
200
Q
Min.
80
98
88
80
75
80
72
75
70
75
65
65
65
65
Q Test
Freq
( MHz )
1500
1500
1000
1000
1000
1000
500
500
500
500
500
500
500
500
SRF
( MHz )
Min.
6000
6000
4750
4400
3000
3000
2950
2550
2050
2000
1950
1600
1400
1400
DCR
( )
Max.
0.020
0.035
0.035
0.035
0.075
0.045
0.060
0.060
0.055
0.070
0.095
0.110
0.095
0.120
IDC
(mA)
Max.
1600
1600
1600
1600
1000
1600
1500
1400
1400
1300
1200
1100
1200
1000
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
WIREWOUND CHIP INDUCTORS

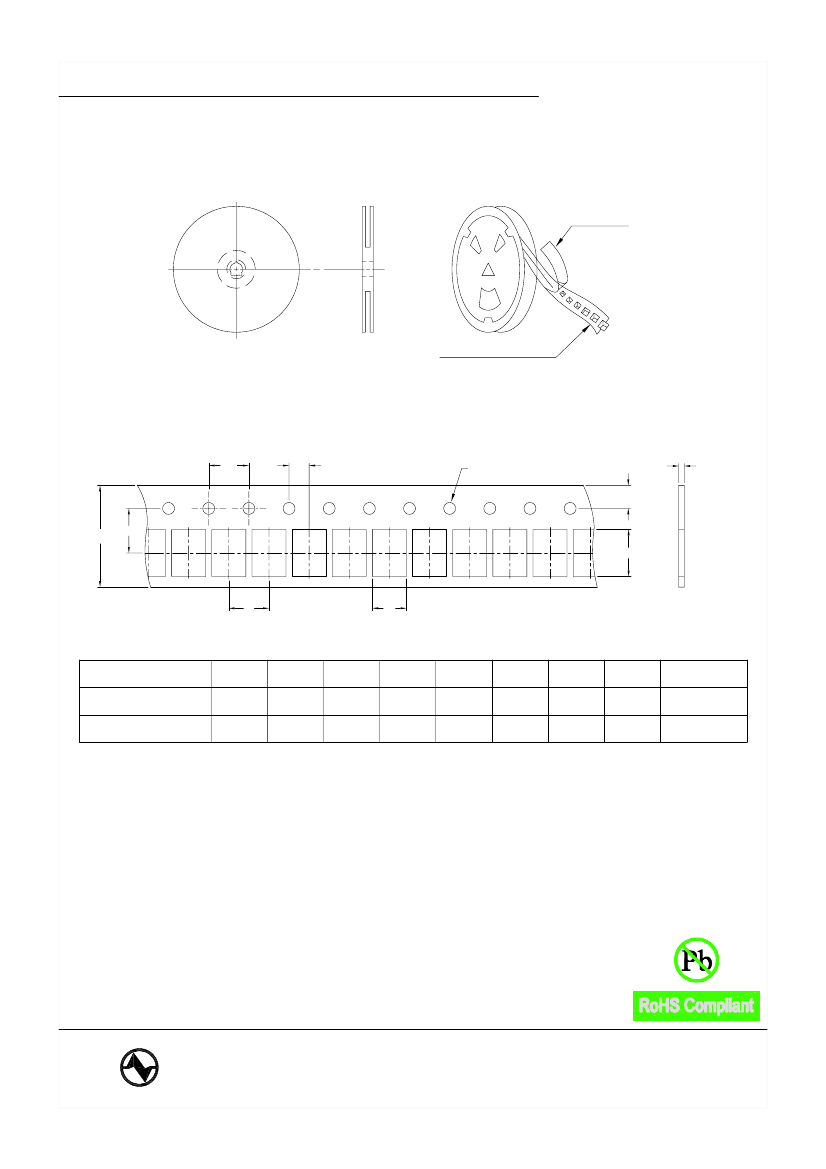

7. PACKAGING INFORMATION :
Reel Configuration :
SCI0805HQ SERIES
COVER TAPE
EMBOSSED CARRIER
Paper Tape :
1.75±0.1
P0
P1
Ø1.5
H
W
F
P
Dimension (unit: mm)
Series
SCI0402S
SCI0603S
A
0.72
1.35
B
1.19
1.95
H
0.60
0.95
A
F
3.50
3.50
P
4.00
4.00
P0
4.00
4.00
P1
2.00
2.00
B
W
8.00
8.00
Qty
4000pcs / reel
4000pcs / reel
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
WIREWOUND CHIP INDUCTORS
SCI0805HQ SERIES

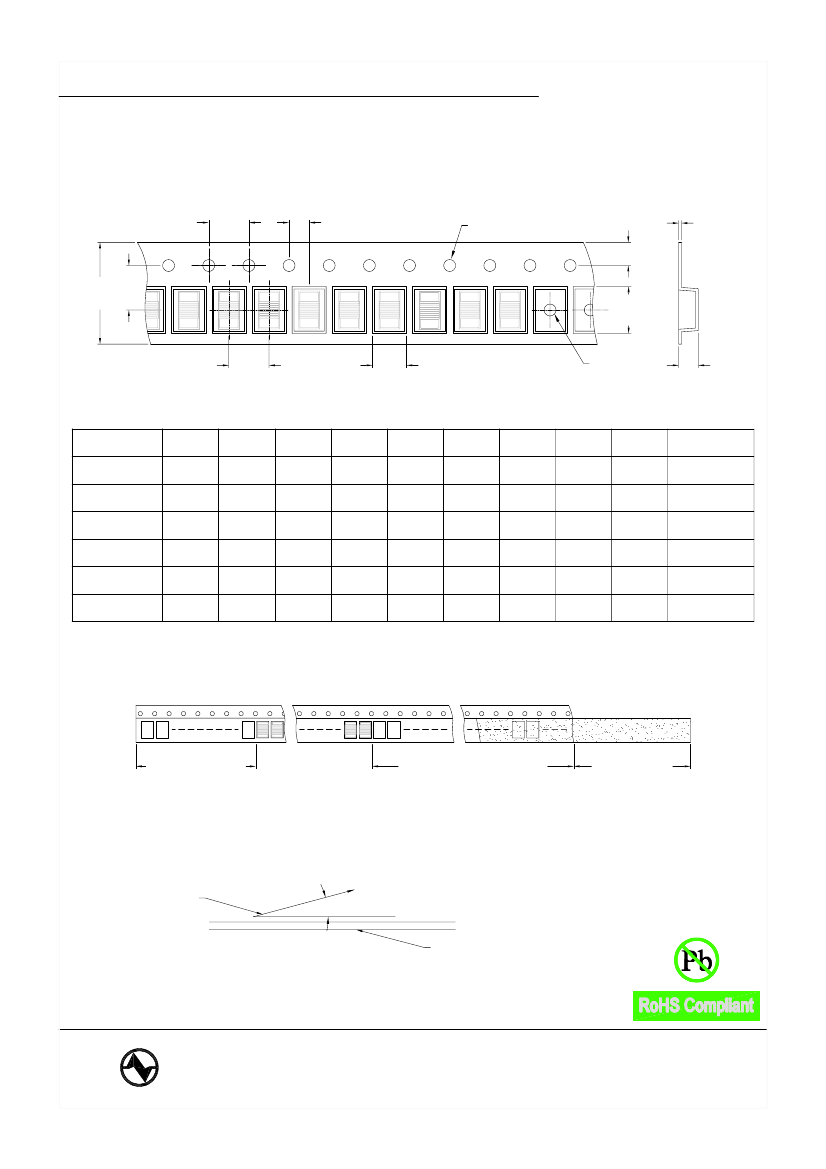

Embossed Carrier Tape :
F±0.1
4±0.1
G±0.05
Ø1.5
J±0.05
A±0.2
E±0.05
C±0.1
B±0.1
Ø1.5
Dimension (unit: mm)
Series
SCI0805S
SCI0805LP
SCI0805HQ
SCI1008S
SCI1008LP
SCI1008HQ
A
8
8
8
8
8
8
B
1.85
1.80
1.85
2.70
2.70
2.70
C
4
4
4
4
4
4
D
2.30
2.30
2.30
2.80
2.80
2.80
E
3.5
3.5
3.5
3.5
3.5
3.5
F
1.75
1.75
1.75
1.75
1.75
1.75
G
2
2
2
2
2
2
H
1.45
0.90
1.45
2.00
1.50
2.00
J
0.23
0.23
0.23
0.23
0.23
0.23
Qty
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
2000pcs / reel
Leader/Trailer Tape :
Trailer End
Leader End
Trailer (80mm min.)
Empty compartments
with cover tape (100mm min.)
Cover tape only
(250mm min.)
Peel-off Force :
Peel-off force should be in the range of 0.1N~0.7N at a peel-off speed of 300±10mm/min.
Peeling Direction
Top cover tape
<1 0
°
Base tape
NOTE : Specifications subject to change without notice. Please check our website for latest information.
D±0.1
H±0.05
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
WIREWOUND CHIP INDUCTORS
8. ENVIRONMENTAL CHARACTERISTICS :
Electrical Performance Test :
SCI0805HQ SERIES
ITEM
1
Inductance
SPECIFICATION
TEST CONDITIONS / TEST METHODS
HP4291B
2
Q
Refer to Electrcal
Characteristics List
HP4291B
3
SRF
HP8753D
4
DC Resistance Rdc
Mico-Ohmmeter (GOM-801G)
5
Rated Current IDC
The device should be REFLOW soldered (230±5°C for
10 seconds) to a tinned copper subs rate. A dynamiter
6
Over Load Test
After test, inductors shall
have no evidence of
electrical and mechanical
damage
Applied 2 times of rated allowed DC current to inductor
for a period of 5 minute.
7
Withstanding
Voltage Test
After test, inductors shall
have no evidence of
electrical and mechanical
damage
AC voltage of 500VAC applied between inductors
terminal and case for 1 minute.
8
Insulation
Resistance Test
1000 MOhm min.
100VDC applied between inductor terminal and case
NOTE : Specifications subject to change without notice. Please check our website for latest information.
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
