SCI0805LP-12NJF

Description
WIREWOUND CHIP INDUCTORS
File Size286KB,7 Pages
ManufacturerSUPERWORLD
Websitehttp://www.superworld.com.sg/
Download Datasheet View All

SCI0805LP-12NJF Overview

WIREWOUND CHIP INDUCTORS

WIREWOUND CHIP INDUCTORS

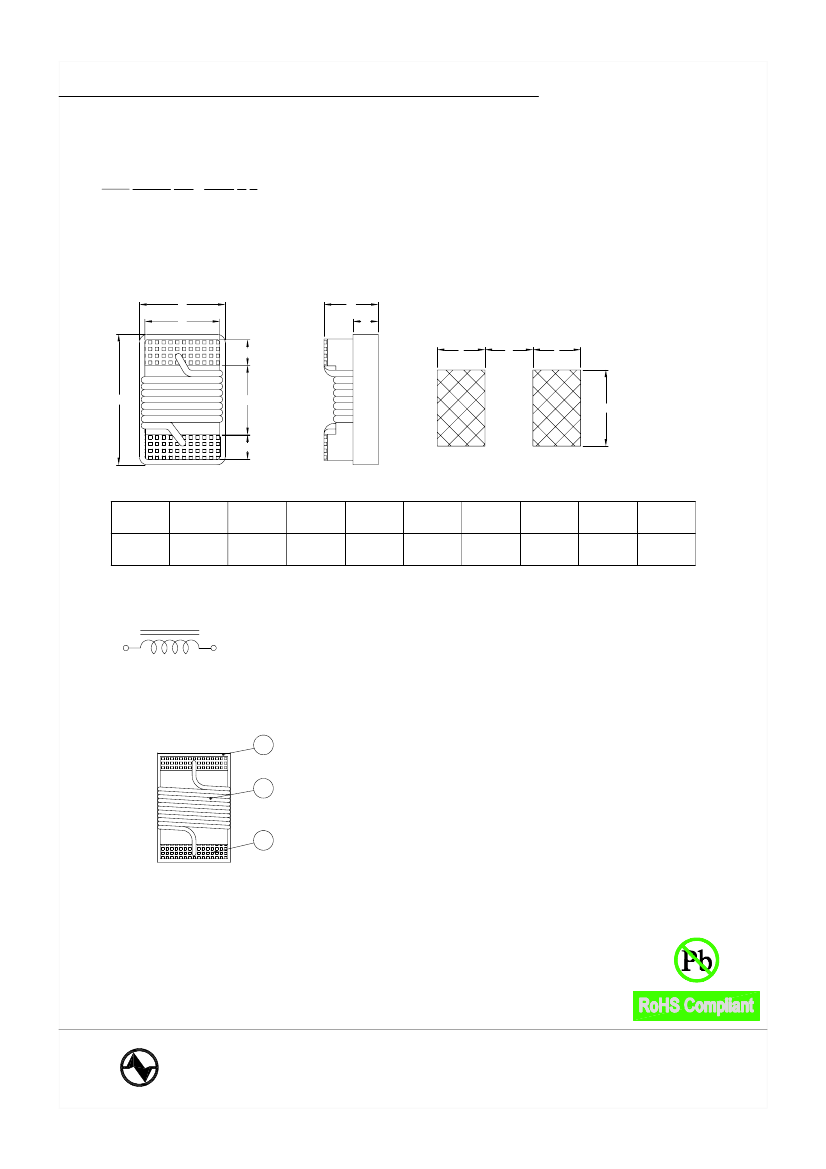

1. PART NO. EXPRESSION :
SCI0805LP SERIES
SCI0805LP-1N8KF
(a)
(b)
(c)
(d) (e)(f)
(a) Series code
(b) Dimension code
(c) Type code : LP ( Low Profile )
(d) Inductance code : 1N8 = 1.8nH
(e) Tolerance code : G = ±2%, J = ±5%, K = ±10%
(f) F : RoHS Compliant
2. CONFIGURATION & DIMENSIONS :
B
E
C
D
I
J
I
A
G
F
F
PCB Pattern
Unit:m/m
A
2.29 Max.
B
C
D
0.51 Ref.
E
1.27 Ref.
F
0.44 Ref.
G
1.02 Ref.
H
1.78 Ref.
I
1.02 Ref.
J
0.76 Ref.
1.73 Max. 1.03 Max.
3. SCHEMATIC :
4. MATERIALS :
a
(a) Core : Ceramic U core
(b) Wire : Enamelled Copper Wire
b
(c) Terminal Metallization : Ag + Ni + Au
c
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
22.06.2010
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
